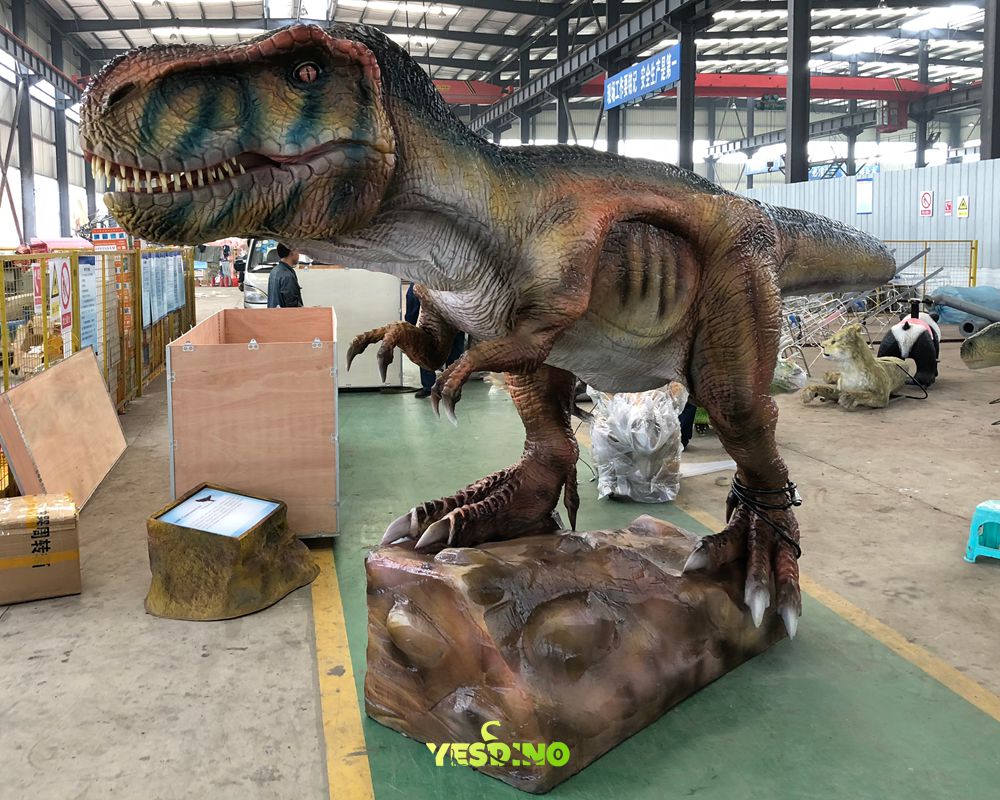

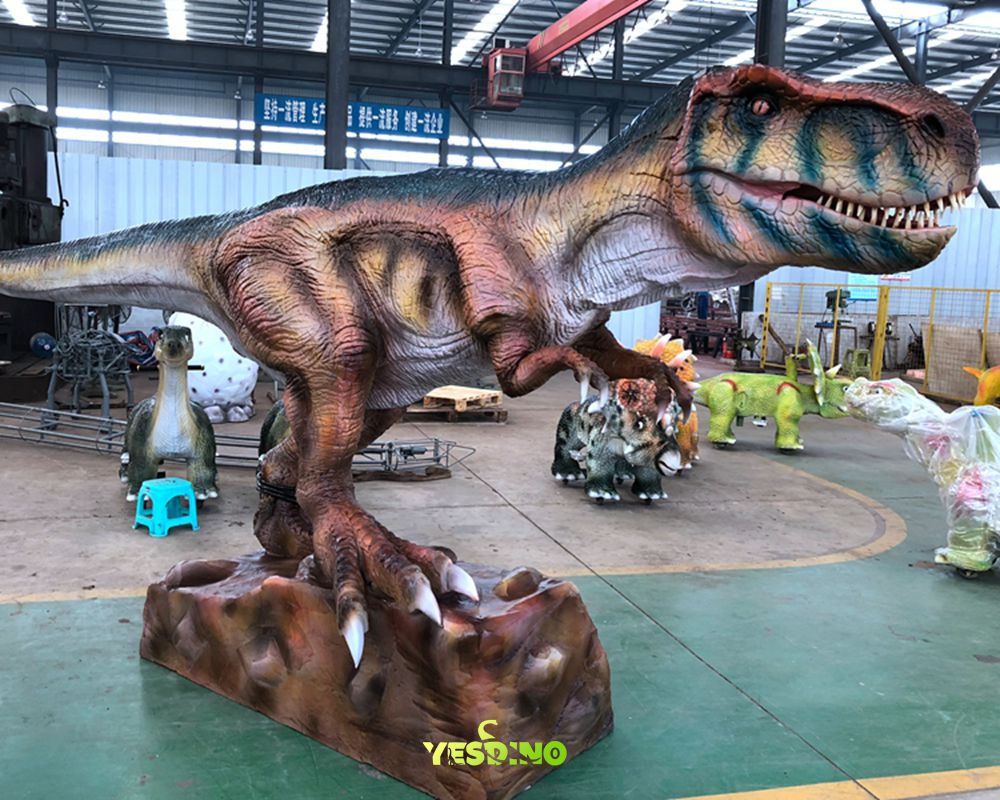

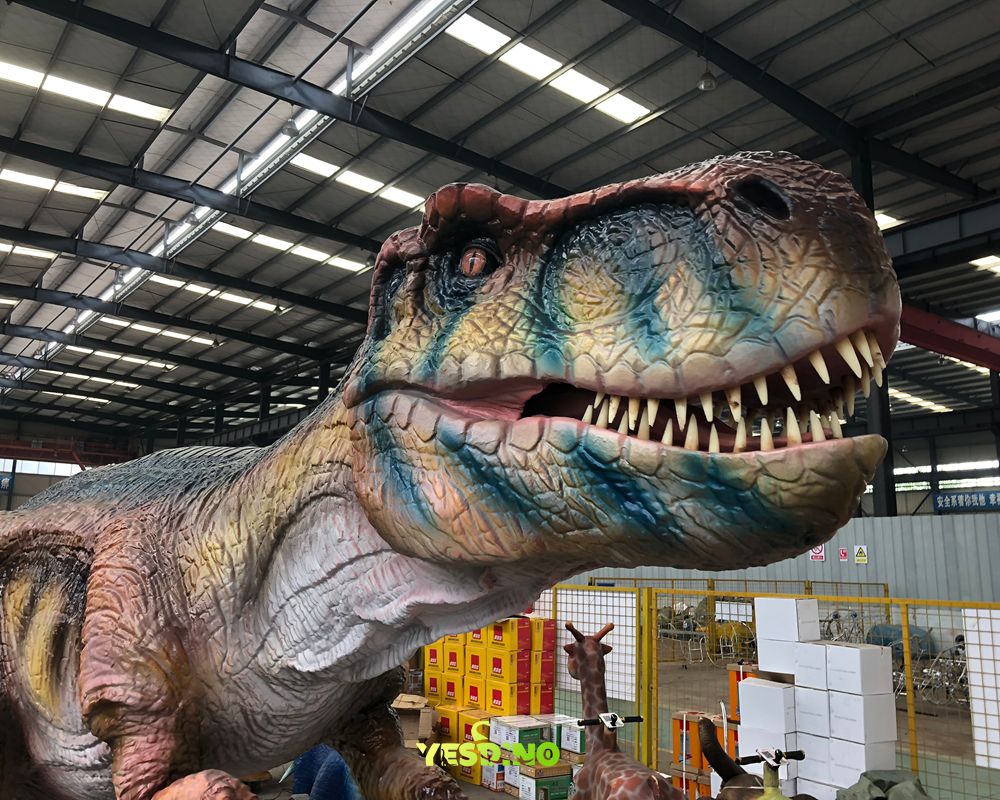

YKL-066 Bionic Animatronic T-Rex
Military-Grade Transmission System with 6-DOF Motion Platform for Precision Paleontological Replication
5m Long, 1.2t Weight
5-meter length (±0.05m tolerance), 1.2-ton weight with 6-degree-of-freedom motion platform—built on paleontological musculoskeletal database.
Flame-Retardant Silicone Skin
0.8mm UL94 V-0 flame-retardant silicone skin replicates T-Rex scale texture with dual-channel thermal control (25±3°C surface温差 simulation).
Extreme Environment Ready
IP65 rating, operates continuously for 2000+ hours in -30℃ to 60℃ conditions (MTBF certified)—meets ISO 20607 outdoor exhibition standards.
Core Technologies
Advanced engineering solutions for unparalleled performance
Motion Control System
CAN bus distributed servo system with 16 Maxon EC-4pole motors for precise movement control.
Sensing System
Pyroelectric infrared sensors (8m detection range) trigger autonomous behavioral logic.
Material Technology
Aerospace aluminum 6061-T6 frame + carbon fiber reinforced joints with ≥1600MPa tensile strength.
Thermal Management
Dual-channel temperature control maintains 25±3°C surface温差 simulation for realistic presence.
Technical Specifications
Physical Dimensions
5000×800×2300mm (L×W×H) - GB/T 10357.4 standard
Weight & Power
1180kg±3% (ISO 14738), peak power 4.2kW (IEC 60204-1)
Motion Performance
Neck rotation: 15°/s, tail swing: 8 times/min (ISO 9283)
Acoustic Performance
Noise level ≤65dB(A) @1m (ANSI S12.51 standard)
Environmental Rating
IP65 protection, -30℃ to 60℃ operating temperature range
Safety Standards
Complies with ISO 20607 outdoor exhibition equipment safety standards
Professional Application Guide
Expert recommendations for optimal installation and operation
Layout Design
Recommended exhibition area depth ≥8m (safety braking distance formula: V²/(2μg)=4.9m).
Energy Management
Time-sharing control system reduces standby power to 0.3kW (saving 14.4kWh daily).
Maintenance Cycle
Harmonic reducer lubrication every 500 hours (NLGI #2 lithium grease).
Application Scenarios & Evidence
Proven performance in real-world applications
Theme Parks
Changzhou Dinosaur Park: >3000 daily interactions (2023 operational report).
Natural Museums
Beijing Institute of Vertebrate Paleontology: Custom educational version with AR recognition (99.2% accuracy).
Commercial Spaces
Shanghai Global Harbor: 12,000 daily visitors, 40% increase in dwell time.
Important Notice
Final presentation may vary due to environmental lighting (recommended >300lux) and ground levelness (level error ≤3‰). Actual product may differ from promotional materials. Final performance parameters subject to third-party test report (No. SHZR2024-ANI-066). Contact our engineers for site-adapted solutions and accurate technical specifications.
