Theming with Animatronic Dinosaurs: 5 Park Layout Strategies

A park layout gets settled long before anyone orders a dinosaur. Somebody marks a rectangle on a site plan because the space looks empty, the models turn up eleven months later, and the first thing everyone notices is that the T-Rex is facing a toilet block.

We've been building animatronic pieces since 2015, and the layouts that hold up tend to solve the same five problems, roughly in the same order. None of them are expensive to get right at drawing stage. All of them are awkward to fix once the concrete is poured.

The order matters: zone the route first, place the hero piece second, then fit the details around them. Doing it the other way — picking plant species and bench positions before the walking route exists — is how parks end up with a 6-metre Brachiosaurus squeezed behind a kiosk.

1. Zone by era, but build a route rather than a museum

Grouping pieces by geological period works, and not because visitors read the panels. It works because a route with a beginning and an end gives people a reason to keep walking in one direction instead of milling around the first three exhibits and leaving.

The practical version, for a park of roughly twelve to fifteen pieces:

Zone	Pieces	Spacing	What it does
Cretaceous	6–8	20–30 m between large pieces	The silhouettes people recognise, placed where foot traffic is heaviest
Jurassic	3–4	20–25 m	Middle-route scale change, taller necks, longer sightlines
Triassic	2–3	8–12 m	A quiet start or a calm finish, with smaller pieces closer together

Two things worth avoiding. First, don't run strict chronology for its own sake — a visitor walking a 400-metre loop is reading scale, colour and motion, not signage. If the scientifically correct order puts three small brown animals at the start, the park opens on a whisper. Second, don't put the largest piece at the far end of a long route. Families are tired by then, the photo happens anyway, and the walk back is the part they remember.

A workable compromise: open with one mid-size piece as a signal, build through the middle, and hold the biggest silhouette for the two-thirds mark where people still have energy and the route still has somewhere to go.

2. Put the hero piece where it reads from the ticket gate

This is the single highest-leverage placement decision in the whole park, and it's usually made by accident.

A large piece reads as a full silhouette at roughly 30–60 metres. Closer than about 20 metres, a visitor sees knees and a belly, and the scale collapses. Much beyond 70 metres, atmospheric haze and intervening planting flatten it into a grey shape. So the sweet spot sits between the car park and the second turnstile, positioned to be seen side-on or three-quarter rather than head-on.

Three details make the difference:

Check the sightline at eye height, not on the plan. Stand where the gate will be, at about 1.6 metres, and look. Drawings flatter everything. A piece that looks heroic in plan view is often hidden by a single mature tree.

Lift the base. A 1–1.5 metre plinth or landscaped mound does more for perceived size than adding two metres of length, because it puts the head above the crowd instead of inside it.

Keep the giants apart. Two large pieces within about 40 metres of each other cancel out — the eye picks one and ignores the other. Give each its own stretch of route.

If the piece will be visible from a public road, check local setback and advertising rules before you finalise the position. A 9-metre object next to a highway draws attention from planners as reliably as it draws it from drivers.

3. Put dig sites where parents already sit

A fossil dig is the cheapest way to add twenty minutes of dwell time to a park, and the fastest way to waste money is to tuck it into a quiet corner where nobody passes.

The rule that actually governs placement: dig sites work where an adult can sit down within arm's reach. That means beside the food kiosk, beside the shaded bench cluster, and on the natural path to the next zone — not at the end of a dead-end spur, however pretty the spur looks.

Sizing that works in practice:

A pit of roughly 6 × 8 metres holds about ten children at once without elbows. Sand at 20–25 cm depth is enough to bury a replica properly and shallow enough to rake flat in five minutes. Resin replicas hold up far better than plaster; brushes and soft trowels survive a season, sieves rarely do.

Maintenance is the part that gets underestimated. Sand needs raking daily and topping up monthly, and the replica inventory needs refreshing every four to six weeks or the regulars stop coming back. Budget for both, and put a lockable storage box within a few metres so the rakes and spare fossils aren't carried across the park every morning.

Shade is not optional. An unshaded sand pit in July is a hot surface and a sunburn risk, and parents will move the kids to the shaded bench instead — which puts you back where you started.

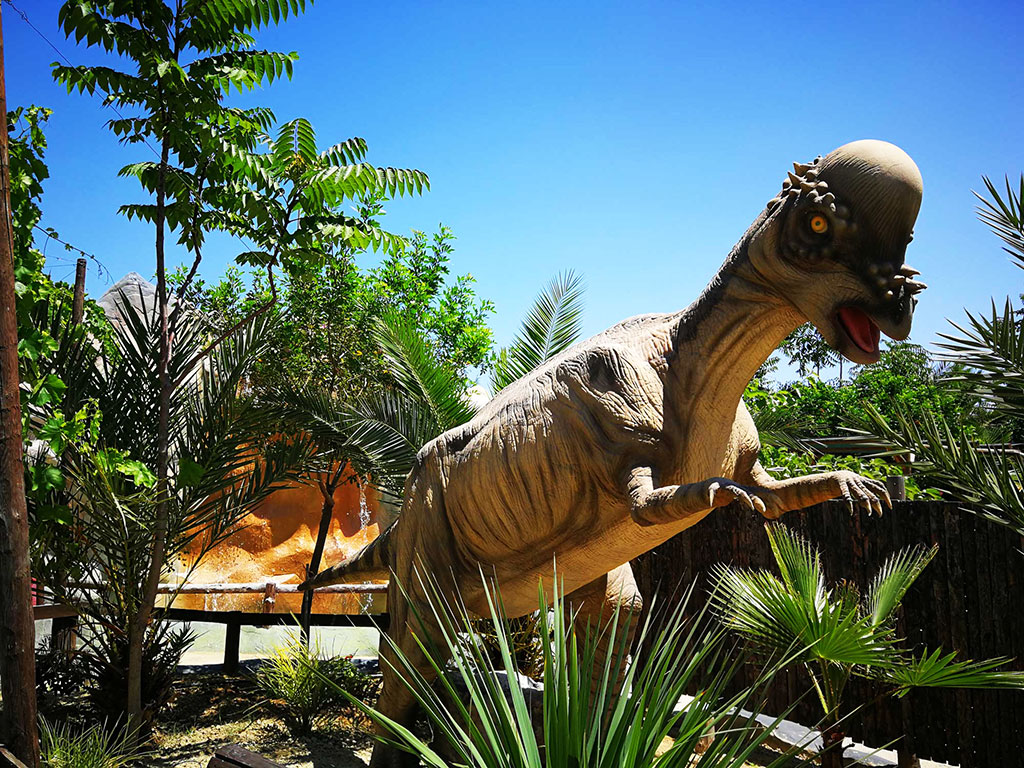

4. Plant to hide the mechanics, then let it frame the view

Planting in a dinosaur park has a job that has nothing to do with decoration: it hides the parts that break the illusion. Base plates, cable glands, service hatches, the shadow gap where the skin meets the ground, the air line running to the tail. Get those covered and a mid-range piece reads as an animal. Leave them exposed and no amount of texture work rescues it.

Working clearances we use:

1–1.5 metres of clear ground around each piece. This is maintenance access, not aesthetics — someone has to reach the skin seams and the joint covers. Plant hard against the base and the first repair means digging out a mature shrub.

Keep irrigation off the skin. Sprinklers hitting silicone encourage algae in the seams and mineral staining on the paint. Aim heads away from the piece, or use drip lines under the planting.

Avoid anything that drops. Fruit, sap and heavy seed pods landing on a painted back are a cleaning job every fortnight and a staining risk in heat.

For species, the shorthand is tree ferns, cycads and horsetails, because they read as prehistoric to a visitor who has never opened a botany book. Check hardiness against your actual climate before committing — the same list fails in a cold winter or a dry summer. A screen of tall planting behind a piece does something else useful too: it removes the sky behind the silhouette, which makes a 4-metre animal read considerably larger.

Lighting finishes the job. Warm uplights at the base — around 3000K, aimed at 30–45 degrees — pick out texture and shadow. Flat floodlighting from above flattens the sculpture and makes the skin look like plastic, which is the opposite of what the model is for.

5. Run the shows on a clock, not on a whim

A scheduled show does two things an improvised one can't: it clusters a crowd where you want one, and it tells everybody else when to be somewhere.

What holds up across park sizes: fixed times every 60–90 minutes, six to ten minutes per show. Long enough to feel like an event, short enough that people stay for the whole thing. Four slots a day is a reasonable default — late morning, twice through the afternoon, and one before closing.

On the technical side, three numbers worth designing around:

Sound at 65–75 dB measured 10 metres out. Loud enough to carry over crowd noise, comfortable for small children at the front. Above that and parents start moving back, which pushes the crowd into the walkway.

Three metres clear of the motion envelope. Not the barrier line — the actual reach of the head and tail at full travel. Pre-programmed sequences should have the envelope defined before the show is choreographed, not after.

Run at roughly 80% of maximum speed. A neck that swings at full rate all day wears its gearbox noticeably faster than one running a little softer, and the audience can't tell the difference from ten metres away.

Put the audience on two or three sides rather than one, and keep the operating position where the operator can see both the piece and the crowd. One person with a timeline sequence and an emergency stop is enough for most parks; two people doing it by hand from a tablet is where timing errors come from.

Before you order anything

The numbers below are the ones that cause the most expensive late changes when they're left until installation week.

Item	Number	Why it bites later
Service access	1–1.5 m clear behind each piece	Skin repairs and motor access without dismantling planting
Barrier distance	1.2–1.5 m static, 2 m+ where it moves	Reach and safety margin, plus photo framing
Foundation pad	Sized by the fabricator to weight plus wind load	Site-estimated pads are the classic retrofit
Power	About 1–1.5 kW per large piece, supply within 20 m	Voltage drop shows up as sluggish motion, not as a fault
Drainage	1–2% fall away from the base	Standing water at the base works at the skin edge
Sightline check	1.6 m eye height at the gate	Plan views hide the tree that blocks the money shot

Questions we get asked about layout

How much space does one large animatronic actually need?

For a 6–8 metre piece, allow a footprint of roughly 4 × 6 metres for the model itself, plus 1–1.5 metres of service access on the sides you'll need to reach, plus the barrier distance in front. In practice that means a clear zone of about 8 × 10 metres per large piece, before planting and paths.

Should pieces be grouped by era or by habitat?

Either works; mixing the two is what creates a mess. Era grouping gives a route a narrative. Habitat grouping — forest, swamp, plains — gives it atmosphere. Pick one for the main loop and use the other only inside a single zone.

Do animatronics need to be under cover?

Outdoor pieces are built for it — silicone skins, sealed control cabinets and IP-rated components handle rain and sun. What they don't like is standing water at the base and direct irrigation on the skin. Cover is a comfort decision, not a durability requirement.

How often should shows run?

Every 60–90 minutes, six to ten minutes each, four times a day for most parks. The interval matters more than the length: a predictable clock is what lets people plan the rest of their visit around it.

Can we add pieces to the route later?

Yes, and it's easier if you leave the room now. Two things to build in at drawing stage: spare power capacity along the route, and 8–10 metre gaps in the planting where a future piece can go without reopening the path.

What's the most common layout mistake?

Placing the biggest piece where it's convenient to install rather than where it's visible. The crane needs a hard standing and a clear approach, which pulls the position towards service roads — and service roads are usually the least visible part of the site.

If you're at the drawing stage

Send us the site plan with the walking route marked, the dimensions of the space you're considering for the hero piece, and a rough idea of how many animals you want. We'll mark up where the sightlines actually land and which positions will cost more to build — including the ones that look good on paper and won't work on site.

If you're still deciding whether the space works at all, that's a fine time to ask. A quick look at the plan usually settles it, and we'll tell you plainly if a position is going to fight you.

YESDINO has been building animatronic dinosaurs, animals and custom pieces in Zigong since 2015. Layout advice comes with the quote — it's cheaper for everyone than fixing it after the foundations go in.

Published by YESDINO · Zigong Dino Culture Art Co., Ltd.
