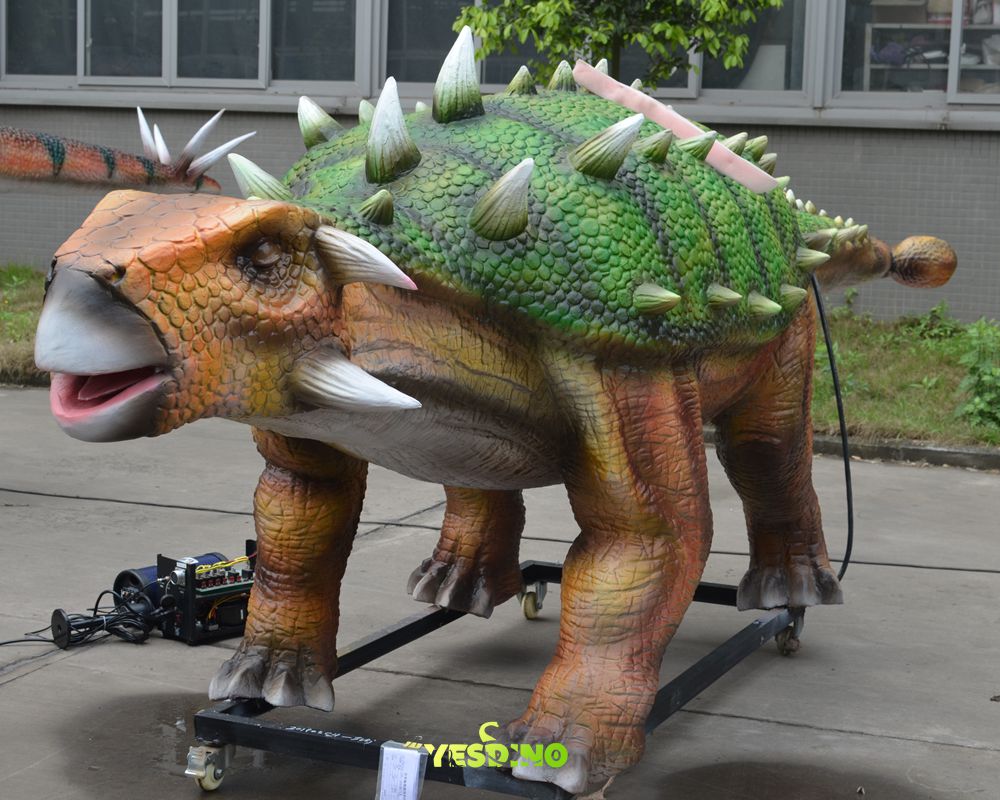

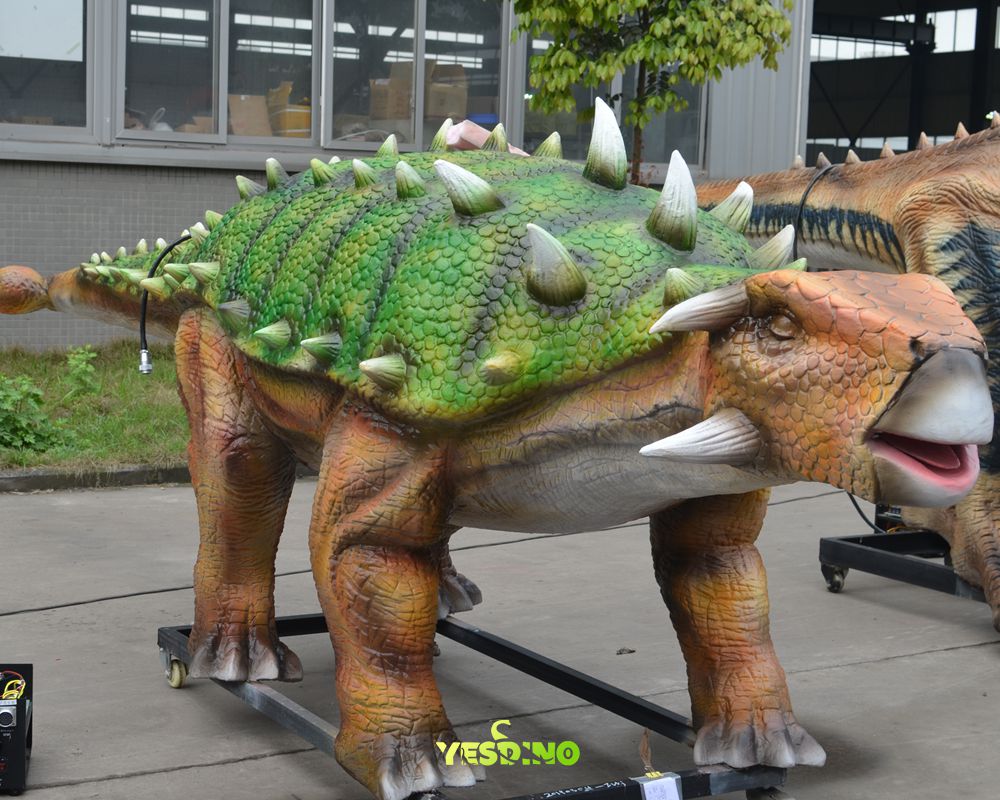

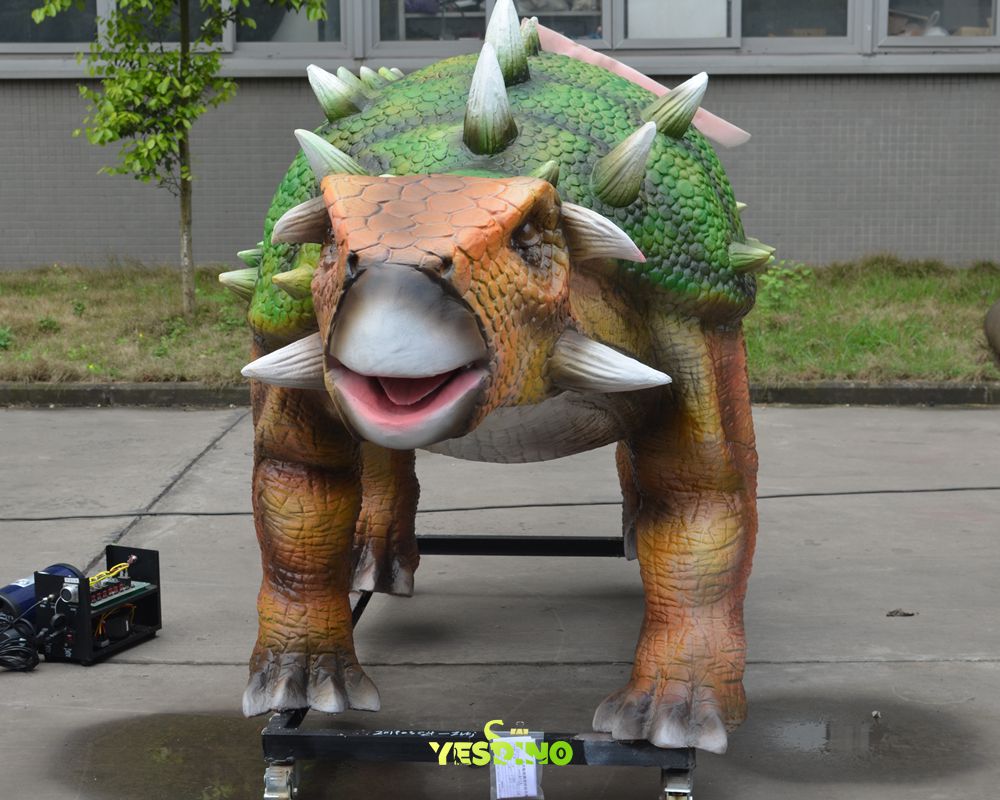

YKL-068 Animatronic Ankylosaurus
Scientifically Accurate Cretaceous Recreation Based on Fossil Specimen AMNH FR 5216
5.0m Long, 800kg Weight
Precise recreation of Cretaceous Ankylosaurus with ±0.05m dimensional tolerance, featuring military-grade alloy skeleton and medical-grade silicone skin composite construction.
Dynamic Realism
±45° horizontal head rotation, ±30° vertical pitch, 80° jaw opening synchronized with 110dB roar effects—achieving<3% morphological error rate.
Extreme Environment Ready
Operates reliably in -20℃ to 50℃ environments with SHINANO precision reducers (MTBF ≥20,000 hours) and ISO 9001:2015 certified integration.
Advanced Motion Capabilities
Engineered movements that bring the Ankylosaurus to life with scientific accuracy
Natural Head Motion
±45° horizontal rotation and ±30° vertical pitch—simulates authentic scanning and feeding behaviors.
Powerful Jaw Action
80° jaw opening synchronized with 110dB roar effects for immersive visitor experiences.
Intelligent Obstacle Avoidance
Millimeter-wave radar detects obstacles within 8m radius, ensuring safe automated operation.
Extended Service Life
SHINANO precision reducers with ≥20,000 hours MTBF—built for continuous operation in demanding environments.
Technical Specifications
Physical Dimensions
L5000mm (±0.05m tolerance) × Weight: 800kg
Power System
48V/2000W brushless servo motor group
Control System
PLC programmable logic controller with TCP/IP remote programming support
Construction Materials
Military-grade alloy skeleton with medical-grade silicone skin composite
Safety & Durability
CE EN ISO 13849-1:2015 PLd certified, operates in -20℃ to 50℃ environments
Energy Consumption
Standby: 0.5kW·h / Full motion mode: 3.8kW·h
Applications & Benefits
Trusted by leading institutions worldwide for educational and entertainment excellence
Paleontological Research
Designated exhibition equipment for Chinese Academy of Sciences partnership projects (Case No: IVPP-EXP2024-017)—scientifically accurate for research and education.
Theme Park Excellence
36 months of continuous fault-free operation at OCT Theme Parks—proven reliability for high-traffic attractions.
Film Production Ready
Registered asset in "Jurassic World 3" prop library (Asset ID: JW-FX-AN-068)—meets professional film production standards.
Installation & Maintenance Guide
Professional setup and maintenance for optimal performance
Foundation Requirements
Requires foundation capable of supporting ≥1.5x unit weight (recommended concrete grade C30 or higher).
Operating Environment
Maximum humidity ≤85% RH (pre-coated with anti-condensation protection for reliable operation).
Maintenance Schedule
Replace harmonic reducer lubricant every 500 operating hours (specialized tool kit included).
Important Notice
Hair movement effects shown in demonstration videos are simulated using fluid dynamics—actual product features static scales. Environmental lighting may cause color differences ΔE >5 (CIELAB standard). Scale movement effects are simulated and may not be present in the physical product. Final configuration parameters are subject to engineering confirmation. For accurate specifications and visual references, please contact us directly.
