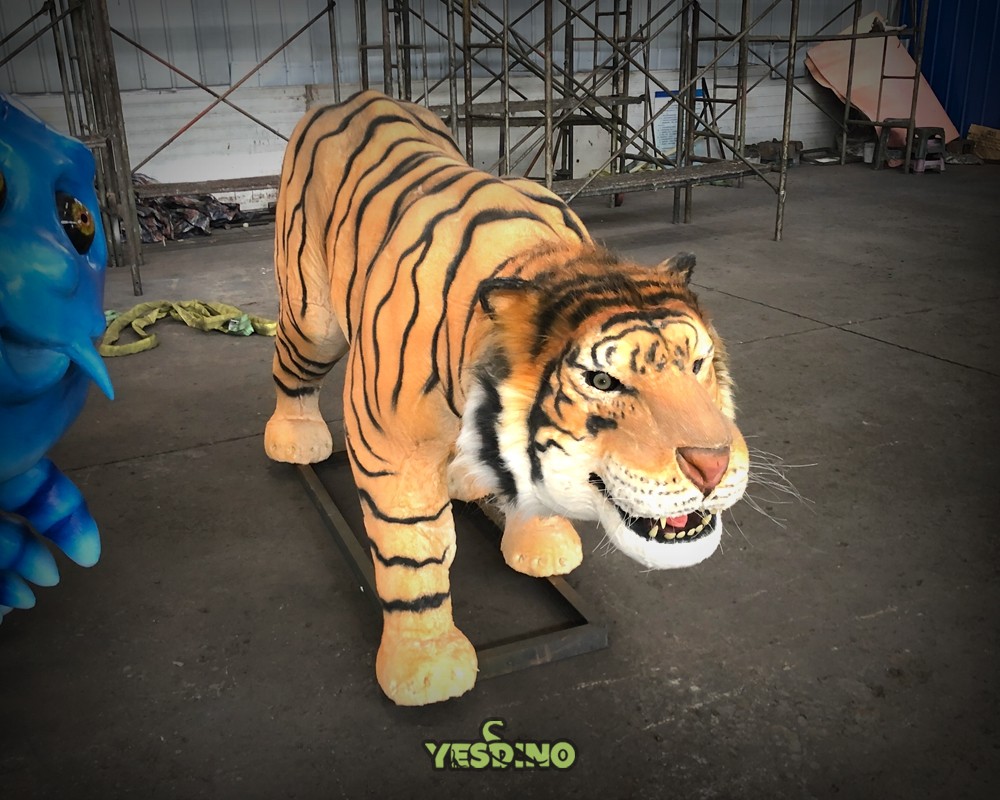

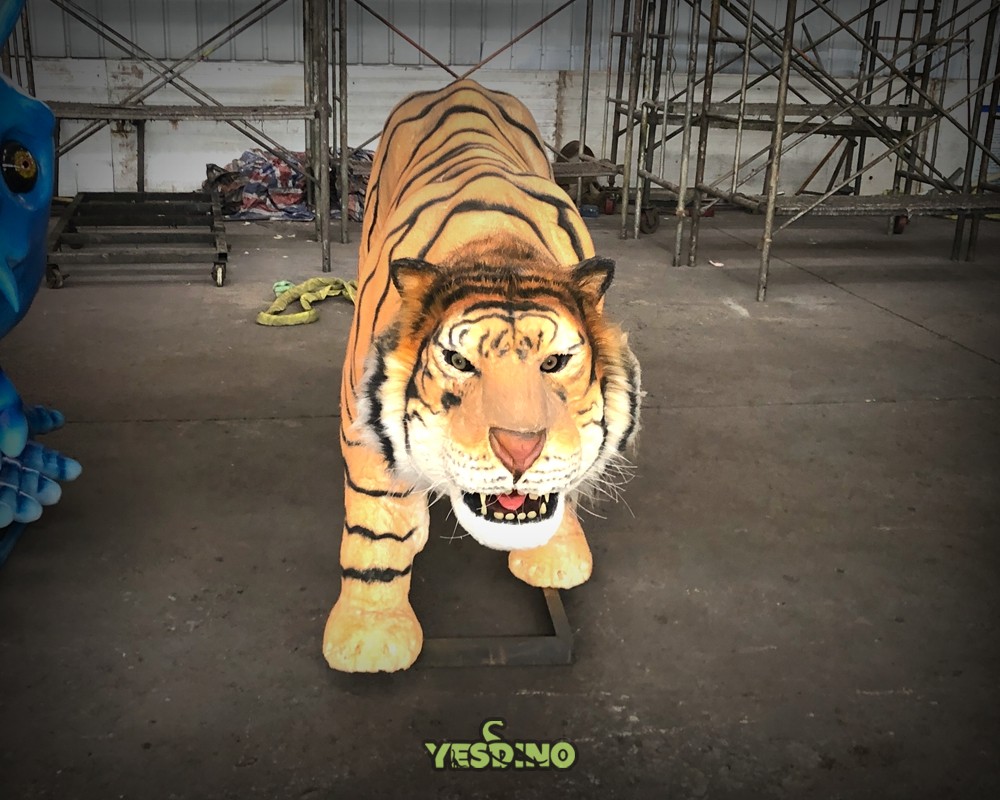

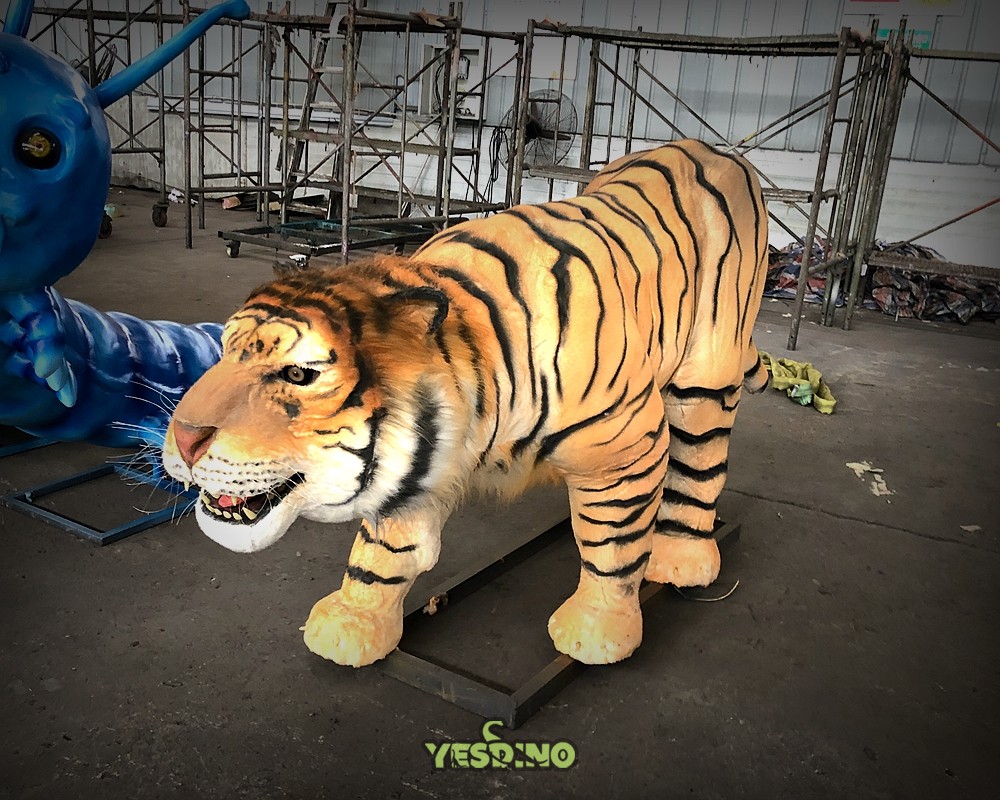

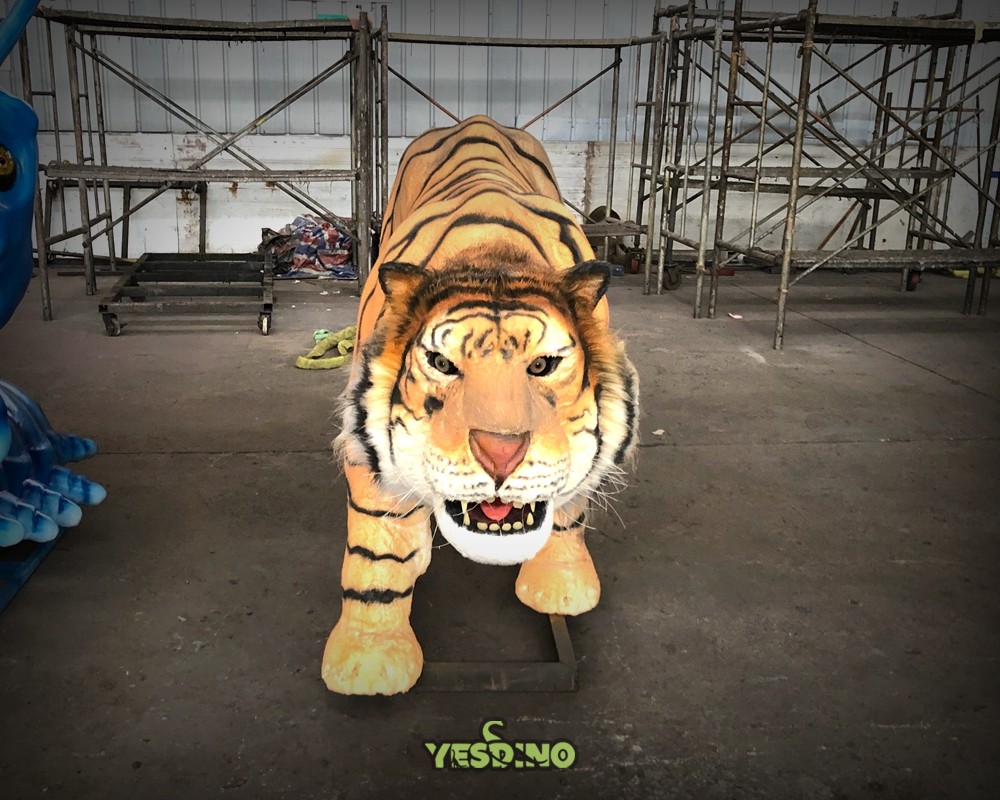

YAA-008 Life-Size Animatronic Bengal Tiger
A 1:1 Bionic Mechatronic System for Premium Themed Ecological Displays
1:1 Scale, 200cm Length
Accurately replicates adult Bengal tiger proportions—200cm in length (±3% industry standard tolerance), featuring a high-density synthetic fur coat (≥120 hairs/cm²).
Premium Durability
Silicone-based composite skin passes 100,000-cycle abrasion tests (ASTM D4060)—UV-resistant coating applied for 72 hours ensures longevity in demanding environments.
All-Environment Operation
IP54 splash-proof rating—operates reliably within a -20°C to 50°C temperature range for consistent outdoor/indoor performance.
Core Technology
Advanced engineering enabling lifelike motion, interaction, and durability
Motion Control System
Closed-loop stepper motors (±0.05mm precision) drive linkage mechanisms, with a six-axis gyroscope for real-time posture calibration.
Sensory Feedback System
Passive infrared (PIR) sensors (8m detection range) trigger autonomous behavioral modes for interactive audience engagement.
Surface Treatment Process
3D-scanned modeling guides manual implantation of stripes; each hair is angled to match the natural lay of a real tiger's fur.
Robust Construction
7 Degrees of Freedom (Head 3 + Body 2 + Tail 2) provide a wide range of natural movements, supported by a durable internal frame.
Technical Specifications
Physical Dimensions
Length: 200cm (±3% tolerance)
Power System
AC 220V/50Hz—Peak Power Consumption: 300W
Control & Communication
Supports LUA ｓｃｒｉｐｔ expansion via SD card for new behavior programming and updates.
Performance Metrics
Total Weight: 85kg ±2kg | Noise Level: ≤65dB(A) @1m
Durability & Safety
IP54 Splash-Proof Rating | Operating Temperature: -20°C to 50°C
Motion Specifications
7 Degrees of Freedom (7DOF) | Mean Time Between Failures (MTBF): ≥2000 hours
Applications & Benefits
Engineered for immersive educational, entertainment, and commercial installations
Educational & Scientific Research
Ideal for natural history museums and species behavior simulation, compliant with GB/T 30235-2013 standards for popular science equipment.
Themed Entertainment & Live Shows
Built for theme park live performances, supporting daily operation up to 18 hours for consistent, high-impact guest experiences.
Film & Media Production
Serves as a dynamic motion-capture prop for virtual production (green screen) with 0.1mm positioning accuracy for realistic cinematic integration.
Professional Application Guide
Tailored installation, maintenance, and operation protocols for optimal performance
Installation Specifications
Requires a pre-cast concrete base (load-bearing ≥150kg/m²) with a 500×500mm maintenance access panel for long-term stability and serviceability.
Maintenance Cycle
Joint bearing lubrication required every 500 operational hours (recommended lubricant: Mobil SHC 100 grease) to ensure smooth motion and longevity.
Content & Program Updates
New behavior programs can be uploaded via SD card, supporting LUA ｓｃｒｉｐｔ extensions for custom motion sequences and interactive logic.
Important Notice
Product renderings are based on high-precision models. Final presentation may vary due to material batch variations, on-site lighting, and environmental conditions. Physical products may exhibit subtle color and texture differences. Performance metrics (motion precision, audio details) are subject to final project confirmation and on-site acceptance. For accurate specifications and project-specific technical white papers, please contact our technical team.
