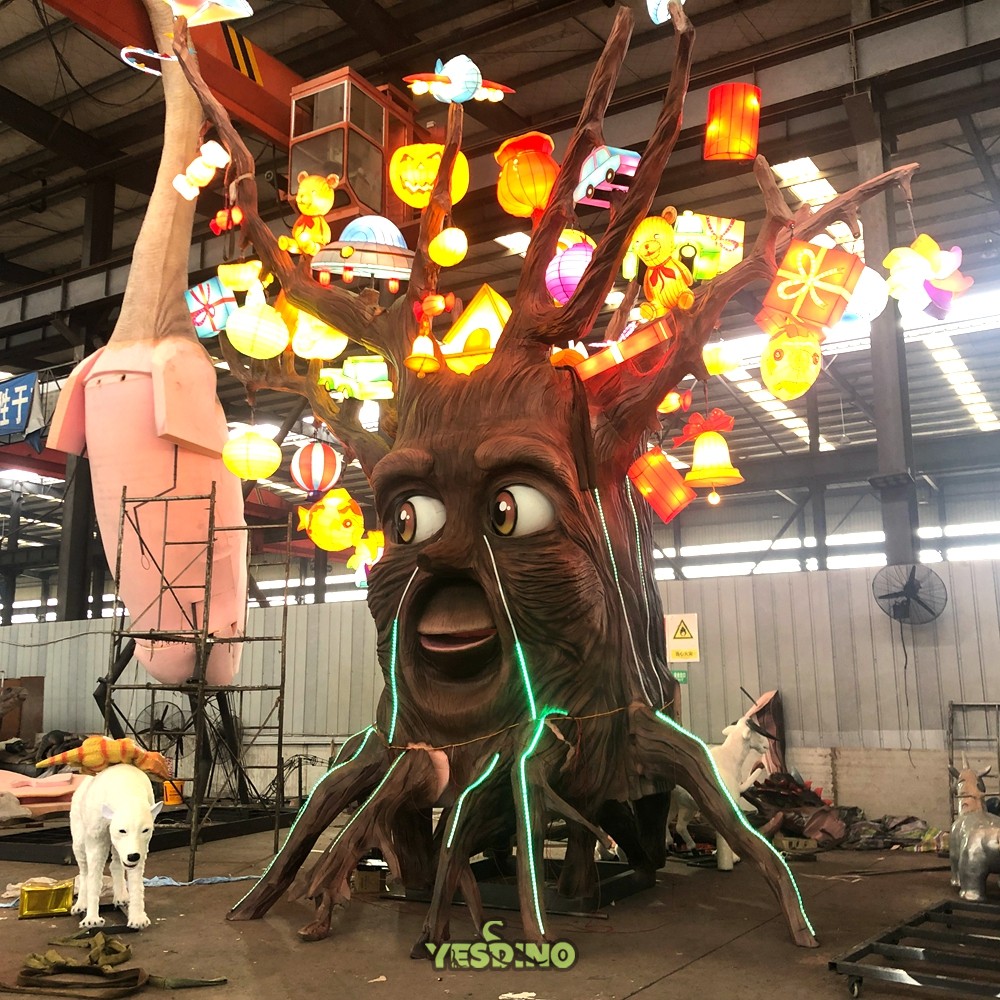

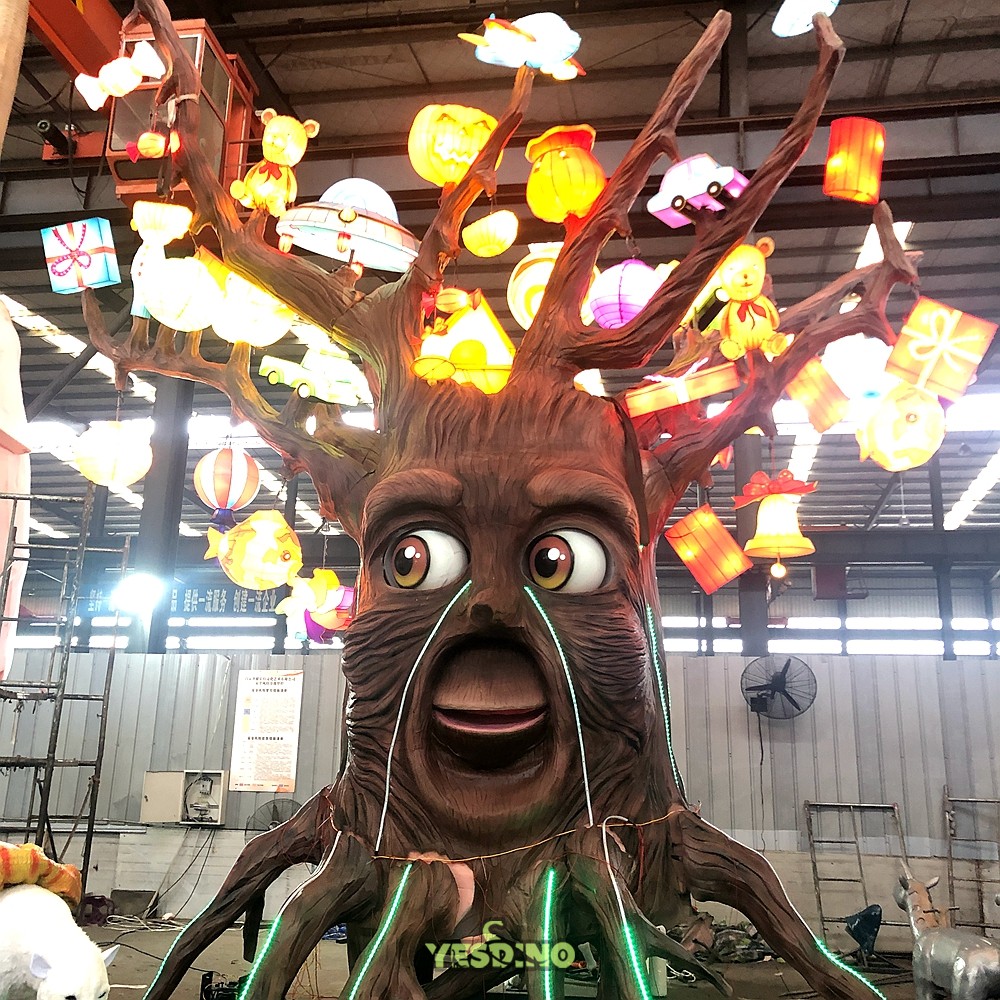

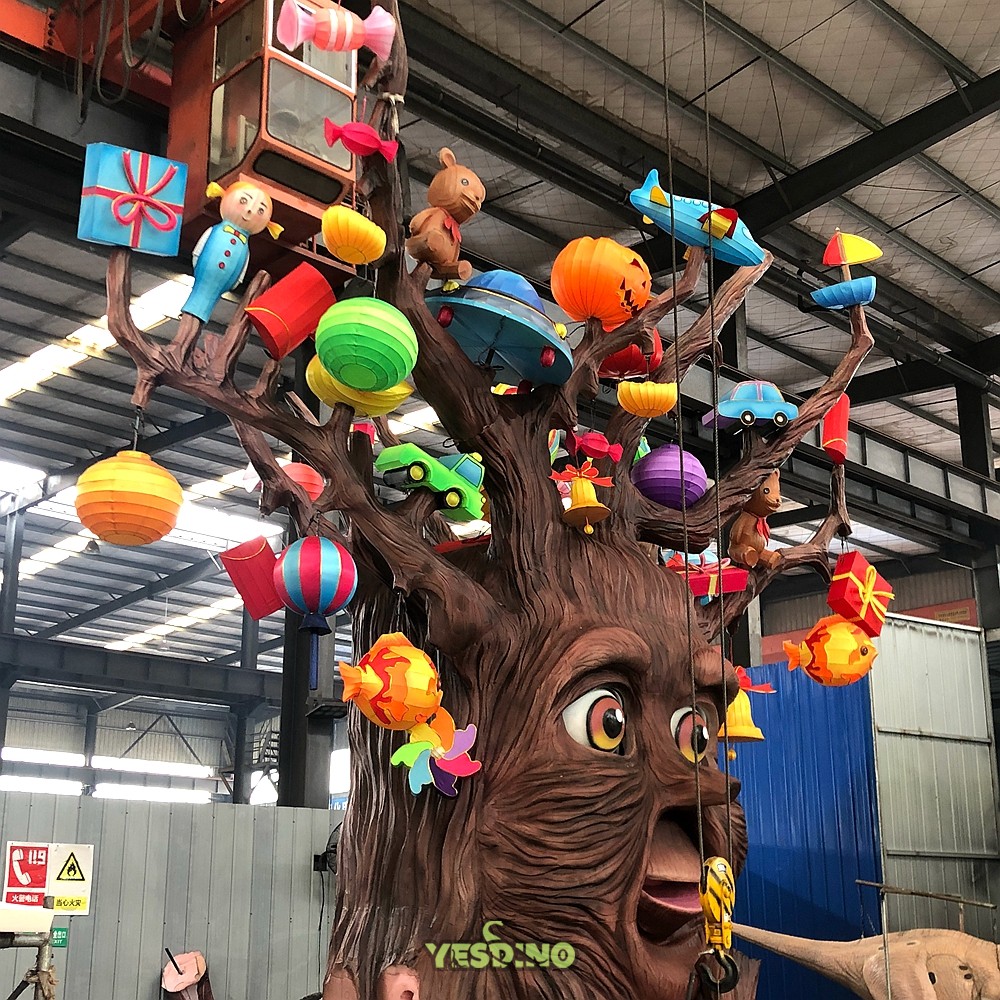

Animatronic Gift Grandfather Tree for Amusement Park

Name: Animatronic Gift Grandfather Tree for Amusement Park
Brand: Yes Dino
Price: 10500 USD
Availability: InStock
Rating: 4.6 (7 reviews)

SKU	YDZ-016
Product Name	Animatronic Gift Grandfather Tree for Park
Dimensions	The model stands at a towering height of 13 meters, with a maximum diameter of 7 meters.
Key Movements	Blinking eyes, rotating eyeballs, speaking with an open mouth, illuminated gift boxes on the head, and a glowing effect on the trunk.
Customization	Tree Shape, Color, Gender, Size, Lighting and Sound Effects.
Control System	The Gift Grandfather Tree features a sturdy internal framework constructed from steel, while its exterior takes shape through the carving of high-density foam. The skin is crafted from silicone material. When the mouth opens, it plays recorded speech and can execute various movements. Inside the gift boxes atop the head, there are LED light beads that emit a radiant glow, creating a stunning visual effect especially during the night.
Applications	Night Tourist Areas, Cultural and Tourist Pedestrian Streets, Amusement Parks, Large Shopping Malls.

Add to Quote

Product Description

YDZ-016 Giant Animatronic Landscape Installation

Setting New Industry Standards with 13m Vertical Height & 7m Canopy Span (Compliant with GB/T 18973-2016 Theme Park Facility Standards)

13m Height, 7m Canopy Span

Industry-leading dimensions—13 meters vertical height with 7-meter canopy span, featuring military-grade steel framework for structural integrity.

Military-Grade Construction

Military-grade steel frame with food-contact grade silicone skin—validated by 2,000+ hours of outdoor aging tests for exceptional durability.

All-Weather Performance

IP54 rating (IP67 for electrical components)—operates reliably in -20°C to +50°C environments with superior weather resistance.

Advanced Technical Excellence

Multimodal Interaction System

Servo-driven eyelid movement (0.2-3Hz adjustable frequency), dual-axis eyeball rotation (±30° range), synchronized with 40W waterproof speakers for lip-sync audio output (supports MP3/WAV formats).

Intelligent Lighting Matrix

36 RGBW LED modules in canopy (0.5W each, total brightness ≥5000 lumens), 120-meter IP67-rated LED strips around trunk for immersive visual effects.

Modular Quick-Assembly Structure

Segmented steel frame design improves on-site assembly efficiency by 60%, with maximum lifting unit weight under 800kg (compliant with GB 50009-2012 building load standards).

Precision Motion Control

PLC-based distributed control system with 16-channel PWM dimming modules and CAN bus communication protocol, achieving response latency<100ms for seamless performance.

Core Technical Capabilities

Engineered for reliability, performance, and visual impact

Dynamic Control Hub

Industrial-grade PLC (Siemens S7-1200) with distributed control architecture for precise motion coordination and lighting effects.

Composite Material Technology

4cm high-density flame-retardant foam (density ≥35kg/m³) with 0.8mm liquid silicone coating (UV resistance grade 8) for superior durability.

Energy Management System

Power factor correction circuit (PF >0.95), standby power ≤15W, full-load current<8A (AC 220V/50Hz) for optimal energy efficiency.

Motion Mechanism

20mm eyelid travel, 5-10rpm eyeball rotation speed with smooth, lifelike movement patterns for engaging visitor experiences.

Technical Specifications

Physical Dimensions

H=13m±0.3m, Dmax=7m±0.2m (error ≤±0.3m)

Motion System

Eyelid travel: 20mm, Eyeball rotation: 5-10rpm with precise servo control

Control System

Industrial-grade PLC (Siemens S7-1200) with CAN bus communication protocol

Lighting System

480 LED units total, Color Rendering Index Ra >80 for vibrant visual effects

Protection & Environment

IP54 overall rating (IP67 for electrical components), Operating temperature: -20°C to +50°C

Construction Materials

Military-grade steel frame, food-contact grade silicone skin, high-density flame-retardant foam core

Applications & Benefits

Designed for high-traffic venues seeking landmark attractions with lasting value

National Tourism Destinations

Core attraction for night tourism routes in national resorts—validated with daily foot traffic >10,000 visitors for extended engagement.

Urban Commercial Complexes

Perfect for atrium spaces with ≥15m ceiling height—creates stunning centerpiece attractions for shopping malls and business districts.

Cultural Theme Parks

Ideal entrance landmark for cultural theme parks—winner of 2023 China Cultural Tourism Equipment Innovation Award.

Installation & Professional Guidelines

Expert setup recommendations for optimal performance and safety

Foundation Requirements

Concrete base bearing capacity ≥150kPa, anchor bolt pull-out force >15kN (referencing CJJ/T 85-2017 standards).

Crowd Management

Recommended 8m radius safety buffer zone with optimal viewing distance of 50-80m for best visual experience.

Maintenance Schedule

Quarterly steel weld inspections (magnetic particle testing standard JB/T 6061), semi-annual seal replacement for long-term reliability.

Important Notice

Final presentation effects may vary due to on-site lighting conditions (recommended >300lux), ambient noise (background<65dB), and installation precision. The actual product may differ from promotional materials. For accurate specifications and detailed information, please contact us directly. All final product specifications are subject to the signed Technical Confirmation Agreement.
