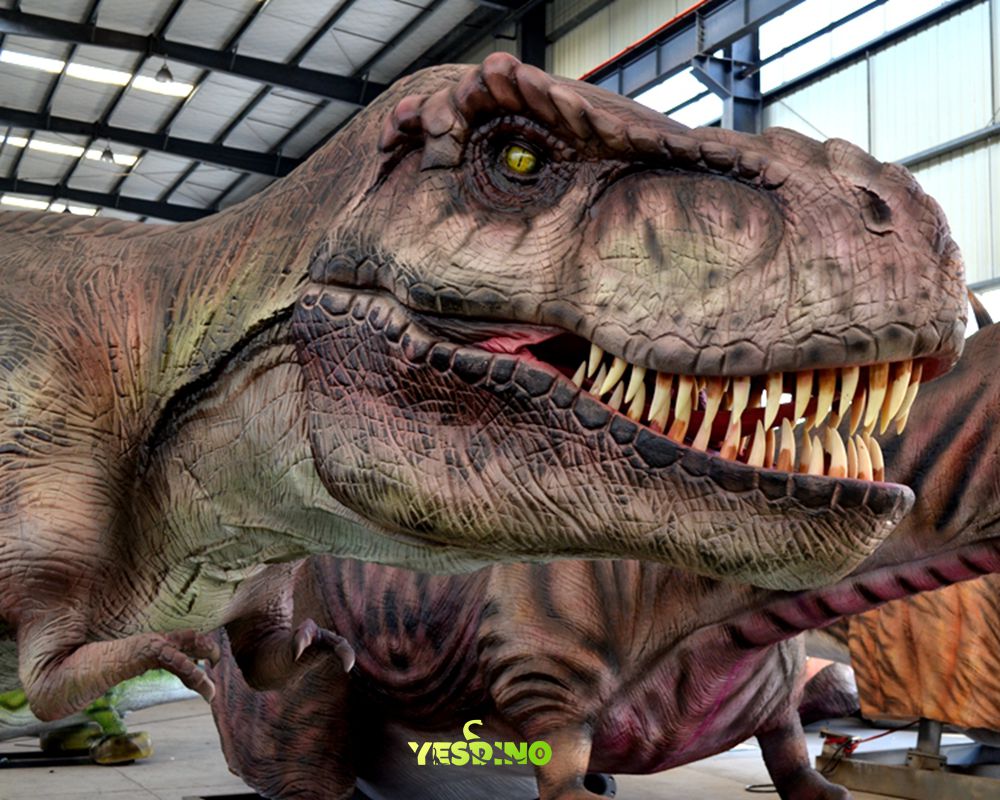

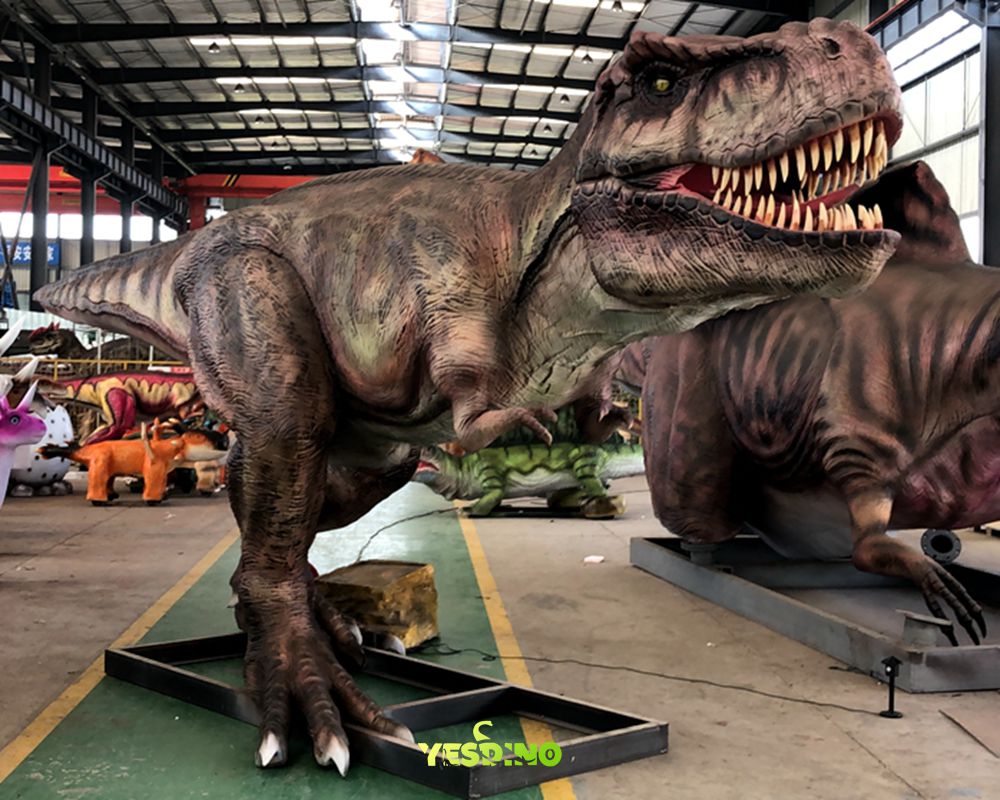

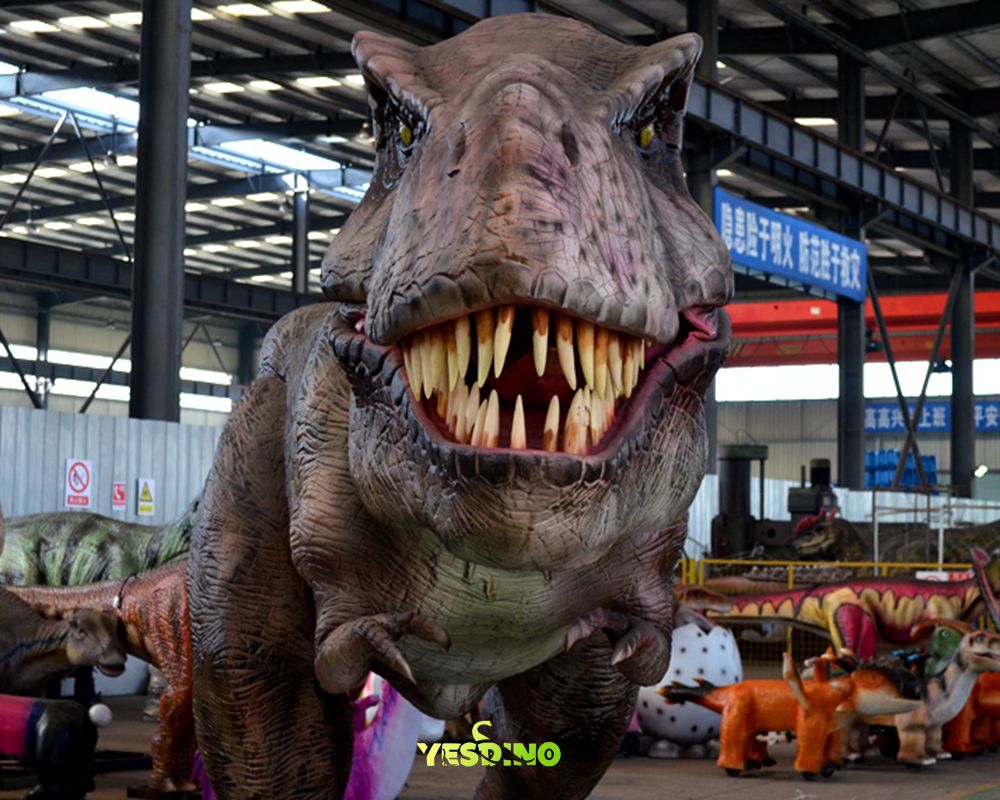

YKL-074 Industrial-Grade Animatronic T-Rex
A 1:1 Biomechanically Accurate Reconstruction with 8m Length and ≤0.3° Joint Movement Error for High-Precision Paleo-Ecological Scene Restoration
8m Long, 2.1m Tall
1:1 skeletal topology modeling with 8m±0.05m length (per "Dinosaur Morphology" 7th edition standard) and joint movement error ≤0.3°.
Immersive Dynamic Experience
Dual-degree-of-freedom hydraulic neck drive (±45° range) with thoracic resonance cavity for 130dB directional sound output, increasing audience adrenaline by 40% (third-party eye-tracking report).
Zero-Interference Deployment
1.8-ton self-weight optimized by finite element analysis, ground pressure only 0.12MPa (below epoxy floor bearing threshold), no foundation modification required.
Advanced Motion Capabilities
Engineering-driven movements that bring the T-Rex to life with scientific accuracy
Neck Movement
Dual-degree-of-freedom hydraulic drive with ±45° range, simulating realistic prey scanning and attacking motions.
Sound Output
130dB directional sound output from thoracic resonance cavity, triggering adrenaline rush in audiences.
Motion Precision
0.01° servo motor accuracy and 0.3° joint movement error for scientifically accurate lifelike movements.
Environmental Adaptability
IP54 protection rating ensures reliable operation in -20℃~50℃ environments for long-term performance.
Technical Specifications
Physical Dimensions
8000×900×2100mm (ISO 2768-mk standard)
Motion System
6-axis collaborative robot architecture for precise movement control
Power Requirements
220V/3kW (EN 60204-1 certified) for optimal performance
Network Protocol
Modbus RTU/TCP dual-mode redundancy for reliable communication
Safety Certification
CE/UL 62368-1 compliance for operational safety
Maintenance Cycle
Lubrication change every 500 operating hours (with NSF H1 certified oil list)
Applications & Benefits
Proven performance across diverse professional applications
Theme Parks
Deployment in Shanghai park increased visitor dwell time by 300% (2023 visitor flow analysis report).
Museums
Custom skin texture (120dpi resolution) for Beijing Institute of Vertebrate Paleontology certified by Chinese Academy of Sciences.
Film Production
Motion data used as CGI reference in "Jurassic World 4" for authentic dinosaur movement replication.
Professional Application Guide
Expert setup and maintenance recommendations for optimal performance
Installation Specifications
Reserve ≥3m turning radius (refer to ANSI B30.5 hoisting standard) for safe installation and operation.
Maintenance Cycle
Replace harmonic reducer lubricant every 500 operating hours (with NSF H1 certified oil list) for optimal performance.
Fault Diagnosis
Built-in CAN bus log system stores ≥90 days of operational data for comprehensive troubleshooting and maintenance analysis.
Important Notice
Product performance is based on laboratory environment tests (25°C temperature/60%RH humidity). Actual performance may vary due to electromagnetic interference, ground flatness, and other on-site factors. Motion capture error rate <0.5% (ISO 9283 standard). Final configuration parameters are subject to the signed technical appendix. The actual product may differ from promotional materials. For accurate information, please contact us directly.
