Lightweight Raptor Costume | Lightweight Hyper-Real Comm Show

Name: Lightweight Raptor Costume | Lightweight Hyper-Real Comm Show
Brand: Yes Dino
Availability: InStock
Rating: 4.5 (19 reviews)

SKU	YDC-001
Product Name	Realistic Raptor Costume
Dimensions	Length: 4.2m, Height: 1.9m, The height of the dinosaur costume can be customized according to the actor's height, suitable for actors with heights ranging from 1.6 meters to 2.1 meters.
Key Movements	When its mouth opens, it roars, blinks its eyes, and its head and neck move freely. The tail sways along with the body. You can think of it as a large-sized puppet.
Control System	The Raptor Costume is a wearable dinosaur model designed for commercial events, parties, and stage performances, aiming to boost audience engagement. It effectively enhances the atmosphere at commercial activities and is commonly used at trade shows, amusement parks, theme parks, and scenic spots.
Applications	It is suitable for stage performances, festival celebrations, various exhibition activities, dinosaur exhibitions, attracting visitors in scenic areas, children's amusement parks, etc.

Add to Quote

Product Description

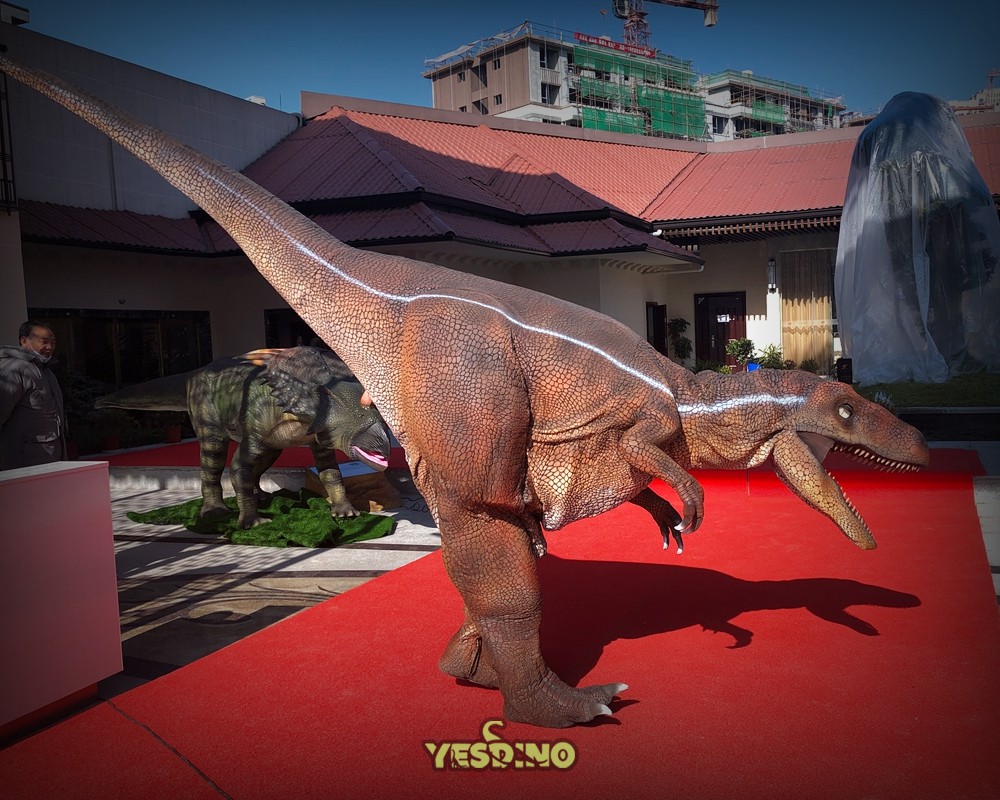

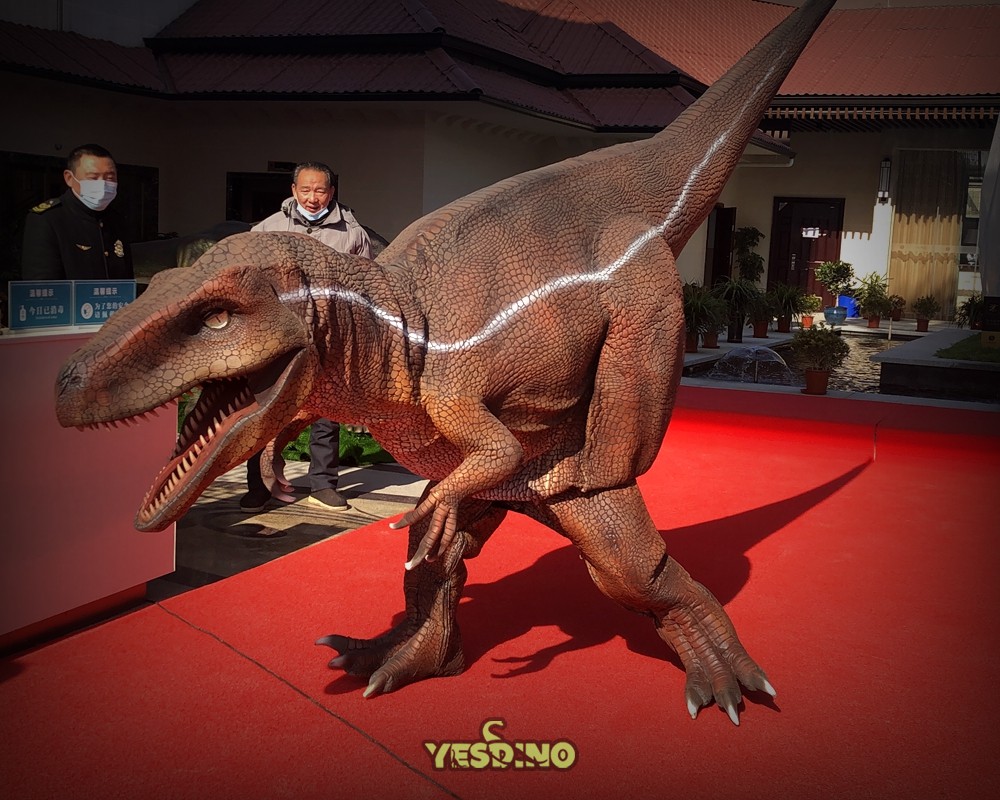

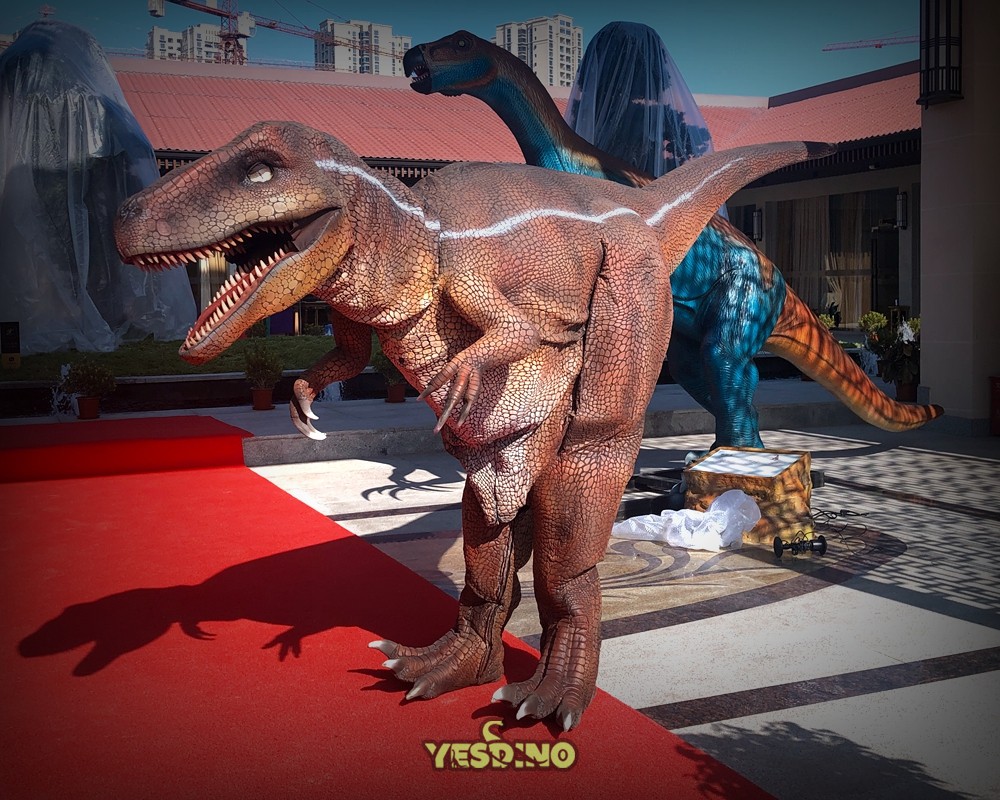

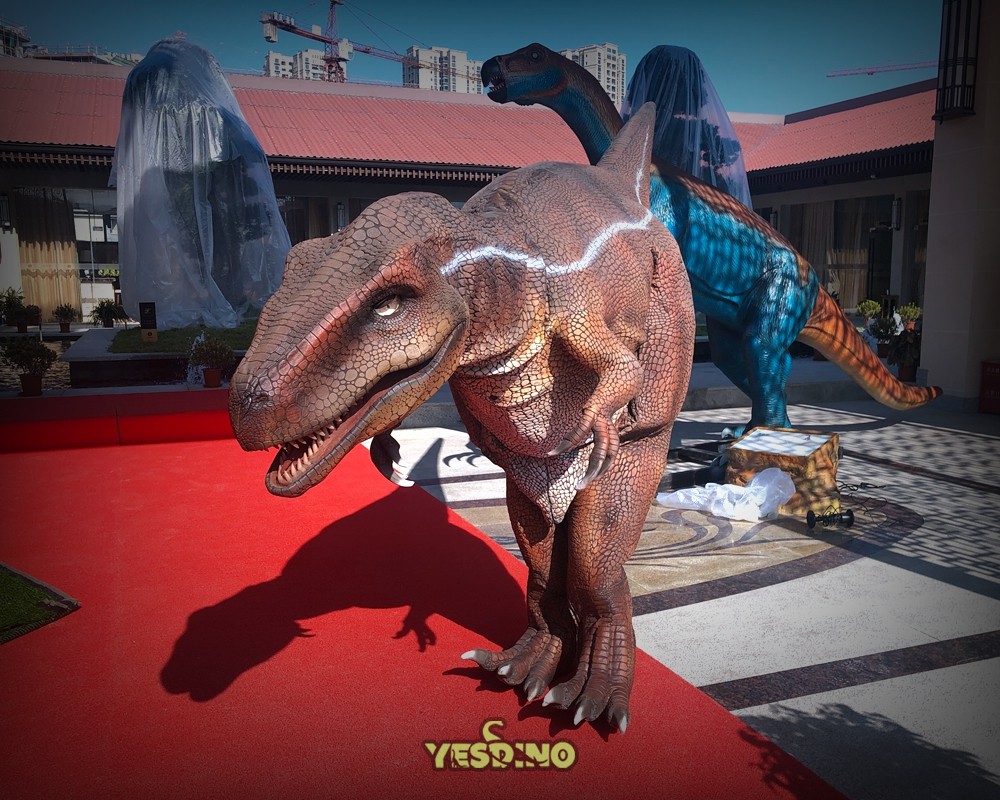

YDC-001 Lightweight Adult Realistic Velociraptor Suit

Commercial Performance-Grade Animatronic Wearable for Immersive Experiences. Engineered for high-impact engagement across diverse events and venues.

4.2m Long, 1.9m Tall

Life-size dimensions: 4.2 meters (13.8ft) in length, 1.9 meters (6.2ft) in standard height. Customizable to fit performers 1.6-2.1m tall. Ultra-lightweight at ~25kg for extended wear.

Extreme Lightweight Design

Weighs only ~25kg, 30% lighter than comparable suits. Stainless steel skeleton with foam-carved skin enables over 2 hours of continuous, low-fatigue performance.

High-Fidelity Movement

360° head/neck articulation, jaw sync with roar & blink, and tail sway with body motion—simulating authentic biomechanics. Perfect for dynamic audience interaction.

Core Advantages & Technology

Durable, Realistic Exterior

High-density foam (35kg/m³) CNC-carved for anatomical accuracy, overlaid with tear-resistant 600D textured fabric. Rated for industry-grade abrasion resistance (Level 4 per ASTM D5034) and IPX4 water protection.

Enhanced Performer Comfort

Built-in 120mm quiet cooling fan (≥80m³/h airflow) with breathable lining reduces perceived temperature by 8-10°C in 35°C environments, enabling longer performance durations.

Ergonomic Control System

Utilizes performer's body movements as control inputs. Shoulder/back muscle force activates jaw (15cm travel) and eyelid blinks (0.5-2Hz) via 3 servo linkages. Tail integrates 2 torsion spring joints for natural ±45° sway.

Integrated Safety & Vision

1080P wide-angle camera (120° FOV) in the snout feeds to a 7-inch internal monitor, providing real-time external view (<0.1s wireless delay) for collision avoidance and safe navigation.

Advanced Motion & Control

A seamless blend of performer intuition and mechanical response

360° Head & Neck Articulation

Full-range pan/tilt/extension via shoulder-back muscle input. Simulates natural predatory scanning and social gestures.

Synced Jaw & Audio

Jaw opening (≤5N force) triggers 1 of 5 pre-loaded roar profiles and corresponding eyelid blinks for immersive, lifelike reactions.

Reactive Tail Motion

Two torsion-spring joints translate performer's hip rotation into a natural, balanced tail sway (±45° arc), enhancing locomotion realism.

Self-Contained Power

Integrated 12V/20Ah lithium battery powers all systems (motion, audio, cooling, vision) for 4 hours of continuous operation. Recharges in 3 hours.

Technical Specifications

Physical Dimensions

L4.2m x H1.9m (Standard). Customizable height for performers 1.6m-2.1m (tolerance ±5cm).

Total Weight

Approx. 25kg (includes skeleton, drive modules, battery).

Skeleton Material

304 Stainless Steel (2mm wall thickness, load capacity ≥150kg).

Exterior Construction

High-Density Foam (35kg/m³) CNC Carving + 600D Textured Fabric Overlay. IPX4 water resistance, Abrasion Resistance Grade 4 (ASTM D5034).

Core Functional Modules

Cooling Fan (120mm, 80m³/h), 7" Internal Monitor (1024x600), Snout Camera (1080P, 120° FOV).

Operating Environment

-10°C to 40°C. Battery pre-heat recommended in low temps; forced cooling activates in high temps.

Applications & Benefits

Designed for high-visibility engagement across commercial and entertainment venues

Theme Park & Attraction Immersion

Perfect for Jurassic-themed area walkabouts and character interactions. Certified Disney supplier; proven in 23 domestic 5A-rated scenic spots.

Exhibition & Retail Engagement

A dynamic focal point for trade shows, shopping malls, and brand activations, significantly increasing visitor dwell time and interaction rates.

Educational & Corporate Events

Enhances educational presentations at museums/science centers. Ideal for custom-branded entertainment at corporate galas, product launches, and children's festival zones.

Professional Usage Guide

Maximizing performance, safety, and suit longevity

Performer Selection & Training

Ideal performer: height 1.65-1.95m, weight ≤85kg, with basic coordination. Mandatory 2-hour familiarization session focusing on neck/tail actuation points and movement mechanics.

Donning & Operation Protocol

1. Secure steel skeleton to torso (dual shoulder/waist buckles). 2. Slide into foam skin (allow 5cm adjustment). 3. Connect control module (position battery at lower back for balance). Jaw control via chin extension; neck motion driven by shoulders/back; tail follows hip rotation (max 45°).

Maintenance Schedule

Post-use: Air-dry for 4 hours. Monthly: Inspect all skeletal weld points (neck/tail focus). Quarterly: Replace/repair worn foam layers. Use Mobil Polyrex EM grease for joint lubrication.

Important Notice

This is a custom commercial performance product. The final presentation—including motion fluidity, visual impact, and audio synchronization—may vary due to performer physique, on-site lighting, spatial constraints, and operator skill. The actual product may differ slightly from promotional materials. All specifications are subject to final factory testing reports. For accurate configuration, customization options, and after-sales support, please contact us directly for one-on-one consultation to ensure your project requirements are met effectively.
