Production Process Gallery
Built for clients seeking authentic craftsmanship, transparent production workflows
Production Process
In-Depth Product Introduction

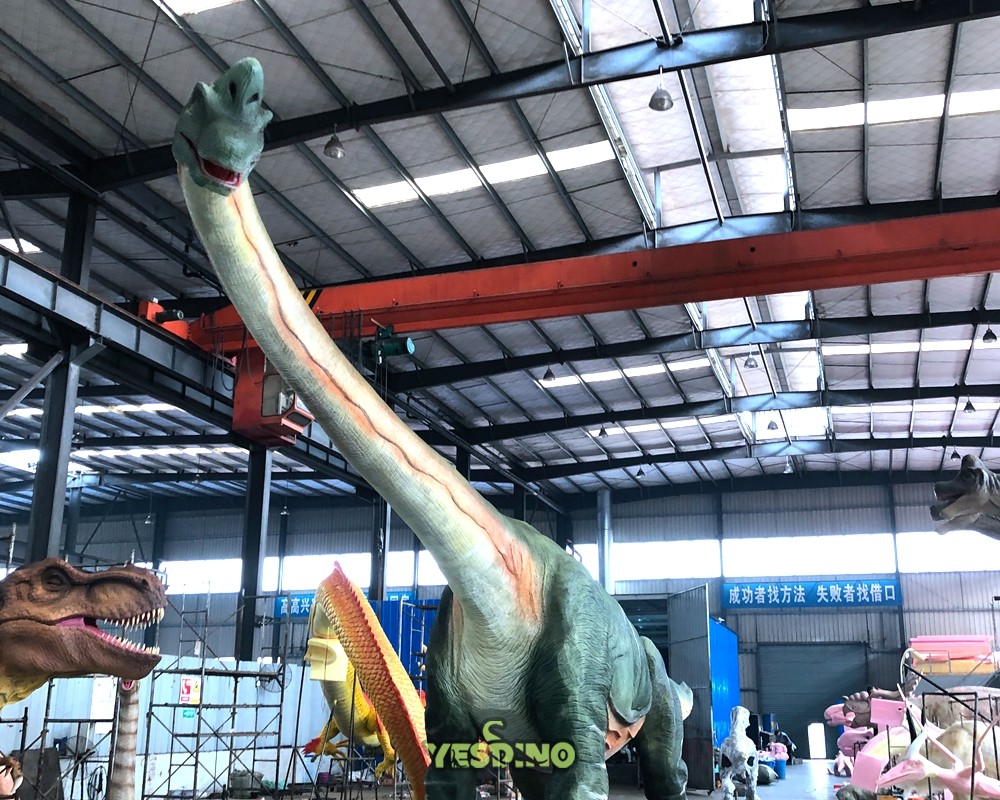

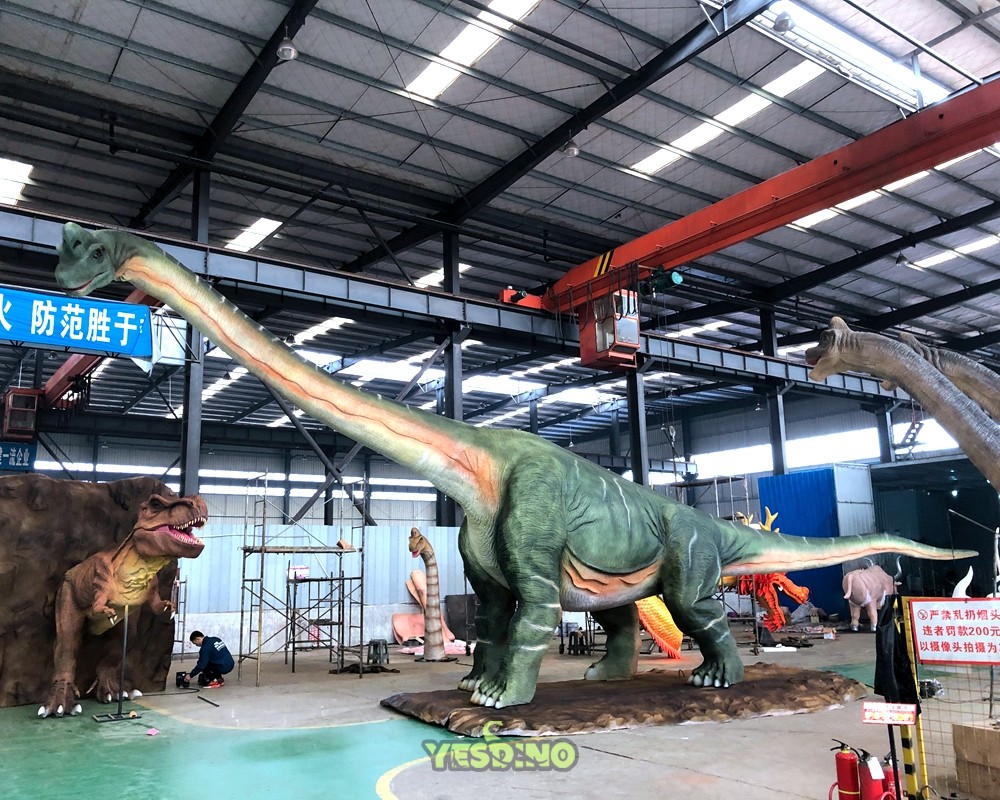

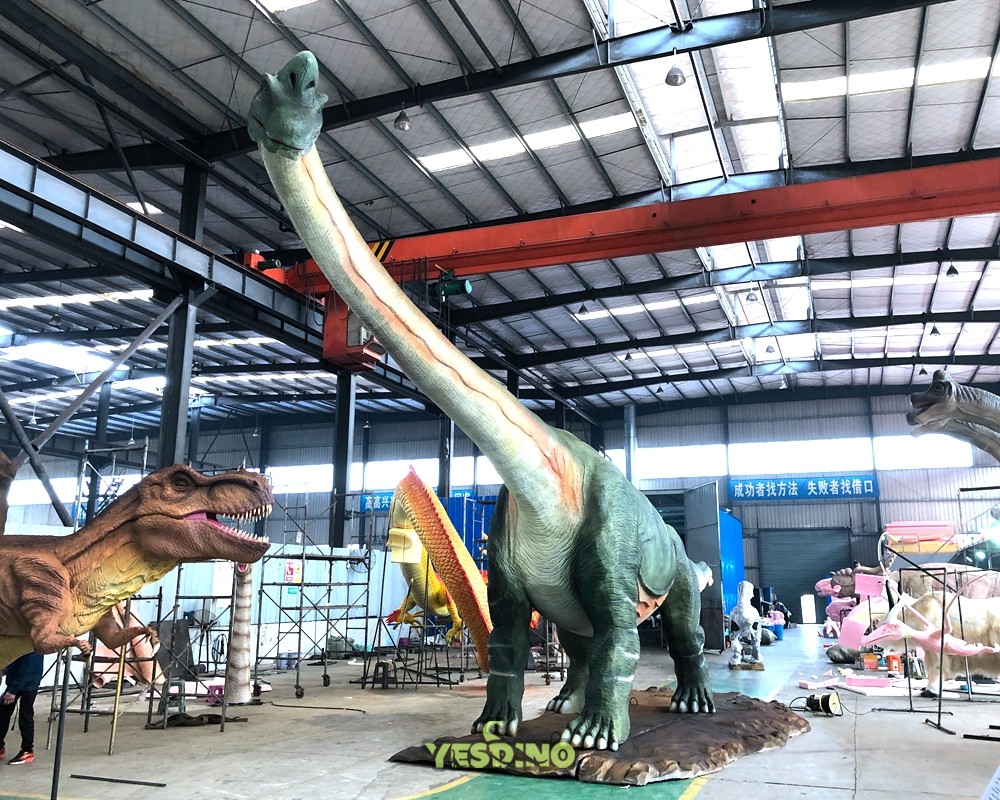

YKL-038 Lifesize Brachiosaurus Animatronic Model
A High-Precision, Lifesize Replica Engineered to Dominate Large Dinosaur Exhibitions and Drive Core Visitor Engagement
15m Long, 16m Max Reach
Meets industry standards for mega-dinosaur exhibits. 15m length with a 6m neck lift, extending up to 16m. A single unit commands a 200㎡ visual focal point.
6 Realistic Motions
Roaring mouth, blinking, head sway (±30°), neck movement (±45°), tail swing (1.2m arc), and belly breathing (0.3m amplitude)—recreating authentic sauropod behavior.
Extensive Customization
10+ customizable dimensions: size (±20%), motion, color, sound, and RGBW ambient lighting for neck/eyes.
Advanced Motion & Control Technology
Precision engineering and intelligent control for seamless operation
Hybrid Actuation System
Multi-joint electric actuator + harmonic reducer drive for smooth, powerful motion with ±0.5mm positioning accuracy.
Medical-Grade Silicone Skin
8-10mm thick, fiber-reinforced for tear resistance. Withstands temperatures from -20°C to 60°C for reliable outdoor use.
Intelligent Control Core
PLC (Siemens S7-1200) controller with wireless remote (500m range) and auto-sensing modes (3-10m trigger) for "Grazing", "Alert", and "Interactive" scenes.
Immersive Sensory Suite
Infrared sensors, directional speakers (≤100dB), and tunable LED lighting (2700K-6500K) create a fully responsive, engaging experience.
Technical Specifications
Physical Dimensions
Length: 15m (±1.5m customizable). Height: 6m (neck raised) / Max Reach: 16m. Width: 3.5m (includes tail swing clearance).
Power System
220V/380V industrial-grade supply. Peak Power: 3-5kW (includes lighting/audio). Average Consumption: 1.2 kW/h.
Control System
PLC controller (Siemens S7-1200) + Wireless remote (500m) + Auto-sensing mode (3-10m trigger distance).
Construction & Materials
Frame: Q345 high-strength alloy (20-ton load capacity). Skin: Food-grade liquid silicone (weather-resistant -20°C to 60°C).
Key Motions (6 Total)
Mouth roar (60°), Blinking, Head sway (±30°), Neck tilt (±45°), Tail swing (1.2m arc), Belly breath (0.3m amplitude).
Customization Range
Size (±20%), Motion joints (up to 2 additional), Color (Pantone), Sound (44.1kHz sampling), Lighting (RGBW, 16M colors).
Applications & Benefits
Designed for maximum impact across educational and entertainment venues
Museums & Science Centers
Centerpiece for paleontology exhibits. Compare with fossil specimens to illustrate the link between massive size and herbivorous diet (1.5 tons of vegetation daily).
Theme Parks & Attractions
An immersive photo spot. Integrate with roller coasters or haunted houses to create a "Jurassic" themed route, significantly enhancing visitor engagement.
Outdoor Landmarks & IP Projects
A landmark for plaza entrances. Night lighting shows can boost evening footfall by 35%. Perfect for recreating iconic "Brachiosaurus feeding" scenes from major film franchises.
Professional Application Guide
Expert recommendations for exhibition planning, installation, and maintenance
Scene Composition
Forms a "Giant Trio Core" with a 15m T-Rex and 13m Spinosaurus. Surround with 5-8m smaller dinosaurs for a layered 3000㎡ "Jurassic ecosystem." 2-3 Brachiosaurus models cover 80% of visitor sightlines.
Installation & Site Prep
Floor load capacity ≥5 tons/㎡. Avoid underground utilities. Maintain a 3m access corridor for maintenance. Outdoor installs require a rain shelter (IP65 rating).
Maintenance & Interaction Design
Quarterly: Lubricate actuator joints. Biannually: Apply anti-aging coating to silicone. Annually: Recalibrate sensors. Use timed roars + neck light flashes (every 15 mins) to draw crowds, paired with 2-minute educational audio on diet.
Important Notice
The final presentation may vary due to on-site lighting, spatial layout, and configuration parameters. The actual visual/audio presentation may differ slightly from promotional materials. Specific configurations (motion precision, audio details) are subject to final project confirmation. Biological data (e.g., daily food intake of 1.5 tons) references the 2021 Brachiosaurus dietary study in the Journal of Vertebrate Paleontology; please refer to the latest academic research for the most current information. Final specifications and effects are subject to the physical product. For accurate information and customized technical proposals, please contact our official sales team.
Product Accessories
Packaging and Container Loading
