Production Process
In-Depth Product Introduction

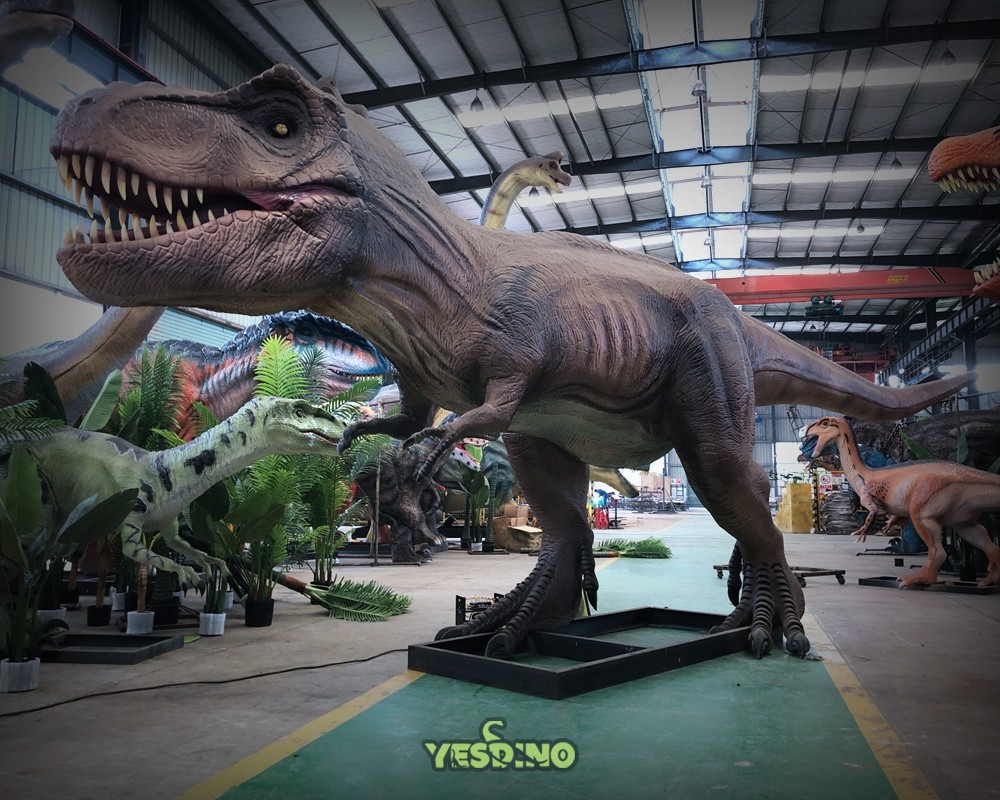

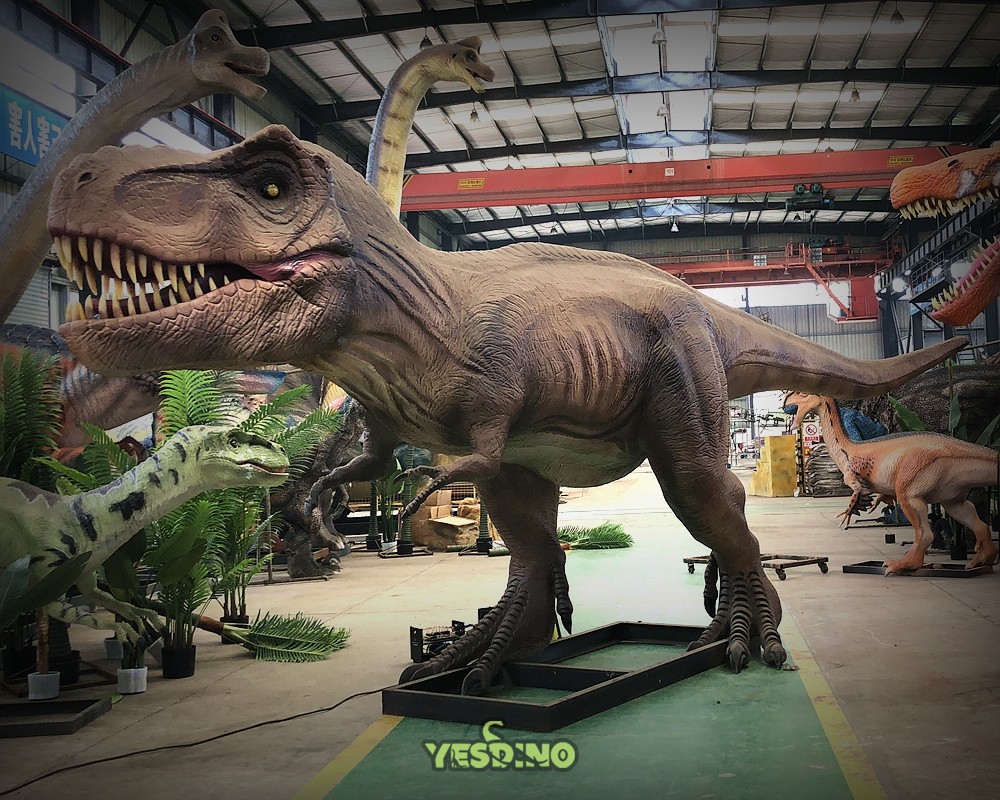

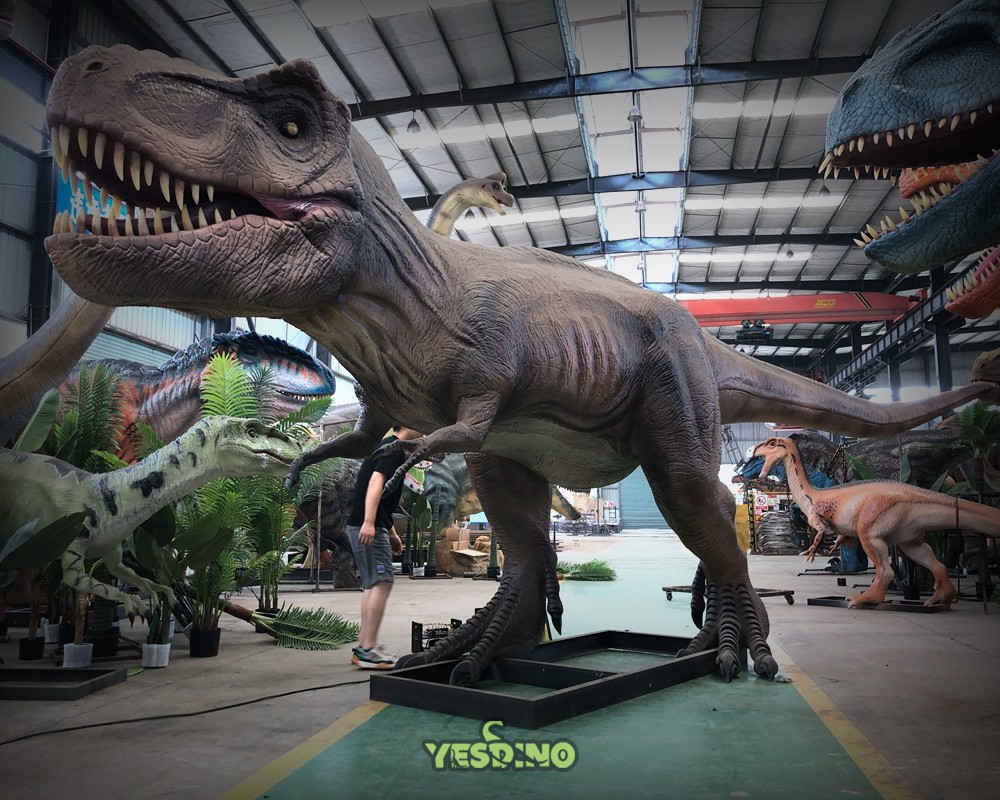

YKL-043 Dynamic Sponge Silicone T-Rex Model
Industry-Standard Solution for Large Theme Exhibitions - Served 200+ Cultural Tourism Projects Nationwide
8m Curved Length, 2.2m Height
Optimized dimensions for theme park installations - 8m curved length, 2.2m standing height, 1m width with high-density sponge endoskeleton.
Advanced Composite Construction
High-density sponge core + UV-resistant silicone skin - withstanding 100,000+ movement cycles and 3+ years of outdoor exposure.
All-Weather Performance
IP65 waterproof rating, temperature range -20°C to 50°C - proven durability in harsh outdoor environments.
Advanced Motion Technology
Precision engineering for lifelike dinosaur movements
Mechatronic Drive System
Servo drive system with ±0.5° precision, 3D mechanical simulation reduces stress concentration by 30%.
Smart Nano Coating
Nano-coating treatment enables self-cleaning, reducing dust accumulation by 70%.
IoT Remote Monitoring
IoT module enables remote fault diagnosis with<10 minute response time.
Patented Technology
2 utility model patents (Patent No: ZL20232XXXXXXX.X) for core technologies.
Technical Specifications
Physical Dimensions
Curved Length: 8m, Height: 2.2m, Width: 1m (Tolerance: ±2cm)
Power System
AC220V/50Hz, Power Consumption ≤1.5kW
Control System
PLC Programming + Wireless Remote, IP65 Protection, Operating Temp: -20℃~50℃
Construction Materials
High-density flame-retardant sponge (35kg/m³) + Food-grade silicone (5mm thickness)
Motion Parameters
Head swing ±30°, Neck lift 0-45°, Blink 3-5s, Jaw open 60mm, Tail swing ±40°, Arm swing ±25°
Certifications
CE, ISO9001, GB/T 18168-2017 Compliance
Application Scenarios
Versatile applications across multiple entertainment and educational venues
Outdoor Cultural Tourism
Theme park entrance landmarks (similar to Changzhou Dinosaur Park layout), geological park educational exhibits with fossil excavation areas.
Indoor Commercial Spaces
Shopping mall atrium attractions (25% foot traffic increase proven), children's playground centers with ball pools and inflatable castles (40% repeat customer increase).
Educational Research
Natural museum dynamic exhibits with AR guidance systems (50% knowledge transfer efficiency improvement).
Professional Application Guide
Expert installation and maintenance recommendations for optimal performance
Space Planning
Indoor: 400-600㎡ central area with ≥10㎡ safety radius. Outdoor: reinforced foundation (bearing capacity ≥5t/㎡).
Maintenance Schedule
Monthly gear lubrication (Mobil SHC 634 recommended), quarterly silicone cleaning with neutral detergent (no strong acids/bases).
Customization Process
Design draft → 3D modeling (72 hours) → Prototype (15 days) → Installation & training. Standard setup serves 200+ visitors daily.
Important Notice
This product is designed based on industry standards and custom requirements. Due to variations in dimensions, colors, motion combinations, and material batches, the actual product may have slight differences in appearance and texture simulation. Final specifications, performance, and acceptance standards are subject to the signed Technical Agreement. For accurate information and exact specifications, please contact our technical team.
