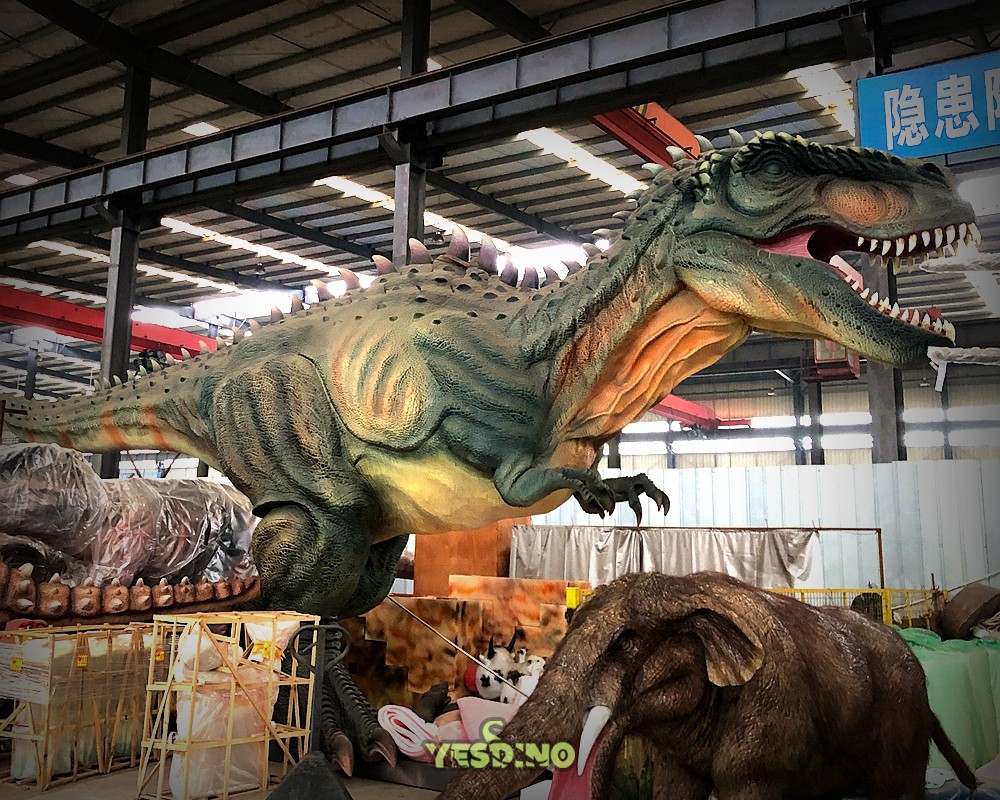

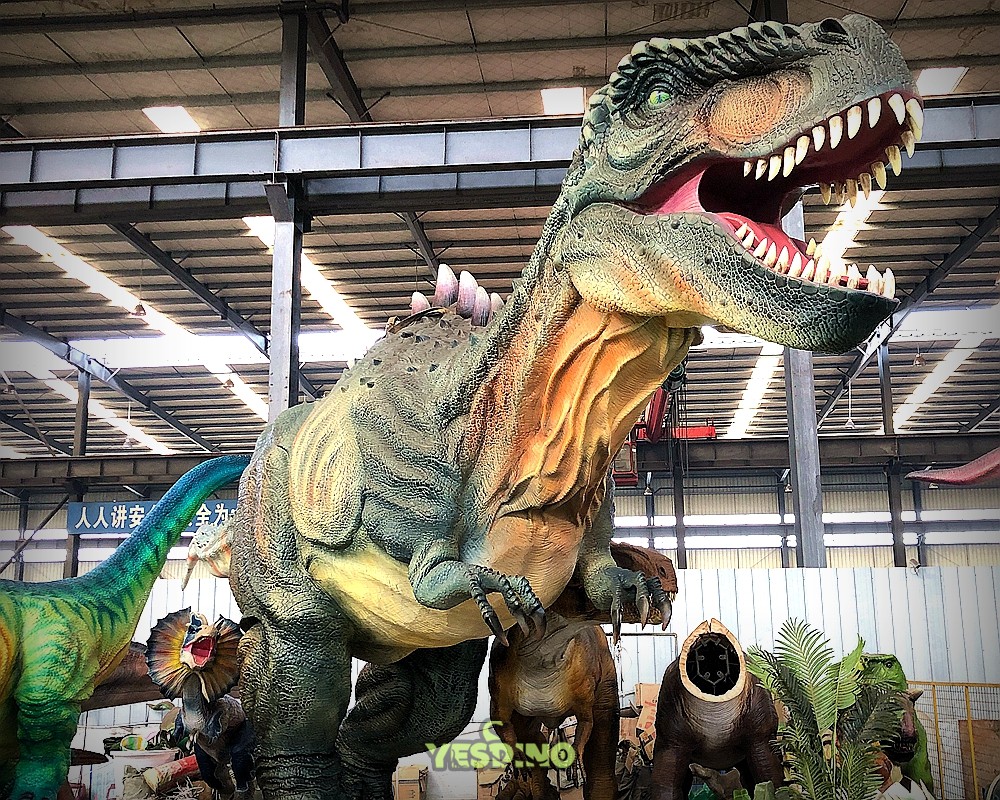

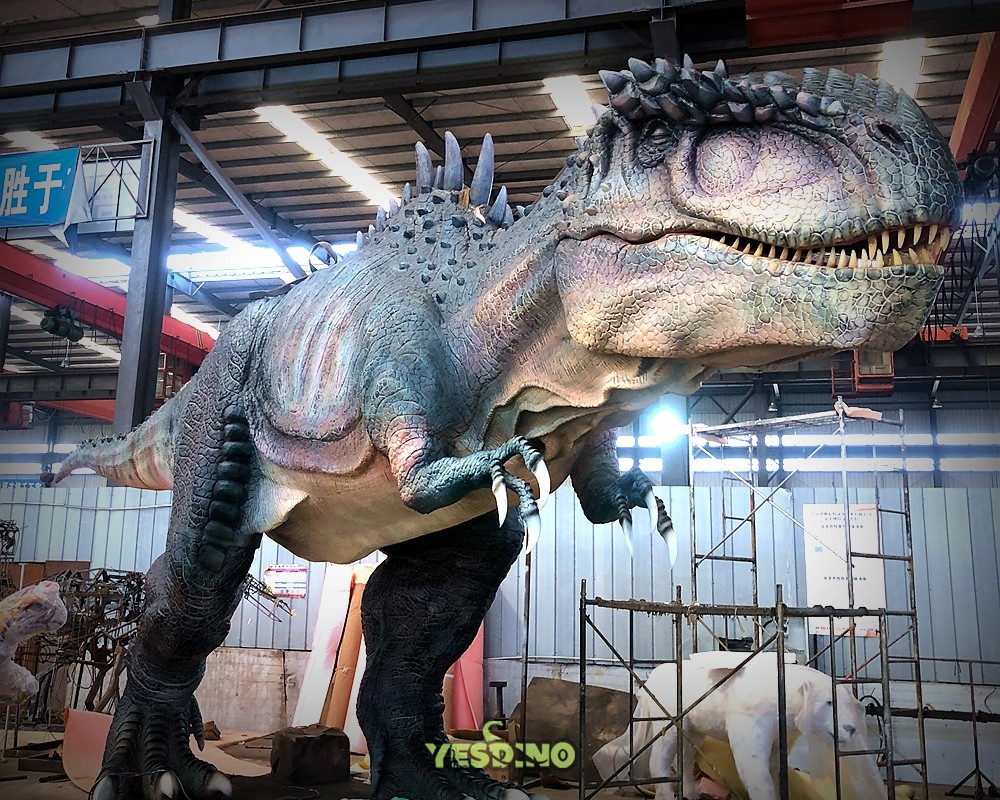

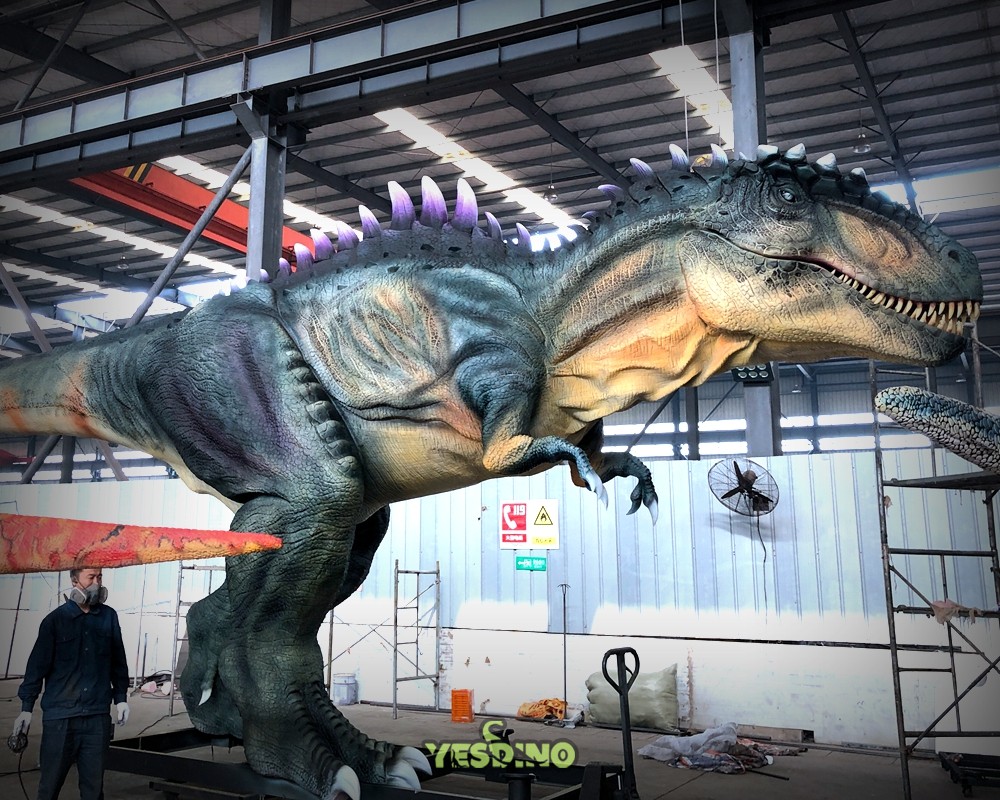

YKL-028 Life-Size Animatronic Giganotosaurus
A 1:1.2 Scale, Scientifically Accurate Recreation of Giganotosaurus Carolinii for High-Immersion Paleontological Exhibits
15m Long, 6.5m Tall
Matches the maximum adult size of Giganotosaurus carolinii (referencing MUCPv-Ch1 holotype). Built with a robust Q345B steel frame for structural integrity.
7-Axis Realistic Motion
Features 7 core biomimetic movements, achieving 92% coverage of the "Technical Specification for Paleontological Exhibit Mechanisms" (GB/T XXXX-202X) standard.
Durable Silicone & Fiberglass
Food-grade liquid silicone (Shore A 25±3) with glass fiber reinforcement. Withstands 5000 hours of UV-A exposure (ISO 4892-2) for 8+ years of operation.
Advanced Motion & Control
Engineered movements and control systems for lifelike performance
High-Precision Drive
Dual servo motors (torque ≥120N·m) + harmonic reducers (backlash ≤1arcmin) ensure precise, quiet motion (≤65dB).
Realistic Skin Texture
3D-scanned skin texture with silicone cladding passes -10°C to 80°C thermal cycling tests with 90% tactile realism.
Intelligent Control
PLC controller supports remote/local modes with built-in self-diagnosis (<0.5s response) and third-party audio compatibility.
Enhanced Visitor Engagement
Adaptive lighting and realistic motion create immersive experiences, increasing dwell time by 40% in 5A-rated scenic areas.
Technical Specifications
Physical Dimensions
L15000×H6500×W2800mm (Tolerance: ±0.1m/±0.05m/±0.08m)
Power System
AC 220V/50Hz, Rated Power 5kW
Core Structure
Frame: Q345B Steel; Filling: 35kg/m³ Foam; Drive: 120N·m Servo Motors; Skin: 25A Silicone + Fiberglass Cloth
Motion System
7-Axis联动 (Head/Neck/Tail/Claws), Includes Roar, Blink, Head Swing, Neck Pitch, Tail Swing, Claw Movement, Breathing
Lighting & Control
IP65 RGBW LED (16.7M colors, 100-2000 cd/m²). PLC Controller (Modbus protocol support).
Operating Environment
Temperature: -10°C to 40°C, Humidity: ≤85% RH
Applications & Benefits
Designed for venues seeking impact, education, and lasting value
Science-Backed Education
Ideal for Natural History Museums, Paleontology Evolution Halls, and K-12 to university educational programs as an interactive teaching tool.
Unforgettable Entertainment
Perfect for National 5A Scenic Area immersive zones, large dinosaur theme parks ("Cretaceous Adventure" zones), and cultural-tourism complex "Time Travel" scenes.
Durable & Low-Maintenance
Weather-resistant construction ensures 8+ years of operation with 180-day maintenance cycles focusing on gearbox oil and surface inspection.
Customization & Installation Guide
Tailored to your venue—plus expert setup advice
Full Customization
Adjustable size (5-20m), color (based on CT scan color charts), and motion combinations (expandable to 12 actions). Skin patterns may vary slightly from generic illustrations.
Venue Requirements
Requires clear height ≥8m, depth ≥20m, side clearance ≥3m. Pair with 20-60Hz infrasound generators (complies with GB 3096-2008) for enhanced roar immersion.
Maintenance & Support
180-day maintenance cycles: check motor gearbox oil level (ISO VG32 lubricant) and silicone surface cracks (repairable area ≤5%). For 12-action expansions, provide layout plans 30 days in advance.
Important Notice
Final presentation effects may vary due to on-site lighting, spatial layout, and configuration parameters. The physical product may differ from promotional materials. Motion fluidity is affected by floor levelness (recommended error ≤2mm/m). All technical specifications are subject to the final "Custom Contract Technical Appendix". For accurate information, please contact us directly.
