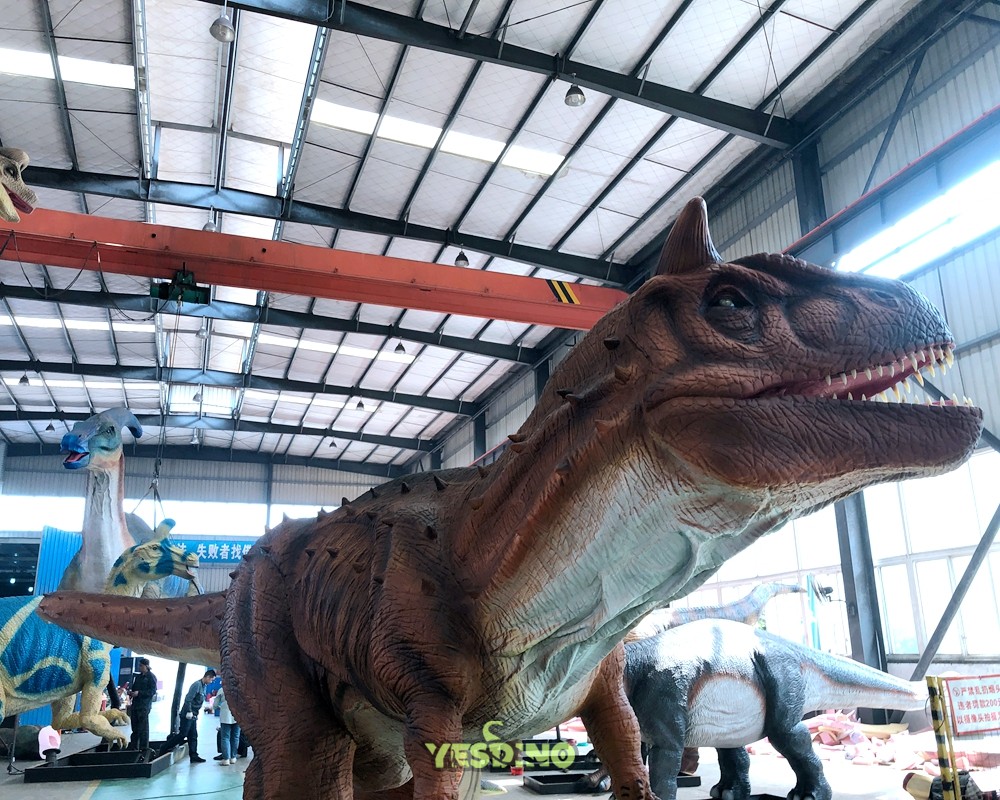

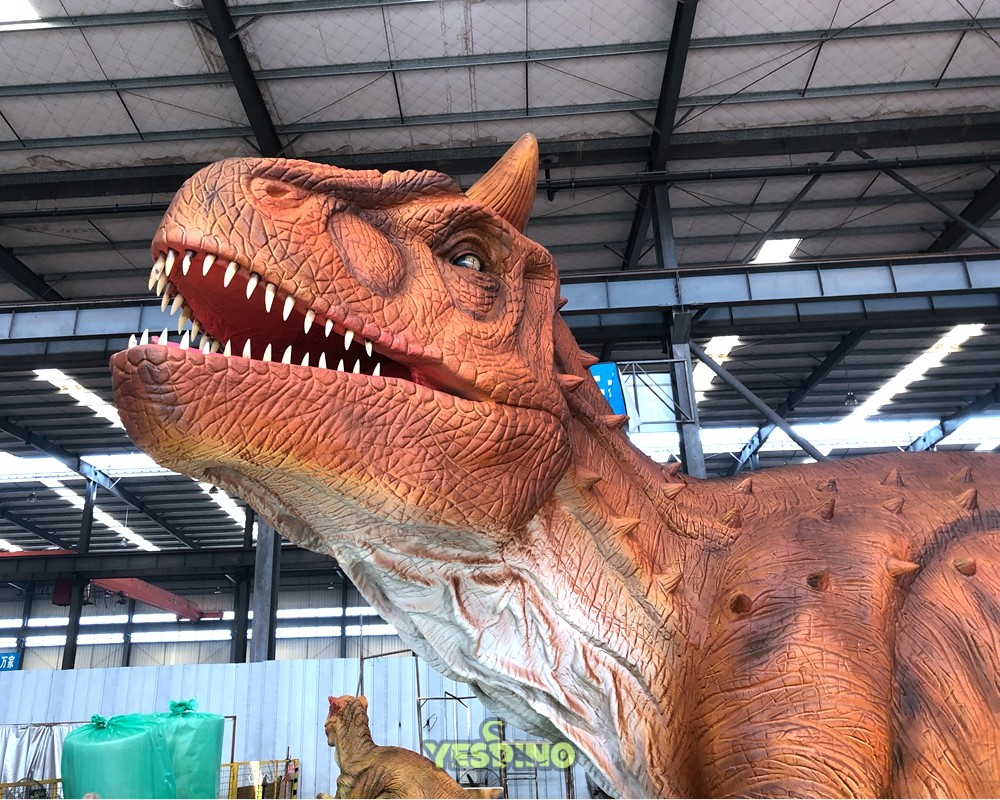

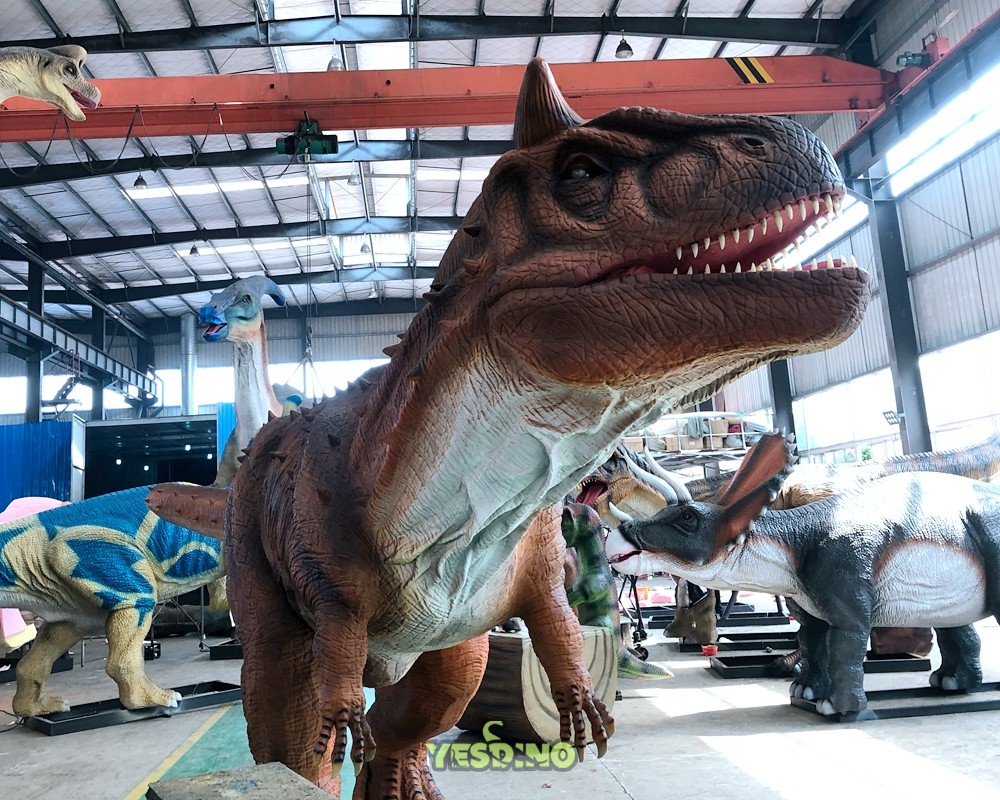

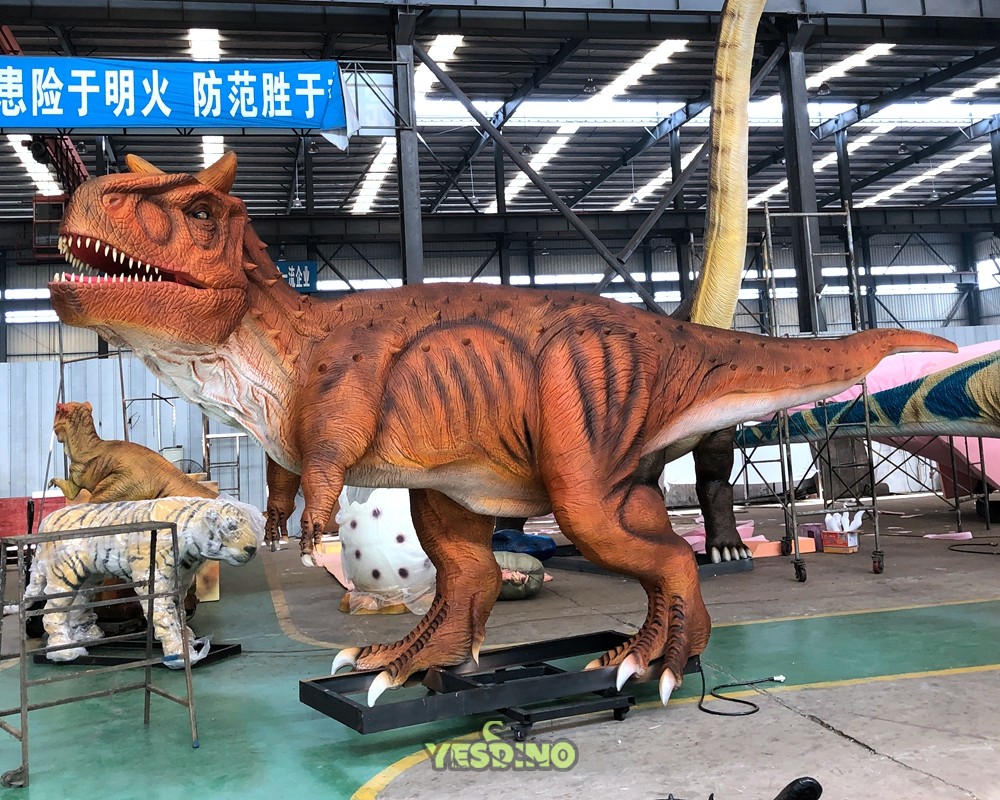

YKL-031 Life-Size Animatronic Carnotaurus
A Scientifically Accurate, Full-Motion Recreation Based on Cretaceous Fossil Specimens for Immersive Educational & Entertainment Applications
8m Long, 2.3m Tall
Standard size: 8m (L) x 2.3m (H) x 1.5m (W). Fully customizable from 3m to 15m, accurately reflecting the compact forelimbs (0.3m, 3.75% of body length) and distinct horns of the Carnotaurus.
High-Fidelity Motion
Features jaw roar (85dB@1m), blinking (0.5Hz), tail swing (±60°), 3D head/neck movement, arm swipe (120° range), and oral mist effects for a complete behavioral repertoire.
Deep Customization
Customize size, motion library, body color (based on fossil pigment simulation), roar sound, and RGBW ambiance lighting (CRI Ra≥90) to match your specific theme.
Advanced Motion Capabilities
A dynamic range of movements that bring the Carnotaurus to life
Head & Neck Articulation
Head side-turn ±45° / pitch ±30°, neck extension ±200mm—simulates scanning and striking behaviors.
Dynamic Tail Swing
±60° tail swing with adjustable frequency (0.2-1Hz) for balanced, lifelike motion.
Forelimb Strike Motion
120° single-arm swing range at 0.5m/s, recreating the distinctive short-limbed movement.
Immersive Audio-Visual Effects
Multi-frequency roar (75-95dB@1m), blinking (0.5-2Hz), and food-grade oral mist (50-200mL/min) for a full sensory experience.
Technical Specifications
Core Dimensions
Standard: L8000×H2300×W1500mm. Custom Range: L3000-15000mm / H1000-5000mm / W800-4000mm.
Motion Parameters
Head: Side-turn ±45° / Pitch ±30°. Tail Swing: ±60° (0.2-1Hz). Arm Swing: 120°. Blink: 0.5-2Hz.
Electrical & Power
AC220V±10%/50Hz. Peak Power: 3kW (motors, mist, heating). Standby Power: ≤50W.
Special Effects Specs
Mist Output: 50-200 mL/min. Roar SPL: 75-95dB @1m. LED Total Power: ≤300W.
Material & Certification
Silicone Rubber (FDA food-grade contact). Steel Frame (GB/T 13912-2020 anti-corrosion standard).
Core Technologies
Multi-axis servo drive, intelligent sensing, PLC control, DSP-optimized audio, and bionic material processes.
Applications & Benefits
Engineered for venues demanding scientific accuracy, engagement, and long-term reliability
Paleontology Museums & Science Centers
Centerpiece for "Cretaceous Predator Ecology" exhibits. Demonstrates horn defense mechanisms (impact load ≥200N) alongside fossil replicas for immersive education.
Theme Parks & Entertainment
Enhances ride perimeter immersion in "Lost World" zones. IR-triggered tail swings increase guest engagement and dwell time.
Film & Educational Productions
High-precision prop for documentaries (0.1mm joint detail resolution). Used in live shows like "Mesozoic Hunt" for programmed interaction with other animatronics.
Professional Application Guide
Tailored setup and maintenance for optimal performance and safety
Site Preparation
Clearance: ≥3m front/back, ≥2m sides. Floor load: ≥500kg/m². Ambient humidity: ≤85%RH. Large custom models require reinforced foundations.
Motion Programming & Safety
Calibrate joints via 7-inch touchscreen. Program 3-5 signature moves per cycle (2-5s intervals). Avoid continuous high-frequency motion (≤10 cycles/min). Install emergency stop button (response<0.5s).
Maintenance & Acoustics
Refill mist fluid (food-grade glycerin) every 500 hours. Clean LED heat sinks every 6 months. Wipe sensors monthly. In venues with reverb >2s, add acoustic foam (NRC≥0.8) to manage roar echo.
Important Notice
Product descriptions are based on standard configurations and laboratory test data (e.g., motion lifespan ≥100,000 cycles unloaded). Actual effects may vary due to customization parameters (e.g., scaling adjustments), installation environment (temperature, humidity, space constraints), and usage frequency. The final presentation may differ from promotional materials. All technical specifications are subject to the factory inspection report. For accurate information, customized requirements, and final performance confirmation, please contact our technical team.
