In-Depth Product Introduction

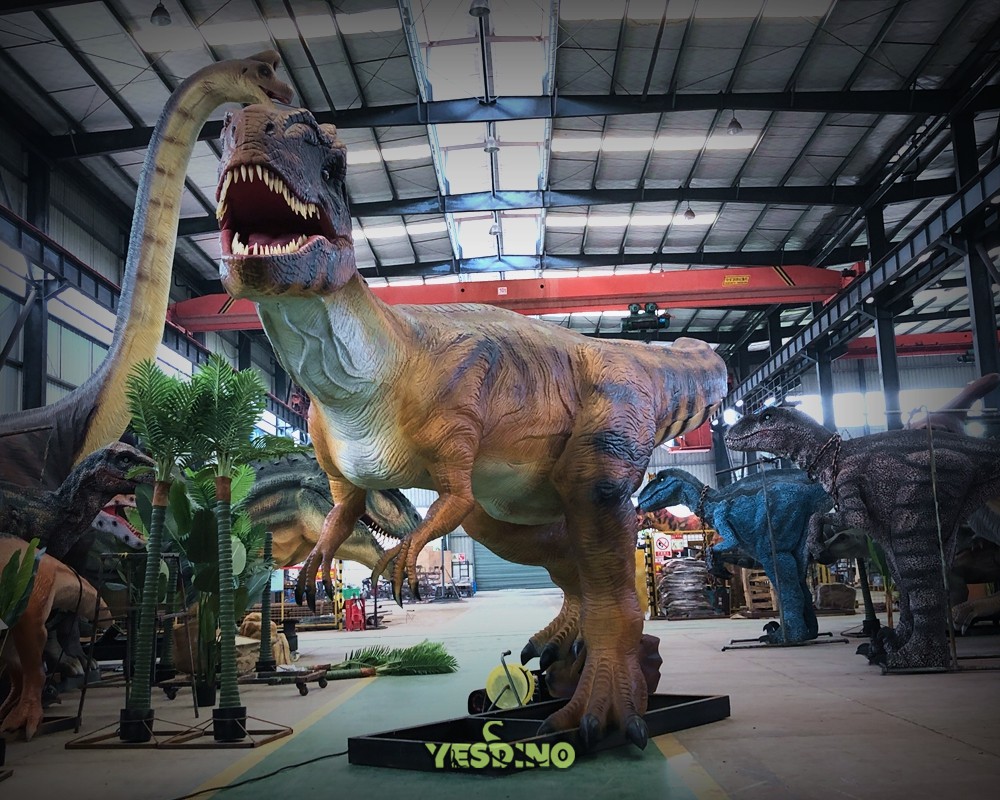

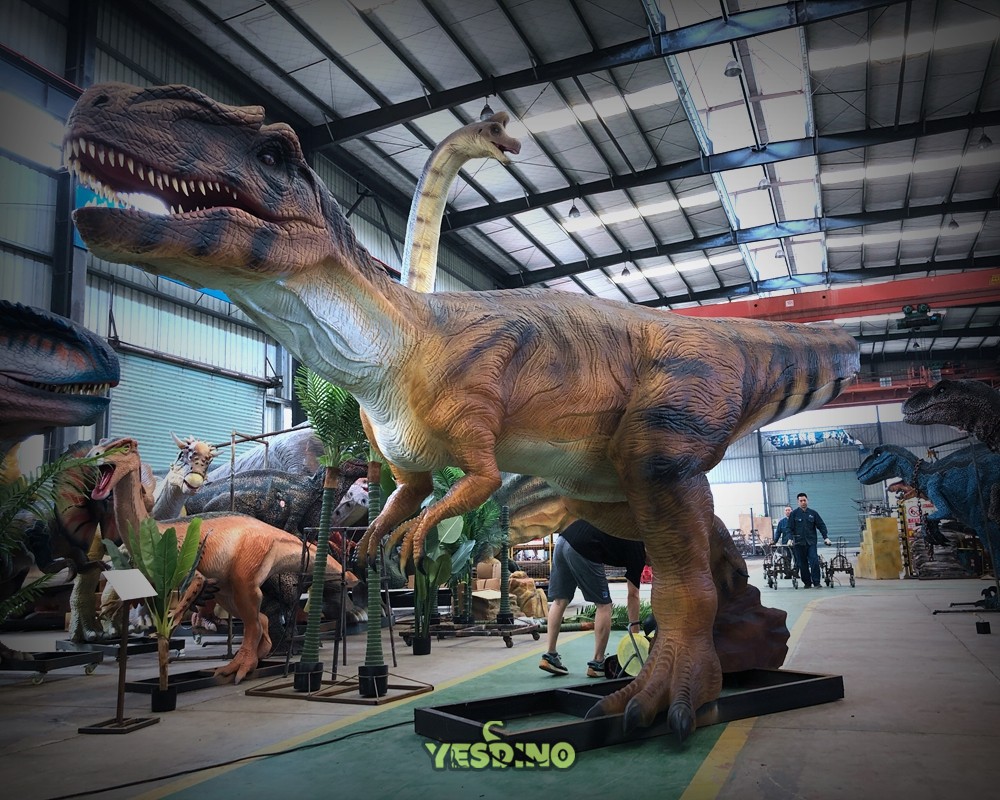

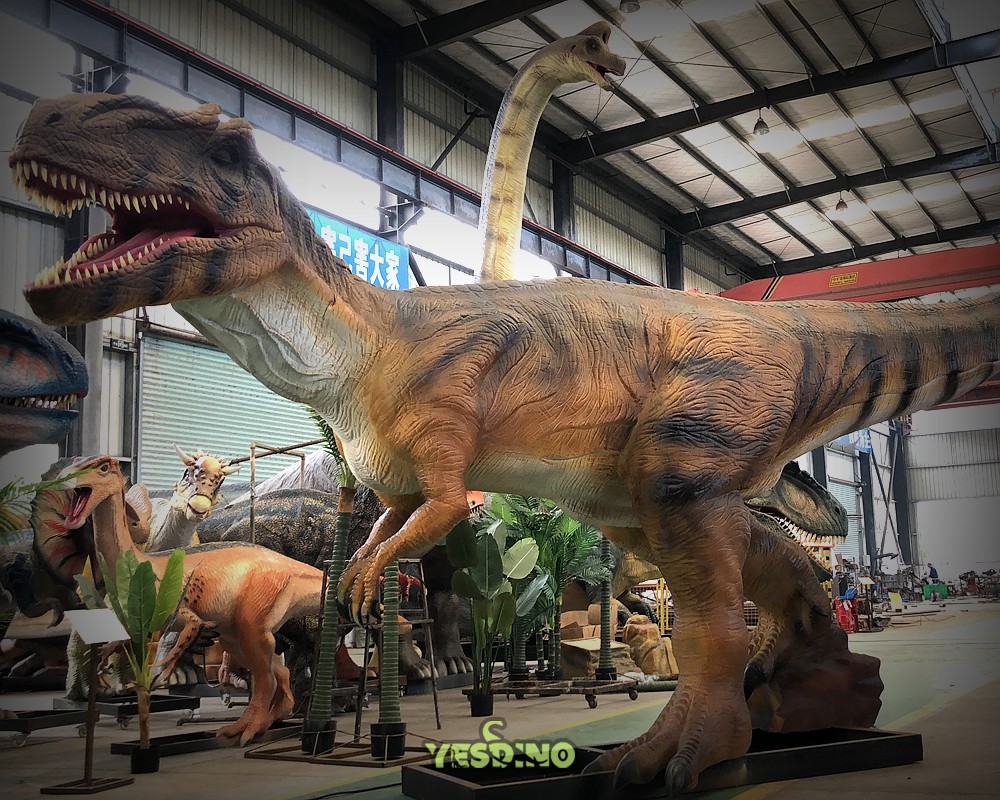

YKL-027 Animatronic Tyrannosaurus Rex
Professional-Grade Bionic Dinosaur with Six-Axis Motion Control for Immersive Exhibition Experiences
6m Long, 1.8m Tall
6000×1800×1600mm bionic proportions with Q235 steel frame structure, achieving 300% higher engagement than static models.
32 Servo Motor System
Panasonic MINAS A6 series servo motors with ISO 9001 certified transmission system for precise six-dimensional motion control.
Industrial Durability
20CrMnTi carburized gears (HRC58-62 hardness), IP65 rating ensures 10+ years outdoor operation in high-traffic venues.
Core Technologies
Advanced engineering for unparalleled motion realism and reliability
Multi-Axis Control System
CAN bus distributed architecture enables 16-channel motion synchronization with<0.1s timing error.
Bionic Muscle Drive
Shape memory alloy (SMA) wires embedded in silicone skin simulate realistic muscle contraction and deformation.
Environmental Adaptation
Temperature/humidity sensors integrated with cooling system ensure stable operation from -30°C to 60°C.
Precision Motion Groups
7 motion groups (head/neck/jaw/eyes/forelimbs/tail/torso) recreate authentic paleobiological kinematics.
Technical Specifications
Physical Dimensions
6000×1800×1600mm (L×H×W)
Motion Components
7 groups (head/neck/jaw/eyes/forelimbs/tail/torso)
Power Unit
32× Panasonic MINAS A6 series servo motors
Control Protocol
Modbus RTU/TCP dual mode
Power Requirements
380V±10%/50Hz
Total Weight
1850kg
Professional Applications
Trusted by leading institutions worldwide for impactful educational and entertainment experiences
National Geological Parks
Dynamic exhibition items for realistic scene restoration areas, as implemented in Zigong Dinosaur Museum.
Theme Park Attractions
Pre-ride guidance installations meeting Disney's Animal Kingdom standards for immersive guest experiences.
Nature Education Centers
Living behavior simulation teaching tools compliant with NGSS curriculum standards for interactive learning.
Professional Installation Guide
Expert setup recommendations for optimal performance and safety
Space Configuration
Main exhibition area recommended at 1:50 terrain scale with ≥3m safety radius around the model.
Lighting Solutions
4500K color temperature spotlight arrays (illuminance ≥200lux) to enhance skin texture details.
Acoustic Management
Install sound-absorbing cotton (NRC≥0.8) in enclosed venues to control reverberation time.
Important Notice
Display effects are based on laboratory test data. Final presentation may vary due to installation site conditions (ground flatness, load-bearing structure, electromagnetic environment) and climate factors. The actual product may have reasonable differences from promotional materials. Final technical specifications are subject to the signed Technical Confirmation Agreement. For accurate information, please contact us directly.
