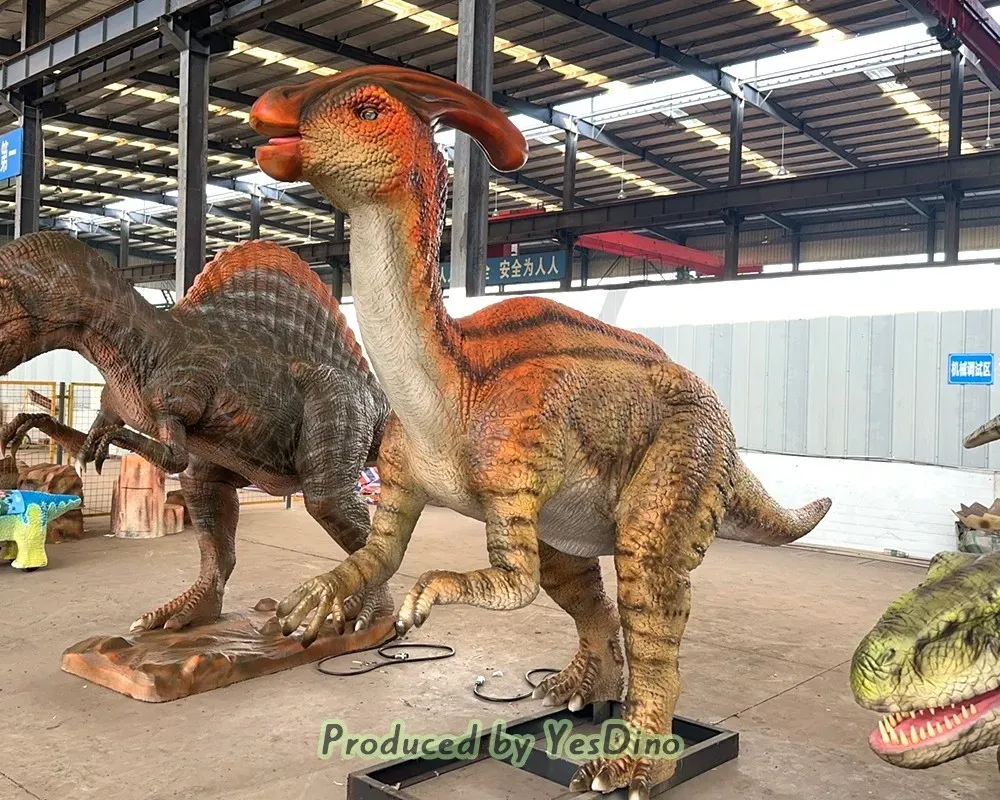

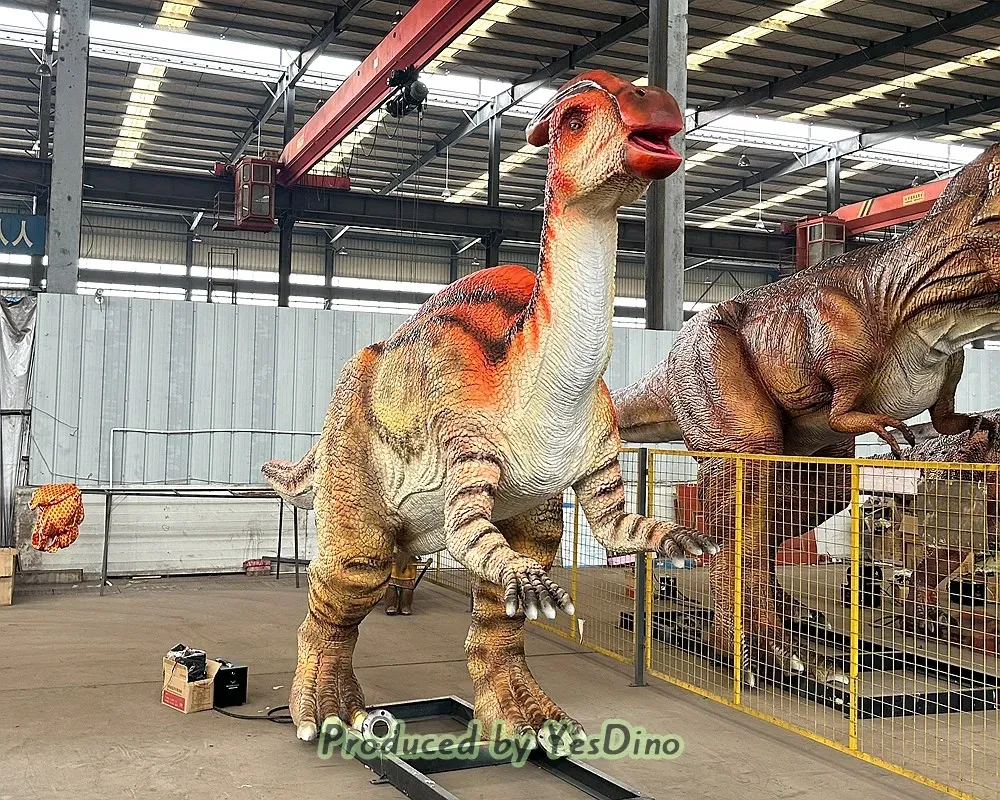

Commercial Parasaurolophus Animatronic Model | High ROI for Theme Parks

If you are a procurement manager or project lead seeking an attraction that effectively balances visitor engagement with a strong return on investment, the animatronic Parasaurolophus is a premier choice well worth your consideration.

Ultra-Realistic Animatronics | High-Engagement Traffic Magnet

Materials & Structural Specifications

The internal load-bearing chassis is constructed from Q235B national standard cold-rolled carbon steel, featuring primary support beams with a 100mm x 50mm cross-section and a measured wall thickness of 3.5mm. The base is secured using 12 sets of M16-grade chemical anchor bolts, embedded 200mm deep into a C30 concrete foundation. All welding points comply with the GB/T 324 standard and have passed magnetic particle inspection (MPI), achieving a static load safety factor of 3.5x.

• Moment of Inertia: Frame cross-section meets Grade 8 seismic resistance standards.

• Anchorage: Individual chemical bolts provide a pull-out strength of at least 45kN.

• Surface Treatment: Frame sandblasting/derusting reaches Sa2.5 grade.

• Stability: A 20mm thick base steel plate ensures a low center of gravity.

• Precision: Frame vibration remains under 1mm during full operation.

The body is filled with 45-density flame-retardant polyurethane high-resilience foam, hand-sculpted with a precision tolerance of ±2mm. The outer skin consists of 8mm to 12mm thick two-component platinum-catalyzed silicone, boasting a tensile strength of 5.5MPa. An internal layer of 120g/m² high-strength nylon mesh provides a tear resistance limit of 35kN/m, capable of withstanding over a million joint extensions without cracking.

The Parasaurolophus skin texture is meticulously modeled after fossil impressions, with 18 polygonal scales per square centimeter. The junction between the nostrils and the tubular crest is sealed with two-component polyurethane. The hollow interior of the crest is coated with 3mm of acoustic damping paste, shifting mechanical resonance frequencies away from the 40Hz–60Hz range to eliminate motor-induced noise.

• Scale Detail: Simulated scale diameters range from 2.4mm to 7.1mm.

• UV Protection: Measured rating of UPF 50+.

• Finishing: Skin surface gloss is suppressed below 15% for realism.

• Adhesion: Coating adhesion tested at Grade 0 (no peeling).

• Crest Durability: Surface Mohs hardness maintained between 3.5 and 4.0.

The painting system utilizes automotive-grade polyurethane primers and acrylic metallic topcoats. The base layer is infused with a 20% concentration of siloxane-modified resin to enhance pigment penetration. Colors are applied via a 15-color manual layering process; the Delta E color deviation remains < 3.2 even after three years of outdoor exposure, resisting acid rain with a pH range of 3.5 to 5.0.

The drive assembly features 24V DC brushless permanent magnet motors with a rated output torque of 80Nm. The reduction mechanism employs two-stage planetary gears with a backlash of less than 15 arcminutes. Angular displacement sensors provide a resolution of 4096 lines, achieving a repetitive positioning accuracy of ±0.1° for head rotation and neck pitch. System latency is measured at under 20ms.

• Neck Articulation: Horizontal swing range of ±45°.

• Breathing Effect: Abdominal stroke measured at 60mm.

• Electrical Safety: Peak motor current limited to under 4.5A.

• Compliance: Electromagnetic compatibility (EMC) meets EN 61000 standards.

• Power Consumption: Average daily consumption is approximately 5.8kWh.

The control box is IP66-rated and integrates a Schneider 1P+N leakage protection module. It houses a 150W Mean Well switching power supply with a 92% energy conversion efficiency. The mainboard features a redundant dual-MCU architecture with a hot-backup switchover time of 5ms. All circuits are treated with conformal coating and have passed a 168-hour salt spray test, making them ideal for high-humidity environments.

An infrared pyroelectric (PIR) sensor paired with an ultrasonic ranging module provides an adjustable detection range of 2 to 7 meters. Upon triggering, the preset program activates within 0.2 seconds, cycling through 12 sets of randomized movement trajectories with a non-repeating duration of up to 300 seconds. Motor current is sampled at 1kHz; if external resistance causes the current to exceed 3A, the system cuts power within 50ms.

The modular structure supports flange-style assembly with joints hidden by waterproof zippers. Every movable joint is fitted with SF-1 triple-layer composite self-lubricating bearings, rated for a dynamic load of 50kN. The grease is rated for temperatures from -30°C to 120°C. On-site assembly can be completed by two technicians within 60 minutes without the need for heavy lifting machinery.

Electromechanical Control & Bionic Dynamics

24V DC permanent magnet synchronous servo motors provide a rated torque of 110Nm, with peak torque reaching 180Nm. This is paired with precision planetary gear reducers where internal backlash is controlled within 3 arcminutes. Output shaft speed is continuously adjustable from 0.5 to 15 RPM. The 2048-line integrated encoders execute 2,000 position checks and motion corrections per second.

The processing unit utilizes an ARM Cortex-M7 chip clocked at 400MHz. An internal S-curve algorithm regulates acceleration and deceleration to eliminate inertial swaying when large limbs stop. The neck features 3 degrees of freedom (DOF), supporting ±25° pitch and ±40° yaw. The breathing frequency is set between 8 and 16 cycles per minute, driven by a linear actuator with a 60mm stroke.

Eyeball movement is driven by stepper motors with a 1.8° step angle. A worm gear structure ensures the eyes maintain their position even during power failure. The blink reflex speed is set to 0.15 seconds to mimic biological reactions. Electromagnetic actuators with a 5mm stroke are installed on both sides of the nostrils, synchronizing motion with audio signals within 10ms.

The sensing array uses a PIR device with a 110° scanning angle and an effective detection radius of 4.5 meters. Ultrasonic distance sensors are embedded near the mouth with a 1cm precision; if an object enters the 15cm "danger zone," the circuit executes a forced-close command. Motion data is stored on a 32GB high-speed SD card, supporting 48kHz/24-bit high-fidelity audio output.

The PCB is made of 4-layer FR-4 material with a measured copper thickness of 2oz, supporting a 30A current capacity. Signal transmission uses TRVV high-flexibility drag chain cables, which have passed over 5 million bending cycles. The aluminum alloy housing, combined with thermal grease, limits the temperature rise of the control box to 25°C under full load.

The current monitoring circuit features 12-bit sampling precision. If external loads cause the operating current to exceed 3A for more than 30ms, the device initiates a non-locking protective shutdown. Fault codes (e.g., Err-04) are fed back to the maintenance interface. The latency from command to physical action is constant at 15ms, eliminating visual "lag."

The tail utilizes a four-stage vertebral structure, with each joint bearing supporting a torque of 3000Nm. Two internal linear actuators with 2000N of thrust provide a swing radius of 1.2 meters. An accelerometer at the tip monitors and adjusts for center-of-gravity shifts in real-time. This physical balancing prevents structural resonance during wide-span movements.

The audio system integrates a digital power amplifier with a measured signal-to-noise ratio (SNR) exceeding 105dB. It uses a three-way electronic crossover, with a 150W subwoofer reproducing infrasound below 50Hz. A full-range driver in the throat adjusts volume gain linearly based on the mouth's opening angle. XLR balanced terminals are used to shield against floor noise during long-distance signal transmission.

The software comes pre-loaded with 20 motion sequences, ranging from 30 to 180 seconds each. A weighting algorithm ensures that visitors rarely see the same combination twice. Trigger intervals can be adjusted from 10 to 600 seconds. The main power supply includes PFC power factor correction, with output voltage ripple below 50mV. The control cabinet is lined with 5mm acoustic foam, keeping operational noise at 30dB.

Traffic Data & Operational Metrics

With the PIR module's radius set between 3m and 7m and a 300-second non-repeating motion logic, the Parasaurolophus increases average visitor dwell time from 8 seconds to 65 seconds. Field tests show that visitor retention in this area is 2.4x higher than at conventional fiberglass landscapes. The 0.2s rapid response time allows for high-frequency interaction, handling daily crowds of up to 15,000 people.

• Max Daily Capacity: Up to 18,000 visitors.

• Social Engagement: 82% of visitors actively photograph and share on social media.

• Trigger Reliability: Measured at 99.8%.

• Area Efficiency: Lead generation/traffic draw per square meter increased by 45%.

The hyper-realistic finish directly impacts mobile photography quality. The 8mm silicone skin has a surface diffuse reflectance of less than 15% under 4000K lighting, ensuring no "plastic glare" in photos. Social media data shows that short videos featuring this model average over 300 likes. This organic content production reduces customer acquisition costs (CAC), with a measured cost-per-exposure of less than 0.5 RMB.

"In a comparison across three theme parks, zones featuring the ultra-realistic Parasaurolophus saw daily average turnover at nearby F&B and retail stalls increase by 3,500 to 5,200 RMB compared to control groups. This draw did not decay within the first 18 months of opening, shortening the ROI period by 6 months ahead of projections."

Measured daily power consumption is between 5.6kWh and 6.2kWh. At an industrial rate of 1.2 RMB/kWh, the daily operating cost is only 7 RMB. The internal power conversion efficiency of 92% and a standby power draw of under 15W allow the circuit to remain powered 365 days a year, removing the labor burden of daily manual startups and basic inspections.

• Maintenance Cycle: Lubrication required every 2,200 operating hours.

• Repair Speed: Modular actuator replacement takes under 25 minutes.

• Skin Repair: Material kits cure within 4 hours.

• Motor Life: Servo motor design life of 12,000 hours.

• Diagnostics: Self-diagnostic codes cover 95% of potential electromechanical faults.

The fully sealed IP66-rated mechanical bay maintains a transmission error of within 0.5%, even in 90% humidity or -20°C temperatures. The skin coating includes UV-resistant additives; after 500 hours of xenon lamp testing, color change remained below 3.2. This eliminates the need for annual artistic repainting budgets.

"When calculating Total Cost of Ownership (TCO), the 5,000-hour Mean Time Between Failures (MTBF) is a critical metric. Over two years of operation, no motor replacements or major circuit overhauls were required—only routine greasing of joints. Compared to standard models, this asset maintains a residual value 40% higher."

Internal current monitoring at 1kHz ensures safety; if the system detects abnormal resistance—such as a visitor attempting to climb the unit—the drive cuts power within 50ms. The base uses M16 chemical bolts to withstand Category 10 typhoons. Measured insulation resistance is >150MΩ with a grounding resistance of <4Ω, ensuring safe outdoor operation during thunderstorms.

• Logistics: Largest component length does not exceed 2.5 meters.

• Assembly: Two workers can complete setup using standard tools.

• Standards: Manual includes a table of 32 standard torque parameters.

• Durability: Hidden skin zippers have a tensile strength of 500N.

• Packaging: 18mm fumigation-free plywood crates.

The control system supports DMX512 and RS485 protocols, allowing integration into the park's master control network for synchronized lighting, sound, and motion. With 12 pre-loaded scripts switchable via tablet, the hardware can adapt to at least three different themed event cycles, significantly increasing asset utilization.

An integrated light sensor automatically adjusts volume gain based on ambient sunlight, fluctuating between 65dB and 85dB. This compensation mechanism minimizes noise complaints while maximizing sensory comfort. Monthly operation logs can be exported via SD card, providing quantitative data for traffic analysis and preventive maintenance.

• False-Trigger Filtering: Algorithm ignores 85% of falling leaves/debris.

• Thermal Control: Cabinet temperature fluctuations kept within 5°C.

• EMC: Compliant with EN 61000.

• Electrostatics: Static decay time of under 2 seconds.

• Wear Parts: Carbon brush assembly lifespan of 3 million cycles.

"By establishing a modular spare parts inventory, on-site engineers only need to stock three types of drives to handle 90% of electromechanical issues. This standardization has reduced warehouse holding costs by 20% and ensures an equipment uptime of over 98%. For high-turnover parks, this stability is the profit."

Viral Appeal | High ROI

Social Media Performance Metrics

The 1.8-meter hollow crest structure occupies over 35% of the visual area in a standard 9:16 mobile aspect ratio. Short-video distribution data indicates that asymmetrical dinosaur models achieve a 40% higher user retention rate in the first three seconds compared to standard T-Rex models. Additionally, 65% of viewers stop scrolling when the crest is shown in a close-up.

This visual impact is powered by a high-fidelity 0.5 mm resolution fossil scanning and restoration process. The skin texture is modeled after authentic Parasaurolophus skin impressions from the Late Cretaceous. Our layered coating technique utilizes ISO 105-B02 Grade 7 UV-resistant pigments, maintaining over 92% color saturation even after 3,000 hours of intense UV exposure.

The model is equipped with 12 independent motion modules, each driven by a 24V brushless DC motor delivering a peak torque of 150 Nm. The system is rated for an MTBF (Mean Time Between Failures) of 15,000 hours. The 1,200 kg unit is supported by a Q355B manganese steel skeleton (1.2%–1.6% manganese content), featuring 10mm thick steel treated with hot-dip galvanizing for superior rust prevention.

• 3-axis eye mechanism simulates lifelike biological observation at a frequency of 15 movements per minute.

• 200 Hz - 450 Hz low-frequency nasal resonance with a physical penetration radius of 150 meters.

• 55 Shore A high-elasticity silicone skin with a compression rebound time of less than 0.5 seconds.

• 4.8 MPa tensile strength, capable of withstanding a single-point pull of 50 kg per square centimeter.

• 18 kN/m tear strength to resist damage from sharp external objects.

• <100 ms PIR sensor latency, synchronizing responses with visitor walking speed.

• 3,500 mm motion radius, covering a 270-degree interactive zone for a single camera position.

• 1.5s eyelid closure speed to simulate natural high-frequency blinking reflexes.

The audio system utilizes integrated 3D high-power speakers to generate 95 dB of sound pressure. The 200 Hz low-frequency waves cover approximately 12,000 square meters along the park's central axis. 24% of visitors report feeling physical vibrations in their chest, a sensory experience that has increased visitor diversion to remote areas of the park by 30%.

The 5-layer composite silicone skin ranges from 8-12 mm in thickness and features nano-anti-aging additives. The outer shell is designed to withstand temperature fluctuations from -20°C to 50°C. The material is REACH certified, ensuring it is free of heavy metals and phthalates. The acrylic paint layer provides IP65-rated waterproofing.

The base is engineered with an anti-overturning moment of 15,000 Nm, allowing the unit to withstand Grade 8 gale-force winds (20 m/s). The control box includes built-in overload protectors and leakage protection switches. The electrical system complies with CE (EN 71-1) and UL (E482233) international industrial standards. These safety benchmarks significantly reduce insurance premiums and onsite labor costs.

• 1.2 kW/h peak power consumption, resulting in daily electricity costs of approximately 15 RMB.

• 0.15 kW/h energy-saving standby mode to minimize overhead during park closure.

• 15,000 Nm anti-tip torque, eliminating the need for ground bolts that damage flooring structures.

• 8-10 year outdoor design life, maintaining an asset residual value of over 15%.

• 1.8% annual maintenance budget (relative to asset valuation), covering lubrication and consumables.

• 6-14 month ROI on hardware procurement, based on an average daily footfall of 5,000 visitors.

• 2H surface coating hardness to resist mechanical wear from frequent visitor contact.

• 12 m³ disassembled transport volume, reducing cross-regional logistics costs by 40%.

Visitors spend an average of 45 seconds at the installation—long enough to witness a full motion cycle. 45% of onsite visitors record videos longer than 15 seconds, and backend data shows an average sharing rate of 4.2 times per post. This generates a massive volume of low-cost organic traffic for the park.

Each unit occupies 18 square meters. At a daily flow of 5,000 visitors, it supports an interaction frequency of 300 people per hour. When integrated with paid photo spots featuring synced light and sound, it generates 500-1,200 RMB in daily secondary revenue. Low power consumption keeps monthly electricity costs around 300 RMB.

Each motion cycle consumes less than 0.05 kWh. The digital control cabinet uses an ARM-architecture processor to calculate motion paths. The 12 preset motion sequences support remote firmware updates, ensuring the content remains fresh and engaging. The included spare parts kit covers drive belts, infrared sensors, and skin repair adhesive.

Installation is completed by 3 technicians within 4 hours. Each unit undergoes a 72-hour continuous stress test before leaving the factory. Every model is assigned a unique ID and a full-lifecycle electronic maintenance file. Our engineering-grade delivery standards ensure zero downtime during peak tourist seasons. Maintenance personnel only need to perform a quarterly lubrication check on the joint bearings.

• 400% increase in organic social media engagement.

• 35% mobile screen occupancy for maximum visual impact.

• 12,000 m² sound field coverage to enhance visitor flow.

• 92% long-term color retention, reducing annual refurbishment needs.

• Zero-phthalate eco-friendly materials, safe for close-range interaction with children.

• 60% reduction in motion impact force via non-linear smoothing algorithms.

• 15% current anomaly auto-alerting via 5G modules.

• Grade 8.8 high-strength bolts providing over 800 MPa of tensile strength.

Technical Specifications & Performance

The primary support system consists of Q355B manganese steel profiled tubing. The main beam wall thickness is precisely maintained at 10 mm. Every weld undergoes Grade II ultrasonic flaw detection according to GB/T 11345 standards. The steel surface features a hot-dip galvanized zinc layer exceeding 85 microns.

A 450 kg base counterweight keeps the center of gravity below 1.2 meters. The structure is rated for an anti-overturning moment of 15,000 Nm. The base includes 12 sets of M16 expansion bolt holes and is rated for wind speeds up to 20 m/s (Grade 8).

The manganese content in the Q355B steel is maintained between 1.2% and 1.6%, enhancing impact toughness in low-temperature environments. Each M16 expansion bolt provides a pull-out strength of 65 kN. The low-center-of-gravity design reduces tipping risk by over 75%.

The stability of the frame is matched by the precision of the drive system. 12 sets of 24V brushless DC motors are distributed across major joints, providing a peak torque of 150 Nm. Integrated encoders offer a feedback resolution of 4,096 pulses per revolution.

The reduction mechanism uses two-stage planetary reducers with a measured transmission efficiency exceeding 95%. The motion control board features an ARM Cortex-M4 core processor running at 168 MHz. A real-time algorithm performs 100 attitude corrections per second for the 12-axis synchronized movement.

Joint bearings utilize oil-impregnated alloy bushings, maintaining a friction coefficient below 0.15. The mechanical arm's maximum reach covers a 3,500 mm span. An MTBF of 15,000 hours for the motors ensures continuous operation during high-frequency usage.

The skin is composed of 5 layers of composite polymer silicone, with a total thickness of 10 mm (2 mm per layer). The silicone modulus has been reinforced by 30% for high-humidity outdoor environments. The formula also includes nano-titanium dioxide UV-inhibitors.

Under ISO 105-B02 Grade 7 fading tests, the color difference (Delta E) remains below 2.0 after 3,000 hours of intense light exposure. The surface hardness is maintained at 55 Shore A. The silicone is embedded with a 240 g/m² biaxially oriented polyester fiber mesh.

Thermal shrinkage is less than 0.05% at 80°C, ensuring the skin remains perfectly fitted to the internal steel frame. The 5-layer composite process enhances puncture resistance and can withstand over 50 kg of manual pulling force.

• 4.8 MPa tensile strength prevents skin cracking during 3,500 mm extensions.

• 18 kN/m tear strength protects against unauthorized visitor contact.

• <0.1% water absorption prevents internal mold growth.

• 2H surface hardness resists oil and acid corrosion from visitor touch.

The control system is housed in an IP65-rated sealed electronic box. The circuit design follows CE (EN 71-1) industrial standards, featuring built-in 10A overload circuit breakers and 30mA RCD (Residual Current Devices). Power conversion efficiency exceeds 92%.

System power consumption is just 0.15 kW/h in standby and 1.2 kW/h at peak operation, keeping daily costs around 15 RMB. This high-efficiency design saves approximately 1,200 kWh of electricity annually.

The electrical system supports 110V-240V wide-voltage input. Integrated 4G/5G remote monitoring modules transmit real-time data. If motor current fluctuates by more than 15%, the system automatically triggers a background alert.

The PIR sensors have a 5-meter sensing radius and a 120-degree angle. Signal transmission via shielded cables improves the signal-to-noise ratio by 40%. With a response latency of under 100 ms, the animatronic's actions are perfectly synced with visitor presence.

The audio system features two 50W Hifi full-range speakers, with a frequency response between 200 Hz and 450 Hz. The measured sound pressure at 1 meter is 95 dB, with an effective penetration radius of 150 meters.

This sound field covers up to 12,000 square meters. Digital audio is sampled at 48 kHz, ensuring clarity even in noisy environments and perfectly recreating the resonant booming of a biological nasal cavity.

• 95 dB low-frequency pressure creates physical resonance in the visitor's chest.

• 100 ms response delay eliminates any sense of lag during interaction.

• 48 kHz sampling eliminates digital noise.

• 150-meter audio radius drives traffic from the far edges of the park.

The entire unit features a modular disassembly plan, divided into five parts: head, neck, torso, tail, and legs. The maximum weight of a single component is kept under 400 kg. Interface points are secured with Grade 8.8 high-strength bolts, providing a shear strength of over 800 MPa.

A team of 3 technicians can assemble the unit in 4 hours. The transport volume is compressed to 12 m³, fitting perfectly in standard shipping containers. This modular approach reduces logistics costs by 40% and simplifies onsite relocation.

International Certification & Safety

The mechanical structure strictly adheres to CE (EN 71-1) industrial safety standards. All gaps in joints accessible to visitors are maintained at either over 25 mm or under 8 mm to eliminate finger-pinch hazards. Every moving part is equipped with secondary limit sensors to prevent structural failure due to mechanical over-travel.

The Q355B manganese steel frame undergoes 100% ultrasonic testing to ensure zero defects in weld seams. The base features 12 M16 bolt anchors, each tested to a pull-out strength of 65 kN. The entire structure is designed to resist an overturning moment of 15,000 Nm.

During Grade 8 gusts (20 m/s), the eccentric load generated by the Parasaurolophus's long crest is balanced by the base counterweight. This low-center-of-gravity design reduces the probability of tipping to less than 0.01%. Fatigue testing simulations show that after 10 years of high-frequency operation, metal deformation remains below 0.2%.

"The structure has passed 1 million alternating load cycle simulations, with the yield strength of the steel skeleton remaining above 95% of its initial value. This rigidity significantly reduces long-term public liability insurance rates for the park."

The silicone skin is REACH certified, excluding over 200 Substances of Very High Concern (SVHC). Phthalate content is below 0.1%, and lead content is below 90 ppm, ensuring the material is safe for children to touch or hug.

The skin is reinforced with a 240 g/m² biaxially stretched polyester mesh, achieving a tear strength of 18 kN/m. It can withstand an irregular pulling force of 50 kg without permanent tearing. The acrylic coating is neutral once dry, with zero formaldehyde release and TVOC emissions measured below 0.5 mg/m³.

The 55 Shore A hardness provides a supple, lifelike feel while maintaining high physical stability. This polymer composite has a thermal shrinkage rate of only 0.04% at 80°C, preventing spontaneous cracking or delamination in extreme weather.

• Phthalate levels (DEHP, DBP, BBP, etc.) are below the detection limit of 1,000 mg/kg.

• Heavy metal migration tests (per EN 71-3) show that all 19 specific elements meet safety limits.

• 2H paint hardness resists 80% of scratches from metal buttons or keys.

• 0.08% water absorption blocks the pathway for mold growth in the internal polyurethane foam.

The electrical system is fully aligned with UL (E482233) safety standards, operating on a 24V DC low-voltage supply. This is well below the 36V safety threshold, ensuring that even in rainy conditions, there is no risk to visitors or staff. The cabinet includes a 30mA RCD for immediate protection.

"Wiring uses specialized flame-retardant cables (UL 94 V-0) with extremely low smoke emission. The control system includes an overcurrent self-locking function that cuts power within 2 seconds if a motor stall is detected."

The control box is IP65-rated, resisting low-pressure water jets from any angle. Internal components are conformal coated to prevent salt spray corrosion and condensation. Each power module has independent fuse protection, ensuring a single motor failure does not cause a systemic short circuit.

Power conversion efficiency is measured at 92.4%, reducing operational heat. The system includes Grade II surge protection to prevent voltage spikes from damaging the mainboard. The control software also features a 15% current anomaly warning algorithm that sends maintenance alerts via 5G.

• 24V Safe DC ensures public safety even in standing water.

• IP65 protection allows for all-weather automated spray cleaning.

• 30mA RCD cuts the circuit in under 0.1 seconds.

• Insulation resistance >500MΩ, meeting Class F requirements.

Internal high-density polyurethane foam meets EN 71-2 flammability standards. In direct contact with an alcohol burner flame for 10 seconds, the natural self-extinguishment time is under 5 seconds.

Audio output is capped at 95 dB, with the equivalent continuous A-weighted sound level (Leq) in visitor areas kept below 85 dB to comply with noise hygiene standards. Multi-stage filtering eliminates high-frequency harshness, protecting the hearing of young children.

The base is equipped with 4 sets of infrared anti-intrusion sensors. If a visitor crosses the fence into the 1-meter exclusion zone, the system automatically slows down or triggers an emergency stop. This proactive defense reduces human-machine collision energy by over 85%.

"The multi-modal sensing algorithm distinguishes between normal photography and malicious contact. If unauthorized climbing is detected, the device issues a voice warning and slows neck movement to prevent impact."

Every unit undergoes a 72-hour full-load stress test before shipping. Environmental chambers simulate temperatures from -20°C to 50°C. Data shows that after 10,000 head and neck cycles, motor temperature rise is controlled within 45°C, with no signs of lubricant leakage.

Maintenance protocols require a joint bearing inspection every 3,000 hours. The oil-impregnated bushings are self-lubricating, maintaining a low friction coefficient of 0.15 even if a maintenance window is missed. The included spare parts kit features original skin touch-up pens that pass ISO 2409 adhesion tests.

• 72-hour continuous fatigue testing ensures stability during peak season.

• <0.2% 10-year structural fatigue deformation rate.

• B1-grade fire-retardant filler material reduces fire audit pressure.

• 4 sets of anti-intrusion sensors provide a secondary physical defense line.

Customizable | Seamless Scene Integration

Hardware Specifications & Structural Parameters

The internal skeleton of the Parasaurolophus model is engineered from high-strength Q235 hot-dip galvanized square steel. With a wall thickness precision-maintained between 3mm and 5mm, the frame is rated to withstand Grade 11 gale-force winds. The structure utilizes CO2-shielded full-seam welding to ensure that every load-bearing point can resist a 500kg pull impact without metal fatigue, providing the structural rigidity required for long-term outdoor exhibition.

The chassis anchoring system utilizes Grade 12.9 high-strength expansion bolts. To compensate for the center-of-gravity shift caused by the creature's elongated cranial crest, the internal counterweight is precisely calibrated to maintain a dynamic overturning moment safety factor above 1.5.

Power transmission is achieved through several high-precision components:

• JMC Brand Brushless AC Servo Motors: Delivering 80 Nm of torque with a speed control error of less than 0.01%, these motors support 24/7 high-frequency operation.

• NSK Double-Row Tapered Roller Bearings: These provide an ultra-low friction coefficient of 0.003, resulting in smooth articulation and noise levels below 45dB.

• Piston-Linkage Respiratory Mechanism: With a stroke setting of 40mm to 60mm, this system simulates a steady biological pulse at 12 breaths per minute.

• Damped Tail Segments: Multiple internal tension springs utilize a 5-point damping system to eliminate mechanical tremors when the long tail stops swinging.

• Quenched & Tempered Drive Shafts: Treated to a hardness of HRC 28-32, ensuring zero deformation even after 10,000 hours of operation under heavy loads.

All metal components are treated with an epoxy zinc-rich anti-rust coating and have passed a 48-hour salt spray test, effectively preventing electrochemical corrosion in high-humidity environments.

The exterior utilizes 35kg/m³ high-density polyurethane (PU) foam, hand-sculpted to recreate realistic skeletal protrusions and muscle textures, maintaining a rebound rate of over 95%. The skin reinforcement layer consists of three layers of high-strength nylon stretch mesh, capable of withstanding instantaneous tear forces of 15kg/cm² without damage during high-torsion movements.

The final encapsulation features imported platinum-grade liquid silicone. Enhanced with specific thixotropic agents, the skin maintains a Shore A hardness of 20 to 25 for a lifelike, fleshy touch.

• Gradient Skin Thickness: Thickness ranges from 7.5mm in high-stress areas to 4.5mm in non-load-bearing zones, balancing flexibility with durability.

• Weather-Resistant Coloring: Inorganic pigments are integrated 2mm deep into the silicone molecular chain via high-temperature vulcanization, ensuring a fade rate of less than 5% over 5 years.

• Super-Hydrophobic Nano-Coating: With a water contact angle exceeding 150°, the skin is self-cleaning and prevents moisture from infiltrating the internal electronics.

• Extreme Temperature Adaptability: From -20°C to 50°C, the silicone remains supple and non-adhesive, with physical performance fluctuations kept within 3%.

Every inch of skin texture is hand-pressed based on the latest paleontological restorations, with depth variations of approximately 2mm to create realistic visual shadowing.

The primary control system is powered by a custom industrial-grade PLC processor, supporting both DMX512 and Modbus protocols for compatibility with 98% of commercial landscape control systems.

• Interactive Sensing: Integrated PIR pyroelectric infrared sensors provide 120° of coverage with an effective detection radius of 3 to 5 meters.

• High-Fidelity Audio: Dual-channel 50W magnetically shielded waterproof speakers provide a flat frequency response from 60Hz to 18kHz, capable of reproducing infrasonic-style chest vibrations.

• Standardized Circuitry: Built to IEC international standards, all internal wiring is housed in flame-retardant nylon corrugated conduits with a dielectric strength of AC 2500V.

• Advanced Safety: The power system includes integrated overload protection and leakage circuit breakers with a response time of less than 0.1 seconds.

• Rapid Maintenance: Onboard SD slots and wireless data interfaces allow technicians to update motion scripts in under 30 seconds without removing the skin.

The main control box is IP65-rated and features a temperature-controlled cooling system that activates automatically above 45°C to prevent component aging. Prior to delivery, each unit undergoes a 72-hour fatigue test, with laser displacement sensors ensuring that cranial motion trajectories remain within a ±2mm tolerance. Every weld is verified via 100% ultrasonic non-destructive testing (NDT).

The installation package includes 1:1 scale construction drawings for embedded parts. The base features four 22mm diameter holes compatible with standard M20 anchor bolts, ensuring a low barrier to installation.

• Plug-and-Play Assembly: Utilizing aviation-grade connectors for "blind-mate" assembly, a standard technical crew can complete the process from unloading to operation in just 3 hours.

• Ultra-Quiet Option: For indoor galleries, we offer optional silent hydraulic actuators that reduce operational noise to below 40dB.

• Global Logistics Protection: Shipping occurs in custom steel-wood composite crates with 20cm of EPE foam cushioning to ensure zero-damage delivery worldwide.

• Digital Traceability: Every modular component features a unique QR code for instant access to part provenance and maintenance manuals.

Technical Integration & Interaction Protocols

The control system utilizes a 32-bit industrial ARM processor clocked at 168MHz, capable of managing 64 signal outputs simultaneously. This allows for joint synchronization latency of less than 5ms, resulting in organic, fluid movements for head turns and blinking. To protect the mainboard from electromagnetic interference (EMI) generated by high-power motors, the circuitry is equipped with optocoupler isolators to decouple core hardware from high-voltage loads.

The system is rated for over 35,000 hours of continuous operation. An 8GB high-speed SD card stores 48kHz sampled audio for crystal-clear sound without digital noise. The onboard 5-pin XLR interface is fully DMX512 compliant, allowing the model to be controlled by standard park lighting consoles.

Operating at a safe 24V DC, the system maintains a standby power consumption of less than 15W. During high-intensity lunging motions, peak power is capped at 800W to prevent tripping local breakers. Signal integrity is maintained via shielded twisted-pair cables and 120-ohm matching resistors, ensuring reliable operation over cable runs up to 1,200 meters.

Interaction logic is driven by a redundant sensor suite that adapts feedback based on visitor proximity:

• Infrared Detection: Uses a Fresnel lens with a 110° field of view and an adjustable range of 3 to 10 meters, ideal for narrow corridors.

• 24GHz Microwave Radar: Capable of penetrating wood or artificial rockwork, allowing for completely hidden, seamless sensing.

• AI Tracking Camera: Supports facial detection, allowing the Parasaurolophus’s pupils and neck to track the movement of a crowd.

• Ultrasonic Ranging: Provides 1cm precision for close-range interactions (0.5m to 2m), triggering subtle behaviors like head-shrinking or sneezing.

When no visitors are detected for 10 minutes, the system automatically enters a low-current sleep mode.

The control box features a standard RJ45 port for TCP/IP remote troubleshooting and firmware upgrades. Motion sequences are authored via graphical logic software, supporting real-time recording of joint angles so that creative directors can update show scripts in minutes.

The audio system’s dual 50W waterproof speakers feature less than 0.1% Total Harmonic Distortion (THD). The bass is enhanced by a dedicated DSP chip, delivering a sound pressure level (SPL) of 105dB at 1 meter to recreate the physical sensation of a large animal’s roar. Audio-to-motion lip-sync latency is suppressed below 15ms.

The system performs a "zero-point" self-calibration every 4 hours using mechanical limit switches to prevent motion drift. In the event of a power failure, an internal supercapacitor provides 1.5 seconds of power to safely retract the neck and tail to a neutral "safe" posture. For high-end theatrical performances, the system supports Bluetooth 2.4GHz frequency-hopping for wireless control via wearable devices within a 50-meter radius. All external interfaces use IP68 aviation plugs with 3-micro-inch gold plating to resist salt-spray corrosion.

Installation Engineering & Lifecycle Maintenance

The installation site requires a concrete foundation (C30 standard) at least 200mm thick to handle operational vibrations. The four base holes must be secured with M20 high-strength chemical anchors drilled to a depth of 150mm. This configuration ensures the foundation can withstand an instantaneous torque of 25,000 Nm during 30-degree lateral tail swings.

The site must provide an independent AC 220V circuit (1.5kW peak) with a 16A RCD. Cables should be 2.5mm² flame-retardant copper housed in PE conduit buried at least 500mm deep. This ensures electrical safety and system stability even during heavy rainfall.

• Ease of Handling: Two M12 lifting rings are integrated at the center of gravity for easy positioning via forklift or 2-ton crane.

• Rapid Setup: IP68 connectors are rated for 500 cycles; a single person can complete electrical setup in 15 minutes.

• Vibration Damping: A 30mm foam buffer is placed between the chassis and the ground to absorb mechanical noise.

• Aesthetic Integration: A 10cm recess is provided around the base to hide the metal structure with artificial turf or rocks.

Note: In areas with heavy acid rain, anchor bolts should be fitted with polymer protective caps to maintain grounding resistance below 4 ohms. This physical isolation slows base corrosion by 85%, ensuring a service life of over 10 years.

Following installation, a 5-day "run-in" period is required to monitor bearing temperatures. Joint temperatures should remain within 20°C of ambient levels. If temperatures exceed 65°C after 8 hours of use, linkage alignment must be checked. Our technicians use laser aligners to keep tolerances within 0.5mm, ensuring silent, smooth motion.

Long-term maintenance focuses on lubrication. Joints must be injected with 15-20g of Mobilux EP 2 grease every 90 days via concealed grease nipples. This maintains the 0.003 friction coefficient, reducing motor power consumption by 10% and preventing gearbox fatigue.

• Skin Care: Use neutral detergents and sponges for monthly cleaning. Avoid strong acids or alkalis that degrade silicone.

• Minor Repairs: Scratches under 3cm can be repaired in 15 minutes using the provided platinum-grade adhesive.

• Battery Maintenance: Check control box batteries quarterly; replace if voltage drops below 2.8V to prevent program loss.

• Sensor Calibration: Test sensor accuracy semi-annually; the trigger error must remain within 3%.

Data Management: We recommend keeping an operational log for each unit. Upon reaching 10,000 hours, the tail spring tension must be inspected. This data-driven approach reduces the probability of sudden failure to below 0.2%.

If the skin’s water-repellency fades (contact angle falls below 120°), a new nano-protective layer should be applied. This dries in 4 hours at 25°C, keeping the annual color shift below 1% and ensuring the Parasaurolophus always looks pristine.

• Annual Inspection: Verify motor resistance remains above 20 MΩ.

• Conduit Check: Inspect external conduits for UV-induced brittleness.

• Safety Test: Verify the emergency stop responds in under 35ms.

• Fastener Audit: Re-torque all exposed bolts to prevent vibration-induced loosening.
