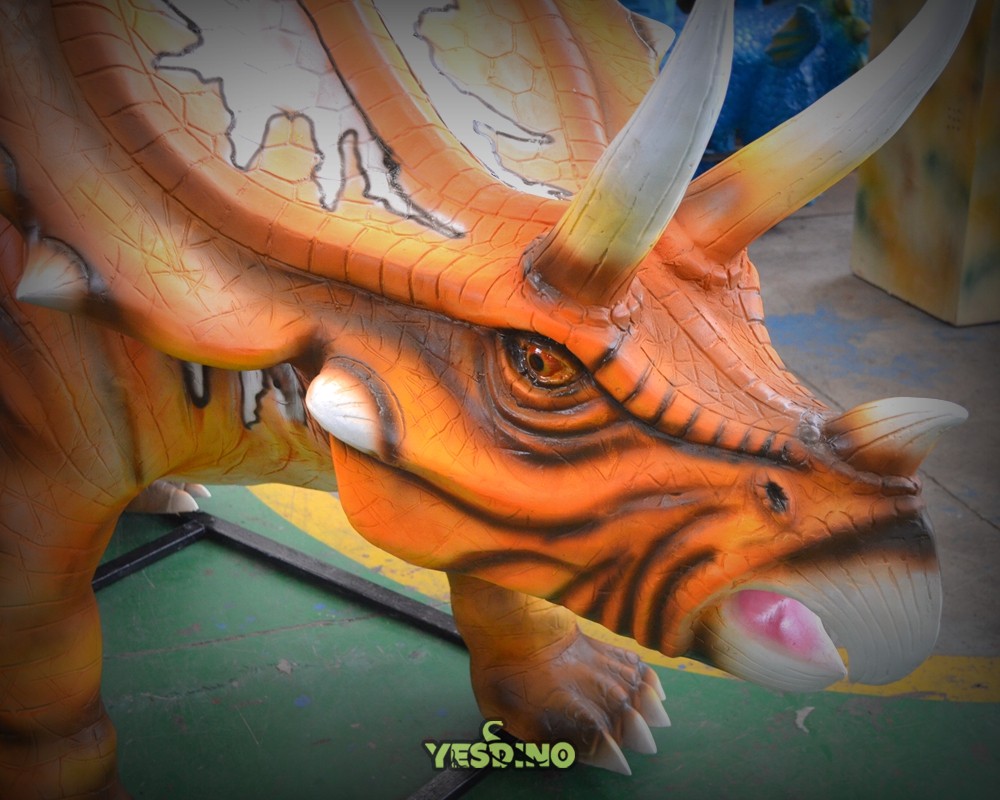

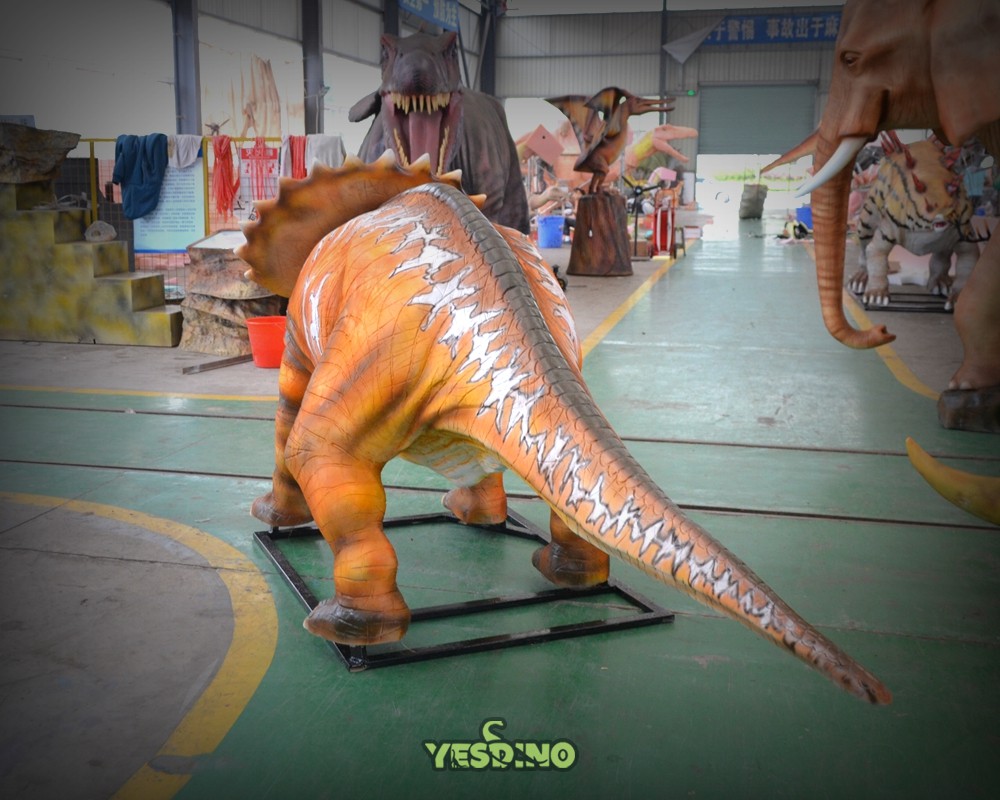

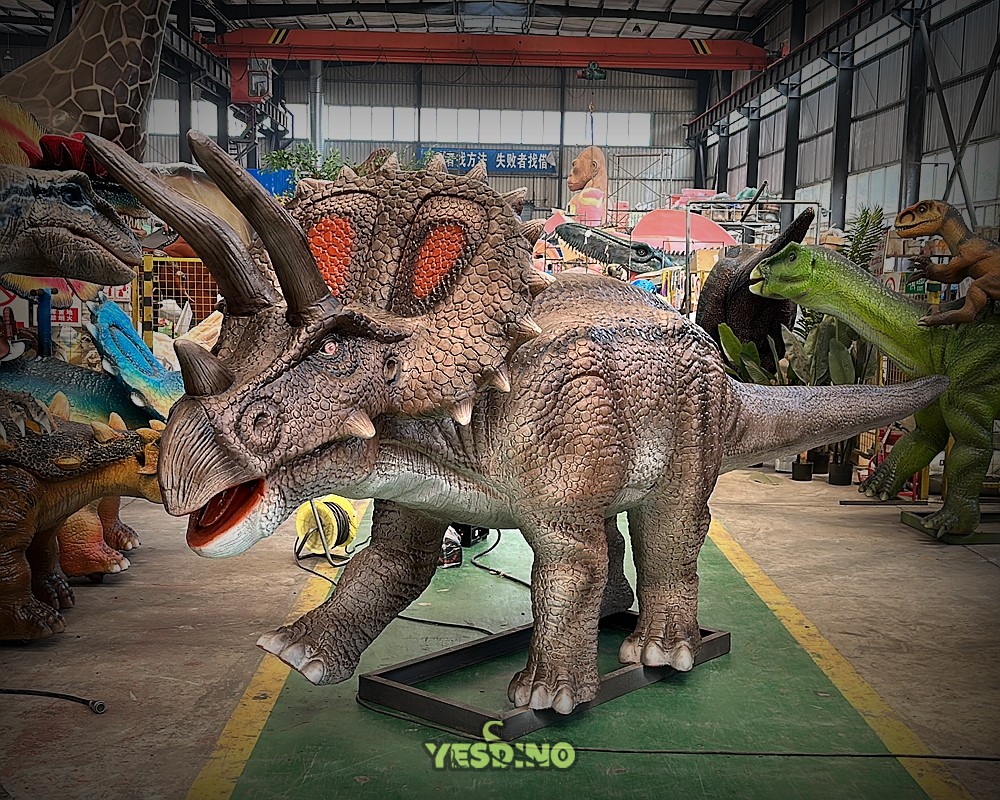

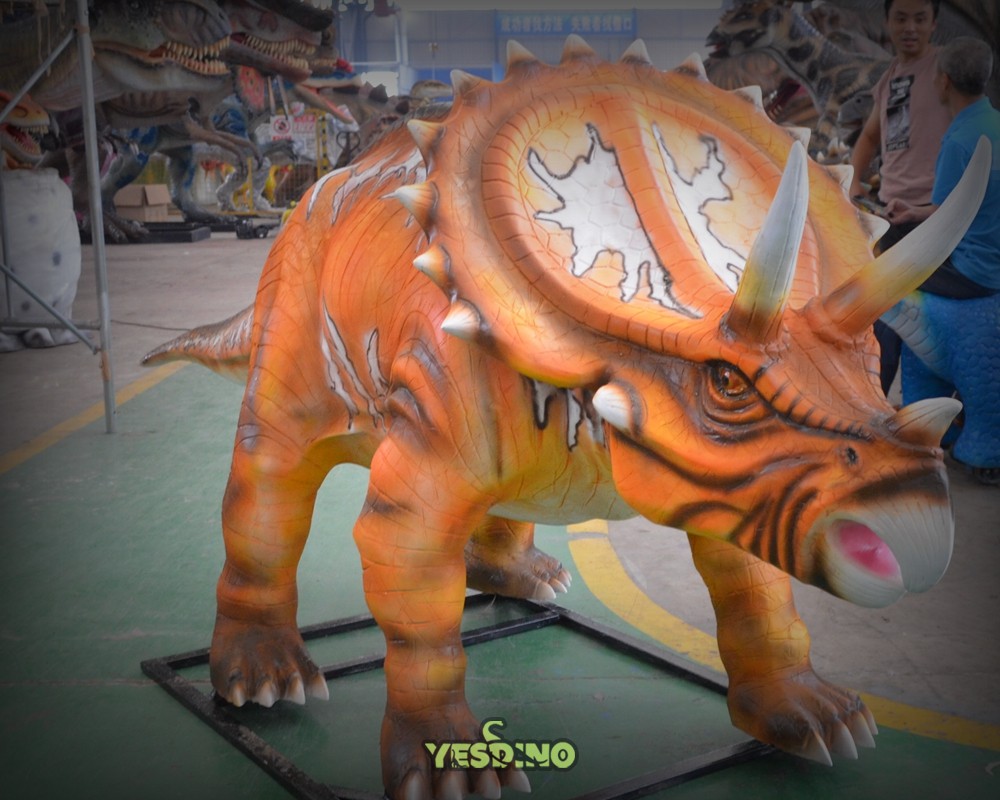

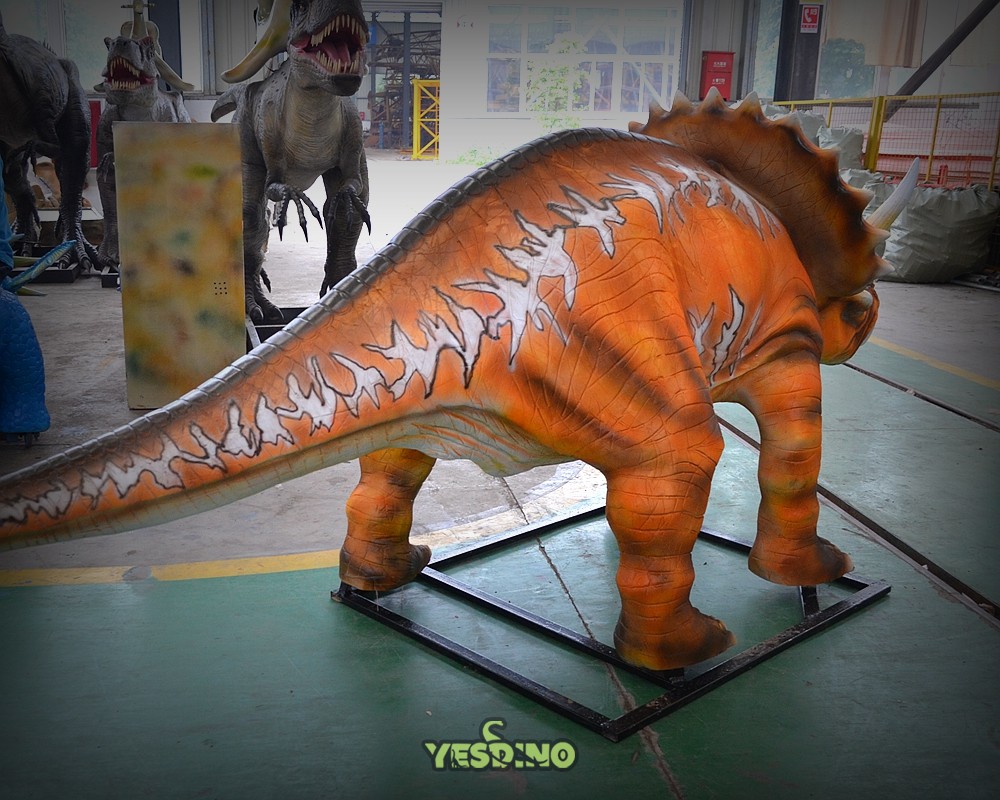

YFS-004 High-Precision FRP Triceratops Sculpture
5-Meter Life-Size Dinosaur Replica with 20+ Years Outdoor Durability for Immersive Educational & Entertainment Applications
Exceptional Durability
UV-9 grade anti-UV additives withstand 3000-hour xenon lamp testing (ASTM G155) with color difference ΔE≤3—ensuring 20+ years of vibrant outdoor display.
Lightweight Structure
Density only 1.8g/cm³ (vs. steel's 7.85g/cm³)—5-meter model weighs<450kg for easier installation and transportation.
Full Customization
2-15 meter full-scale customization with surface accuracy error ≤±2mm/m²—tailored to your specific venue requirements.
Key Performance Features
Engineered for maximum impact and long-term reliability
Extreme Weather Resistance
Operating temperature range -40℃ to +80℃ (ISO 75-2:2004)—perfect for all climate conditions worldwide.
High Wind Load Capacity
Withstands ≥1.2kN/m² wind pressure (Level 10 typhoon)—GB 50009-2012 certified for outdoor stability.
Fire Safety Certified
B1-grade flame retardant material (GB 8624-2012)—meeting strict public safety requirements for crowded venues.
Precision Scaling
5-meter length × 1.5-meter height (GB/T 14406-2011)—scientifically accurate proportions for educational authenticity.
Technical Specifications
Physical Dimensions
Length: 5m (Custom range: 2-15m) × Height: 1.5m (GB/T 14406-2011)
Structural Performance
Wind load resistance: ≥1.2kN/m² (GB 50009-2012) • Working temperature: -40℃~+80℃ (ISO 75-2:2004)
Material Composition
E-glass fiber (≥60%) + vinyl ester resin • Compressive strength: 180MPa • Density: 1.8g/cm³
Safety & Certification
Fire classification: B1 grade (GB 8624-2012) • Toy safety: GB 6675 certified • International: EN 1090 certified
Surface Specifications
Gel coat thickness: 800-1200μm • Surface hardness: ≥2H • Curvature accuracy: ≤±2mm/m²
Quality Assurance
ISO 9001 certified manufacturing • 3000-hour xenon lamp testing (ΔE≤3) • 20+ years outdoor lifespan
Applications & Benefits
Versatile solutions for educational, commercial, and entertainment venues
Theme Park Landmarks
Used in Changzhou Dinosaur Park—creates immersive entrance experiences that increase visitor engagement and photo opportunities.
Commercial Center Displays
8-meter specimen deployed in Shanghai Global Harbor—enhances shopping experiences and increases dwell time by creating memorable attractions.
Educational Institutions
Collaboration with Chinese Academy of Sciences—provides authentic paleontological displays for natural history museums and science centers.
Installation & Maintenance Guide
Professional guidance for optimal deployment and long-term performance
Foundation Requirements
Concrete base depth ≥0.8m with bearing capacity ≥150kPa—ensuring stability in various soil conditions.
Installation Specifications
Pre-embedded 304 stainless steel anchors (M16×200mm) with torque ≥120N·m—providing secure outdoor mounting.
Maintenance Schedule
Surface hydrophobic treatment every 24 months (recommended silane protective agent)—maintaining optimal appearance and protection.
Important Notice
Due to monitor color variations and ambient lighting, actual product colors may vary by ±5% from images. Final appearance of custom products is subject to 3D model confirmation with signed approval. Presentation effects may vary based on installation environment and configuration. For accurate specifications and project details, please contact our technical team directly.
