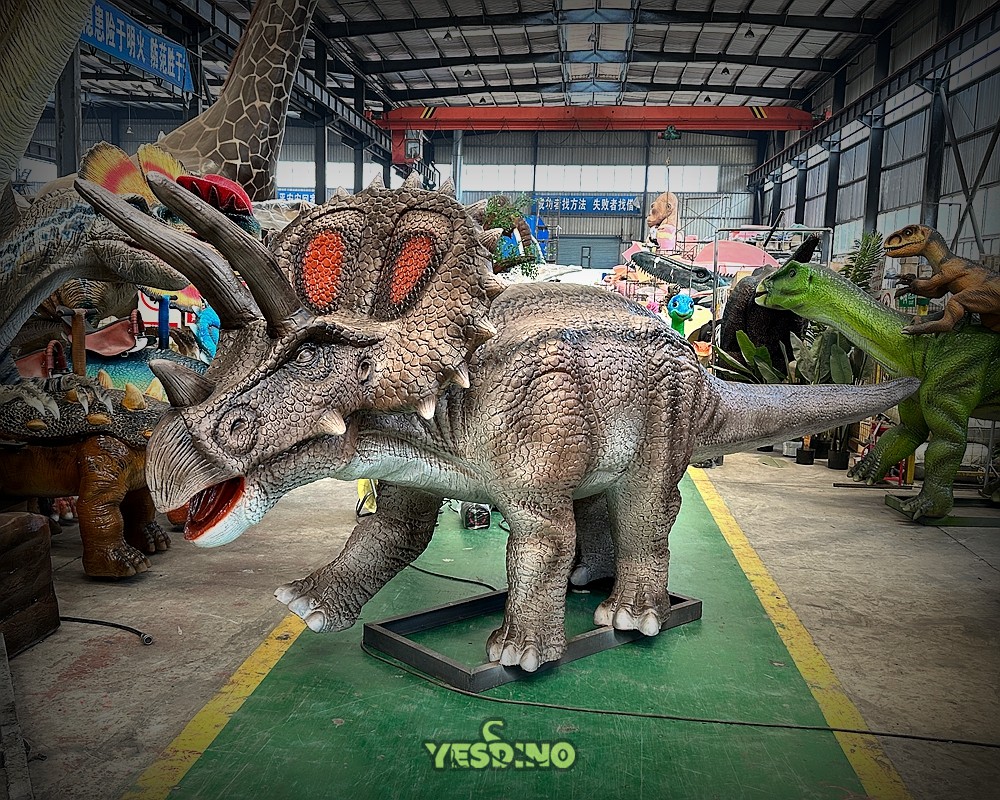

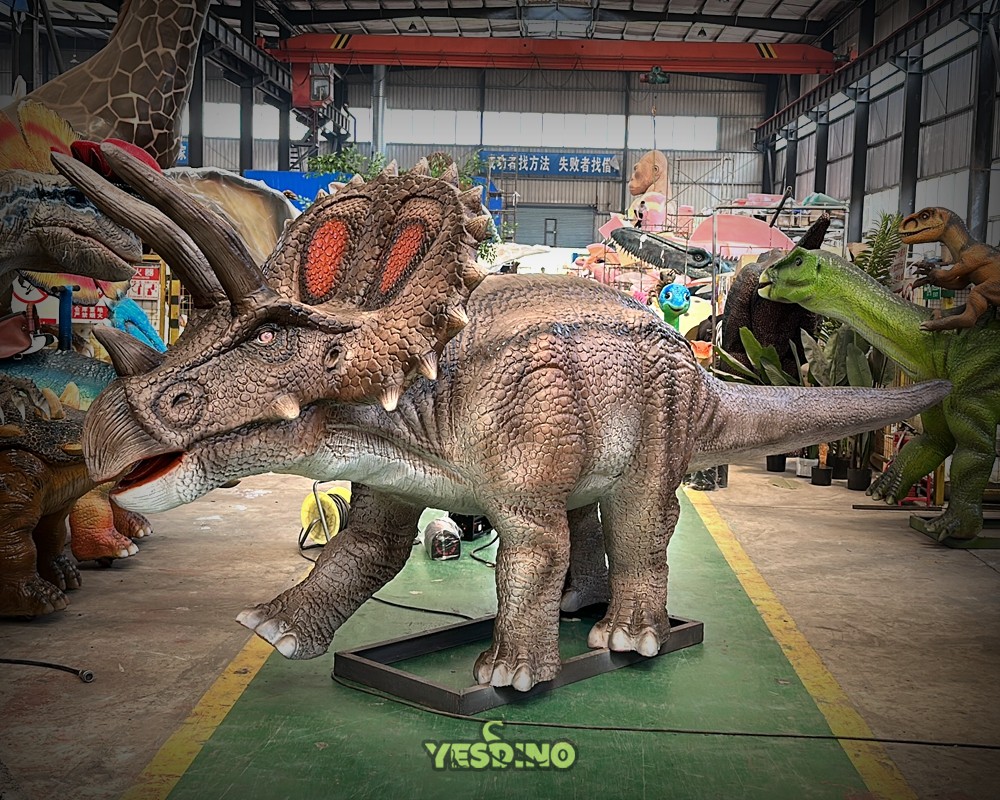

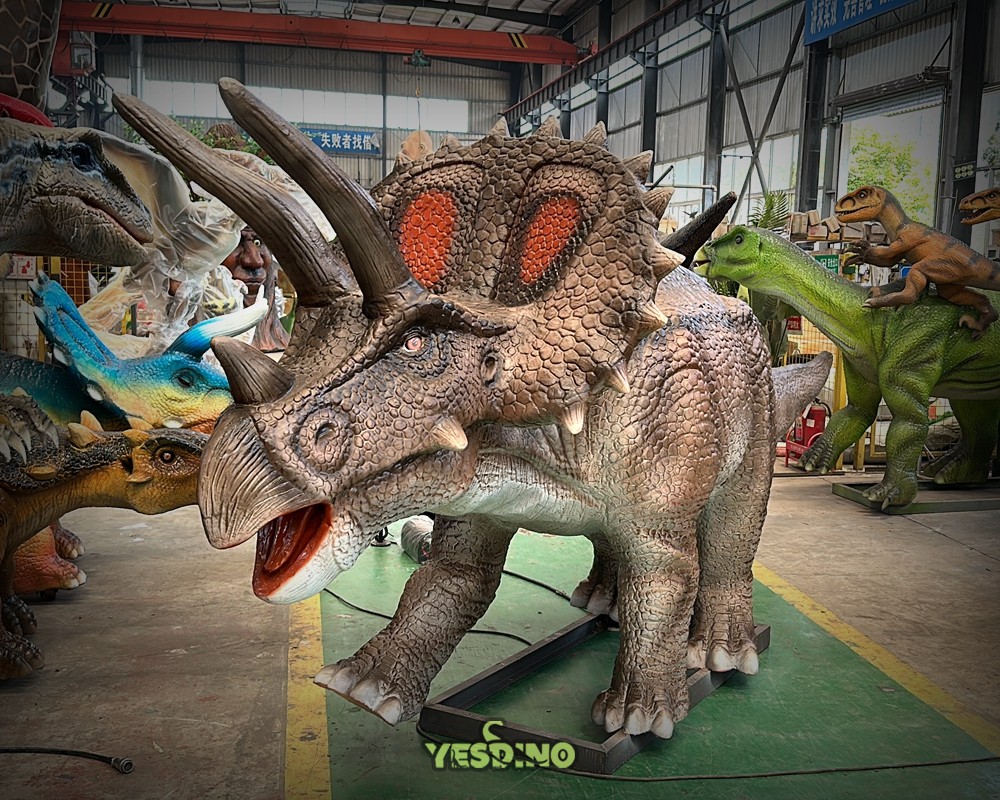

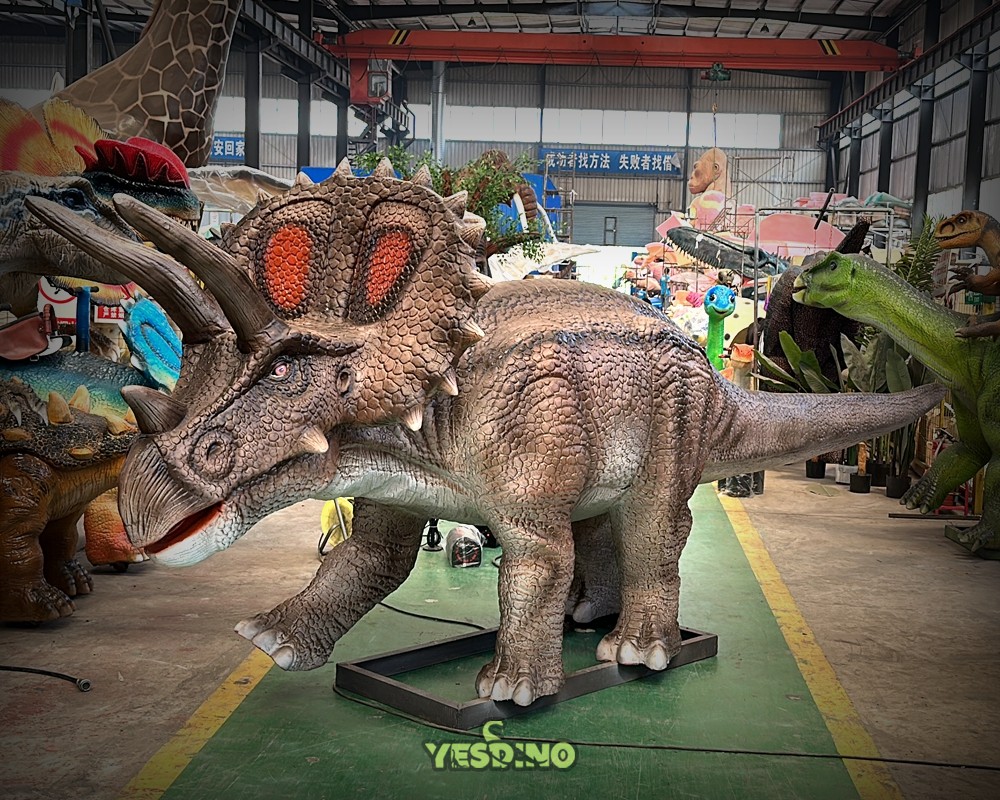

YKL-024 Custom 5-Meter Animatronic Triceratops Sculpture
A Late Cretaceous Fossil-Accurate Reconstruction with Aerospace-Grade Steel Frame & Medical Silicone Skin, Engineered for 8-Level Wind Resistance
5.0m Long, 1.4m Tall
True-to-scale adult Triceratops dimensions—5.0 meters (16.4 ft) in length, 1.4 meters (4.6 ft) in height, with an aerospace-grade steel skeleton and ~800 kg weight.
8-Level Wind Resistance
Built to withstand 8-level wind loads (up to 20.7 m/s)—designed for stable, long-term outdoor installations.
Advanced Silicone Skin
Medical-grade silicone composite skin for extreme durability and realistic texture, integrated with a robust steel frame.
Core Technologies
Engineered for realism, durability, and intelligent interaction
Multi-Axis Drive System
12 high-precision servos enable ±45° neck pitch, ±30° lateral tilt, and 6-axis movement (head/neck/eyes/tail/dual forelimbs).
Bionic Muscle Algorithm
Pressure sensor feedback regulates tail swing amplitude with a peak torque of 120 N·m, creating natural counterbalance movements.
Intelligent Perception
Equipped with PIR (Passive Infrared) sensors for dynamic response triggered at distances of 3-8 meters, enabling visitor-activated interactions.
Immersive AV System
Dual-channel stereo sound (120 dB peak) and RGBW full-color LED arrays (160,000 colors) for synchronized audio-visual experiences.
Technical Specifications
Dimensions
L 5.0m × H 1.4m (Tolerance ±0.05m)
Degrees of Freedom
6 Axes (Head/Neck/Eyes/Tail/Dual Forelimbs)
Power Consumption
Standby 0.5 kW / Peak Operation 3.2 kW
Audio System
Dual-Channel Stereo, 120 dB Peak Output
Lighting System
RGBW Full-Color LED Array (160,000 Selectable Colors)
Environmental Rating
IP54 Protection / Operating Temp: -20°C to 50°C
Application Scenarios
Designed for venues seeking educational impact, visitor engagement, and long-term value
Scientific Research & Education
Paired with AR sand tables to demonstrate combat behavior—already implemented in special exhibitions like the Beijing Museum of Natural History.
Cultural Tourism & Live Shows
Synchronized with fog screen projection to recreate Cretaceous ecosystems—proven at Huangshan Dinosaur Park with 3,200 daily visitors.
Commercial Display
Dynamic installations increase customer dwell time by 47% (data from Intime City 2023 Christmas season).
Professional Application Guide
Expert setup and maintenance advice for optimal performance
Exhibition Layout
Recommend a 10m × 8m interactive space with a ground load capacity of ≥5 t/m² for safe, unrestricted movement.
Maintenance Protocol
Lubricate joint bearings quarterly (recommended: Shell Gadus S2 V220AD grease) to ensure smooth motion and longevity.
Content Upgrades
Supports OTA remote updates, including paleontologist-recorded ecological sound libraries for enhanced educational value.
Important Notice
The final presentation may vary due to installation environment and custom requirements. Effects and appearances may differ from promotional materials. The actual product shall be as per the final physical acceptance. Specific configurations (motion precision, audio details) are subject to final project confirmation. For accurate information, please contact us directly for customized technical documentation and project data.
