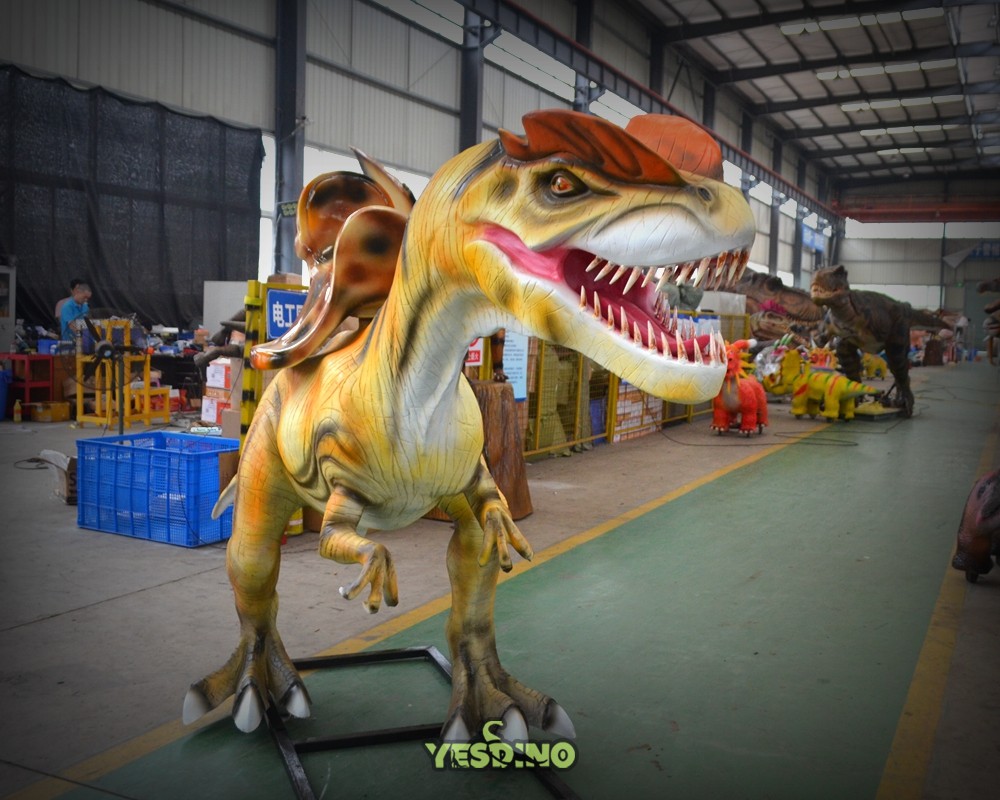

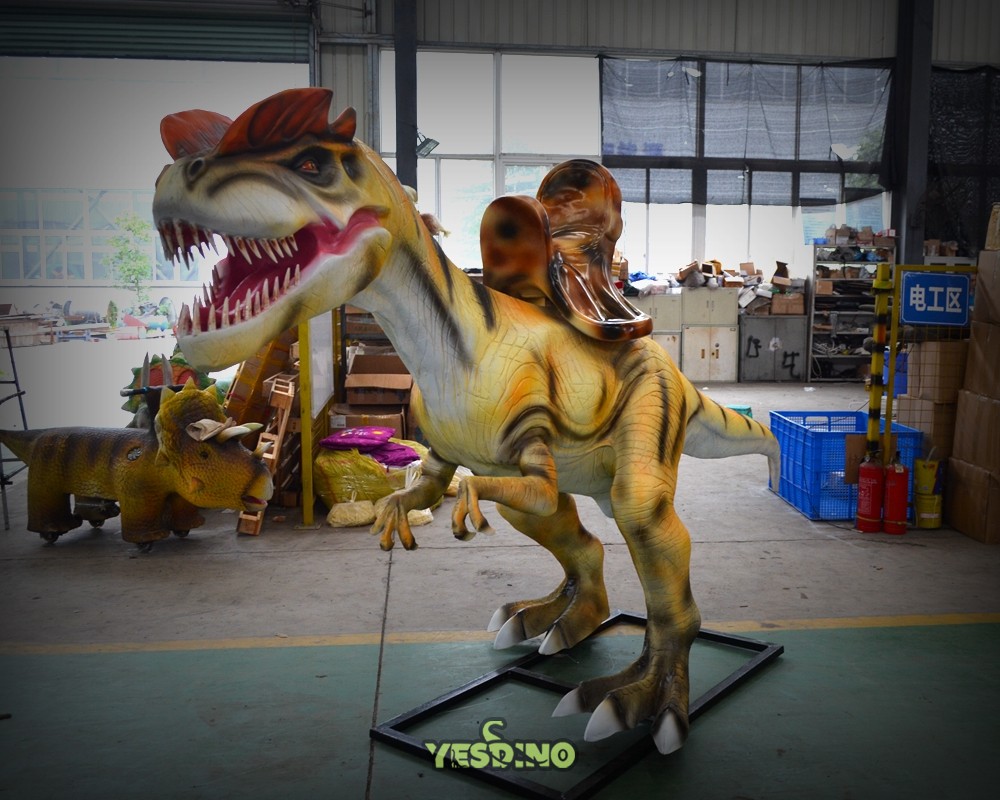

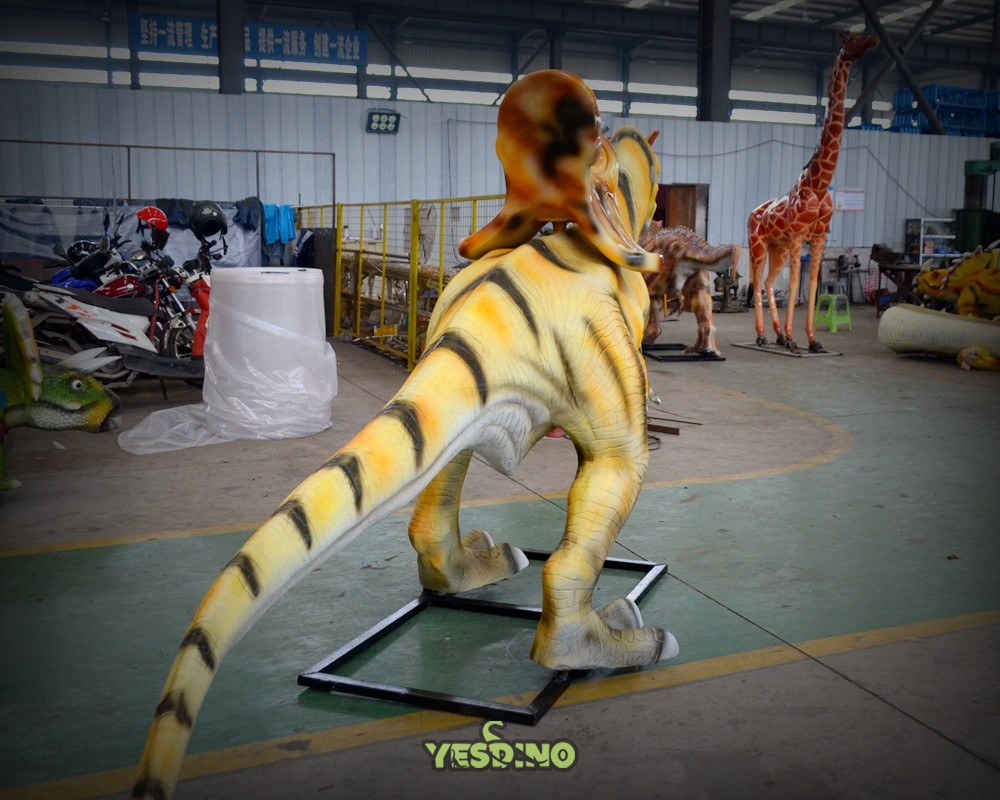

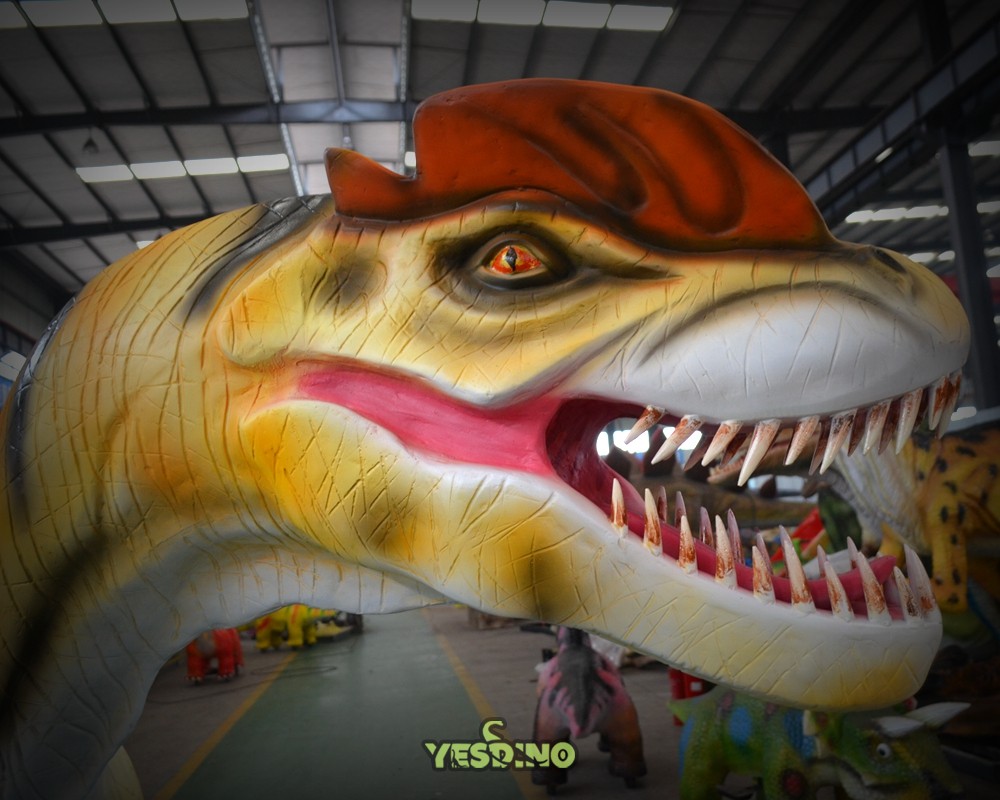

GFRP Dilophosaurus Rideable Sculpture
Industrial-Grade Interactive Attraction for Children's Entertainment & Educational Spaces
Weather Resistant & Durable
2000-hour xenon aging test (ΔE≤3 color difference), 800kg static load capacity, 150kg dynamic riding load (children only), ≥8 years service life.
Lightweight & Portable
1.8g/cm³ density (70% lighter than concrete), modular 3-section design, max section weight ≤80kg, transportable by forklift/small truck.
Cost-Effective Solution
40% lower lifecycle cost vs metal sculptures, 2-year maintenance cycles, initial investment only 1/3 of custom silicone models.
High Interactivity
Ergonomic saddle (35×40×15cm), anti-slip texture, 50-80 daily rides capacity, enhances visitor engagement and conversion.
Technical Specifications
Physical Dimensions
L5000×W1200×H1800mm (error ≤±20mm), saddle size 350×400×150mm
Material Composition
GFRP composite (60% fiberglass, 30% resin), Q235 steel frame (10%), weather-resistant coating
Mechanical Properties
Tensile strength ≥180MPa, flexural strength ≥120MPa, elastic modulus ≥7GPa, impact strength ≥50kJ/㎡
Environmental Resistance
Operating temperature -20°C~60°C, wind resistance grade 8 (20.8m/s), IP65 waterproof rating
Load Capacity
Static limit load 800kg, dynamic riding safety load ≤150kg/person (6-12 years, ≤5 minutes per session)
Weight & Packaging
Net weight ≤220kg, packaged size 5200×1400×600mm (folded)
Application Scenarios
Optimized for diverse entertainment and educational environments
Children's Theme Parks
Ride zones for 6-15 year olds, successfully implemented in 8 chain children's amusement parks nationwide.
Educational Centers
Dinosaur education base interactive exhibits, combining entertainment with paleontological learning.
Commercial Complexes
Parent-child activity traffic driver in shopping malls, urban cultural tourism plaza photo spots.
Scenic Attractions
Immersive experience nodes in tourist routes, deployed in 12 provincial parks across China.
Professional Application Guide
Expert installation and maintenance recommendations
Site Selection
Level hardened ground (concrete thickness ≥10cm), slope ≤3°, 1m safety clearance, avoid high-voltage lines/sharp objects.
Routine Maintenance
Monthly soft brush cleaning, quarterly weld inspection (magnetic particle testing), fluorocarbon recoating every 3 years.
Safety Management
Height restriction signs (1.2-1.5m), adult supervision, no overloading/violent shaking, regular saddle bolt torque check (≥40N·m).
Important Notice
Product images may vary due to lighting and environmental conditions. Actual size and color subject to contract specifications. Random fiber distribution may cause slight texture variations. Performance parameters subject to third-party test reports. On-site climate conditions (coastal salt spray, northwest sandstorms) may cause ±5% deviation from lab data. Actual products may differ from promotional materials. For accurate information, please contact our technical team.
