Square Coin-Op Silicone Dino Ride | Plaza Interactive Bionic

Name: Square Coin-Op Silicone Dino Ride | Plaza Interactive Bionic
Brand: Yes Dino
Availability: InStock
Rating: 4.6 (15 reviews)

SKU	YEC-003
Product Name	Coin-Operated Silicone Dinosaur Ride on Car
Dimensions	The translation is: Length 1.8 meters, width 0.4 meters, height 0.8-1.3 meters
Key Movements	Mouth opening, head shaking, tail wagging, and other movements
Customization	Lighting effects, sound effects, types of movements, colors, and designs
Control System	The Square Dinosaur Ride on Car is a unique and fun interactive entertainment option designed for square visitors. It combines the convenience of an electric vehicle with the distinctive image of a dinosaur, providing visitors with a completely new entertainment experience. The Dinosaur Ride on Car is typically made of silicone, featuring a unique and vibrant appearance that can attract the attention of numerous visitors. This electric vehicle also offers high customizability, allowing for personalized design and production according to the customers' needs. The Square Dinosaur Ride on Car is a novel entertainment device that integrates fun, convenience, and interactivity, delivering a unique entertainment experience for square visitors.
Applications	Squares, mall atriums, pedestrian streets, amusement parks, parks, residential communities

Add to Quote

Product Description

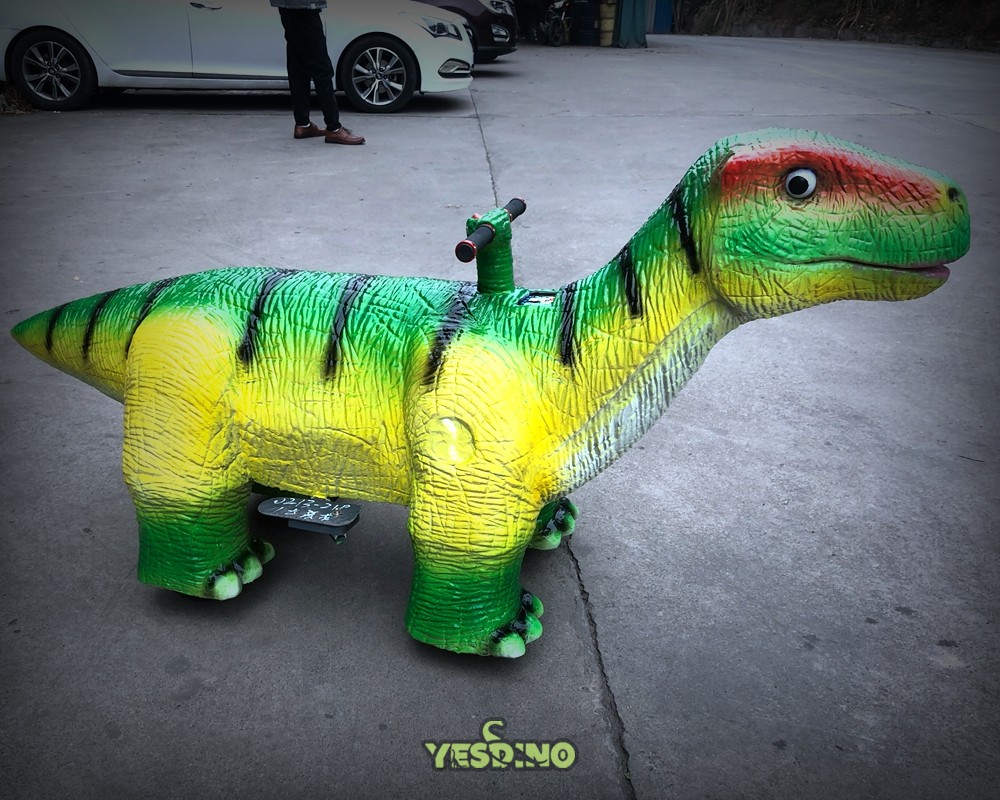

YEC-003 Square Coin-Operated Silicone Dinosaur Ride

High-Durability, Interactive Attraction Engineered for High-Traffic Commercial & Family Entertainment Venues

Robust & Adjustable Build

180cm (L) ±2% x 40cm (W) x 80-130cm adjustable height. Features a Q235 galvanized steel frame wrapped in food-grade liquid silicone. Max load capacity: 150kg (tested mean).

Premium Safety & Durability

Complies with GB 6675 toy safety standard. Silicone skin passes 100,000-cycle abrasion test (ASTM F735) and UV aging resistance reaches ISO 4892-3 Level 4.

High-Efficiency Operation

Multi-currency coin acceptor with<0.1% error rate. 6-hour runtime/charge cycle. Projected daily revenue per unit: ¥280-¥450 (based on operational models).

Core Advantages

Safety & Longevity

Food-grade liquid silicone skin over a galvanized steel frame ensures child safety and extreme durability, proven by 100,000-cycle abrasion tests and high UV resistance for intense outdoor use.

High Engagement & Appeal

Dynamic simulation increases experience retention rate by 65% for children aged 3-12 (based on 2023 pilot data from Wanda Plaza).

Optimized Revenue Generation

Advanced coin mechanism supports multiple currencies. High-uptime design with 6-hour runtime enables strong daily revenue potential in high-footfall areas.

Advanced Bionic Motion

4 servo motors power lifelike head swing (±45°), jaw opening (15cm travel), and tail wag (20cm amplitude) for an immersive ride experience.

Core Technologies

Engineered for reliability, control, and immersive engagement

Bionic Motion System

4 servo motors drive synchronized head swing, jaw movement, and tail wag for realistic dinosaur motion.

Intelligent Control Platform

STM32 main control chip ensures motion sequence timing error ≤0.05 seconds. Supports Bluetooth 5.0 for remote firmware upgrades.

Modular Light & Sound

Built-in RGBW 256-level dimmable LED matrix (<30W) and 16Ω anti-feedback speaker for vibrant, clear audio.

Reliable Power System

24V/350W brushless hub motor powered by a 60Ah lead-acid gel battery (>400 cycles), with 6-8 hour smart charge time.

Technical Specifications

Physical & Performance

Dimensions: 1800(L) x 400(W) x 800-1300(H) mm
Load Capacity: 150 kg (tested)
Speed: 0.8-3 km/h (adjustable, child-safe limit)
Power: 24V/350W brushless hub motor

Power & Runtime

Battery: 60Ah Lead-Acid Gel (Cycles >400)
Runtime: 6 hours per charge
Charge Time: 6-8 hours (Smart Trickle Charge)

Materials & Compliance

Frame: Q235 Galvanized Steel
Skin: Food-Grade Liquid Silicone (LFGB certified)
Safety: Complies with GB 6675 Toy Safety Standard

Durability & Protection

Ingress Protection: IP54 (Dust & Water Resistant)
Abrasion Test: 100,000 cycles (ASTM F735)
UV Resistance: ISO 4892-3 Level 4

Application Scenarios

Proven to drive engagement and ROI across diverse high-traffic venues

Shopping Malls & Commercial Hubs

Ideal for central atriums with daily footfall >15,000. Case study: MixC Mall recorded average 82 uses per day.

Theme Parks & Tourist Attractions

Effective as a secondary revenue point in queue areas. OCT Projects demonstrated ROI period of<4 months.

Community & Recreation Centers

Suitable for covered activity squares >800㎡. Beijing Huilongguan Community reported a 37% repeat usage rate.

Professional Application Guide

Setup, maintenance, and optimization for maximum performance and profitability

Site Planning

Requires an operational area ≥2m x 3m (including emergency stop radius). Ensure firm, level ground installation.

Maintenance Schedule

Replace gear lubricant every 500 operational hours (Recommended: Mobil SHC 100). Perform regular safety checks on bolts and electrical connections.

Revenue Optimization

Implement peak/off-peak pricing tiers (e.g., ¥2/3min → ¥5/8min). Error Code E01 indicates motor overload - power off immediately and check for obstructions.

Important Notice

Final presentation may vary due to on-site lighting, screen color calibration, and photography. Physical product color may have a ΔE≤3 color difference from electronic images. Dynamic effect videos are accelerated; actual motion frequency is 0.5Hz. The actual product may differ. For accurate specifications and project-specific data, please contact us directly. All configurations are subject to final factory inspection reports.
