Professional Animatronic Chinese Qilin | Dynamic Cultural Display

Name: Professional Animatronic Chinese Qilin | Dynamic Cultural Display
Brand: Yes Dino
Price: 3950 USD
Availability: InStock
Rating: 4.6 (18 reviews)

SKU	YDZ-013
Product Name	Animatronic Cartoon Chinese Qilin Model
Dimensions	Height: 10 meters, Maximum Diameter: 3.5 meters
Key Movements	Eye movement, blinking, glowing eyes, roaring with an open mouth, tail wagging, rotating on a lotus pedestal
Customization	Posture styling, color, size, movemPedestrian street, park, game exhibition, festival celebration, scenic area, children's playground, etc.ents, and lighting effects
Control System	This Chinese Qilin Model is placed in the cultural square for use by customers. In addition to characters and animals from Chinese mythology, various floral models are used. It is displayed together with the colored lantern arrangements in the customer's venue, creating an atmosphere of festivity, peace, and liveliness brought by various auspicious mythical creatures in Chinese ancient culture. It is particularly suitable for scenic areas, cultural squares, commercial complexes, etc., with a strong Chinese cultural theme. It is most effective during traditional events such as the Spring Festival, Lantern Festival, Dragon Boat Festival, etc. If you are interested in various mythical creature models, please contact us for more detailed information.
Applications	Pedestrian street, park, game exhibition, festival celebration, scenic area, children's playground, etc

Add to Quote

Product Description

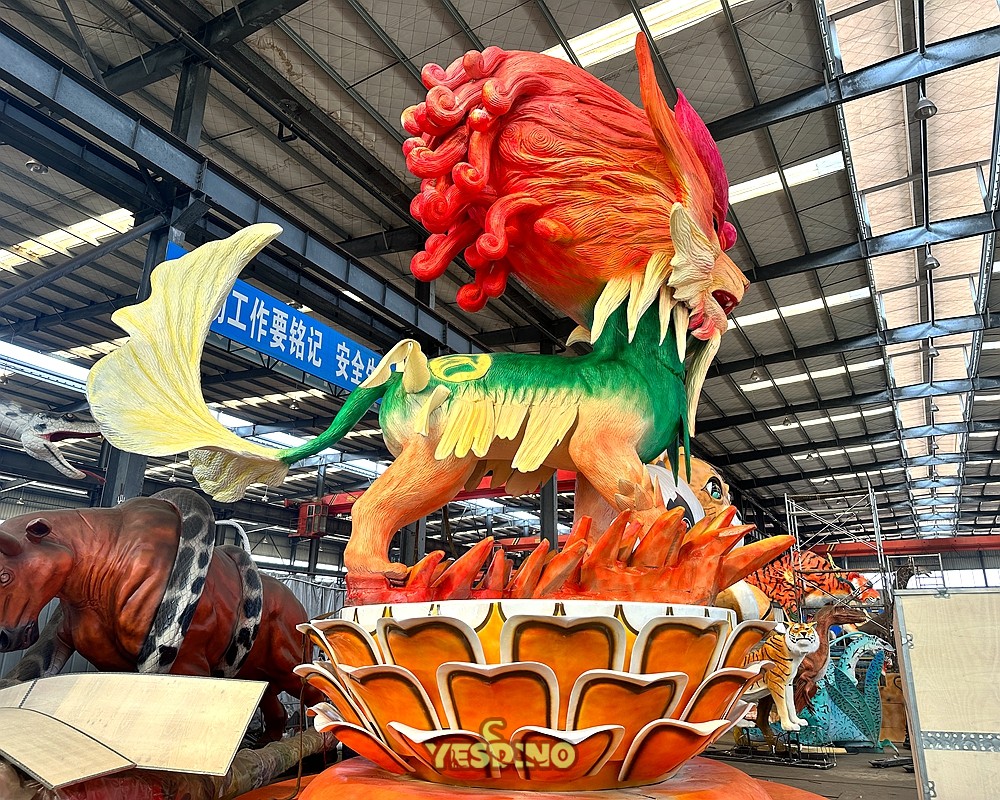

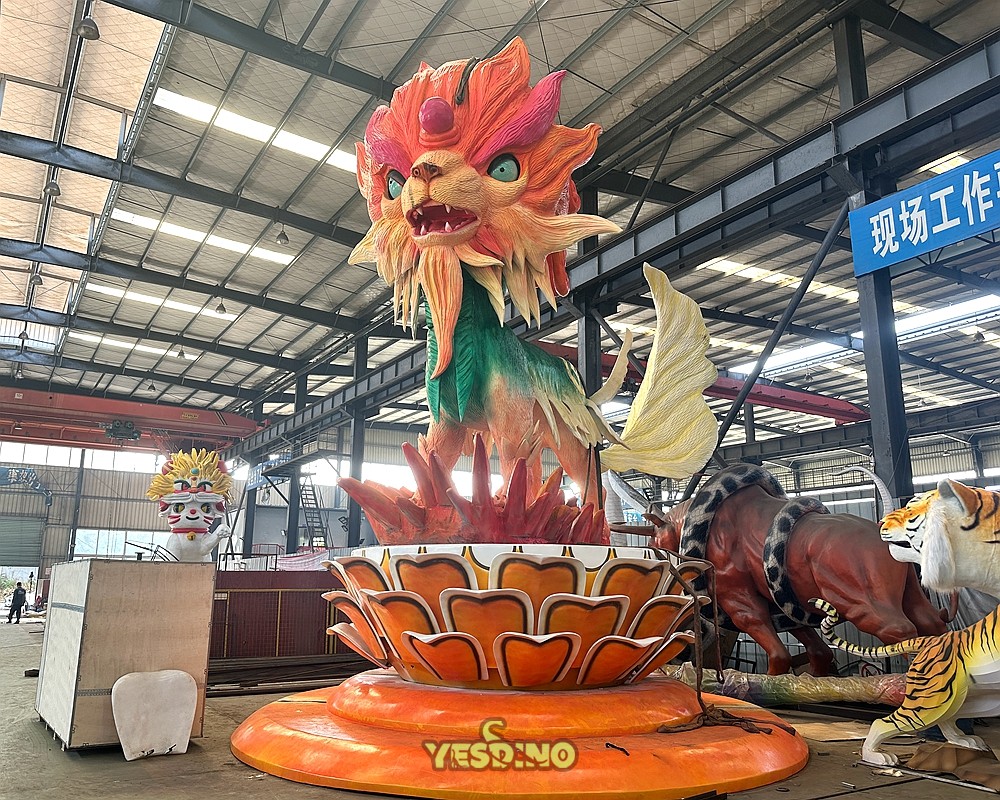

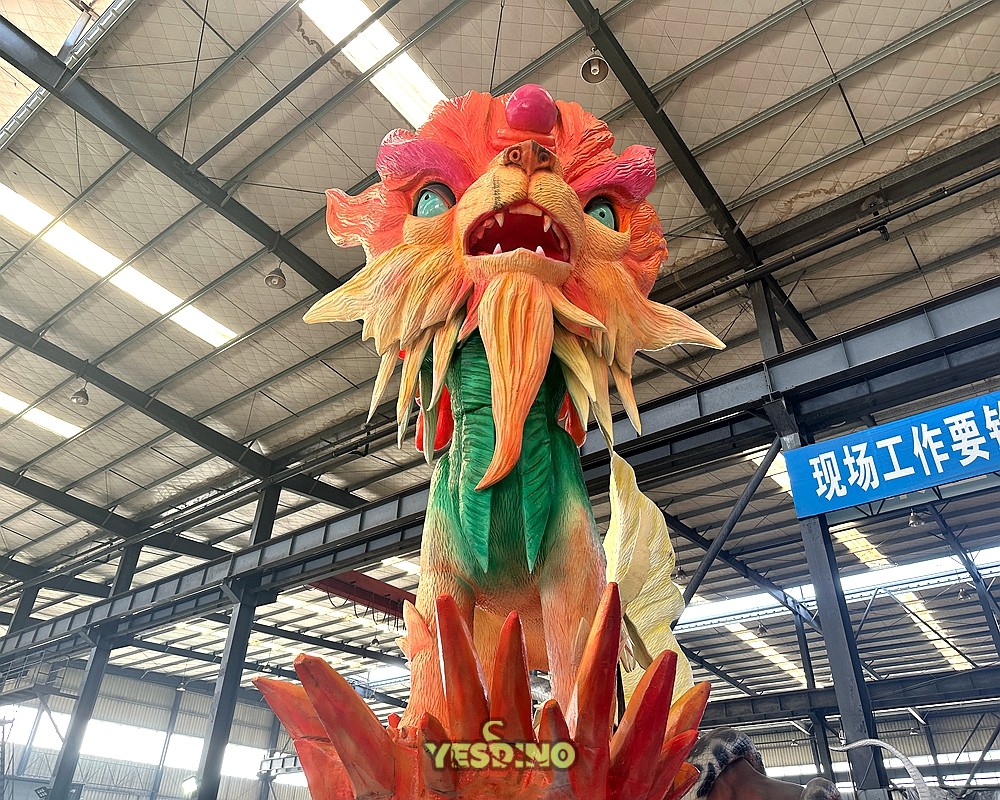

YDZ-013 10m High Mechanical Cartoon Kylin Model

A High-Performance, Safety-Compliant Animatronic Kylin for High-Intensity Commercial Performances, Integrating Traditional Cultural Elements

10m Tall, 3.5m Wide

Majestic presence with a height of 10m±0.1m, max diameter of 3.5m, and a 4.2m diameter lotus-shaped base. Built on a military-grade steel skeleton.

Military-Grade Durability

IP65-rated drive system and structural frame validated by 2,000-hour fatigue testing, ensuring reliability for demanding commercial use.

All-Season Operation

Operational in temperatures from -20°C to 50°C, with an IP65 rating for reliable performance in various outdoor conditions.

Engineered for Impact & Reliability

Dynamic Simulation

A 7-DOF (Degree of Freedom) motion system enables intricate micro-expressions (blink frequency 0.5Hz), jaw movement for roaring (85dB±3), and a 120° tail swing, delivering lifelike, anthropomorphic movements.

Cultural Empowerment

Integrates intangible cultural heritage painting techniques. Supports custom traditional totems like Azure Dragon or Fire patterns with high-fidelity color restoration (Pantone ΔE<2).

Energy Efficiency

Powered by a DC servo motor drive system with a power consumption of ≤2.2kW/h, achieving 40% higher energy efficiency compared to traditional hydraulic solutions.

Durable Construction

Features a robust framework built with 80×80mm square steel tubing, high-density foam carving, fiberglass reinforcement, and a 3mm thick food-grade silicone coating for safety and longevity.

Core Technologies

Framework Structure

80×80mm square steel tube welded frame. Complies with GB50017-2017 steel structure code.

Motion Control

PLC + servo drive for precise timing control. Meets ISO 13849 PLd safety level.

Appearance & Surface

High-density foam carving with fiberglass reinforced layer (ASTM D638 impact test) and 3mm thick food-grade silicone coating (FDA 21 CFR 177.2600 compliant).

Safety Standard

Manufactured in strict accordance with "Large Bionic Mechanical Device Safety Standard" (GB/T 23819-2018).

Technical Specifications

Physical Dimensions

H=10m±0.1m, Φmax=3.5m (Lotus base diameter: 4.2m)

Weight

Approx. 1.8 tons (including counterweight base)

Motion Performance

Head rotation: 15°/s, Tail swing: 0.3Hz

Environmental Adaptability

Operating Temperature: -20°C to 50°C

Power Supply

380V/50Hz three-phase (220V adapter optional)

Reliability

Key Components MTBF ≥ 10,000 hours

Application Scenarios

Proven in high-profile events and venues worldwide

Cultural Tourism

Xi'an Tang Dynasty Ever-bright City Spring Festival Lantern Show, with a daily exposure of 120,000 visitors.

Commercial Complexes

Shanghai Global Harbor Mid-Autumn Festival Celebration, boosting foot traffic by 37%.

Theme Parks

Zhuhai Chimelong Ocean Kingdom Night Parade, awarded the IAAPA Best Installation Award.

Professional Application Guide

Expert setup, operation, and maintenance advice for optimal performance

Installation Specifications

Requires pre-embedded M30 anchor bolts (depth ≥1.2m) with a leveling error ≤3mm/m² to ensure stability.

Maintenance Cycle

Gearbox lubrication every 500 hours, professional silicone skin maintenance every six months. Use Mobil Polyrex EM grease.

Performance Programming

Supports DMX512 protocol for integration into central control systems, capable of synchronizing up to 200 devices for choreographed performances.

Important Notice

The effects described are based on laboratory test data. Actual presentation may vary due to on-site conditions, lighting, and maintenance. The physical product may differ from promotional materials. For accurate and detailed information, please contact us. Final specifications are subject to the signed technical agreement.
