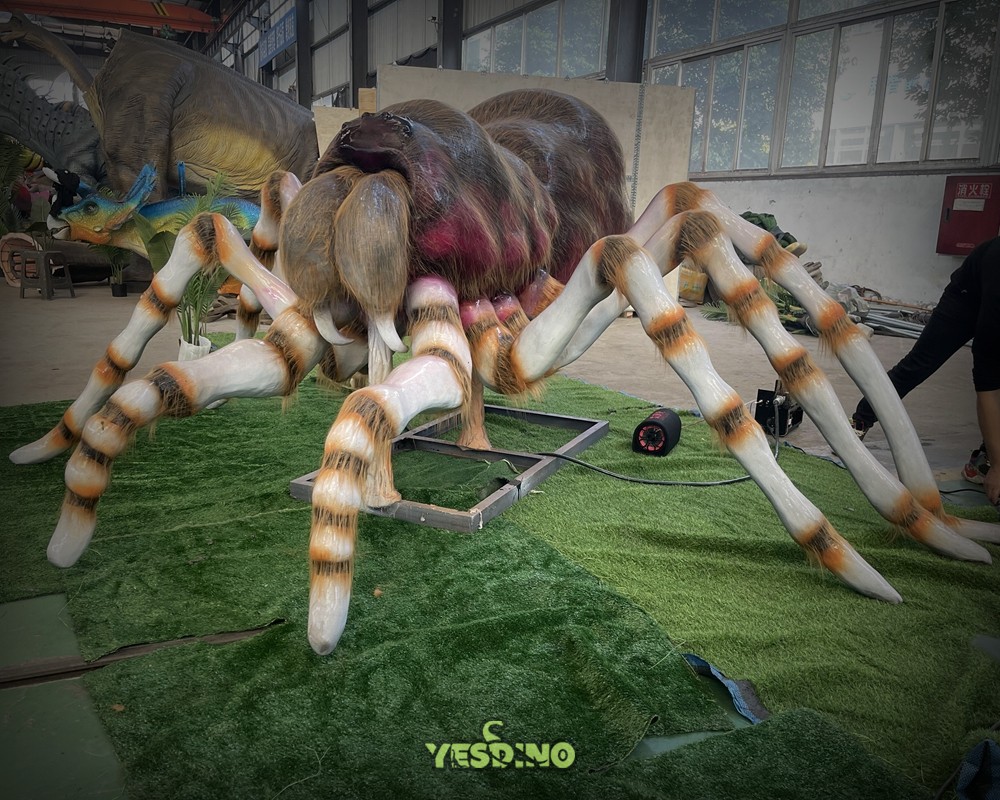

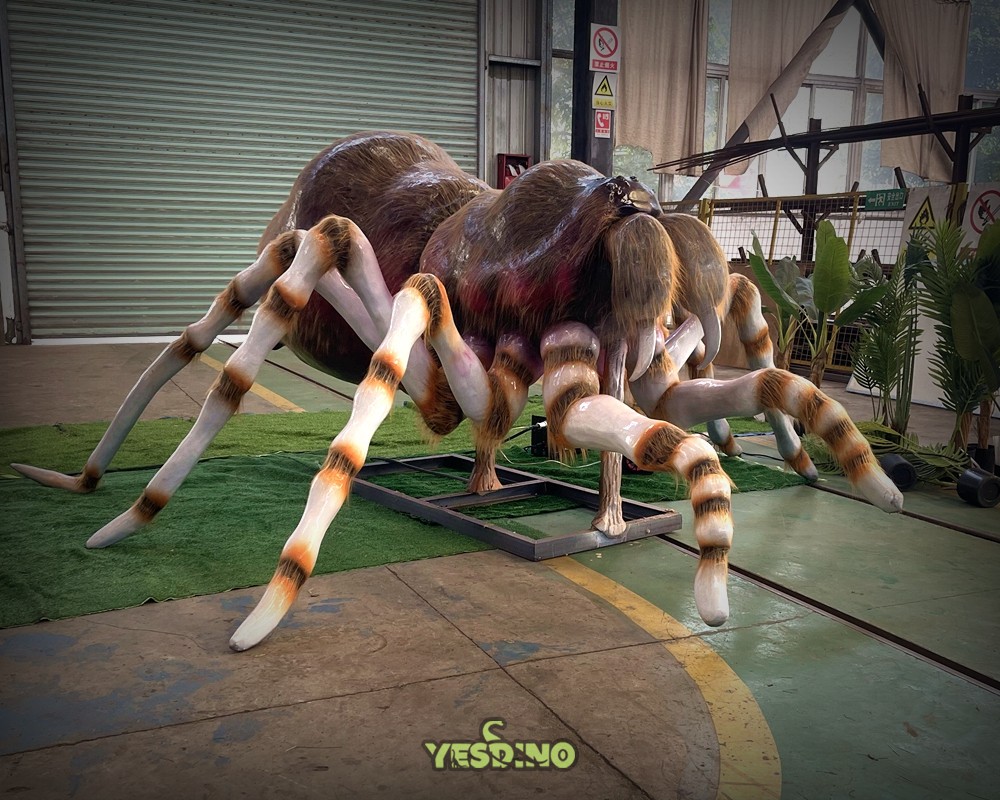

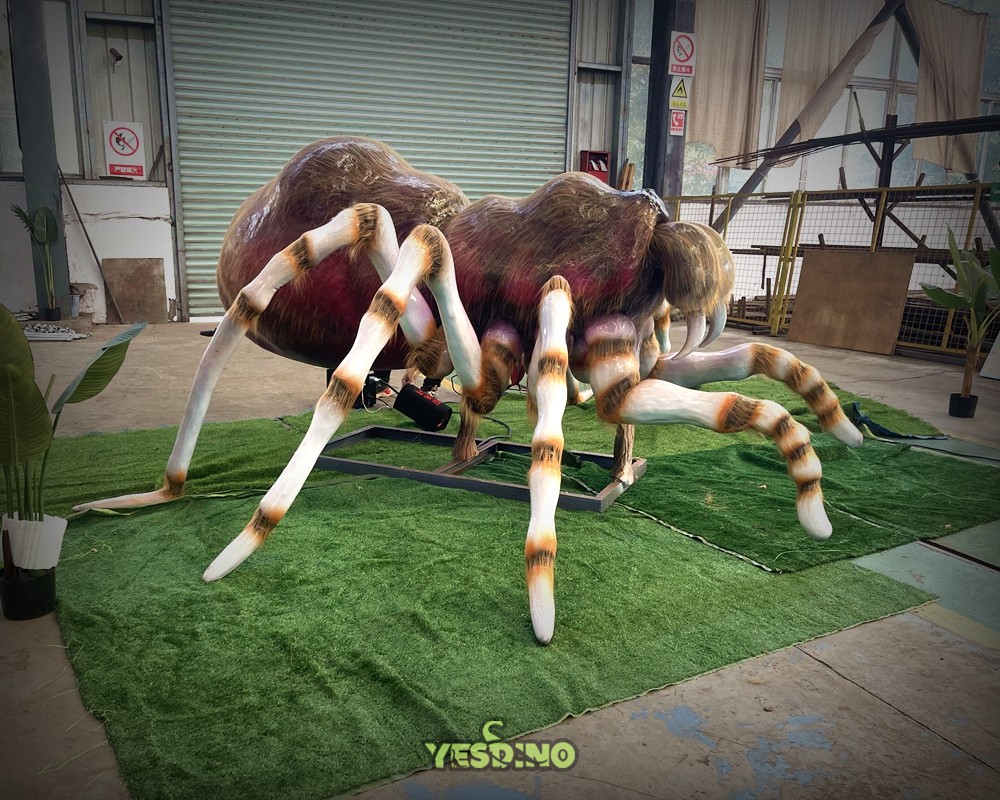

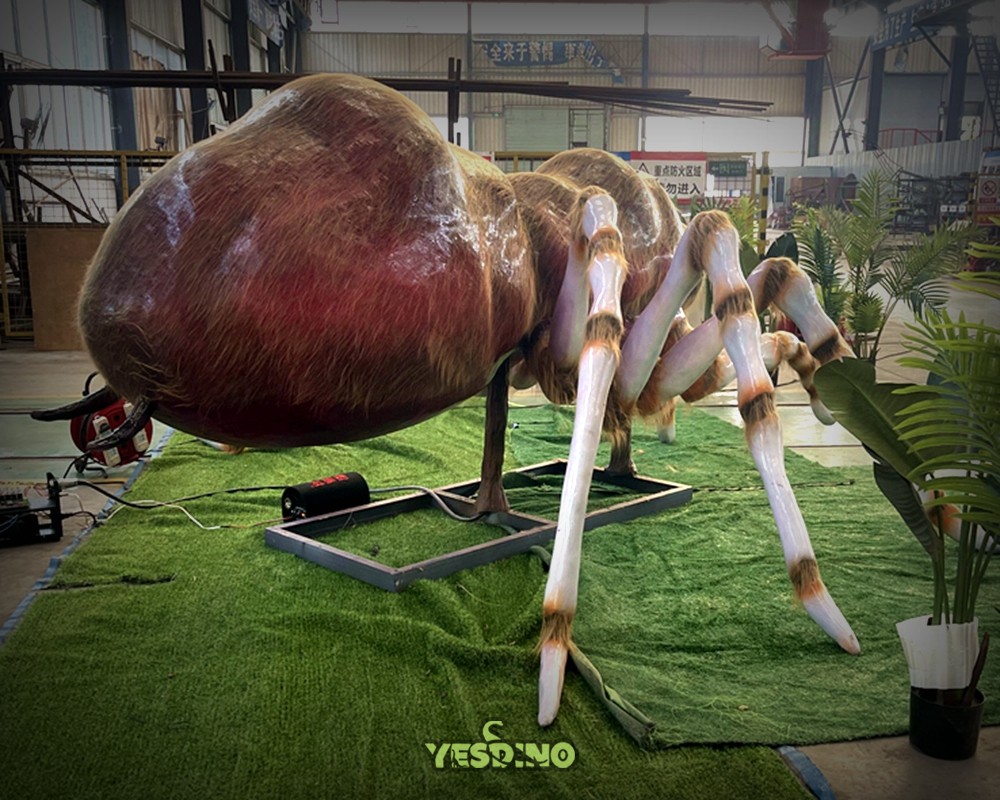

YAI-005 Giant Animatronic Spider
A 2-Meter Scale, Hyper-Realistic Mechatronic Model for Immersive Nature Education & Dynamic Scene Creation
2m Scale, 92% Realism
1:1000 scale-up of a real spider—2m (L) x 1.8m (W) x 0.9m (H). Industry-leading A-grade silicone skin and hair details achieve ≥92% visual realism (third-party certified).
Durable Composite Build
Welded Q235 steel frame (load-bearing ≥150kg) + high-density foam sculpting + fiberglass-reinforced silicone skin—built for interactive durability.
Intelligent Interaction
Built-in IR sensor (3-5m range) triggers 15-second motion sequences. Supports 5 independent motion groups and 3 simulated sound effects.
Advanced Motion & Interaction Capabilities
Engineered for lifelike, engaging interactions in any environment
Sensory Antennae
Antennae oscillate at ±45° with adjustable frequency (0.5-2Hz), simulating realistic environmental scanning behavior.
Full-Body Articulation
360° head rotation, 180° abdomen rotation, and ±30° mandible movement create a highly dynamic and expressive presence.
Foreleg Ambulation Simulation
Forelegs perform ±60° flexion/extension motions, driven by a precise four-bar linkage system for smooth, stutter-free movement.
Immersive Audio
2W built-in speaker delivers 3 simulated sound effects (crawling, alert, courtship) with 44.1kHz sampling rate and<0.5% distortion.
Technical Specifications
Physical Dimensions
L2000mm × W1800mm × H900mm (including antennae extension)
Core Materials
Frame: Welded Q235 Steel; Sculpting: 35kg/m³ High-Density Foam; Skin: Fiberglass Cloth + Food-Grade Silicone (Shore 25A); Detail: Imported Artificial Spider Hair (5-8mm)
Control System
STM32 Master Control Board + IR Sensor Module + Audio Decoder Chip. Supports motion sequence programming (error ≤0.1s).
Primary Motions
Antenna Oscillation (±45°), Head Rotation (360°), Abdomen Rotation (180°), Mandible Opening (±30°), Foreleg Flexion/Extension (±60°)
Power & Environment
Power Consumption: ≤80W (Standby ≤5W). Operating Temperature: -10℃ to 40℃ (Protective cover required for prolonged outdoor use).
Production & Logistics
Production Cycle: ~10 working days. Modular design allows assembly/disassembly in ≤2 hours.
Applications & Benefits
Designed for immersive education, unforgettable entertainment, and versatile scene-building
Immersive Educational Tool
Perfect for insectariums, science centers, and museum exhibits. Pair with QR codes linking to ecological videos to demonstrate mimicry and mechanical传动 principles, aligning with K-12 science curricula.
Dynamic Entertainment Centerpiece
Transforms themed areas in zoos, botanical garden greenhouses, theme park adventure zones, and immersive night tours. Its intelligent trigger system creates unexpected, engaging guest interactions.
Versatile Commercial Attraction
Ideal for mall atrium holiday displays (Halloween/Christmas), brand pop-up shop activations, and as a film/TV prop. Modular design allows quick setup (≤2 hours) and easy venue adaptation.
Professional Application Guide
Expert recommendations for deployment, operation, and longevity
Exhibition Setup
Position centrally in jungle-themed zones. Use with fog systems and artificial vines. Maintain ≥3m spacing from other exhibits. Limit to ≤200 daily interaction cycles to prolong motor life.
Event Enhancement
For Halloween/horror parties, sync with strobe lights and optional red LED eyes. IR trigger can activate both motion and lighting effects simultaneously for maximum impact.
Maintenance & Care
Regularly check joint mechanics and lubricate servo motors as needed. For outdoor use in harsh conditions, install the optional protective cover. Keep within specified temperature range.
Important Notice
This product is a custom-made simulation model. Due to variations in handcrafting precision (e.g., silicone texture randomness), on-site lighting, and individual perception, the physical product may have slight visual differences from descriptions and promotional materials. All technical specifications are subject to the factory inspection report. The actual on-site presentation effect may vary. For accurate information, final configurations, and customized technical white papers, please contact our official customer service.
