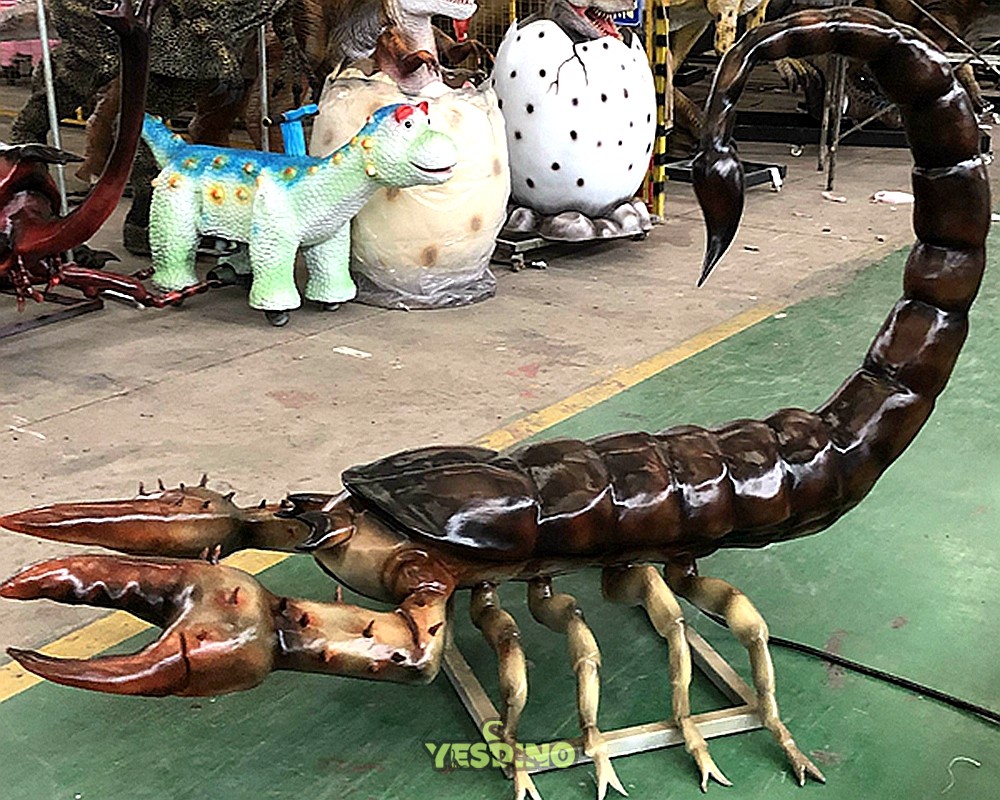

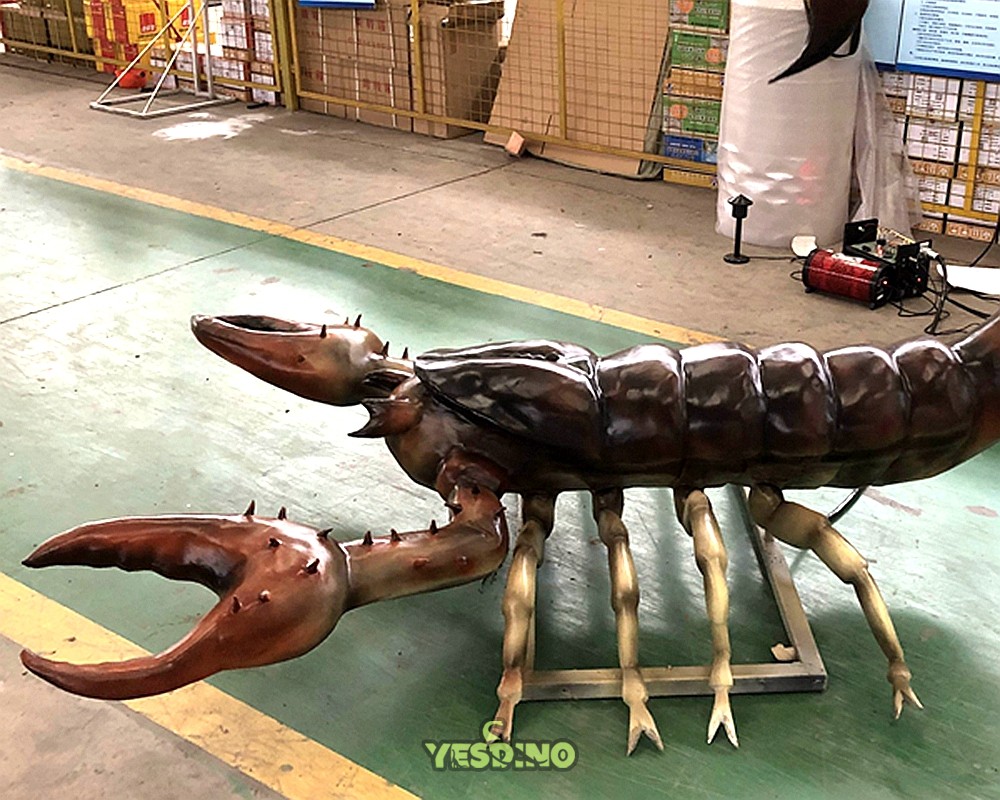

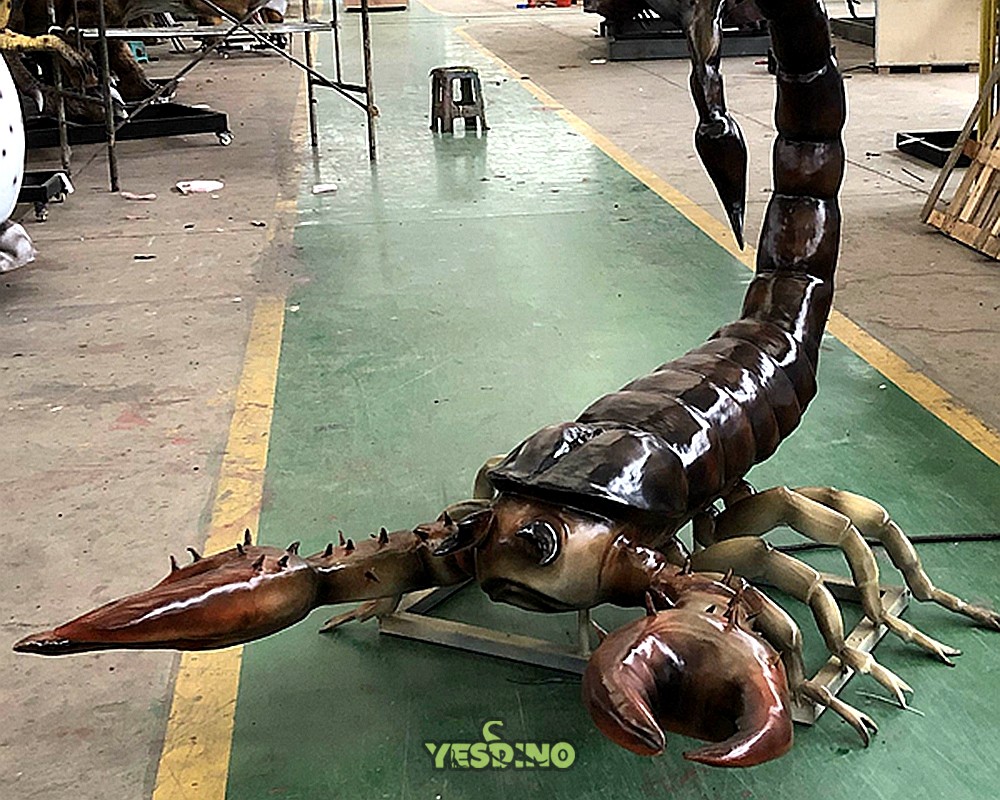

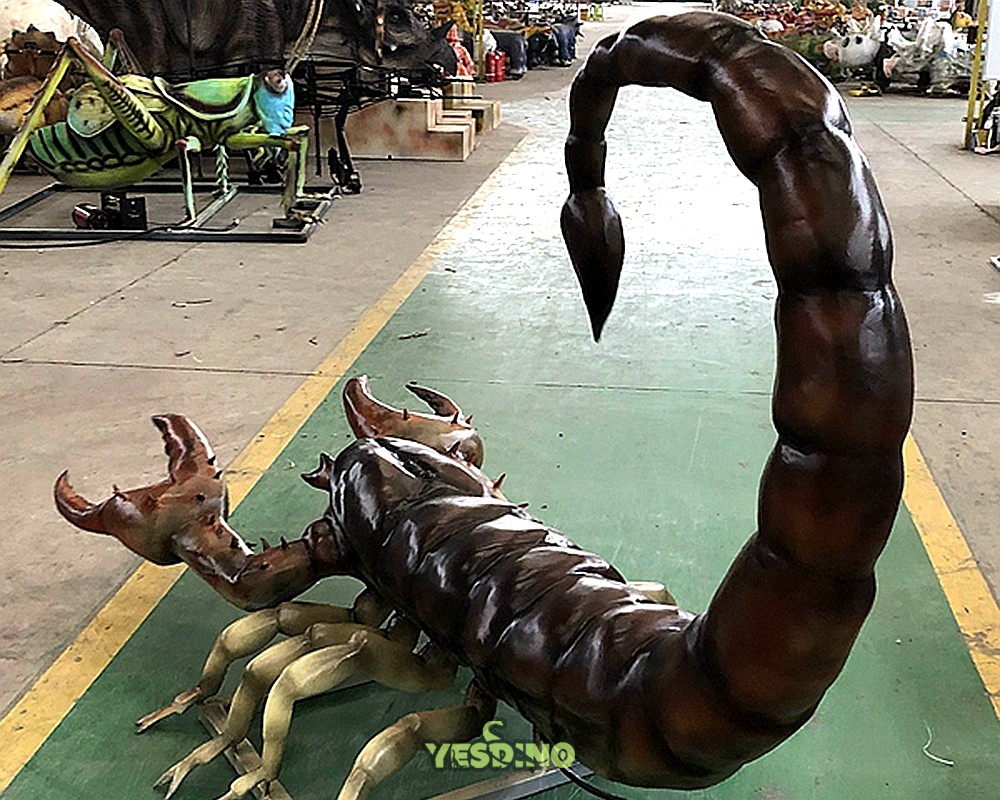

YAI-008 Biomechanical Animatronic Scorpion
A Professionally Engineered, High-Precision Replica for Immersive Educational Exhibits & Themed Entertainment
1.5m Length, 85kg Weight
True 1.5m (5ft) body length, 2m (6.5ft) curved length, 1.3m (4.3ft) height. Features a robust Q235 carbon steel frame with tensile strength of 375MPa.
Military-Grade Durability
Critical transmission components rated for ≥100,000 motion cycles, built for long-term, high-frequency operation in public venues.
All-Environment Operation
IP54 rating protects against dust and water splashes. Operating temperature range: -10°C to 45°C (14°F to 113°F) with humidity ≤90%RH.
Advanced Motion & Interaction
Engineered for lifelike, captivating movement sequences
Pincer Action
120° articulation for realistic grasping and defensive displays, powered by high-torque servos.
Tail Stinger Strike
Stinger extends/retracts at 0.3m/s (measured), mimicking a rapid, striking motion with precision control.
Scanning Head Movement
Head pans and tilts with<2° positioning error, simulating the cautious, observant nature of a live scorpion.
Interactive Response
Infrared sensor triggers 5+ distinct behavioral sequences (threat display, curiosity, retreat) with<0.5s latency.
Technical Specifications
Physical Dimensions
Body Length: 1.5m (Curve Length: 2.0m) | Height: 1.3m
Weight & Power
Net Weight: 85kg ±3kg | Operating Voltage: AC 220V/50Hz | Peak Power: 850W
Noise & Protection
Operational Noise: ≤55dB(A) @1m | Ingress Protection: IP54 (Dust & Water Splash Resistant)
Construction Materials
Endoskeleton: 6mm Laser-Cut Steel Plate | Muscle Layer: 48kg/m³ High-Density PU Foam | Skin: Food-Grade Liquid Silicone (Shore Hardness 25A±2)
Drive System
7x Servo Motors (120W each) | Planetary Gear Reducer (95% efficiency) | 6 Degrees of Freedom Joint System
Durability & Cycle Life
Key Transmission Components: ≥100,000 Motion Cycles | Main Frame: Q235 Carbon Steel (375MPa Tensile Strength)
Applications & Benefits
Deployed in 12+ National-Level Science Museums and Themed Entertainment Venues
Scientific Research & Education
Used as a teaching tool for the "Arthropoda Biomechanics" research program at the Chinese Academy of Sciences' Institute of Zoology.
Theme Park & Attraction Upgrade
Featured in Chimelong Safari Park's "Desert Biome" interactive exhibit, triggering 1200+ visitor interactions daily.
Film & Media Production
Supplied as a specialty creature prop for "Dune: Part Two" (Vendor ID: SFP-2023-089).
Installation & Operation Guide
Professional recommendations for optimal display and long-term performance
Display Space Requirements
Minimum exhibit area: 4m (L) × 3m (W) × 2.5m (H). Optimal viewing distance: 3-8 meters to appreciate all dynamic details.
Professional Maintenance Cycle
Mechanical Parts: Re-lubricate with lithium-based grease every 500 operating hours. Silicone Skin: Annual UV-protective coating maintenance.
Interactive Customization
Motion programming, sound effect libraries, and lighting sequences can be customized to match specific exhibit themes and narratives.
Important Notice
Due to the nature of manual sculpting, finished product skin texture may exhibit reasonable variations. The precise final form is subject to confirmation upon physical inspection. Final presentation effects, including motion precision and audio details, may vary due to on-site conditions and configuration. For accurate specifications and project-specific data, please contact us directly.
