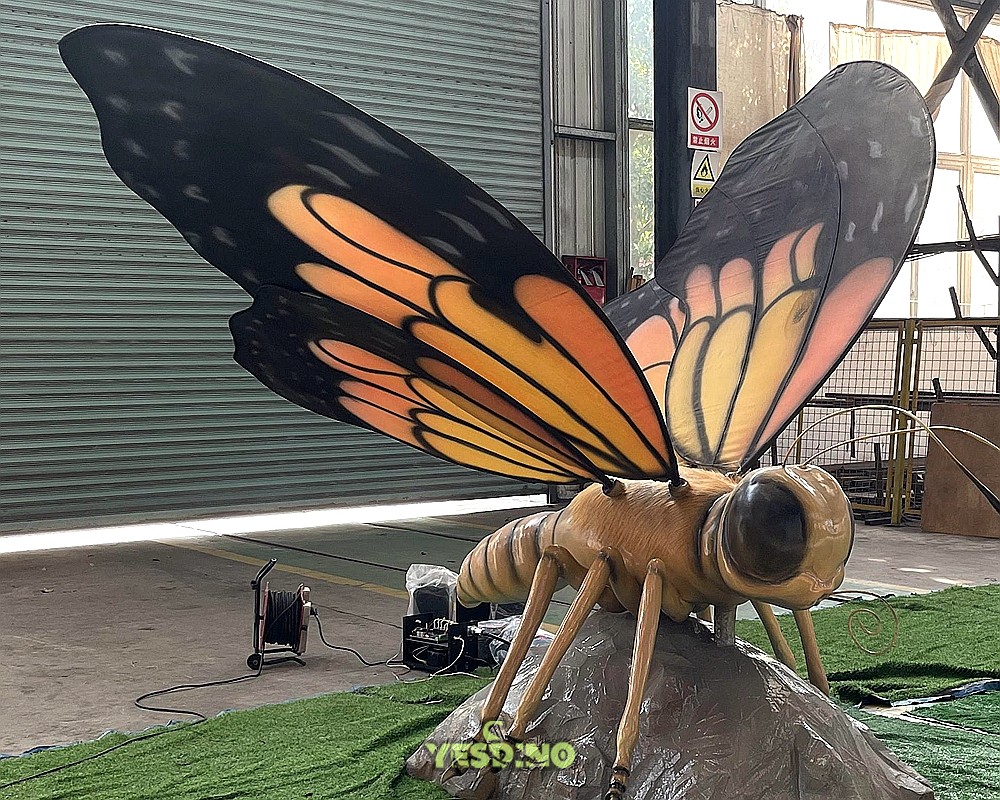

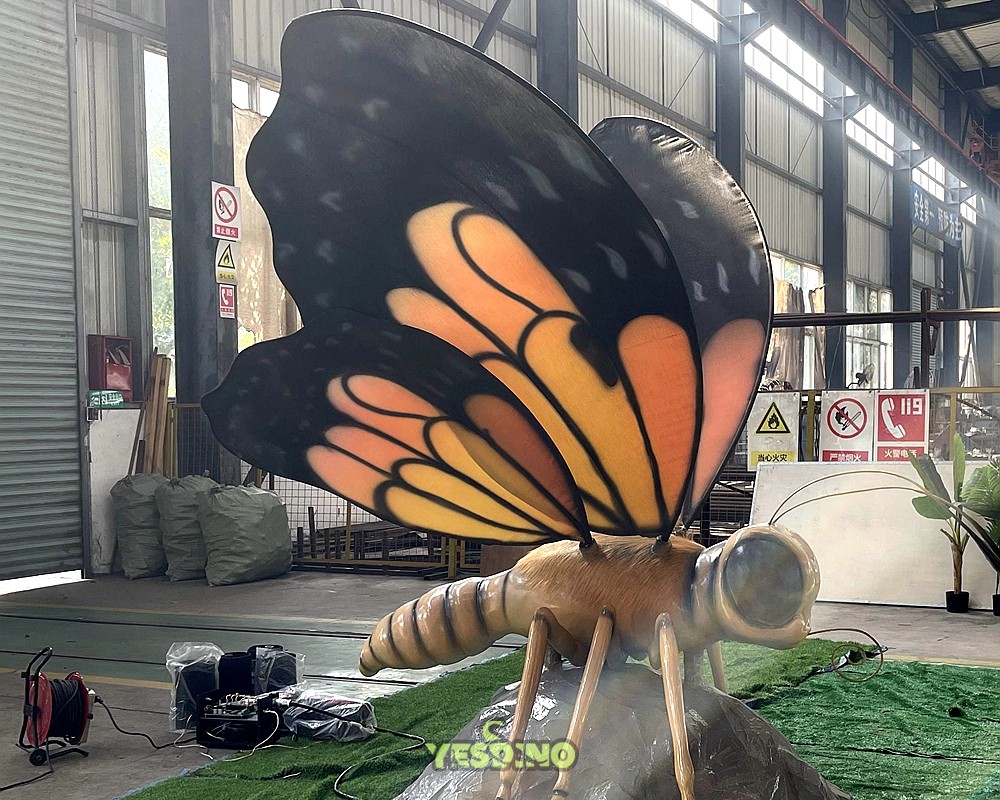

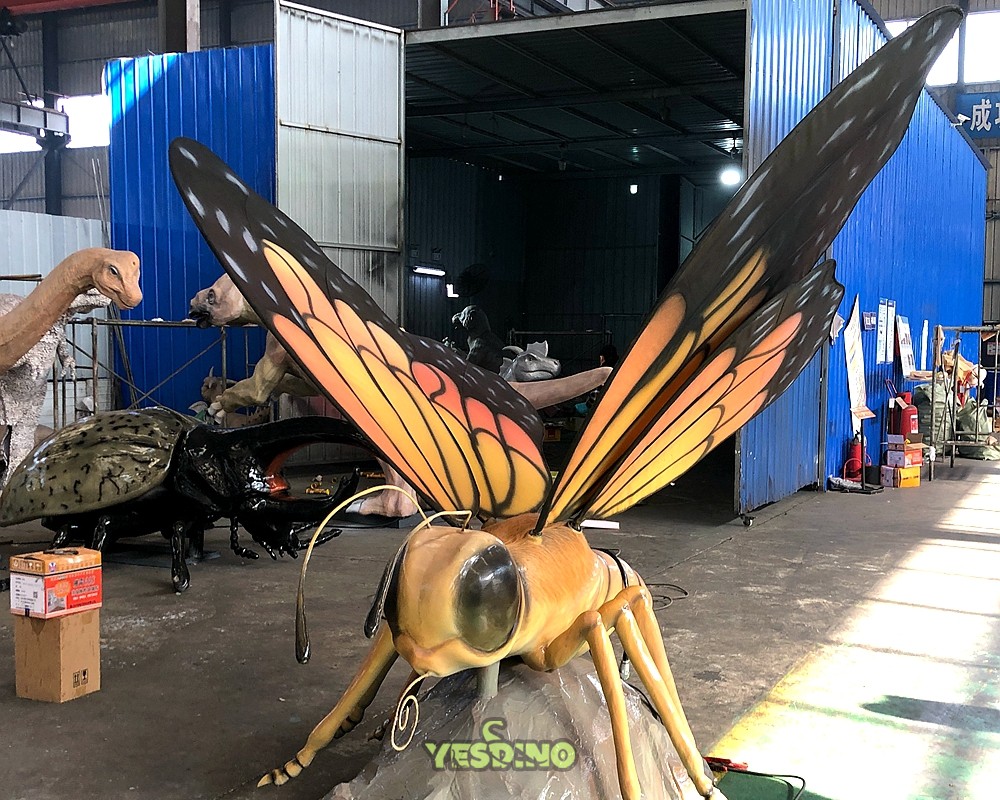

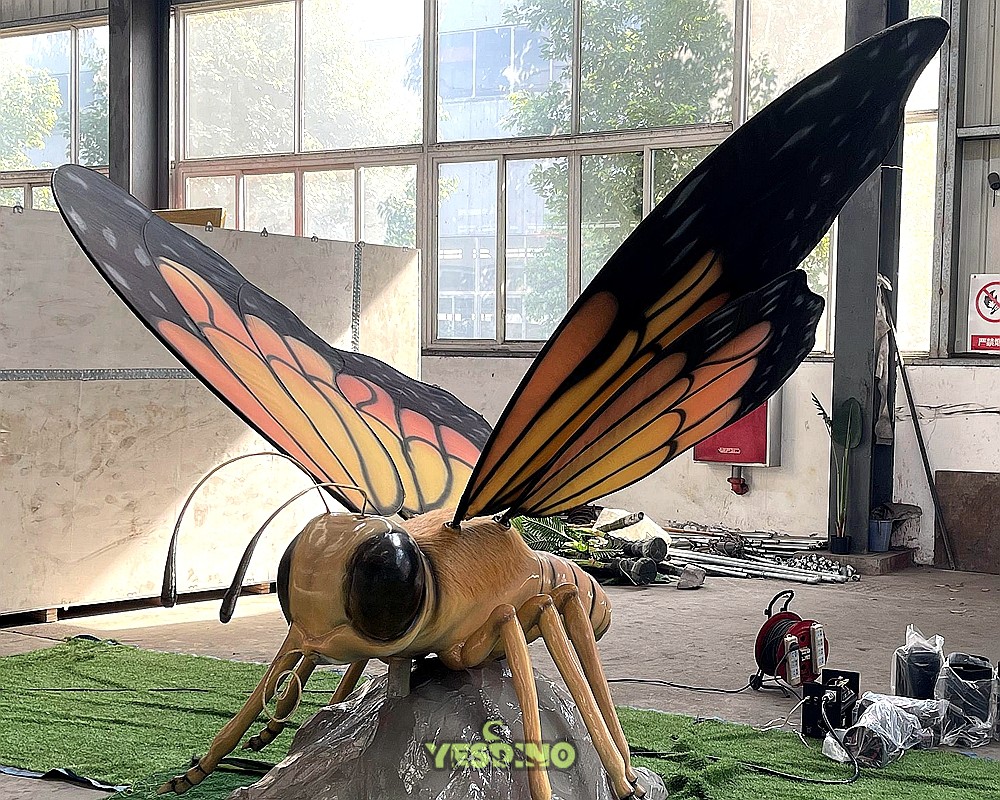

YAI-010 Dynamic Mechanical Butterfly Model
A Professional-Grade Bionic Display Device for Immersive Ecological Narratives, Based on Insect Biomechanics
2.2m Wingspan, Lifelike Scale
Wingspan of 2.2m (standard). Features 3D reverse-scanned real Swallowtail specimen morphology with ≥95% scale texture accuracy and color error ΔE<1.5 (CIELAB standard).
Realistic Flight Dynamics
Dual-wing independent drive (0.2N·m micro servo motors), 30-45 flaps/min. Multi-axis linkage for head (±15°) and tail (±20°) movement simulates natural flight trajectories.
Immersive Sensory Integration
36x 5050 RGB LEDs (16M colors) + 16 sound profiles (wing flutters 20-40kHz, rainforest ambiance). PWM dimming response
Advanced Motion & Sensory Capabilities
Engineered for lifelike movement and immersive multi-sensory engagement
Independent Wing Drive
Dual wings operate independently via micro servo motors (0.2N·m torque), enabling adjustable flapping frequency (30-45 flaps/min) and ±60° amplitude.
Multi-Axis Linkage
Head shaking (±15°) and tail swinging (±20°) work in concert with wing motion to create complex, naturalistic flight trajectories.
Dynamic RGB Lighting
36x 5050 RGB LEDs produce 16 million colors with PWM dimming (<10ms response). Ideal for creating atmospheric lighting narratives.
Immersive Audio Library
16 built-in sound profiles including wing flutters (20-40kHz ultrasonic) and rainforest ambiance. Supports external 3.5mm audio input.
Technical Specifications
Physical Dimensions
Length: 1.5m, Height: 1.8m, Wingspan: 2.2m (Standard Model)
Drive System
3x Brushless DC Motors (Total 50W) + 2x Micro Servo Motors (Head/Tail)
Motion Parameters
Wing Flap: ±60° amplitude, 30-45 cycles/min. Head Shake: ±15°. Tail Swing: ±20°.
Lighting System
36x 5050 RGB LEDs, 16M colors, 0-100% brightness adjustable (Power ≤15W)
Audio System
16 Built-in Sound Effects, 3.5mm Aux Input, SNR >70dB
Power & Customization
AC 220V/50Hz (Adapter Output: DC 24V/3A). Customizable size (0.8-3.0m), posture, motion, LED programs, and sound library.
Applications & Benefits
Designed for venues seeking ecological storytelling, education, and visual impact
Botanical Garden & Eco-Education
Ideal for butterfly migration path displays in greenhouse canopies (recommended installation height 1.5-2.0m). Enhances ecological narrative in science centers.
Museum & Theme Park Immersion
Creates paleoecological restoration scenes alongside fossils, or enchanted garden zones in immersive theaters. Complements live invertebrate exhibits in zoos.
Commercial Art Installation
Transforms hotel lobbies, retail atriums, and premium commercial spaces into captivating ecological art pieces, boosting visitor engagement and dwell time.
Professional Application Guide
Tailored installation, maintenance, and safety protocols for optimal results
Installation & Scene Matching
Install 1.5-2.0m high in botanical garden greenhouses to match herbaceous flower canopies. In museums, pair with fossil exhibits for temporal contrast.
Maintenance & Energy Management
Quarterly cleaning with a soft brush (no solvents). Biannual motor gear lubrication (Mobil Polyrex EM grease). 65W total power; use Intermatic ET112 timer for peak/off-peak management.
Safety & Durability Notes
Mount on a base with ≥50kg load capacity. IP54 rating protects against dust/water. Avoid child contact with moving joints. Avoid prolonged >5000lux light exposure to preserve LED lifespan.
Important Notice
Product description is based on standard configuration lab test data (25°C, 50%RH). Due to customization (size/color), installation environment (temp/humidity/light >5000lux may affect LEDs), and material batch variances, the final product may have slight visual differences (e.g., scale reflectivity ±5%). Performance specifications are subject to the factory inspection report. For accurate application, contact our technical team for a scenario-specific solution confirmation. Actual effects may vary from promotional materials. For precise information, please contact us.
