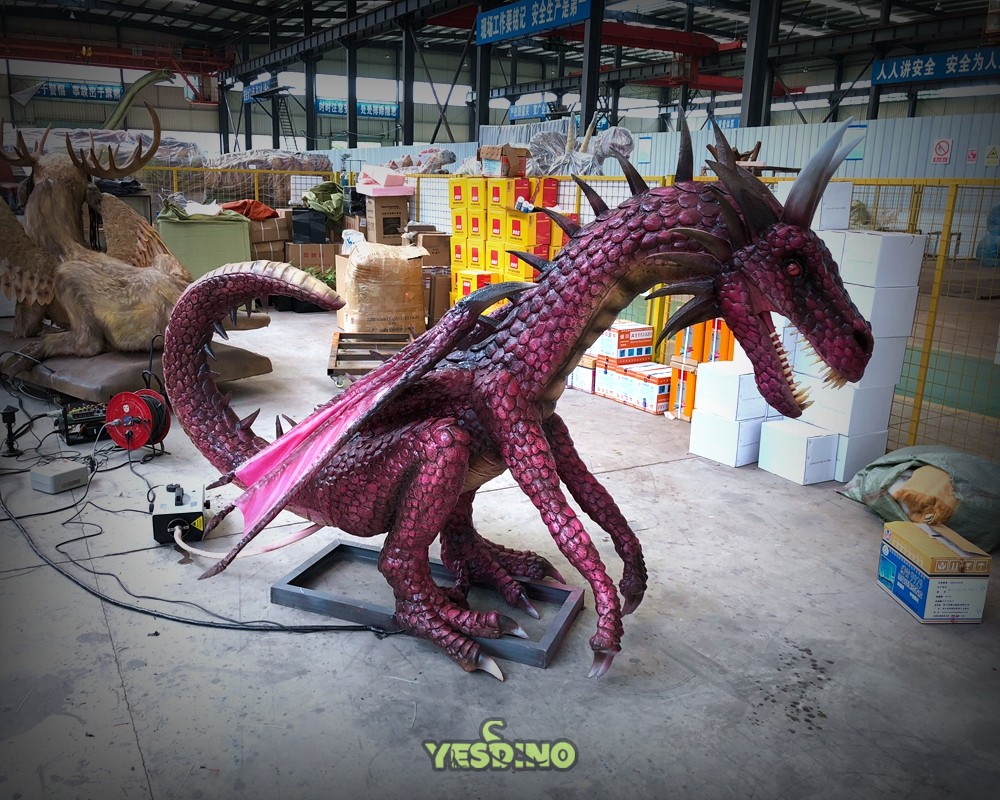

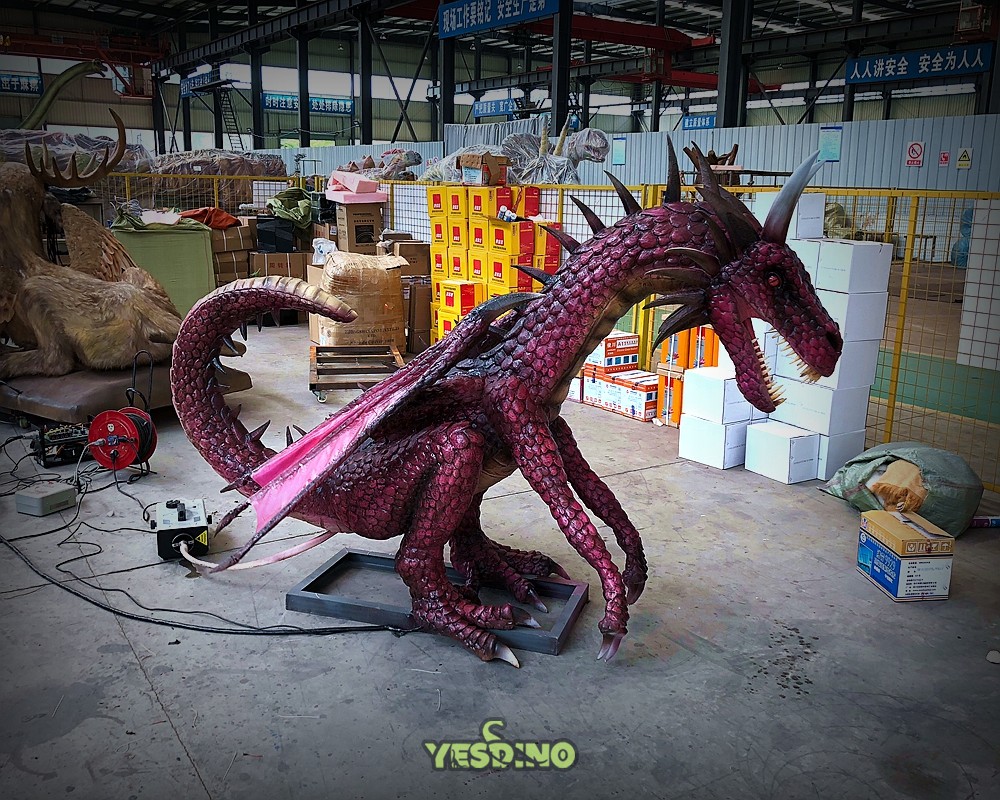

YDM-001 Animatronic Western Dragon
A Professional-Grade, Interactive Spectacle Featuring Aerospace-Grade Alloy Frame & Medical-Grade Silicone Skin for Themed Entertainment
Aviation-Grade Alloy Frame
Built with aerospace-grade alloy skeleton (yield strength ≥345MPa) and 3±0.2mm medical-grade liquid silicone skin. Certified IP54 rating for reliable outdoor operation.

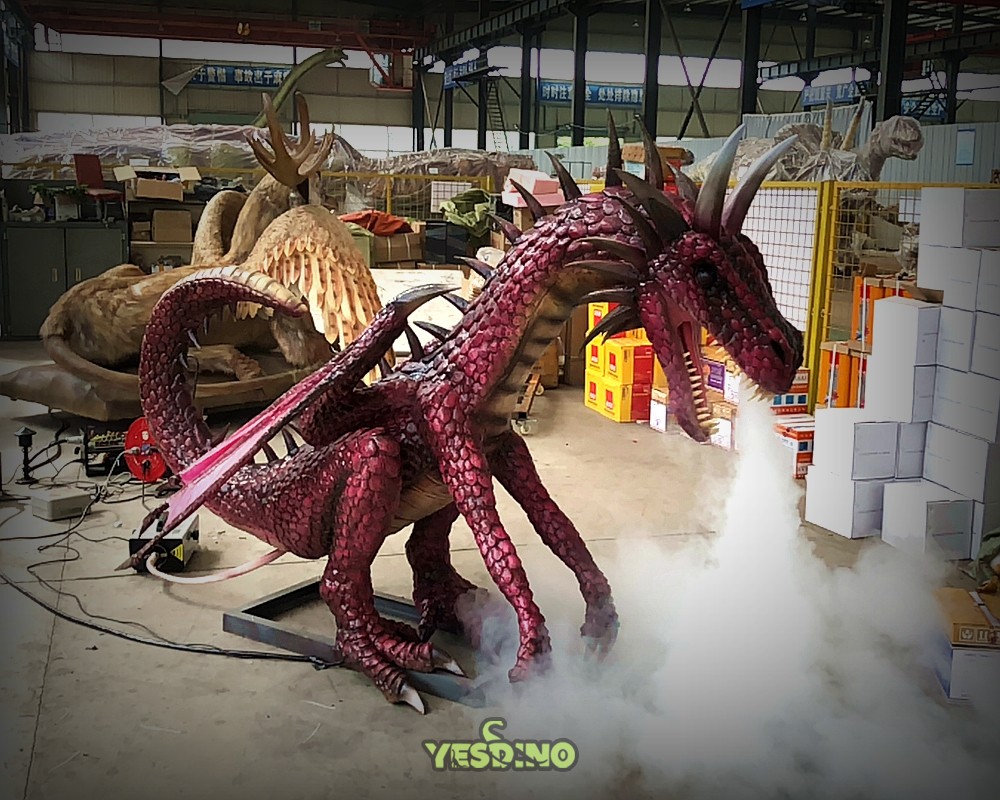

Dual-Channel Aerosol System
Features a controllable smoke jet system with a peak flow rate of 0.8m³/min. Designed for deployment in 10-200㎡ venues.
High-Precision Motion
7-DOF hydraulic joint system (±0.05° accuracy) enables 270° head rotation and synchronized 3-meter wingspan flapping (0.5-2Hz).
Applied Technologies
Integrating precision engineering with advanced material science
Power System
German SEW servo motor (42Nm torque) + harmonic reducer (1:100 transmission ratio) for smooth, powerful movement.
Intelligent Control
PLC programmable logic controller (Siemens S7-1200 series) supports dual-mode triggering via timing and sensors.
Material Science
Nano-coating bio-mimetic scales (wear resistance >8000 cycles Taber test) and flame-retardant foam (oxygen index ≥32%).
Controllable Effects
Food-grade glycerin-based fog output (PM2.5 <5μg/m³). Wing flapping frequency adjustable from 0.5 to 2Hz.
Technical Specifications
Overall Dimensions
L4.2 × W3.6 × H2.8m (Standard model, customizable within ±30%).
Power Consumption
Standby: 0.5kW / Full Operation: 4.2kW.
Smoke Output
Food-grade glycerin-based aerosol (PM2.5 <5μg/m³).
Motion Speed
Wingspan flapping frequency adjustable from 0.5 to 2Hz.
Operating Temperature
-10℃ to 45℃ (with built-in constant temperature & dehumidification module).
Protection Rating
SGS-certified IP54 for all-weather outdoor operation.
Application Scenarios
Engineered for impact across entertainment, commercial, and educational sectors
Themed Entertainment
Ideal for theme park entrance installations (proven daily capacity of 3000 visitors).
Film & Media Production
Hollywood A-grade special effects prop (featured in "Dragon Era" live-action filming).
Commercial Activation
Brand pop-up store traffic driver (proven 18.7% dwell-to-conversion rate).
Education & Research
Platform for paleontological biomechanics research (university collaboration case: China University of Geosciences).
Professional Application Guide
Expert advice for installation, maintenance, and safety
Installation Specification
Foundation load-bearing ≥500kg/m². Reserve a maintenance access corridor (width ≥1.2m).
Maintenance Cycle
Replace hydraulic oil (ISO VG46 standard) every 500 operating hours. Calibrate sensors quarterly.
Safety Protocols
Equipped with emergency stop button (EN ISO 13850 certified) and leakage protection (trip current ≤30mA).
Important Notice
Due to the nature of customized production, the actual product may have slight variations in texture details (within ±5% color difference range). Final presentation effects may vary due to on-site conditions. For precise matching to your requirements, please contact our engineers for CAD models and material sample books. Final specifications and effects are subject to the contractual acceptance standards. For accurate and detailed information, please contact us directly.
