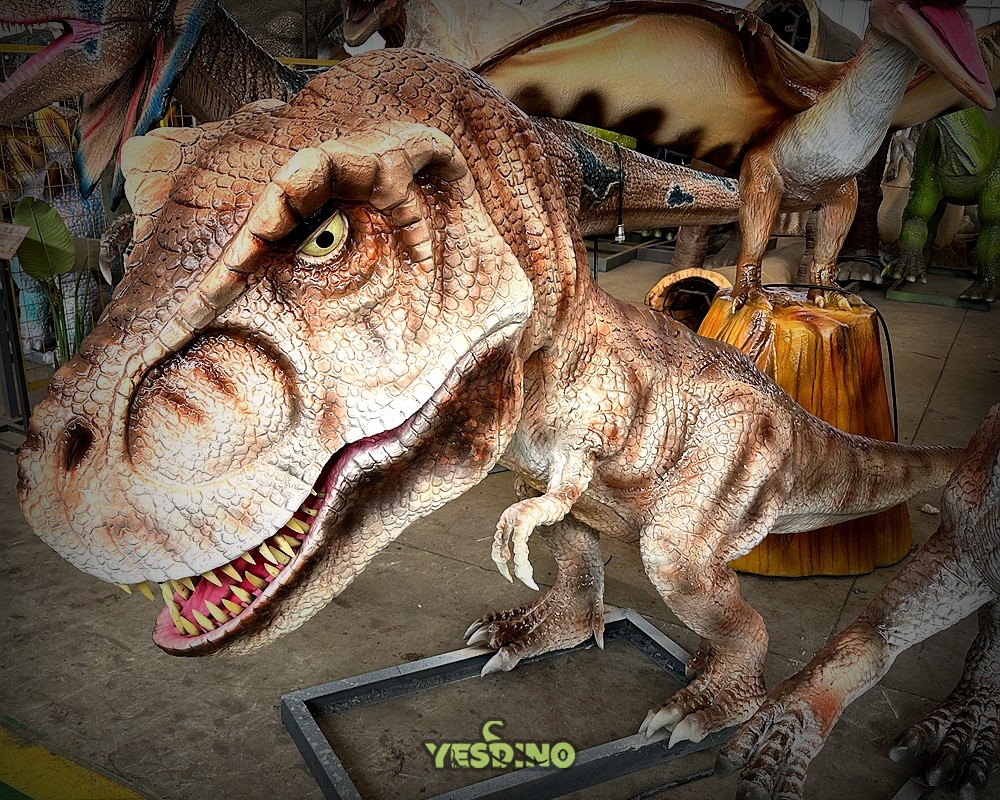

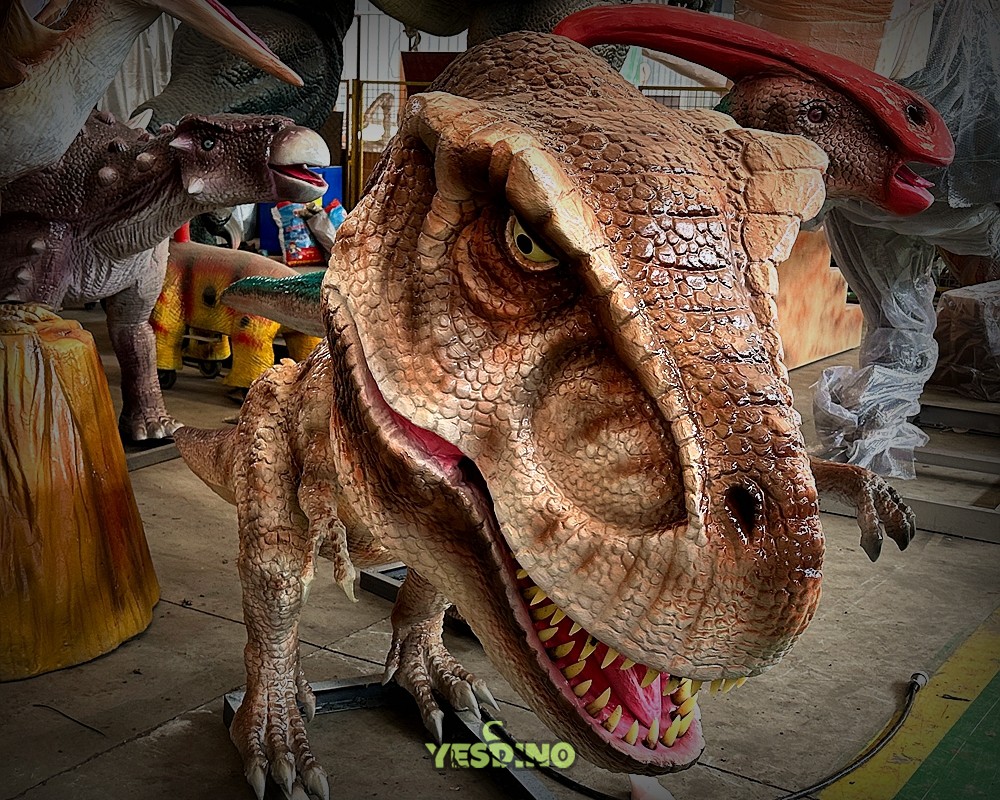

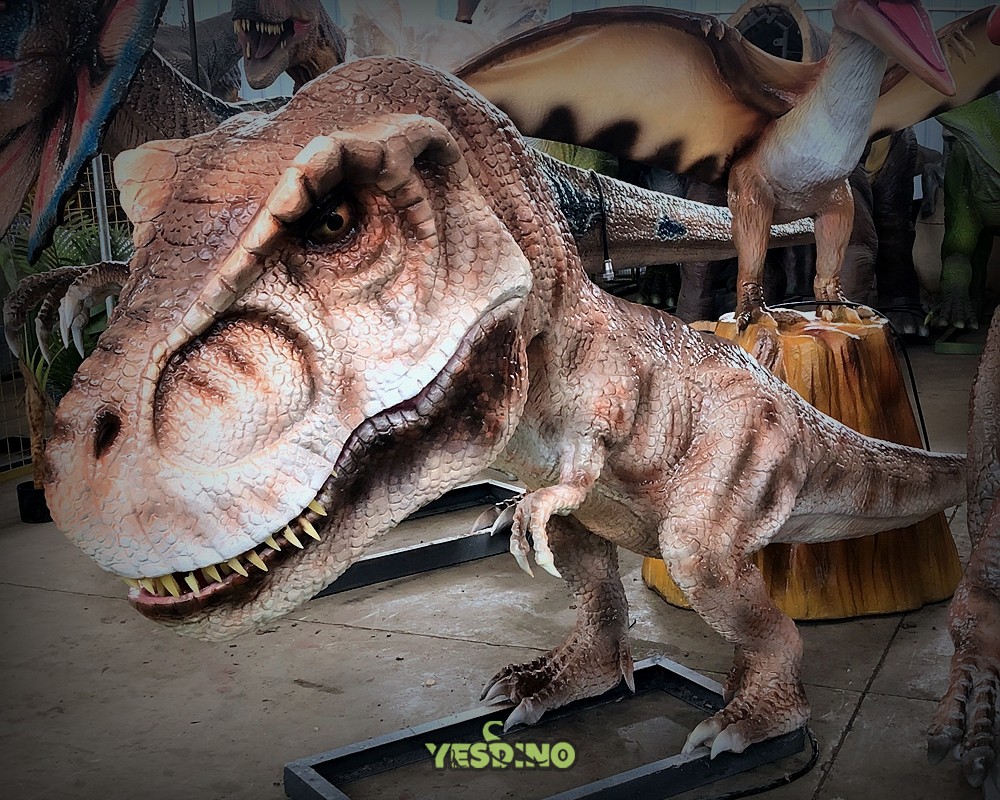

YKL-036 Large-Scale Animatronic Dinosaur
A Biomechanically Enhanced, Customizable Dinosaur Model for Immersive Commercial Experiences
2m Long, 1.3m Tall
Features exaggerated aesthetics with a 150% upscaled head for enhanced visual impact. Ideal for commercial spaces requiring a memorable centerpiece.
300W High-Efficiency System
Dual voltage input (110V/220V) for global compatibility. CE/UL certified, consuming 15% less power than comparable models.
Low-Maintenance Durability
IP54-rated shell with a failure rate of<0.3% under daily 8-hour operation, ensuring long-term reliability and low upkeep costs.
Applied Technology
Precision engineering for lifelike, responsive performance
Dual-Mode Sensing
Millimeter-wave radar + infrared sensor fusion. 3m detection range with ±5cm accuracy for reliable visitor interaction.
Precision Drive System
5 groups of high-precision servo motors (20N·m torque) for coordinated, fluid joint movements.
Advanced Control System
Powered by an ARM Cortex-M7 processor with adaptive motion algorithms, supporting 100+ preset action combinations.
Robust Construction
Aerospace-grade aluminum skeleton with 5mm flame-retardant silicone skin, rated IK08 for high impact resistance.
Technical Specifications
Physical Dimensions
L2000×W800×H1300mm
Power System
AC 110V/220V ±10%, 50/60Hz. Standby 15W / Operational 300W.
Weight & Motion
Net Weight: 85kg (including steel base). Motion Components: Jaw×1, Eyelids×2, Front Claws×2, Tail Vertebrae×7, Head & Neck×3.
Performance & Environment
Noise Level: ≤65dB @ 1m. Operating Temperature: -10℃ to 40℃.
Safety & Durability
IP54 rated enclosure. IK08 impact-resistant skin.
Certifications
CE, UL.
Application Scenarios
Proven to drive engagement and business metrics across diverse venues
Luxury Hotels
Deployment in a 5-star hotel lobby increased guest dwell time by 40% (Source: 2023 Q2 Operations Report).
Themed Dining
Verified data from a chain restaurant shows a 22% increase in table turnover rate at installation points.
Cultural Tourism & Attractions
Certified by the China Special Equipment Testing & Research Institute for use in scenarios with 5,000+ daily visitors.
Professional Application Guide
Expert advice for planning, installation, and operation
Layout Planning
Maintain a 2m safety radius per unit. For multi-unit networking, keep a center distance ≥3m to prevent signal interference.
Environmental Adaptation
Dynamic light & shadow mode activates at indoor illumination >200 lux. Outdoor use requires an optional rain cover.
Content Management
Update action libraries via OTA. Supports seasonal/holiday-specific program packages (e.g., Christmas mode).
Important Notice
Due to the handcrafted nature and artistic exaggerations (e.g., 150% head upscaling), the final product may have reasonable visual differences from promotional materials. The actual presentation may vary based on on-site lighting, spatial layout, and configuration. For accurate specifications, please refer to the final signed technical agreement. Final appearance, motion precision, and audio details are subject to on-site acceptance. Please contact us for exact information and customized technical documentation.
