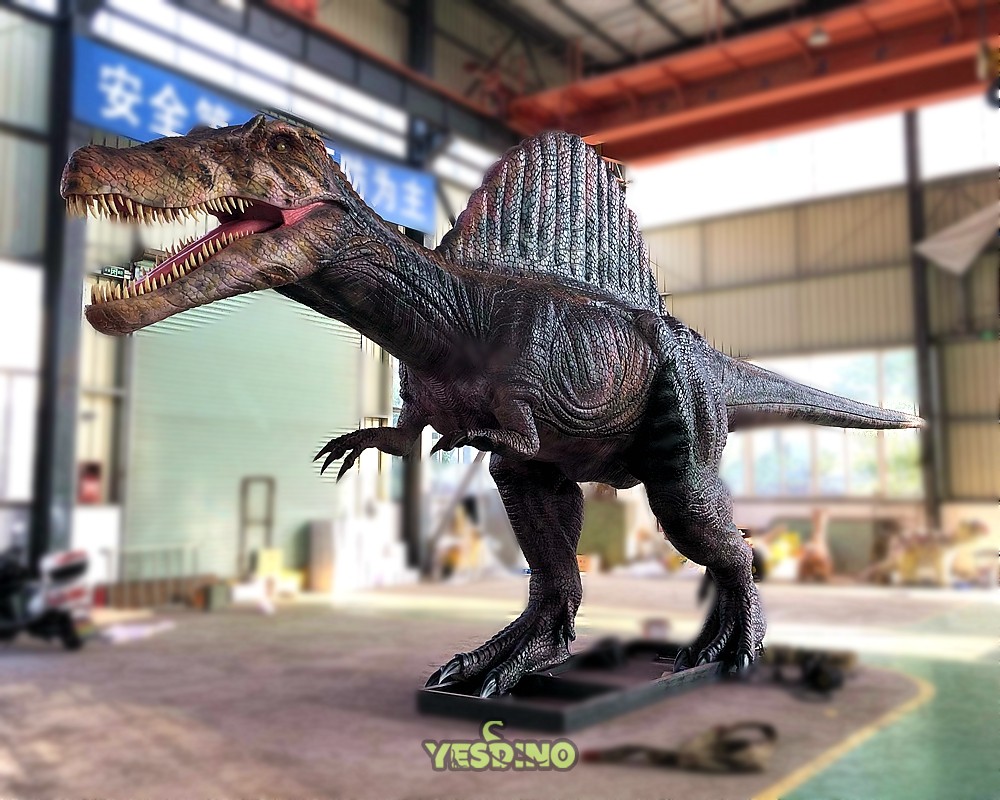

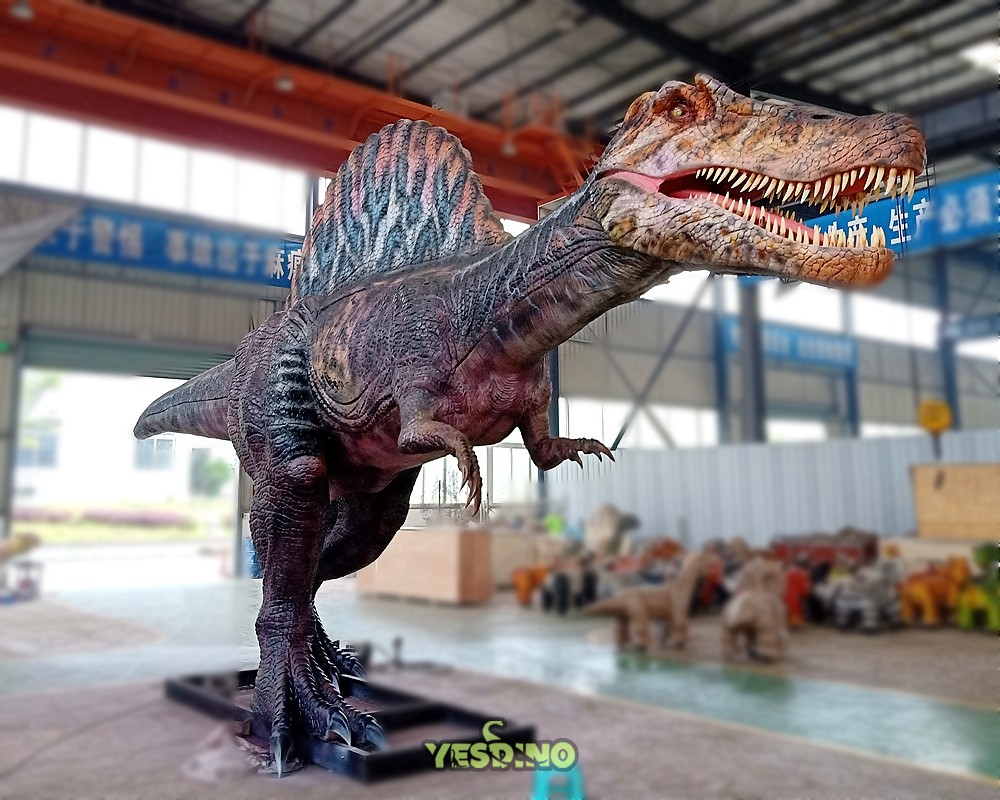

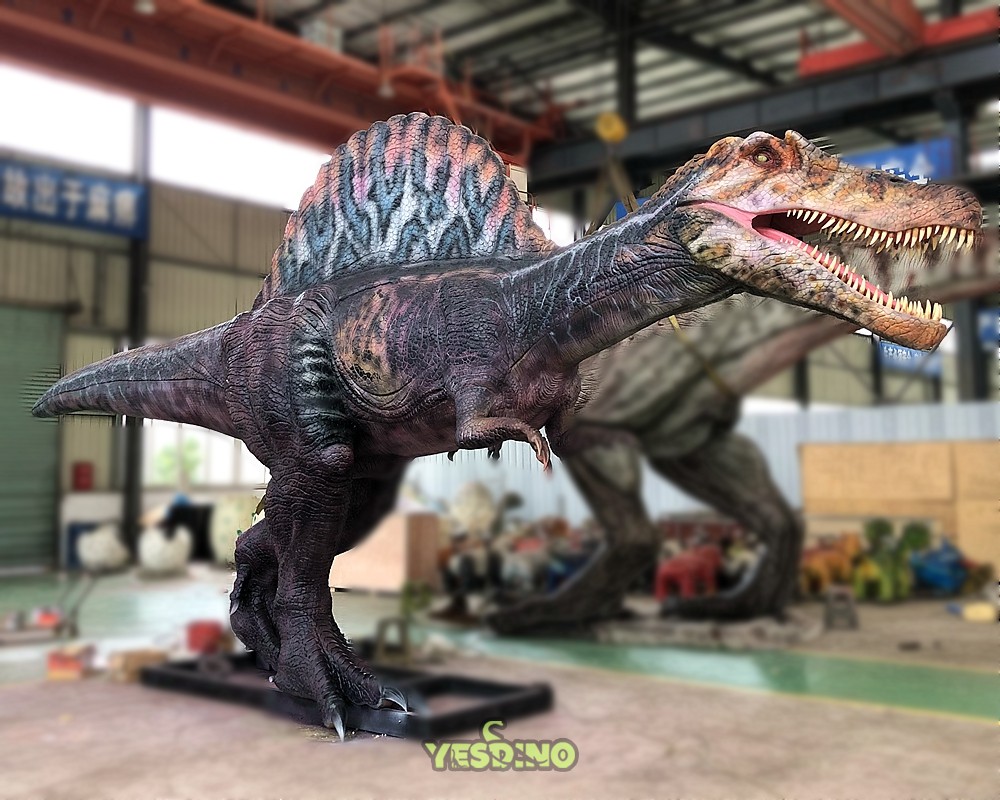

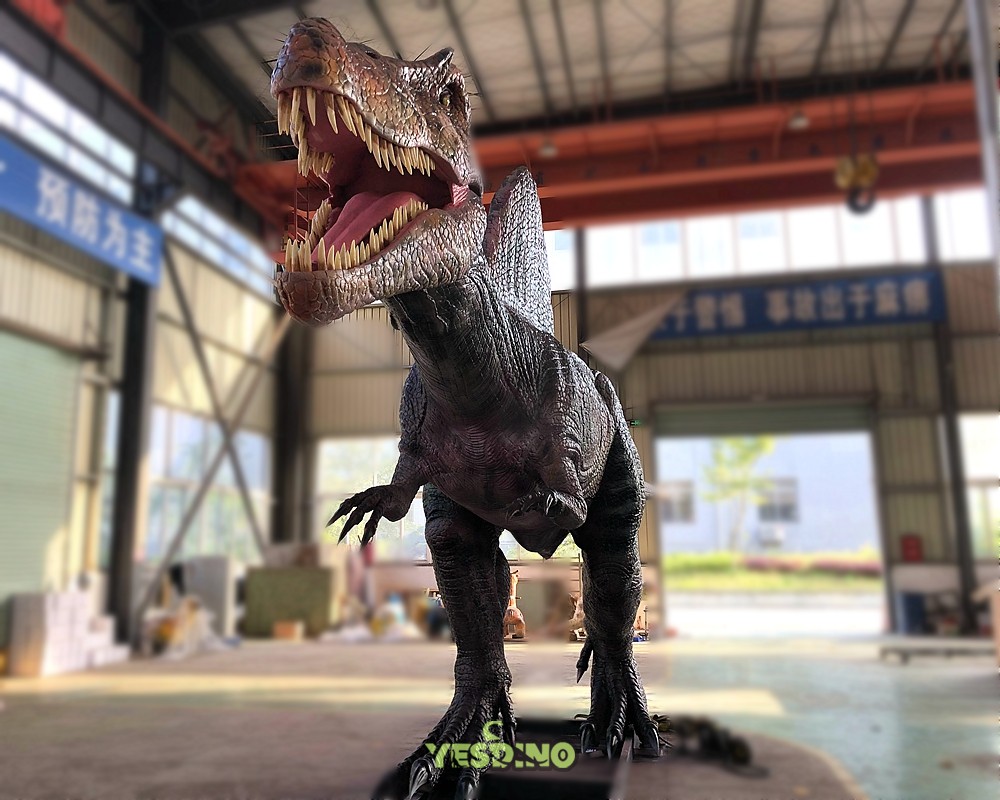

RKL-014 Life-Size Animatronic Spinosaurus
A Paleontologically Accurate, Hyper-Realistic 1:1 Replica Featuring Dynamic Motion for Immersive Educational & Commercial Attractions
15m Long, 6m Tall
True-to-life adult Spinosaurus dimensions—15 meters (49.2ft) in length, 6 meters (19.7ft) in height, featuring a distinctive 1.8m-high neural spine sail.
Advanced Motion System
6 core action groups (jaw roar, blink, tail swing, head turn, neck lift, limb motion) with<0.5cm motion error for lifelike fluidity.
High-Durability Construction
Q235 steel frame with shot blasting & zinc-rich epoxy primer (C5-M corrosion resistance). Skin withstands 5,000-cycle weathering tests (-10°C to 40°C).
Advanced Motion System
Six Degrees of Freedom for Unprecedented Realism
Jaw Roar & Bite
Emits a powerful ≤110dB roar. Features a dynamic jaw with conical, serrated teeth for a realistic biting display.
Head & Neck Motion
Head rotation ±45° and neck tilt ±30°, simulating scanning and hunting behaviors with precision.
Tail Swing
Wide ±60° arc tail movement for balance and dramatic visual effect, powered by high-torque actuators.
Lifelike Blinking
Programmable eyelid blinks at 2 cycles per minute, adding a crucial layer of biological authenticity.
Technical Specifications
Physical Dimensions
L15,000 × H6,000 × W3,000mm (including sail)
Motion Configuration
6 action groups: Jaw Roar, Blink, Tail Swing, Head Turn, Neck Tilt, Forelimb Motion.
Power System
380V 3-phase AC. Rated power: 5kW, Standby power: 0.8kW.
Total Weight
Approx. 8 tons (Steel frame: 5.2t, Filling: 2.1t, Skin: 0.7t)
Operating Environment
Temperature: -10°C to 40°C, Humidity: ≤85% RH, Protection Rating: IP54 (Dust & splash resistant).
Service Life
100,000 motion cycles (~5 years of high-frequency use). Core components under 2-year warranty.
Applications & Benefits
Engineered for Maximum Impact Across Diverse Venues
Cultural & Tourism Landmarks
Ideal as a centerpiece for dinosaur valleys, theme park Jurassic zones, and as a dynamic exhibit to drive visitor traffic and extended engagement.
Educational Institutions
Perfect for natural history museums and science center "Evolution of Life" interactive zones, offering paleontological accuracy paired with AR educational content.
Commercial & International Events
Effective for mall atriums, brand pop-up events, and international expos. Proven in 15+ countries including the US, Germany, and Japan.
Professional Application Guide
Expert recommendations for installation, operation, and immersive theming
Immersive Scene Design
Pair with swamp theming (simulated Cycads, mud projection), low-frequency vibrating platforms, and ambient Cretaceous soundscapes. Allocate ≥200㎡ for safety and optimal viewing.
Operation & Maintenance
Quarterly checks: joint lubrication (Mobil SHC 634 recommended), electrical seal integrity. Biannual sensor zero-point calibration.
Educational Content Package
Includes AR guide (triggers hunting animation), educational panels with fossil site data and dietary research, significantly boosting STEM value.
Core Technology
Drive & Control
Yaskawa servo motor clusters (±0.1° precision) with Pepperl+Fuchs Hall sensors for real-time feedback. PLC programming ensures >99% motion synchronization.
Bionic Structure
SolidWorks-optimized joint transmission ratio (shoulder/hip torque ≥800N·m). Q235 steel frame with shot blasting and zinc-rich epoxy primer (C5-M anti-corrosion).
Skin Craftsmanship
Food-grade liquid silicone layered casting (3-5mm thick) with a built-in humidity-adaptive layer (expansion coefficient ±0.03%). Texture replicates Kem Kem Beds fossil samples.
Smart Management
Integrated IoT module for remote monitoring of motion status, power consumption (peak 5kW), and fault alerts (response time<3 seconds).
Important Notice
Final presentation effects may vary due to on-site lighting, spatial layout, and configuration parameters. Actual visual/audio presentation and product details (e.g., skin texture, motion range) may have slight differences from promotional materials. Final specifications are subject to the confirmed Technical Proposal. For accurate information, please contact us directly.
