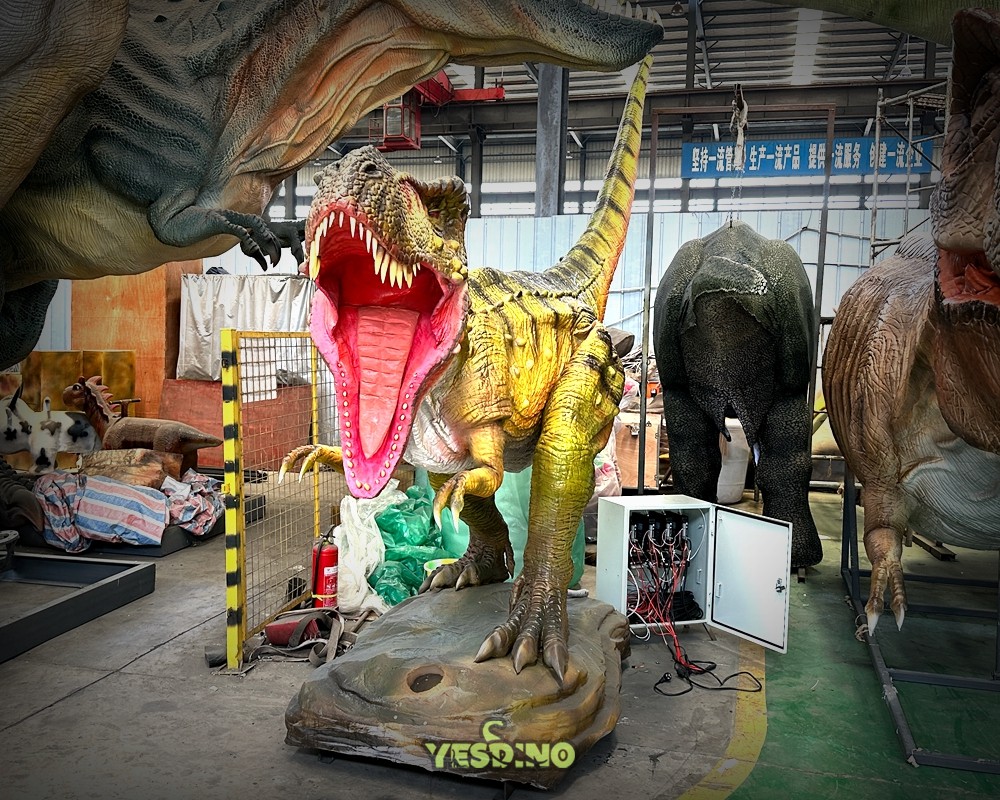

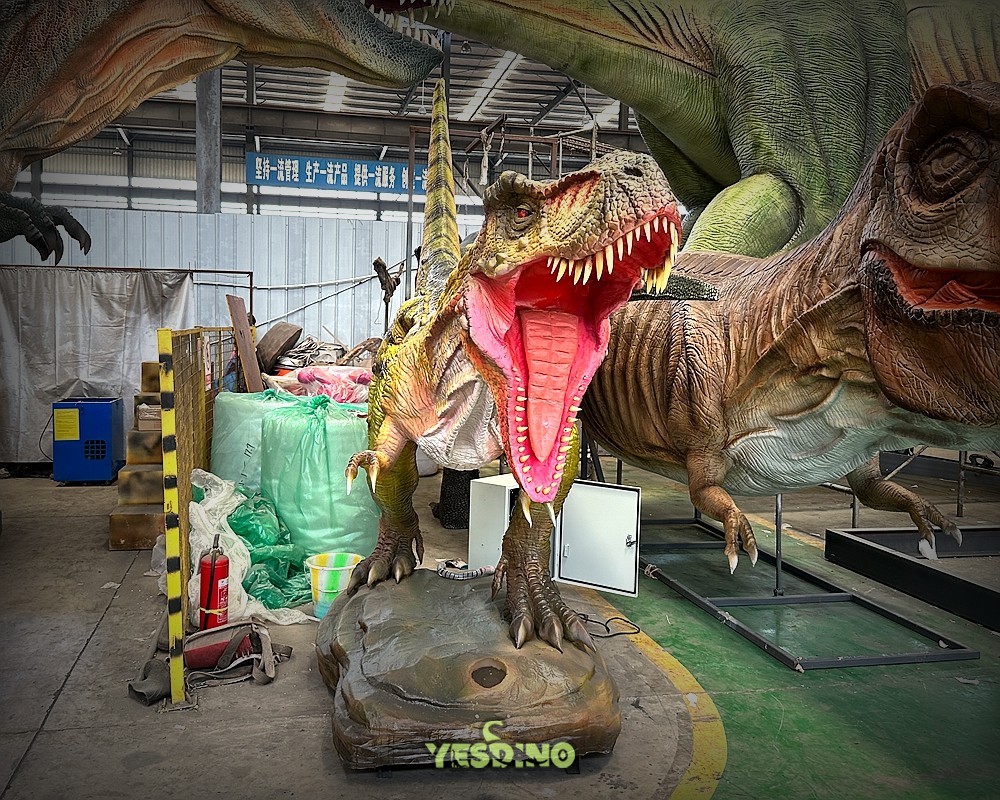

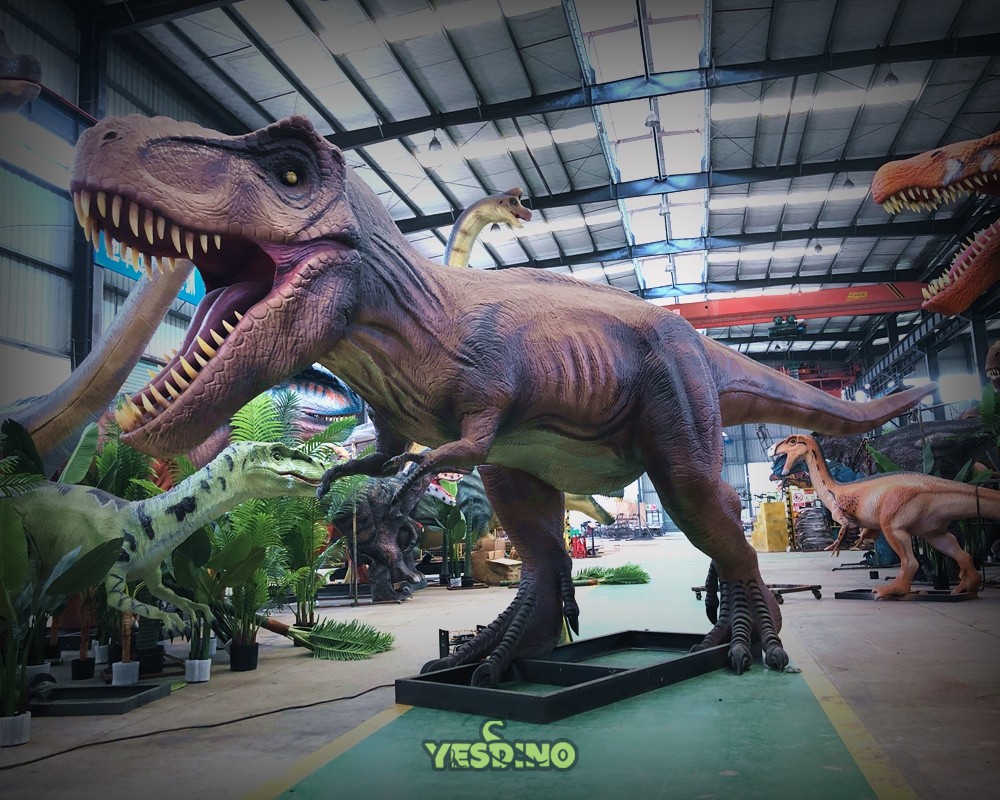

YKL-029 5m Servo-Driven T-Rex Animatronic
Industrial-Grade High-Precision Servo System with Hyper-Realistic Silicone Skin for High-Traffic Educational and Entertainment Applications
5m Long, 1.8m Tall
1:40 scale replica of real T-Rex proportions—5 meters (16.4ft) in length, 1.8 meters (5.9ft) in height, with a high-density polyurethane foam (≥35kg/m³) internal skeleton.
Realistic Silicone Skin
Crafted with food-grade liquid silicone (Shore A20-A25) and high-density foam filling (compressive strength ≥150kPa), replicating authentic dinosaur skin texture with a scale density of approximately 80 scales per cm².
Interactive Sensor System
Integrated infrared PIR sensor with 3-5m detection radius for interactive experiences. Designed for high-traffic environments, supporting over 500 daily interactions per unit.
Core Bionic Movements
Six lifelike motions powered by advanced servo technology
Jaw Opening/Closing
Precise servo-driven jaw articulation for realistic feeding and roaring actions.
Tail Swinging
Smooth ±45° arc tail swings, adding dynamic balance and lifelike presence.
Head Pitching & Neck Rotation
Neck pitch of ±30° and natural rotational movement for interactive scanning behavior.
Eye Blinking & Claw Movement
Subtle eyelid blinking and articulated claw movements for heightened realism and expression.
Technical Specifications
Physical Dimensions
L 5000mm × W 1200mm × H 1800mm (tolerance ±20mm)
Primary Materials
Internal Skeleton: High-density polyurethane foam (density ≥35kg/m³). Skin: Liquid silicone (3-5mm thick).
Power System
16-Channel Metal Gear Servos (DC24V, 15W each), Total Power 240W.
Control System
STM32H7 Series Master Controller (480MHz) + PLC Logic Programming. Supports RS485/Ethernet remote monitoring.
Interactive Module
Infrared Sensor (Detection Range 3-5m, Response Time<0.3s), Pressure Sensing Pad (Resolution 10g).
Audio-Visual Configuration
40W Waterproof Speaker (Frequency Response 50Hz-20kHz, 3 Dinosaur Sound Banks). LED Eye Lights (Color Temp Adjustable 2700K-6500K).
Operating Environment
Temperature: -10℃ to 40℃. Humidity: ≤85% RH. IP54 Rain-Proof Rating.
Total Weight
≤280kg (including packaging). Modular design for transport, single component ≤50kg.
Application Scenarios
Engineered for impactful engagement in high-traffic educational and entertainment venues
Science & Museum Education
Dynamic exhibit for paleontology halls. Enhances interactive learning with AR-guided tours for a "dinosaur revival" experience. Proven in museums like the Provincial Museum of Natural History, handling 20+ student groups daily.
Theme Park & Entertainment
Central attraction for "Jurassic Adventure" zones. Used in 5A-rated parks with over 2 million annual visitors, achieving >90% utilization rate. Pairs with ride systems for immersive experiences.
Commercial Exhibitions & Film
Spotlight feature for tech and "Future Biology" expos, with custom branding options. Serves as a practical VFX prop for close-up documentary filming, as featured in the series "Prehistoric Planet".
Professional Application Guide
Tailored recommendations for optimal installation, operation, and maintenance
Site Adaptation
Indoor: Provide ≥6m×3m clear space with floor load ≥300kg/m². Outdoor: Install a rain shelter (height ≥2.5m) to prevent direct sunlight and silicone aging.
Installation & Commissioning
Requires 2 technicians. Follow "Installation Manual V2.1" for servo zero-point calibration (laser level ensures joint neutral deviation<1°). Run a 15-minute self-check after initial power-up.
Maintenance & Power Management
Monthly skin cleaning (neutral detergent + soft brush). Quarterly servo gear lubrication (silicone-based grease). Annual sensor battery (CR2032×2) replacement. Standby power ≤30W, peak 240W. Recommend UPS (≥30 min backup) for power stability.
Important Notice
Product technical specifications are based on standard laboratory environment tests (temperature 25°C ±2°C, humidity 50% RH ±5%). Actual performance regarding motion fluency, sensory effects, and longevity may vary due to on-site conditions (e.g., ground flatness, electromagnetic interference), maintenance frequency, and specific customizations. Final visual/audio presentation may differ from promotional materials. The actual product may vary. For accurate, detailed specifications and project-specific data, please contact us. All configurations are subject to the final confirmed "Customization Agreement" and on-site acceptance.
