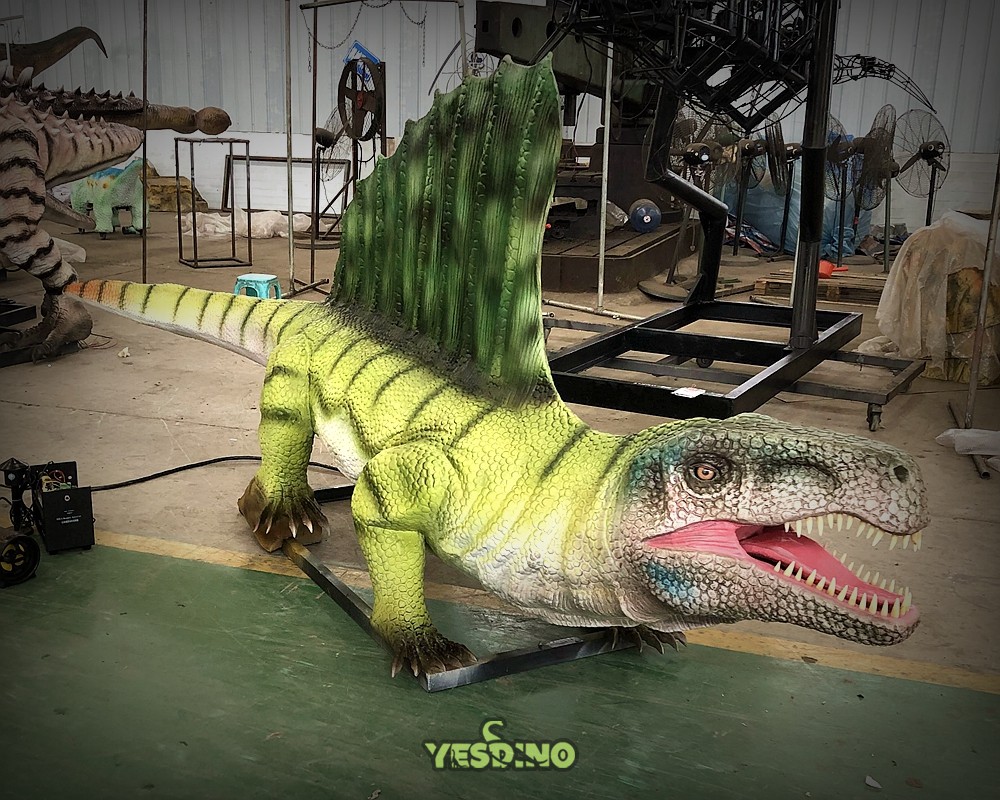

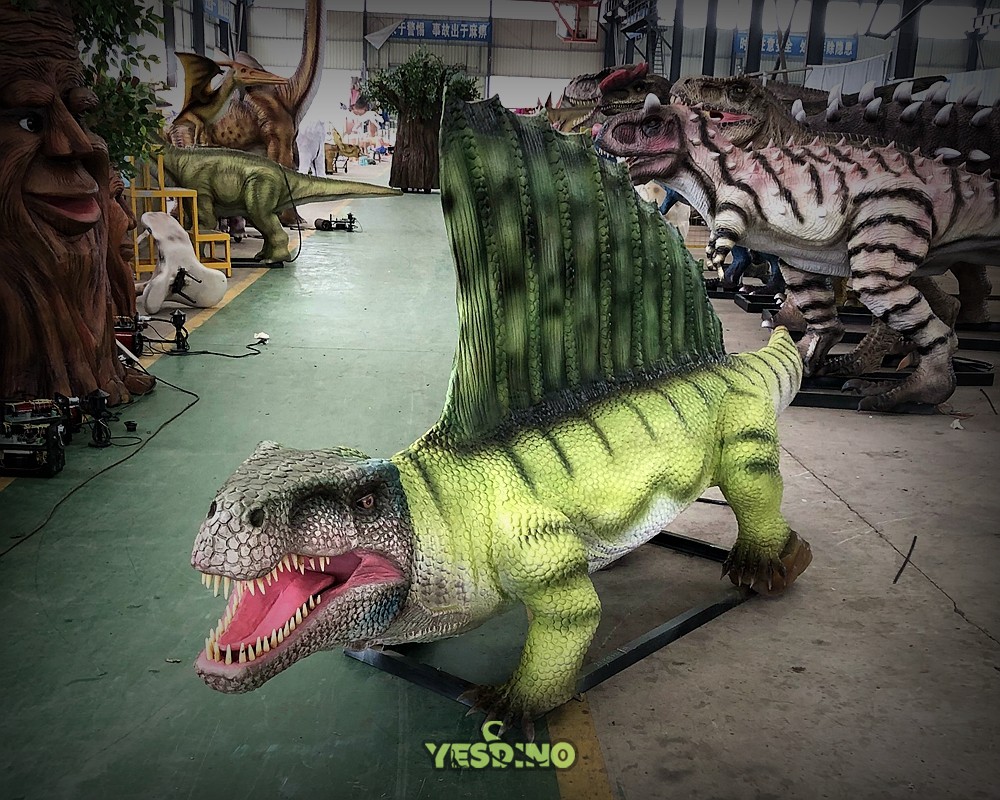

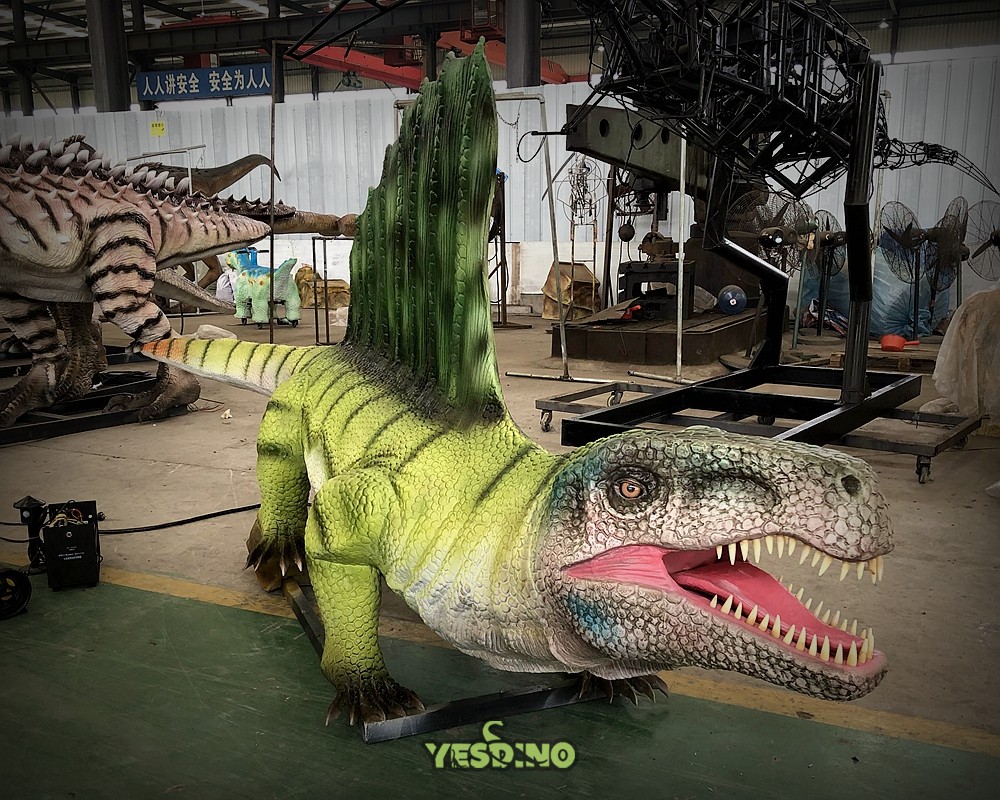

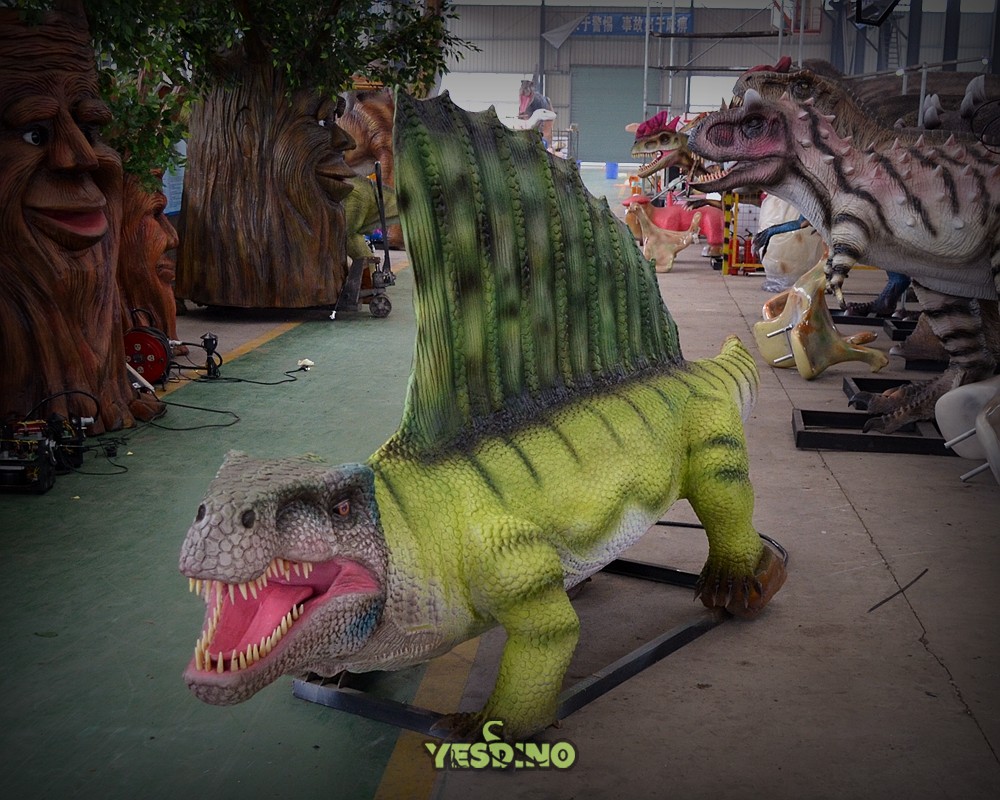

Dynamic Animatronic Dinosaur Sculpture (SKU: YKL-025)
Engineered with a steel frame and aerospace-grade silicone skin. ISO 9001 certified, featuring industry-leading dynamic realism for high-traffic, continuous operation scenarios.
Exceptional Longevity
Silicone skin passes 5000-hour UV aging test (ASTM G154) with zero cracking. Failure rate<0.5% during warranty period.
Precise Interaction
Infrared sensor response delay ≤0.3s, supports customizable sensing distance up to 10 meters.
Energy Optimized
Standby power consumption only 15W, peak power ≤800W (field-tested data).
Core Technologies
Engineered for realism, reliability, and seamless integration
Bionic Motion System
7-axis servo linkage for precise neck, eye, and jaw movements, creating highly realistic dinosaur behaviors.
Pneumatic Breathing Module
Dual-airbag chest structure simulates natural 8-12 breaths per minute, adding a vital layer of realism.
Acoustic Engineering
Built-in 40W waterproof speaker supports 120dB directional sound output, compliant with EN 54-24 fire alarm audio standards.
Intelligent Control Hub
Powered by an ARM Cortex-M7 processor, enabling complex behavior programming and remote Over-The-Air (OTA) updates.
Technical Specifications
Main Frame
Q235 Carbon Steel Welding (Wall Thickness ≥3mm) - GB/T 700-2006
Exterior Material
Platinum-Catalyzed Liquid Silicone (Shore Hardness 25A) - ISO 37:2017
Gross Weight
680kg ±5% (Including Counterweight Base) - GB/T 13384-2008
Power Unit
NSK Servo Motor (Torque ≥12N·m) - JIS B 0134:2017
Sensor
Fresnel Lens Infrared Array (120° Detection Angle) - IEC 60825-1:2014
Environmental Rating
IP54 Protection (Dust and Water Splash Resistant)
Applications & Professional Guidelines
Trusted by leading venues worldwide for immersive experiences
Theme Parks
Deployed in Beijing Universal Studios' Jurassic zone, averaging 1800+ daily interactions (2023 Operations Report).
Museums & Science Centers
Permanent exhibit at Shanghai Natural History Museum with zero structural failures over 3 years of continuous operation.
Commercial & Educational
Boosted foot traffic by 47% at Shenzhen MixC mall. Certified as a STEAM educational tool (No. EDU-DINO-2022-087).
Installation & Maintenance Guide
Ensuring optimal performance and longevity
Usage & Traffic Management
Recommended daily activation frequency ≤300 times to prevent motor overheating and ensure component longevity.
Installation Specification
Foundation load-bearing capacity ≥1.5 tons/m². Leveling error must be<2mm/m for stable and safe operation.
Maintenance & Emergency
Gearbox lubrication recommended every 2000 hours (use Shell Gadus S2 V220AD). Equipped with a manual reset device (engages safety mode within 30s of power loss).
Important Notice
Data regarding motion range, sound pressure levels, etc., are based on laboratory environment tests. Actual on-site performance may vary due to installation conditions, climate, and specific customization. Final presentation effects may differ from promotional materials. For accurate information, please contact us. All specifications are subject to the final factory inspection report.
