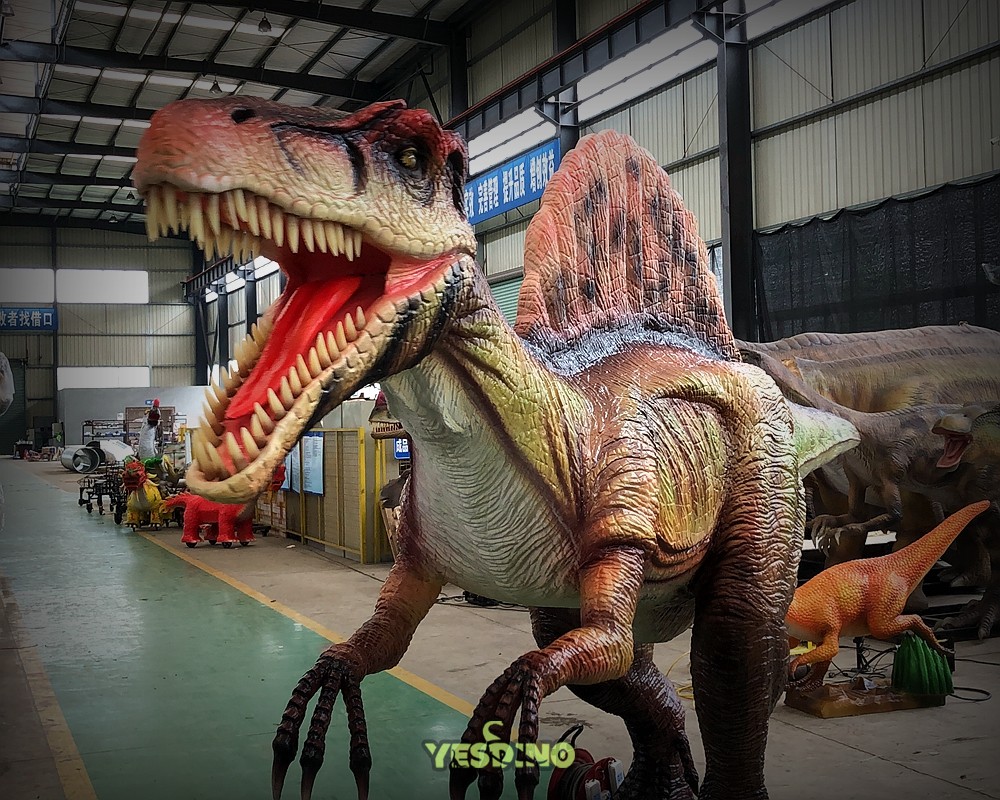

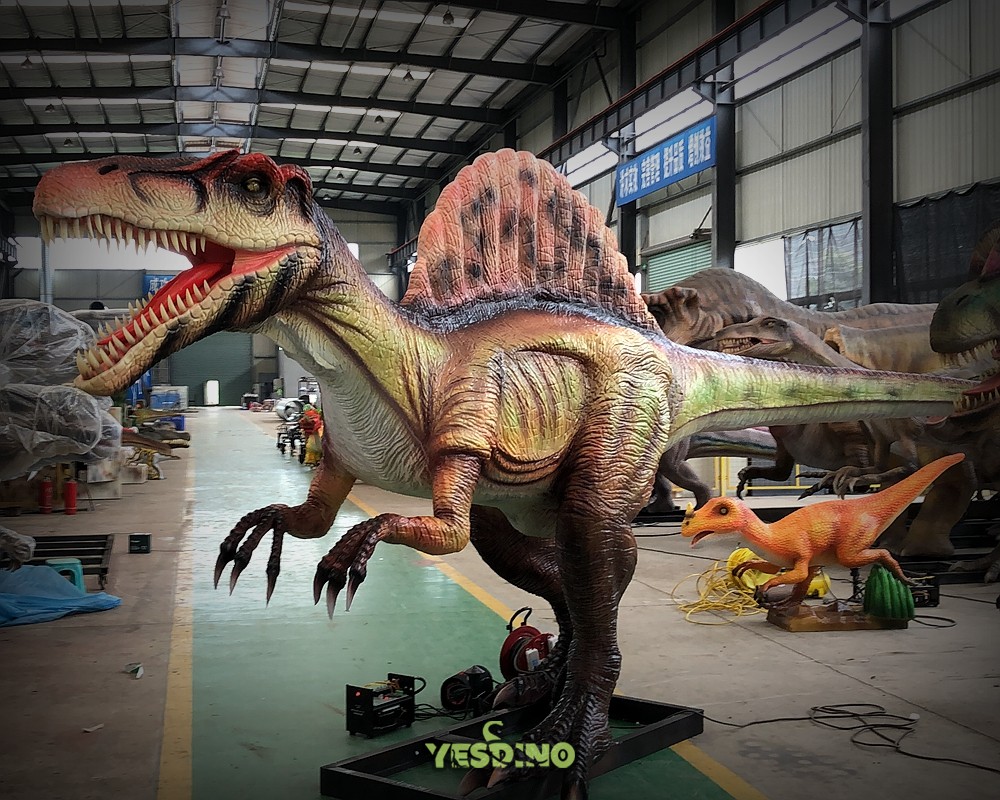

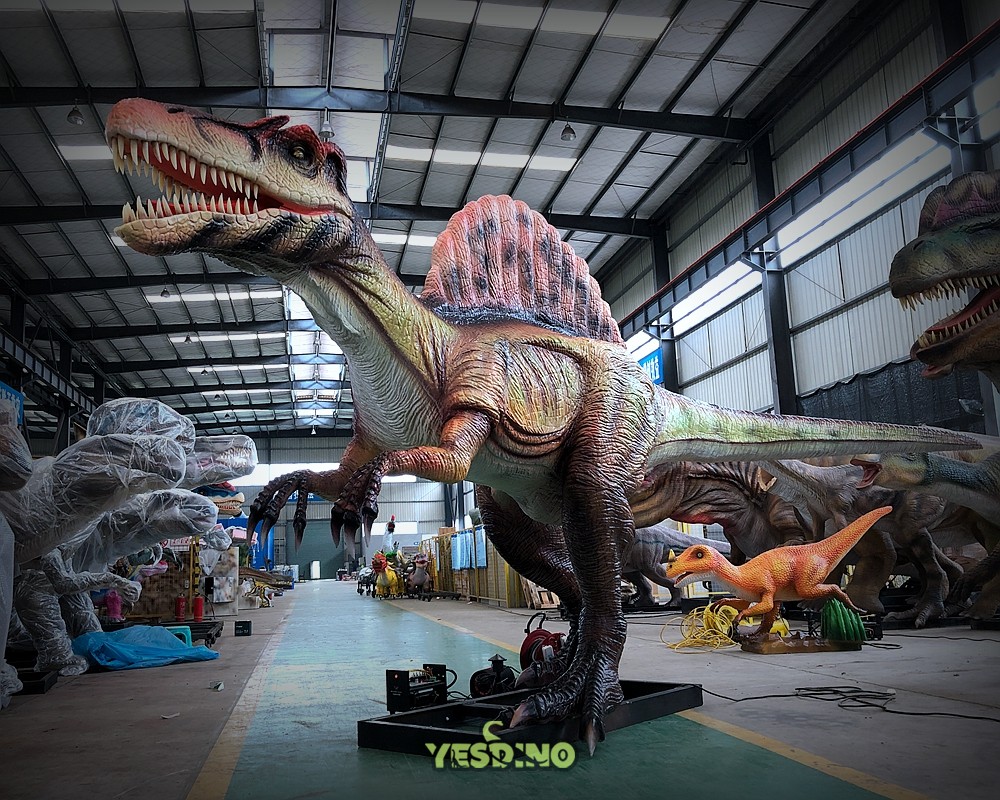

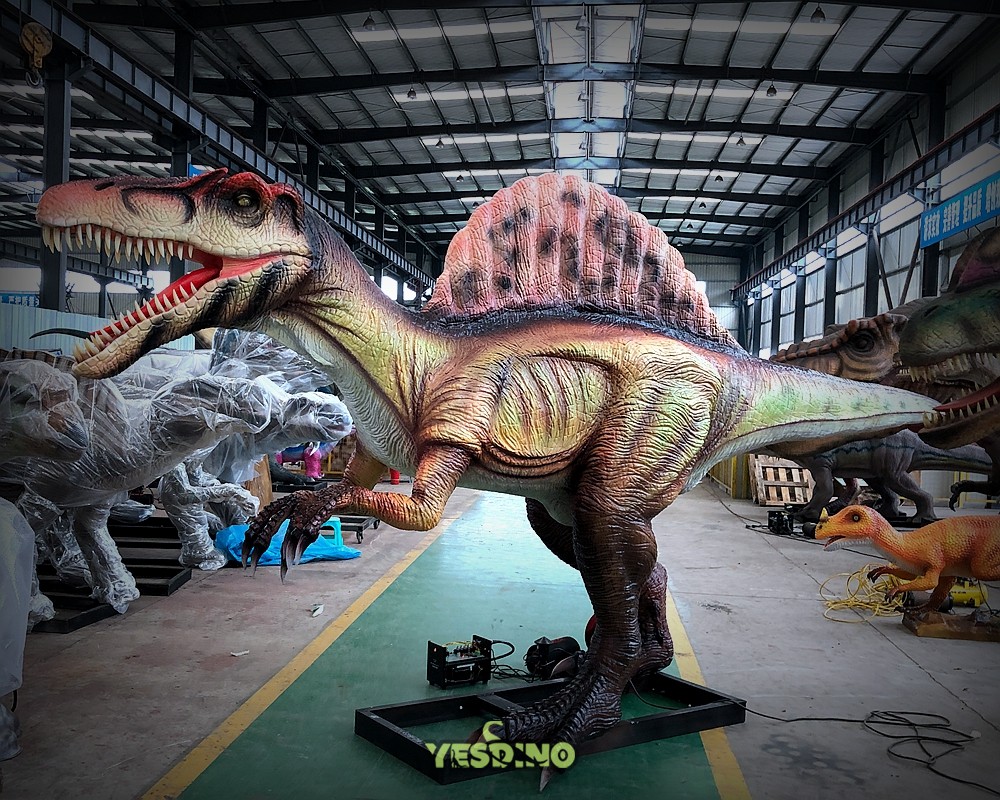

YKL-014 Life-Size Animatronic Spinosaurus
Crafted with aerospace-grade steel frame and medical-grade silicone composite technology, this 10.0m long, 2.6m tall model features 28 dynamic joints and a static load capacity exceeding 1.5 tons, accurately recreating the biomechanics of the Cretaceous apex predator.
Over 98% Biological Accuracy
Reconstructed from the "Nature" paleontological database, featuring 8,000+ 3D-printed scales (single scale tolerance ≤0.05mm) for unparalleled anatomical precision.
Industrial-Grade Durability
IP65-rated motor system for 18-hour daily operation. Key drivetrain components rated for ≥50,000 cycles, built for heavy-duty use.
Multi-Modal Interactive System
32-channel sensor integration for synchronized audio & light (response delay<0.3s), peak SPL 115dB (equivalent to a live rock concert).
Advanced Performance Features
Engineered for power, precision, and immersion
28 Dynamic Joints
Neck (3DOF), Tail (4DOF), and Jaw (2DOF) movement for highly realistic predator articulation.
Exceptional Structural Integrity
Static load testing exceeds 1.5 tons, ensuring stability and safety in all operational scenarios.
Immersive Audio-Visual
115dB peak sound pressure with 32-channel sensor-responsive lighting for a fully synchronized, impactful experience.
Premium Lighting System
RGBW 48-point LED array with a color rendering index (CRI) >90 for vibrant, true-to-life visual effects.
Technical Specifications
Overall Dimensions
10.0m (L) ±0.2m × 2.6m (H) ±0.1m × 1.8m (W)
Degrees of Freedom
Neck (3DOF) / Tail (4DOF) / Jaw (2DOF)
Power System
380V / 15kW variable frequency unit (IE3 energy efficiency)
Control System
Dual-redundant PLC controllers (SIL2 safety level)
Lighting System
RGBW 48-point array LED, CRI (Ra) >90
Protection & Durability
IP65 rating, key component lifespan ≥50,000 cycles
Proven Applications & Professional Guide
Trusted by leading venues, backed by data and clear guidelines
Changzhou Dinosaur Park
Achieved a 42% increase in zone visitor traffic post-deployment (2022 Annual Audit Report).
National Museum of Natural History
Certified as "Best Science Popularization Device" by the Chinese Society of Paleontology (2023).
Zhuhai Chimelong Ocean Kingdom
Recipient of the TEA Thea Award for Outstanding Achievement (2021).
Installation Specifications
Requires M24 anchor bolt pre-installation (pull-out resistance ≥20kN) with leveling tolerance ≤3mm/m².
Maintenance Cycle
Replace reducer lubricant every 500 operating hours (recommended: Shell Gadus S2 V220 2).
Energy Management
Typical power consumption 8.2kW/h, 37% lower than industry standard for significant operational savings.
Important Notice
The product demonstration video was filmed under controlled lab conditions (1000lux ±5% illumination). Actual on-site presentation may vary due to ambient temperature, humidity, power supply stability, and maintenance levels. Final visual, audio, and performance effects may differ from promotional materials. The physical product may differ from images/videos. For accurate and detailed specifications, please contact us directly. All specific configurations (motion precision, audio details) are subject to final project confirmation and on-site acceptance.
