Realistic Animatronic Raptor | Museum-Grade Pro Exhibit

Name: Realistic Animatronic Raptor | Museum-Grade Pro Exhibit
Brand: Yes Dino
Price: 1820 USD
Availability: InStock
Rating: 4.2 (11 reviews)

SKU	YKL-040
Product Name	Realistic Animatronic Raptor for Jurassic Park
Dimensions	Length: 3 meters, Height: 1.7 meters (including the base)
Key Movements	Open mouth roaring, head left and right shaking, neck up and down movement, tail swinging, waving front claws, blinking eyes
Customization	Pose, design, color, size, sound and light effects
Control System	This Animatronic Raptor model is meticulously crafted to replicate the proportions of real fossils. It is a well-known star dinosaur, famous for its intelligence and agility. Raptors are featured in various dinosaur movies, making them recognizable to both adults and children. Whether in large dinosaur exhibitions or dinosaur-themed amusement parks, Raptor models are almost always present. This dinosaur model not only has clear skin textures and a realistic appearance but also, when powered on, can simulate various dinosaur movements and emit roaring sounds. It is one of our best-selling animatronic dinosaur products.
Applications	Museums, science centers, children's playgrounds, dinosaur exploration, dinosaur exhibitions, scenic areas, etc

Add to Quote

Product Description

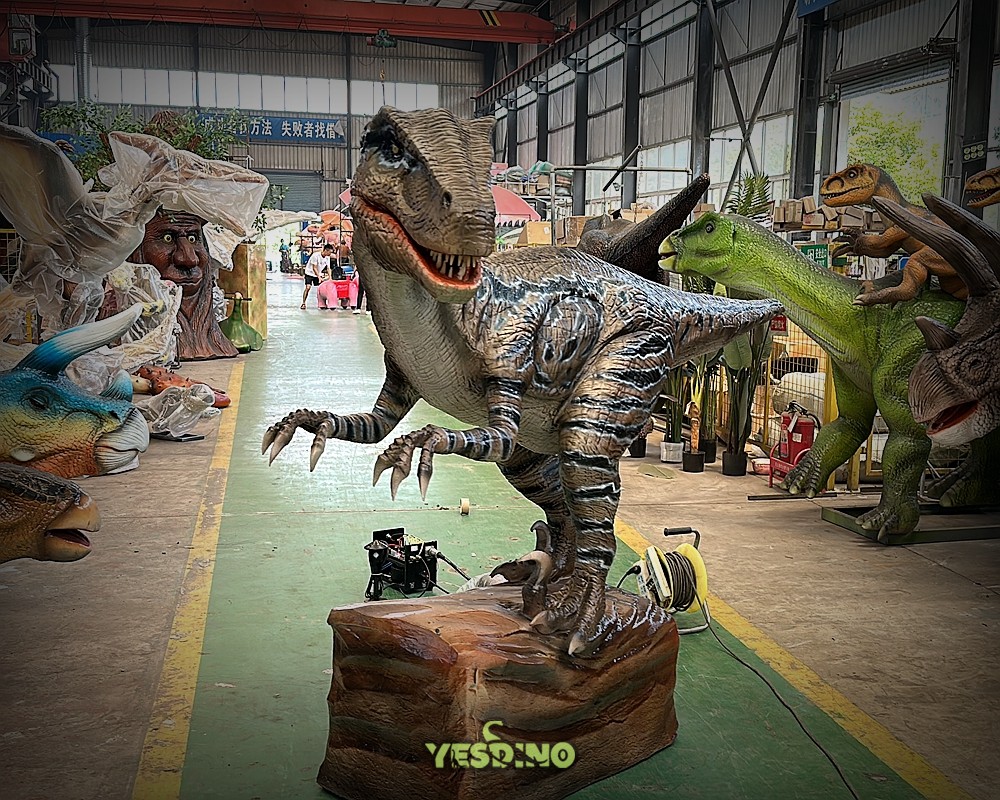

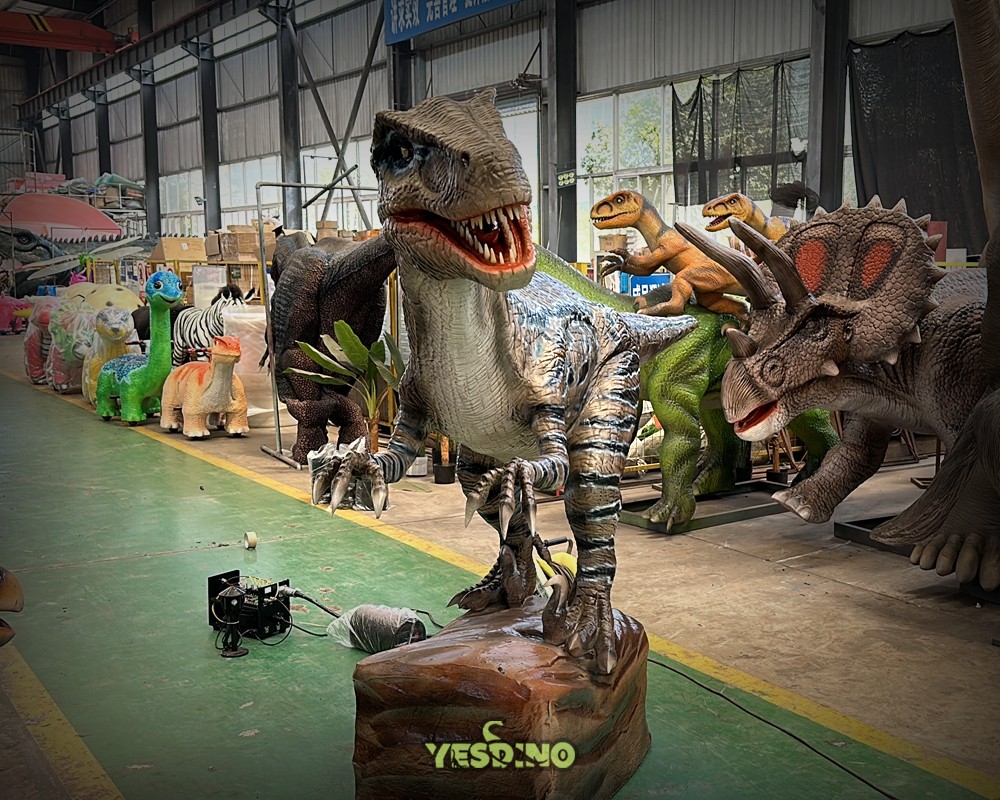

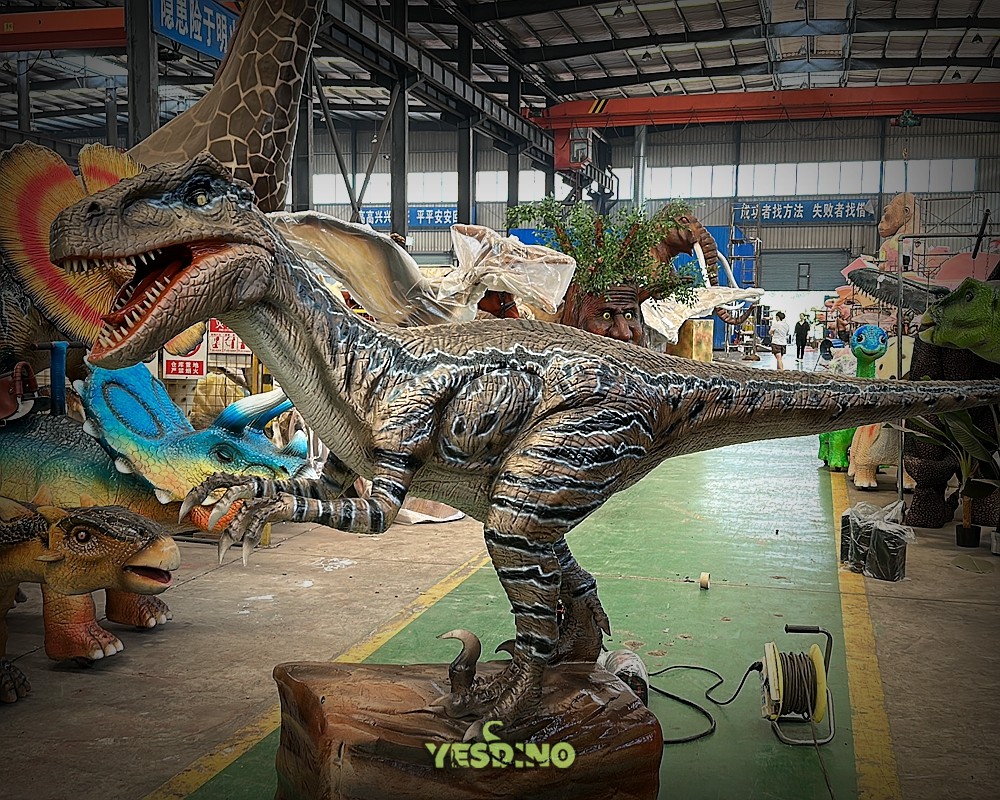

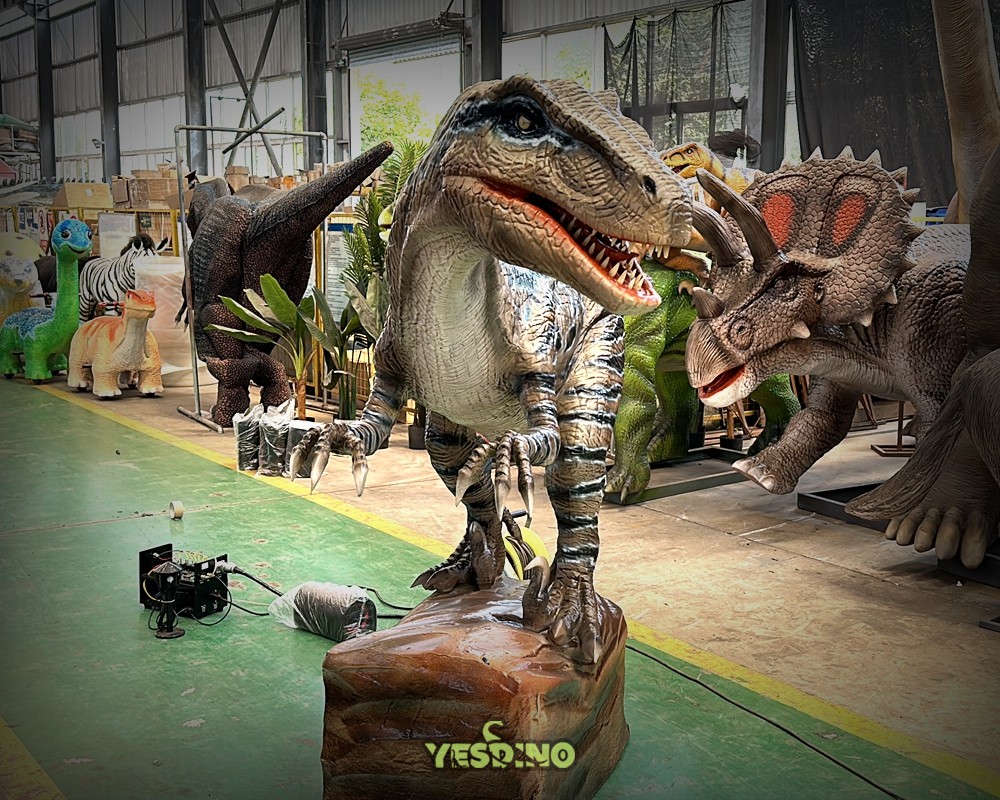

YKL-040 Animatronic Velociraptor Model

A Life-Size, Scientifically Accurate Restoration for High-End Paleontological Theming

3.0m Long, 1.7m Tall

1:1 scale restoration based on Late Cretaceous fossil specimen (Museum Ref: AMNH FR 6515). Dimensions: 3.0m±0.05m (L) / 1.7m±0.03m (H) including structural steel base.

Military-Grade Servo Motion

Features 12 degrees of freedom powered by military-grade servo motors, driven by 26 hydraulic transmission units for precise biomechanical replication.

All-Weather Durability

IP54-rated protection for all-weather outdoor operation. Certified for stable performance in temperatures from -20°C to 50°C.

Core Advantages

Unmatched Realism

26 hydraulic transmission units deliver high-fidelity biomechanical movements, including head-neck articulation (±45°) and claw grasping (simulated grip force 8kgf).

Robust Environmental Adaptation

IP54 rating ensures reliable operation in various outdoor conditions. Certified for stable performance in a wide temperature range of -20°C to 50°C.

Dynamic Interactive Response

Equipped with multi-spectral sensors, it triggers realistic roars (peak SPL 98dB@1m) upon detecting human presence within a 3-meter range.

Lifelike Texture & Finish

Features ISO 9001-certified silicone skin application technology, achieving unprecedented biological-level texture detail and realism.

Advanced Motion Capabilities

High-speed, responsive movements powered by a sophisticated control system

Rapid Head Movement

Head articulation speed of 120°/s with a range of ±45°, simulating alert scanning and striking motions.

Agile Tail Motion

Tail sweeps at 90°/s, providing dynamic counterbalance and contributing to a lifelike, agile posture.

Interactive Trigger System

Multi-spectral sensors activate pre-programmed motion and audio sequences when a visitor approaches within 3m.

High-Fidelity Audio

128kbps stereo sound module delivers immersive, dynamic roars and environmental sounds with crystal-clear quality.

Technical Specifications

Physical Dimensions

Length: 3000mm±50mm, Height: 1700mm±30mm (including base)

Power System

2200W (Peak) / 350W (Standby)

Control System

PLC-based Distributed Motion Controller with response latency<80ms. Supports custom programming.

Construction & Materials

Frame: Carbon Fiber; Skin: Medical-grade Liquid Silicone (Shore Hardness 25A); Teeth/Claws: Reinforced Resin

Motion & Sensory Systems

12-DOF Servo System, 26 Hydraulic Units. Sensor Matrix: Infrared + Pressure Composite Array.

Lighting & Certifications

RGBW Quad-Color LED (2000lux adjustable). Complies with CE, ROHS, FCC Class B standards.

Application Scenarios

Engineered for high-impact installations in demanding professional environments

Natural History Museums

Ideal as a dynamic centerpiece exhibit. Design references Smithsonian Dinosaur Hall exhibition standards for educational engagement.

Theme Park Attractions

Perfect for interactive ride queues or photo opportunities. Passes TÜV dynamic load testing for guest interaction safety.

Film & Media Pre-Visualization

Serves as a physical reference model compatible with Motion Capture data streams for pre-visualizing complex cinematic sequences.

Professional Application Guide

Guidelines for installation, operation, and maintenance

Installation Requirements

Requires a solid, level concrete foundation with a bearing capacity of ≥500kg/m² for secure and stable mounting.

Daily Maintenance

Recommended daily maintenance cycle ≤30 minutes, including inspection and lubrication of gear points and a general systems check.

Operational Best Practices

For optimal longevity, continuous operation is recommended not to exceed 4 hours per session, in compliance with EN 60335-2-82 safety regulations.

Important Notice

Final presentation effects may vary due to on-site lighting, spatial layout, and configuration parameters. The actual product may have slight dimensional tolerances of up to ±3% and variations in skin texture. Final visual/audio presentation may differ from promotional materials. Specific configurations (motion precision, audio details) are subject to final project confirmation and on-site acceptance. For accurate and detailed information, please contact us. Customized solutions require the signing of a technical confirmation letter.
