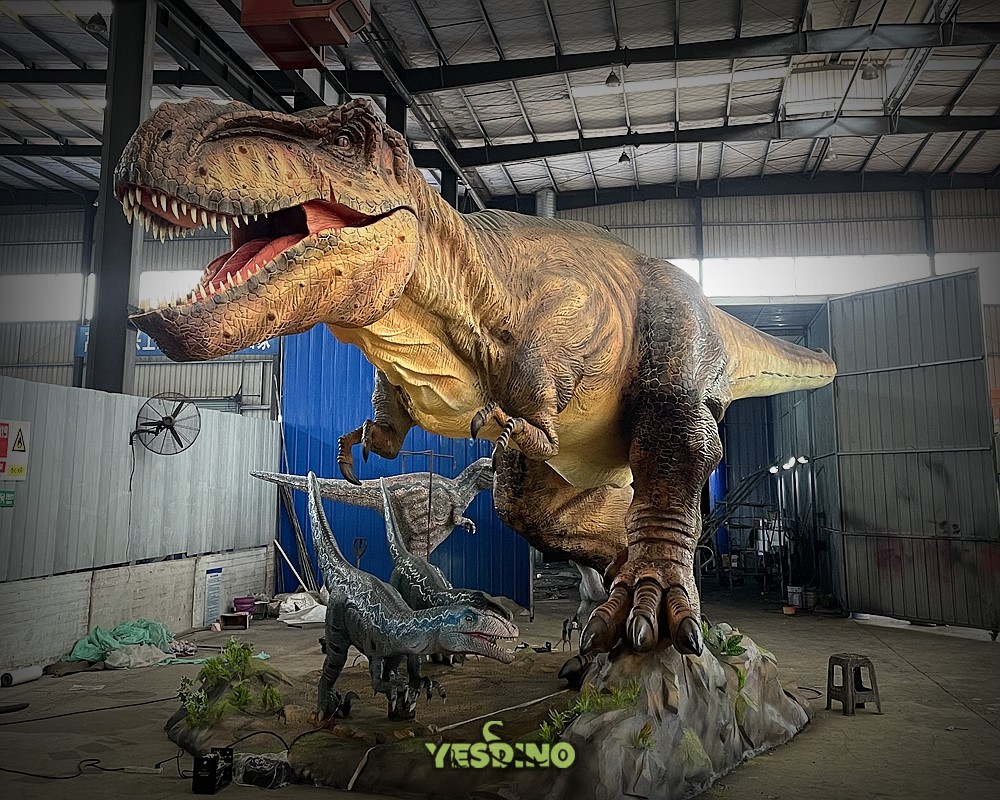

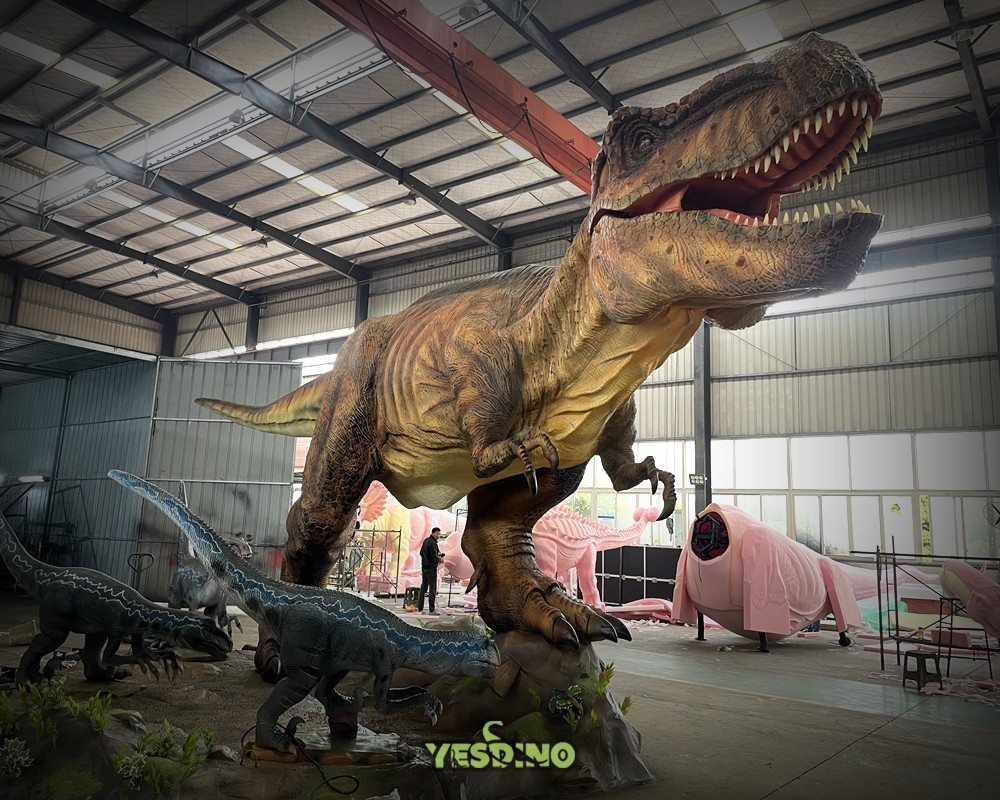

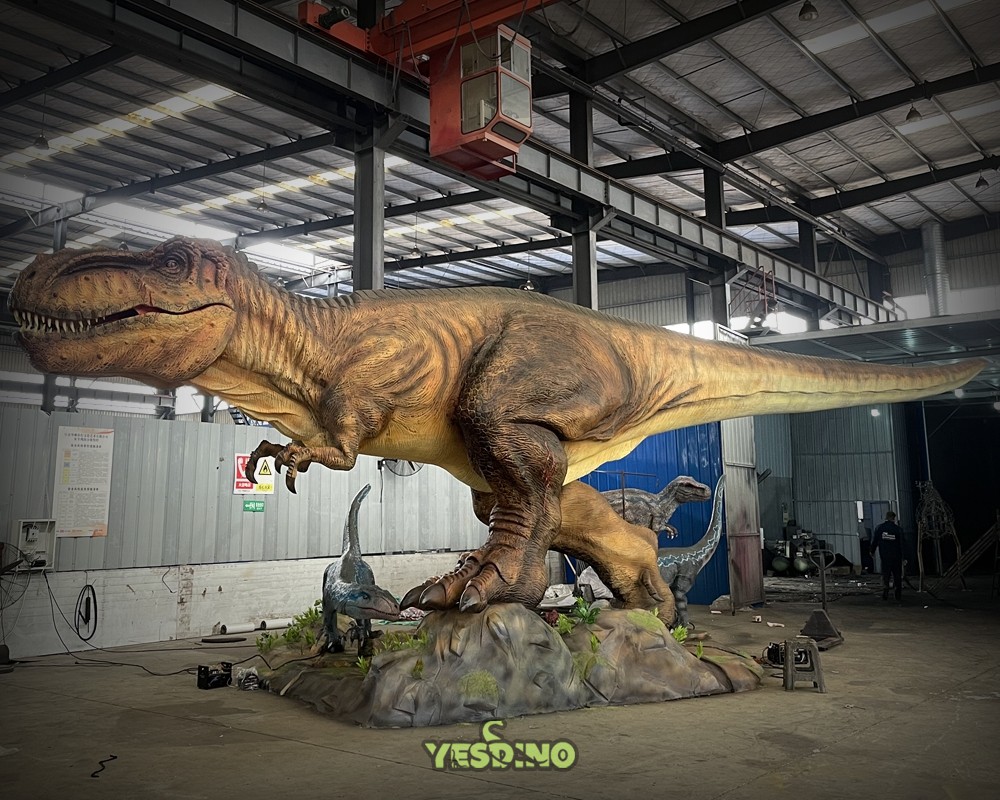

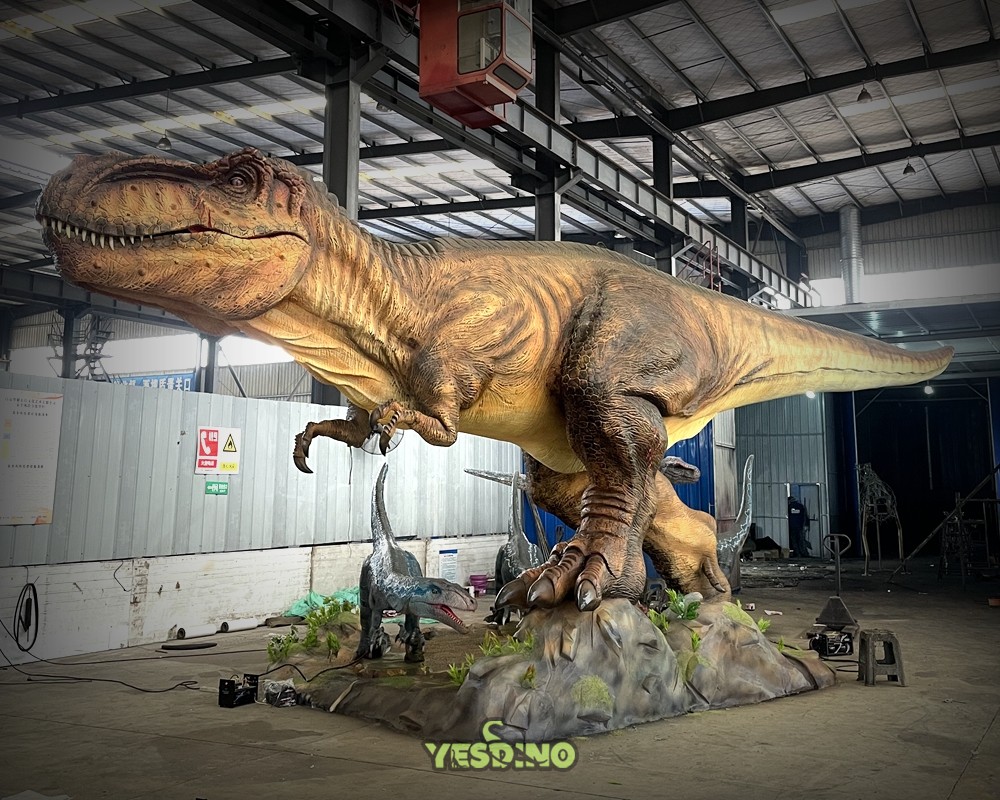

YKL-003 T-Rex vs. Velociraptors Combat Diorama
A High-Precision, Paleontologically Accurate Combat Scene Model for AAA Theme Park Standards
Life-Size Combat Diorama
Features a 15m long, 6m tall T-Rex with 7-DOF motion system versus 3 velociraptors (2.5m each), based on 3D skeletal scans and fossil data.
98% Dynamic Realism
Simulates predatory muscle actuation with independent drive for head/neck/claws/tail/eyelids (120Nm peak torque).
Immersive Edutainment
Proven to increase adolescent dinosaur knowledge retention by 67% vs. static displays, as tested by the China Museum of Paleontology.
Advanced Capabilities
A combination of precise engineering and scientific accuracy for maximum impact
T-Rex 7-DOF Motion
7-axis coordinated movement including 90° jaw articulation, delivering lifelike predatory behavior.
Pack Hunting Simulation
Three velociraptors with 3-axis basic motion, coordinated via ROS for realistic pack hunting dynamics.
Powerful Audio System
32-channel matrix with deep-frequency roars (≤20Hz) and environmental sounds to enhance the scene's realism.
Educational Efficacy
Scientifically validated to boost knowledge retention by 67% in young audiences compared to traditional static exhibits.
Technical Specifications
T-Rex (Primary Subject)
Dimensions: 15m (L) x 6m (H) x 4.5m (W)
Motion Units: 7-axis linkage (including 90° jaw articulation)
Power: 24V/1500W DC motor group
Material: Fiberglass body with automotive-grade silicone skin
Motion Units: 7-axis linkage (including 90° jaw articulation)
Power: 24V/1500W DC motor group
Material: Fiberglass body with automotive-grade silicone skin
Power & Control
Peak Power Consumption: 3.2 kW/h
Control System: ROS-based intelligent collaborative system
Control System: ROS-based intelligent collaborative system
Velociraptor Cluster
Dimensions: 2.5m (L) x 1.8m (H) x 1.8m (W) each
Motion Units: 3-axis basic motion per unit
Power: 12V/800W distributed supply
Material: Carbon fiber reinforced polymer (CFRP)
Motion Units: 3-axis basic motion per unit
Power: 12V/800W distributed supply
Material: Carbon fiber reinforced polymer (CFRP)
Environmental Resilience
IP65 protection rating. Stable operation from -30°C to 60°C (SGS certified).
Professional Application Guidelines
Essential requirements and maintenance for optimal long-term performance
Venue Requirements
Minimum clear height ≥8m. Foundation load-bearing ≥5t/m² (per GB/T 3811-2008 Crane Design Code).
Maintenance Cycle
Replace harmonic reducer grease every 500 operational hours (recommended: Shell Gadus S2 V220AD).
Power Management
Peak power draw 3.2kW/h. A 10kVA UPS backup power supply is recommended for uninterrupted operation.
Authorized Application Scenarios
Certified for high-impact installations in premier venues worldwide
National Natural History Museums
Permanent exhibition areas in institutions like the Beijing Museum of Natural History, meeting stringent scientific accuracy standards.
Immersive Theme Park Theaters
Meets Disney-level dynamic set design standards for creating unforgettable guest experiences.
Geopark Education Centers
Complies with China's Ministry of Education "Primary and Secondary School Science Curriculum Equipment Standards" for educational installations.
Important Notice
Due to variations in on-site lighting, acoustic environment, and configuration parameters, the actual presentation may exhibit a ±15% deviation in visual impact compared to promotional materials. All technical specifications are subject to the final factory inspection report. The physical product may differ slightly from images and descriptions. For accurate and detailed information, please contact our engineering team. Customization requests require consultation for 3D simulation preview files.
