Animatronic Tek Rex Model | ARK High-Fidelity Interactive

Name: Animatronic Tek Rex Model | ARK High-Fidelity Interactive
Brand: Yes Dino
Price: 8400 USD
Availability: InStock
Rating: 4.5 (20 reviews)

SKU	YKL-035
Product Name	ARK Survival Evolved Animatronic Tek Rex Model
Dimensions	Length 13 meters, height 8 meters (including base)
Key Movements	Open mouth roaring, head shaking, tail swinging, blinking eyes, waving front claws, mouth emitting smoke
Customization	Pose design, dimensions, colors, types of movements, armor, and lighting effects, among others
Control System	We have brought the Armored Rex – Tek Rex from the game into reality. By combining materials such as metal, sponge, and silicone with programming, we can achieve a lifelike appearance and simulate various movements of the dinosaur. Using it in a game exhibition will provide players with a sense of reality that they cannot get from a computer screen, and it will resonate with numerous gamers.
Applications	Game exhibitions, anime expos, scenic areas, theme parks, and large commercial centers

Add to Quote

Product Description

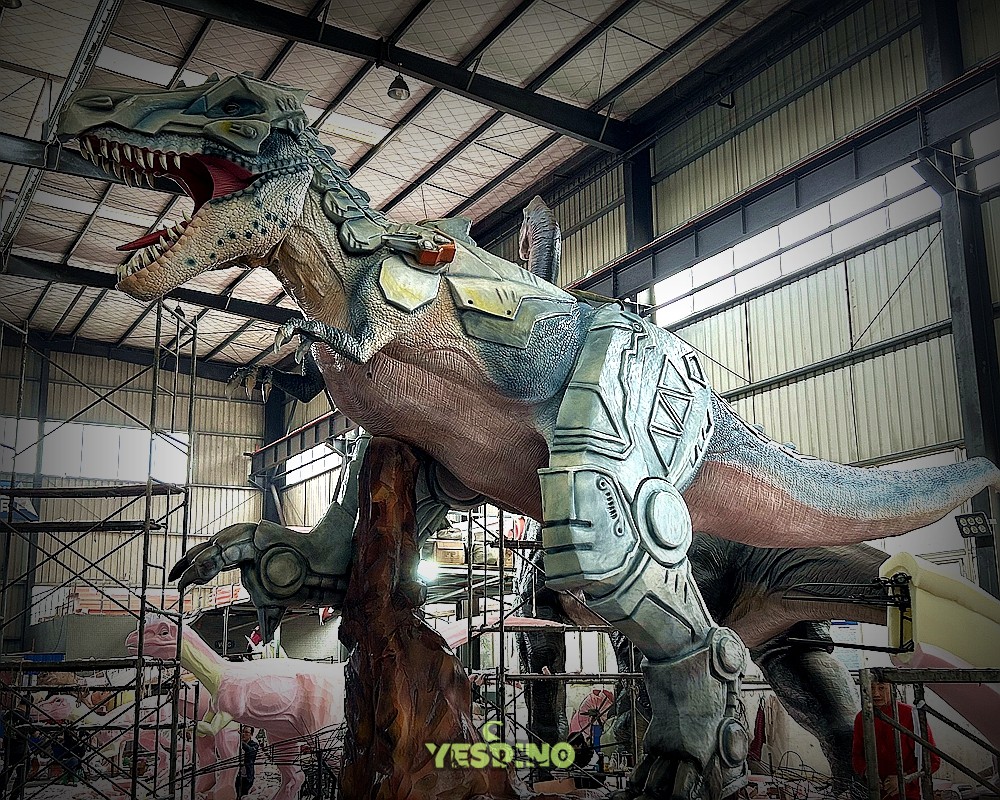

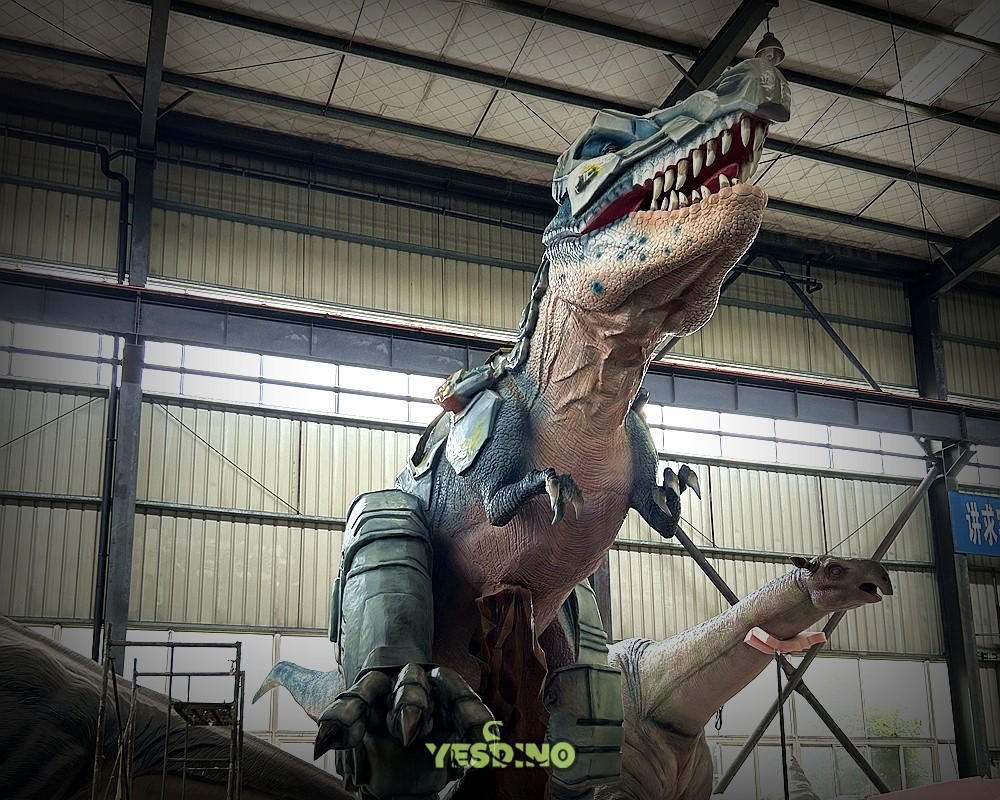

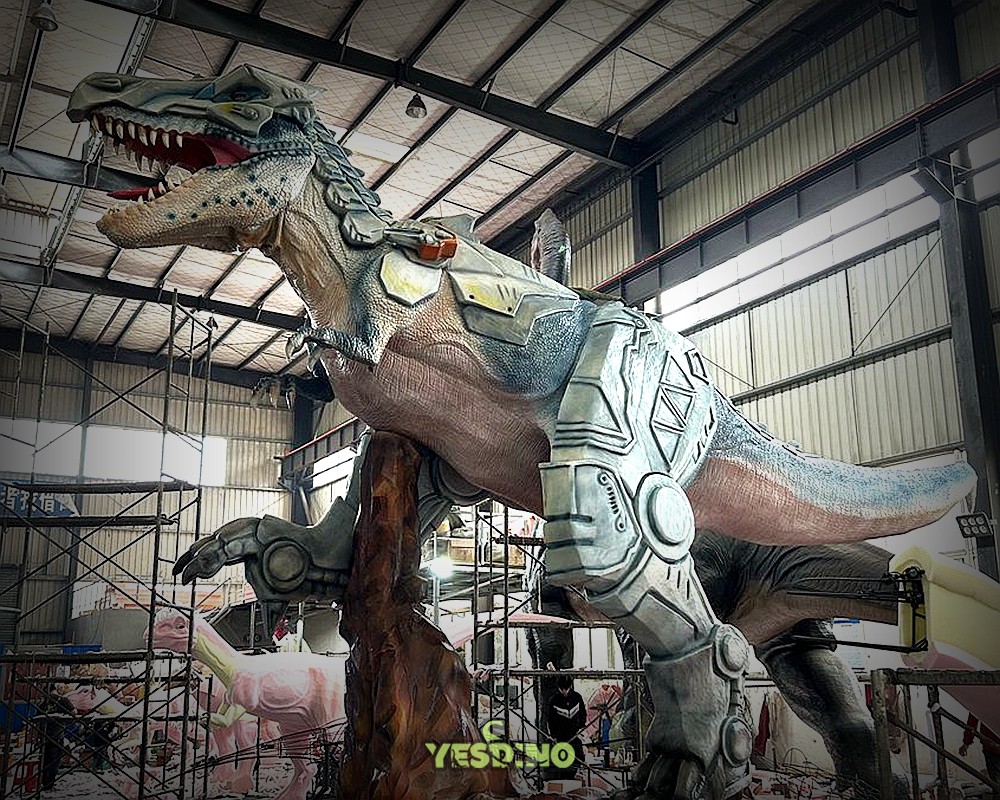

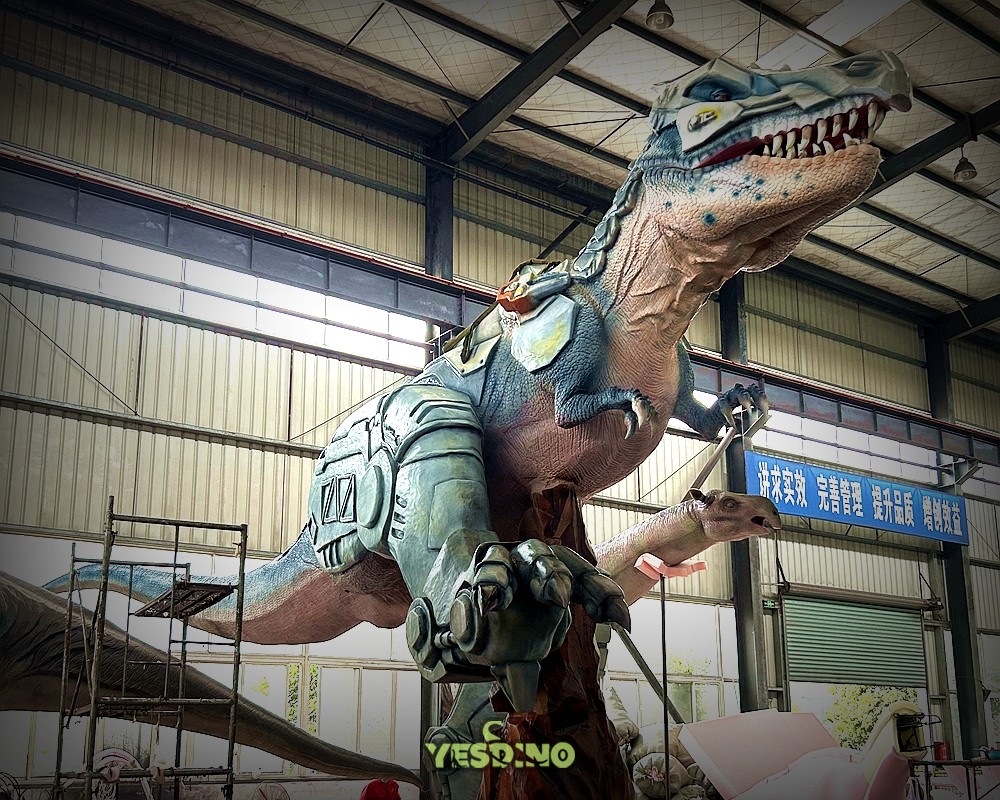

ARK Survival Evolved Tek Rex Animatronic Model

A 1:1 Premium Game-Accurate Replica with Dynamic Movements for Immersive Themed Experiences

13m Long, 8m Tall

1:1 Scale Game-Accurate Dimensions: 13m (42.7ft) in length, 8m (26.2ft) in height (including base), 3.2m (10.5ft) in width. Robust Q235 steel frame with 8-ton load-bearing capacity.

Premium Composite Build

Q235 Steel Frame + High-Density EVA Foam (45kg/m³) + Food-Grade Liquid Silicone Skin. Engineered for high durability and detailed texture (0.1mm precision).

Interactive Motion System

6 Core Actions via PLC & Servo Control: Jaw Roar, Head Swing, Tail Sweep, Blink, Paw Strike, and Smoke Emission. 90dB Roar @1m.

Key Advantages

High-Fidelity Game Accuracy

Accurately replicates the Tek Rex armored texture (3mm alloy-look coating) and signature lightning attack effect via LED strobes (465nm) and arc generators. Simulates high-speed movement (60km/h theoretical pose), 2.5m jump height, and 4m wingspan glide.

Full-Scale Customization

Adjustable size (±10%), posture (3 base templates: Combat/Alert/Walk), motion (12 parameters like tail frequency/claw force), armor style (Base/Battle-Damaged), and lighting (RGB breathing/Lightning positioning).

Strong Interactive Experience

Features 6 core actions: Jaw Roar, Head Swing (±35°), Tail Sweep (1.5m), Blink (3/min), Paw Strike (0.8m/s), and Glycerin Smoke Emission (80ml). Enhanced by a vibrating base (0.5mm amplitude) for realistic tactile feedback.

Low-Maintenance & High Durability

Silicone skin rated UV5 (＜8% fade in 5 years). Self-lubricating bearings (1000h maintenance-free). IP65-rated key circuits. Operating range: -10°C to 40°C.

Advanced Technologies

Cutting-edge engineering for precision, realism, and reliability

Material & Craftsmanship

Mil-Spec Q235 Steel Frame, Aviation-Grade EVA Foam (45kg/m³), Food-Grade Liquid Silicone Skin (Shore 25A, 0.1mm texture detail).

Drive & Control

6-Axis Servo System (Yaskawa SGM7G, ±0.05mm) + Siemens S7-1214 PLC. Response time ≤0.1s, supports offline programming & remote diagnostics.

Special Effects Integration

Food-grade Glycerin Smoke (50ml/min), LED Lightning Strips (465nm, synced to roar), Vibration Feedback Module (Schneider electromagnetic actuator).

Surface Finishing

3D-scanned game model, hand-painted battle-damage (3-5 wear points/cm²), coated with anti-fouling nano-coating (>5000 scrubs).

Technical Specifications

Physical Dimensions

Length: 13m (±0.2m) | Height: 8m (inc. 0.5m base) | Width: 3.2m (tail extended)

Weight

Approx. 4,800 kg (including frame, filling, skin, and control system)

Power System

AC 380V±10% / 50Hz, Rated Power: 15kW (Peak 18kW), Ground Resistance ≤4Ω

Motion Parameters

Head Swing: ±35° (0.5 rad/s) | Tail Sweep: 1.5m (0.3Hz) | Paw Strike: 0.8m/s | Blink Interval: 20±5 sec | Smoke Pressure: 0.3MPa

Control System

Siemens S7-1214 PLC + 6x Yaskawa SGM7G Servo Motors (0.75kW each), Modbus RTU Communication

Safety Standards

Compliant with GB 8408-2018 (Amusement Ride Safety) & GB/T 18168-2008 (Mechanical & Electrical Safety)

Application Scenarios

Engineered to enhance engagement and drive foot traffic across diverse venues

Gaming Conventions & Expos

Centerpiece for ARK-themed exhibitions. Integrate with AR scan for a virtual taming system, boosting "physical capture" immersion. Reference: over 2,000 daily interactions at a major comic con.

Anime & Comic Fairs

Set up a "Tek Rider" photo zone where visitors can trigger lightning effects, attracting cosplayers and UGC. Proven to increase booth traffic by 40%.

Themed Attractions

Integrate into a "Prehistoric Battlefield" experience with surround sound (thunder, roars) and vibrating floors for a fully immersive 5D environment.

Commercial Centers

Acts as a high-traffic IP anchor. Weekend "Roar Interactive" hourly demos combined with merchandise sales have increased monthly revenue by 25% in reference cases.

Professional Application Guide

Expert setup, maintenance, and operational guidelines

Deployment Requirements

Ground load-bearing ≥8 tons/m². Maintain 3m operational clearance + 2m service access. Power inlet within 10m (requires a dedicated circuit breaker).

Maintenance Schedule

Daily: Clean skin with soft brush & neutral cleaner. Weekly: Check joint bolts (torque per drawings). Monthly: Lubricate bearings (Lithium-based grease NLGI Grade 2). Quarterly: Calibrate servo zero points.

Operator Training

2-day on-site training covering PLC interface, motion editing software, and troubleshooting common error codes. Certification provided upon successful assessment.

Safety Configuration

Standard: 3 Emergency Stop buttons, 30mA leakage protector, overload alarm. Complex motion modes require dual-operator authorization to start.

Important Notice

This is a custom-built high-end exhibit. Due to variations in client-specified dimensions, armor style, or lighting schemes, the final product may have slight visual differences from promotional materials (e.g., battle-damage pattern distribution, lighting transition timing). Final technical specifications are subject to the signed Customization Agreement. On-site presentation may vary due to lighting and spatial factors. For precise information, please contact us directly for a customized technical white paper and project data.
