Realistic T-Rex Animatronic | 13m Lx6.5m H Hydraulic for Parks

Name: Realistic T-Rex Animatronic | 13m Lx6.5m H Hydraulic for Parks
Brand: Yes Dino
Price: 5850 USD
Availability: InStock
Rating: 4.3 (21 reviews)

SKU	YKL-039
Product Name	Realistic Animatronic T-Rex Dinosaur
Dimensions	13 meters in length, 6.5 meters height
Key Movements	Open mouth roaring, head left and right, neck up and down, front claws waving, tail swinging, blinking eyes
Customization	Movements, dimensions, colors, postures, sound and light effects, etc
Control System	The lifelike Animatronic T-Rex Dinosaur, with its realistic appearance, intricate mechanical structure, and sound and light effects, presents a stunning exhibition for the audience. Viewers can closely appreciate the authentic portrayal of the Tyrannosaurus rex and experience the sensation of its movements through mechanical actions and audiovisual effects. Such a display product not only captures attention but also provides spectators with a unique and awe-inspiring exhibition experience.
Applications	Museums, scenic areas, dino theme parks, children's playgrounds, parks, museums

Add to Quote

Product Description

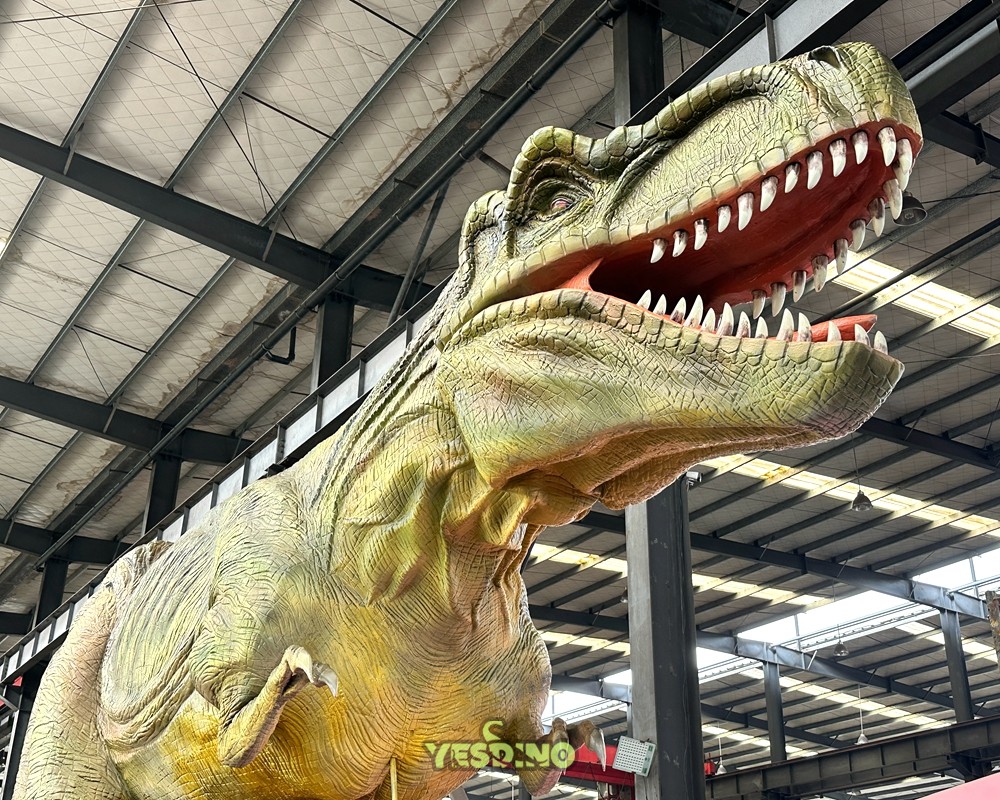

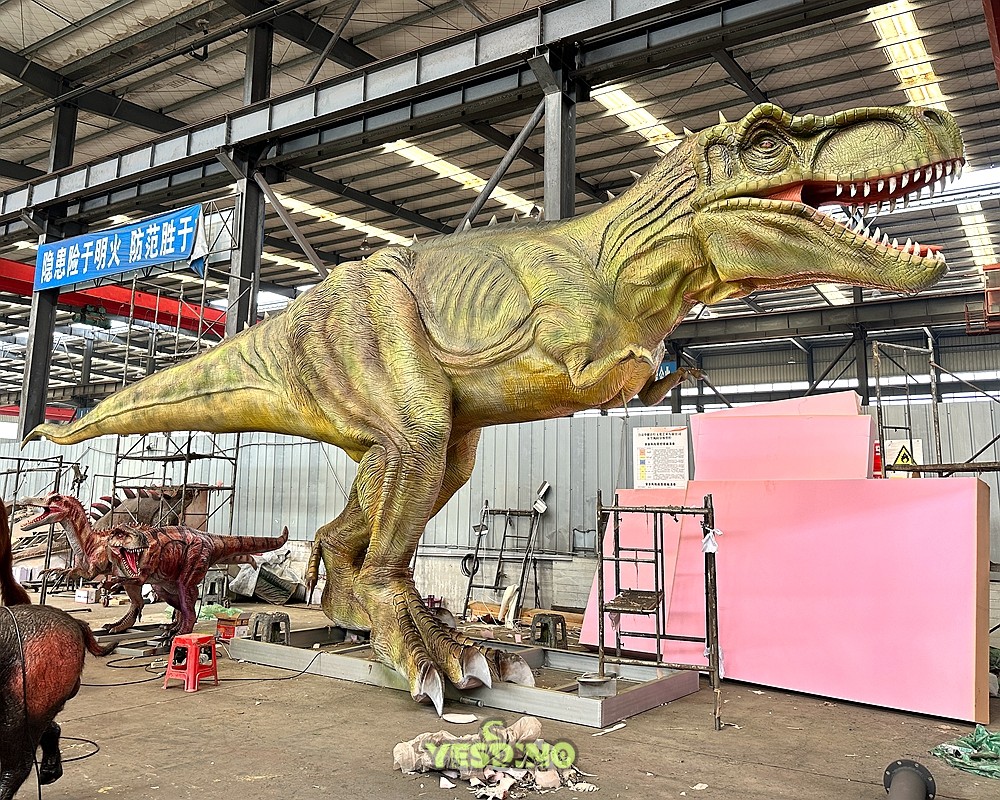

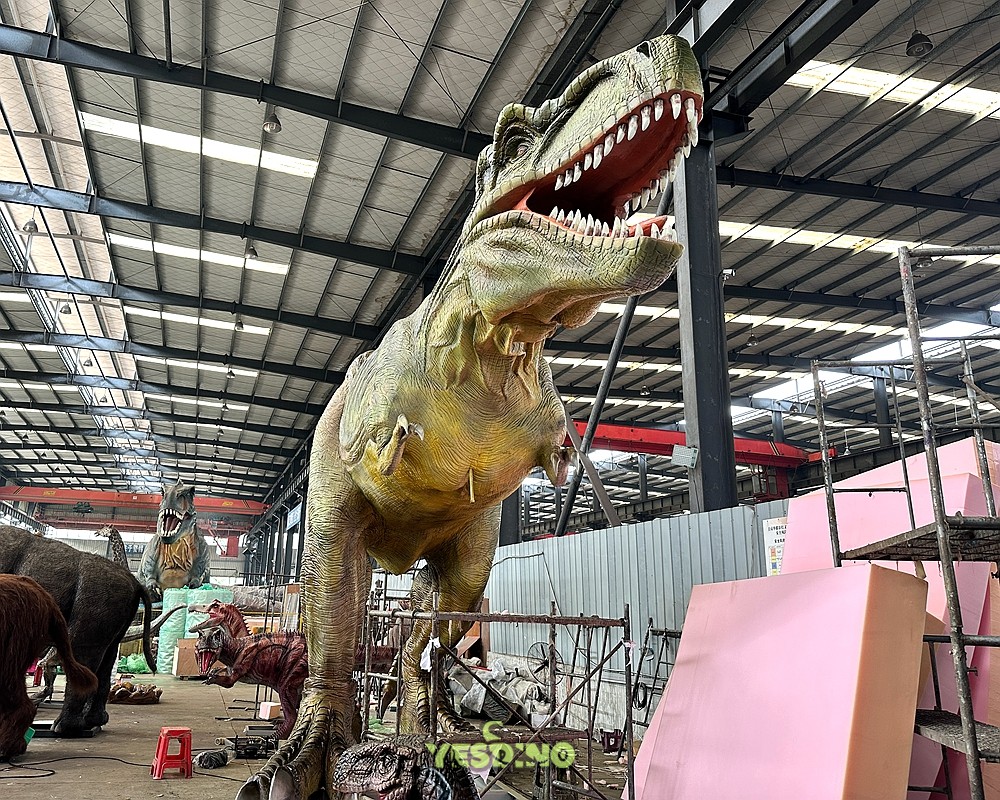

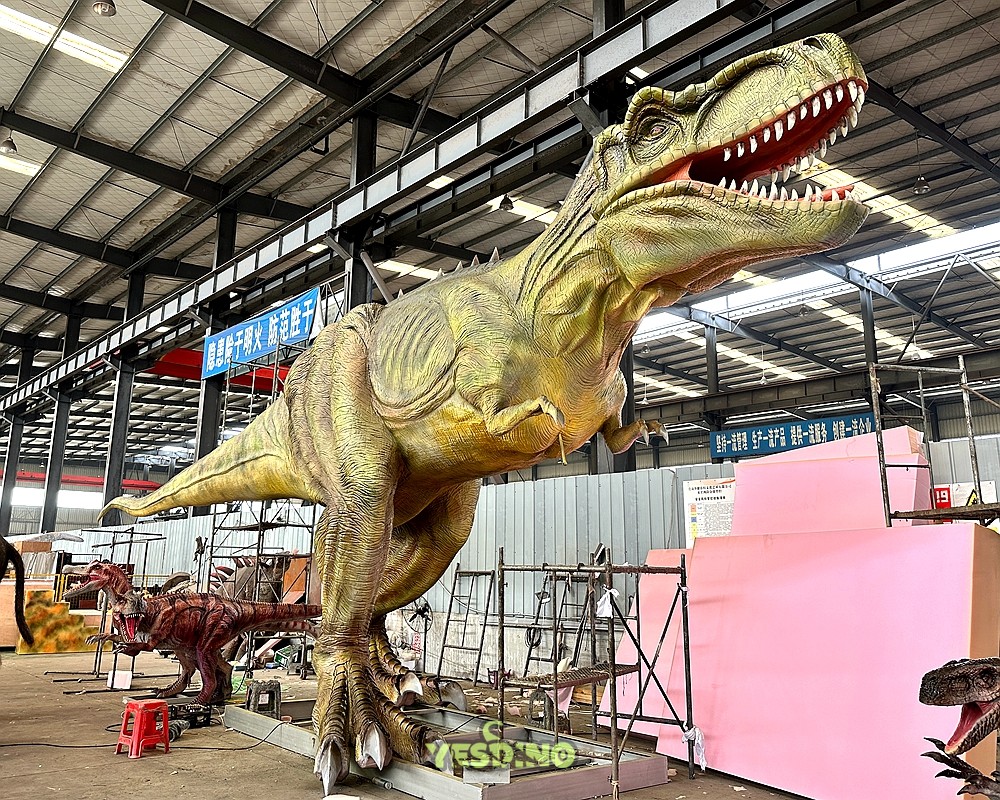

YKL-039 Full-Size Animatronic T-Rex

A Scientifically Precise Late Cretaceous Recreation Engineered for Maximum Educational Impact & Immersive Entertainment

13m Long, 6.5m Tall

Reconstructed based on Late Cretaceous (approx. 68-65 million years ago) fossil evidence. Measures 13m (±0.5m) in length, 6.5m (±0.3m) in height, with a total weight under 8.2 tons. The biomechanical skeletal-muscular system achieves ≥92% anatomical accuracy (per 2023 *Journal of Vertebrate Paleontology* standards).

Q345B Steel & Silicone Composite

Robust Q345B high-strength steel frame integrated with silicone skin composite, delivering structural integrity and ultra-realistic texture.

Rugged IP67 Rating

IP67 protection for reliable performance in diverse environments, with an operational temperature range of -20°C to 50°C.

Core Advantages

Dynamic Realism

Features a head with ±45° pitch, ±60° horizontal rotation, and an 80° jaw opening. The hydraulic servo system enables a burst roar reaching 115dB@1m within 0.3 seconds for dramatic impact.

Structural Durability

304 stainless steel joint bearings are rated for 100,000 movement cycles. The IP67 enclosure ensures protection against dust and water ingress for long-term reliability.

Deep Customization

Supports programming for 26 motion parameters (including eyelid frequency 0.5-2Hz, tail swing 120°-150°). Offers 600 skin texture options via Pantone color matching for perfect theming.

Advanced Mechatronics

Siemens S7-1200 PLC controls 16 servo motor groups (peak torque 380N·m). Laser displacement sensors provide real-time feedback with pose error<0.1mm.

Applied Technologies

Integrating precision engineering with material science for an unparalleled experience

Electro-Mechanical System

Siemens S7-1200 PLC controls 16 servo motor groups (380N·m peak torque) with laser displacement sensors for<0.1mm precision.

Material Science

Medical-grade liquid silicone (Shore 25A) envelops 3D-printed nylon bones. Carbon fiber reinforcement yields ≥40MPa tear strength.

Interactive Experience

Dual-channel surround sound (20Hz-20kHz) synchronized with RGBW full-color laser arrays for triggered immersive effects.

High-Precision Motion

12-axis coordinated movement (including 3 independent DOF in claws). Real-time feedback ensures fluid, lifelike animations.

Technical Specifications

Motion & Power

Degrees of Freedom: 12-axis coordinated movement (3 independent DOF in claws)
Power Consumption: 18kW peak, 9kW typical operation

Safety & Certification

CE / ISO 13849 Performance Level d (PLd) certified.

Maintenance

Mandatory maintenance every 2000 operating hours.

Communication & Control

Data Interface: Modbus TCP/IP + CANopen for seamless integration with control systems.

Key Performance Metrics

Jaw Force/Speed: 0.3s burst roar (115dB@1m).
Joint Lifespan: 304 stainless steel bearings rated for 100,000 cycles.
Skin Strength: Carbon fiber reinforced layer ≥40MPa tear strength.

Operational Environment

IP67 rated, operating temperature -20°C to 50°C.

Application Scenarios

Engineered for high-traffic venues seeking durability, engagement, and scientific credibility

Theme Parks

Handles up to 5000 visitors daily with a Mean Time Between Failures (MTBF) ≥500 hours, perfect for high-capacity attractions.

Museums & Science Centers

Paleontological accuracy paired with optional AR guide systems for interactive skeletal and muscular anatomy demonstrations.

Commercial Real Estate & Film Studios

Supports 8-hour continuous performance for holiday events. Compatible with green screen motion capture data acquisition for film production.

Professional Application Guide

Site requirements and maintenance protocols for optimal performance

Site Requirements

Foundation bearing capacity ≥15kN/m². A clearance diameter of 4m is required for full rotation. Indoor exhibition halls recommended >300lux illumination.

Outdoor Installation

Requires anti-UV coating (withstands 2000h QUV test without yellowing) for prolonged outdoor use.

Maintenance Protocol

Monthly hydraulic oil viscosity checks (ISO VG46 standard). Quarterly calibration of IMU attitude sensors.

Important Notice

Promotional images are based on laboratory conditions. Final presentation may vary due to installation site conditions, ambient lighting, and configuration parameters. Actual visual/audio effects may differ slightly from promotional materials. Final performance specifications are subject to the signed technical agreement and on-site acceptance. For accurate information, please contact us directly for customized technical white papers and project data.
