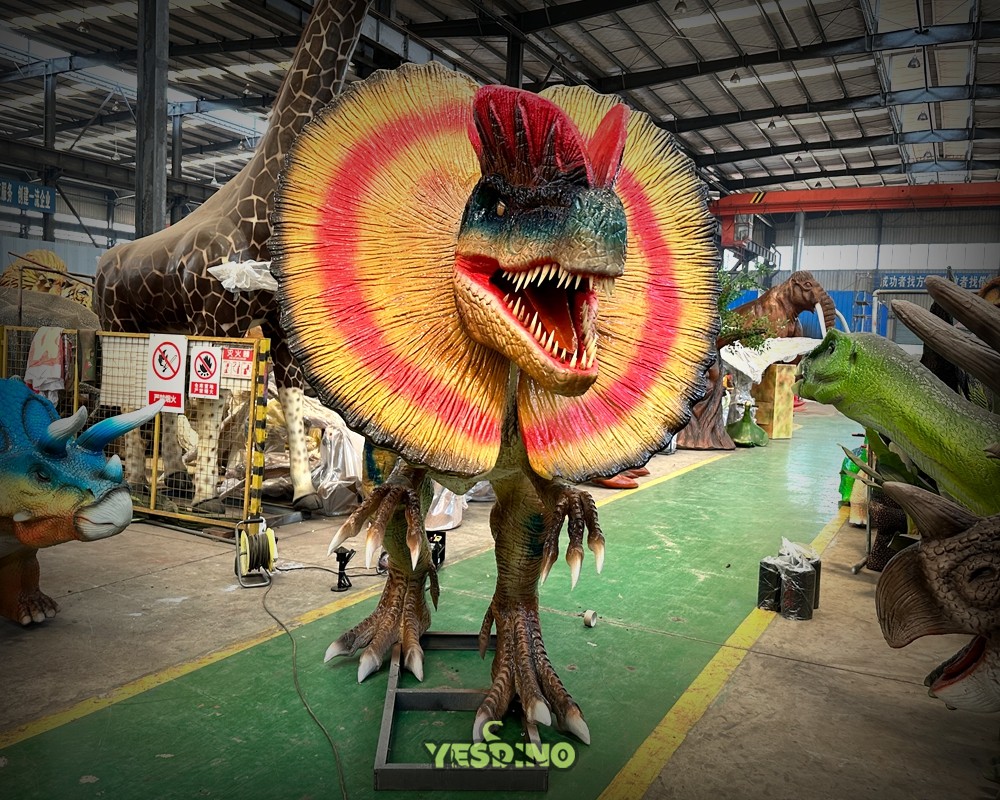

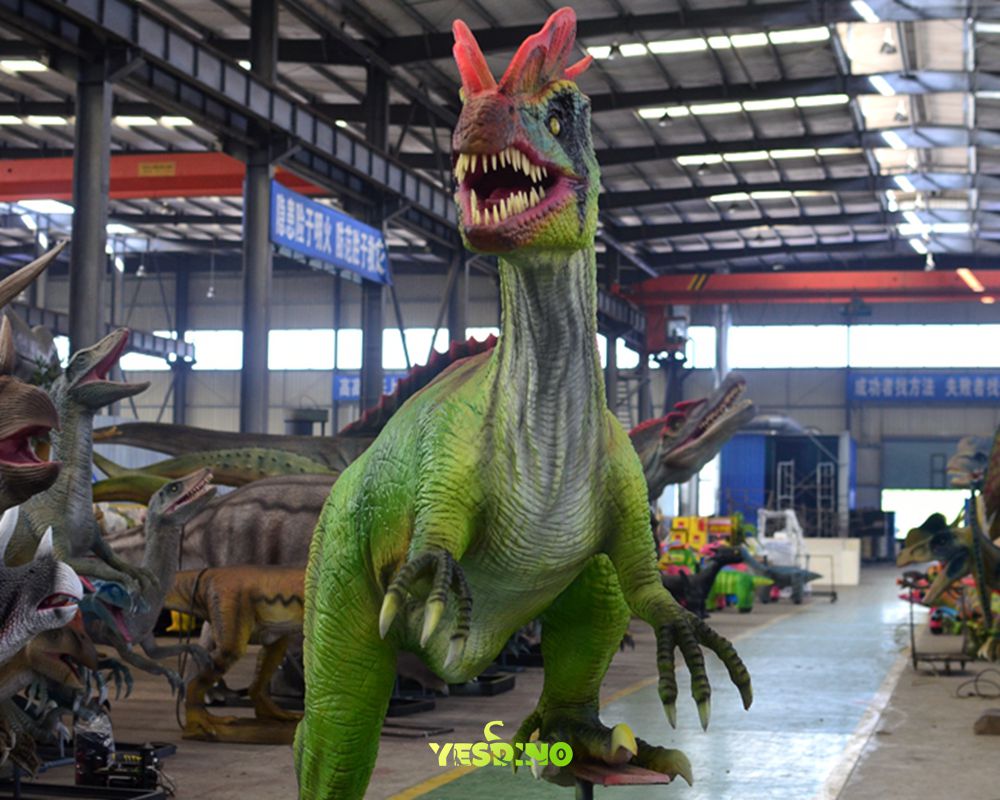

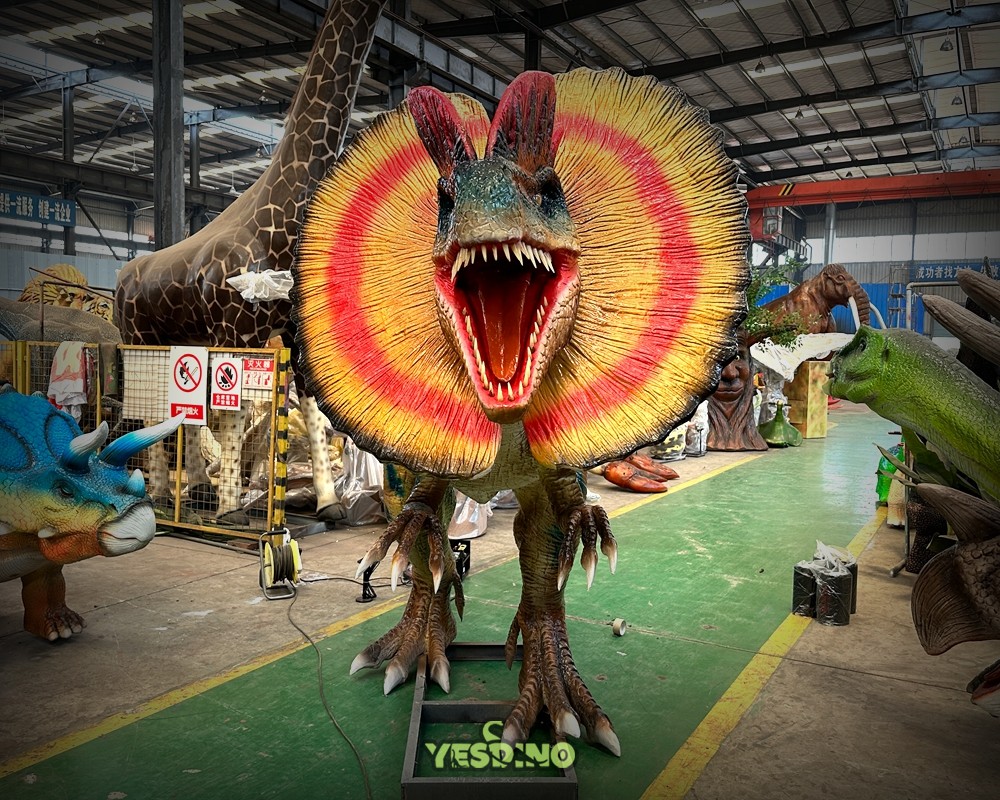

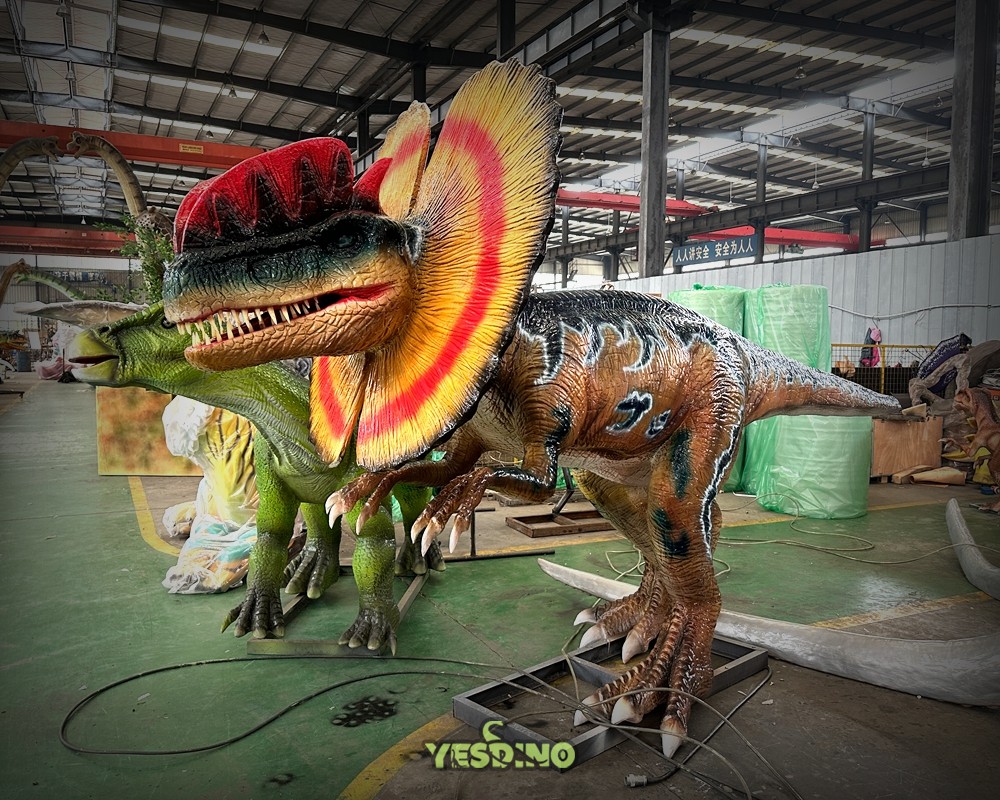

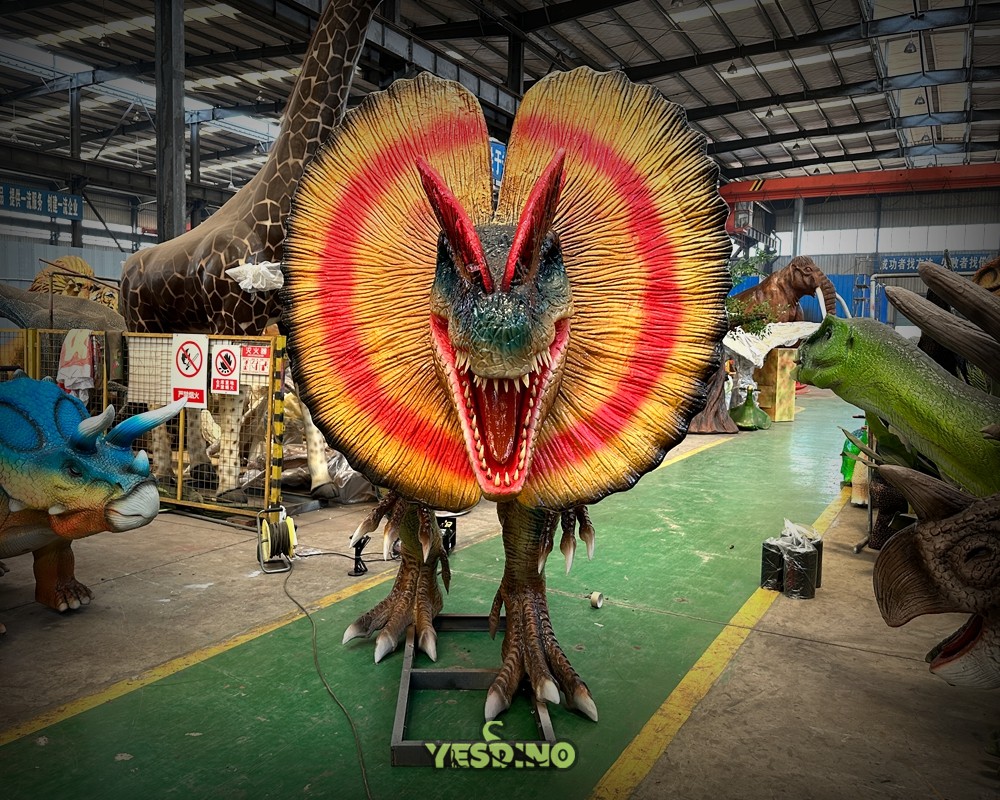

YKL-032 Animatronic Dilophosaurus
A Large-Scale Dynamic Bio-Exhibit, Recreated with Screen-Accurate Cinematic & Paleontological Fidelity for High-Traffic Themed Attractions
6m Long, 1.9m Tall
Matches the classic cinematic and 1:1 skeletal proportions of Dilophosaurus—6 meters (19.7ft) in length, 1.9 meters (6.2ft) in height, featuring the signature semi-circular cranial crest.
High Traffic Performance
Engineered for high-flow public venues with a daily interactive capacity of 3,000+ visitors, fulfilling both professional edutainment and immersive entertainment demands.
Durable & Safe Build
Q345B steel frame (1.2-ton load capacity) with 8mm food-grade liquid silicone skin (5,000-hr UV resistance). Features overload protection sensors, compliant with GB/T 18168-2017 safety standards.
Advanced Motion & Interactive Capabilities
Engineered movements and intelligent interaction for a truly immersive experience
Jaw & Vocalization
90° jaw roar with simulated vocal cord vibration, synchronized with powerful audio for a dramatic display.
Expressive Head & Eyes
Head movement (±30° pitch, ±60° yaw) at 15°/s. Eyelids blink 2-5 times per minute, adding lifelike expression.
Limb & Tail Articulation
45° forelimb swing (2s cycle) and 0.5Hz tail swing (max 30°/s) for balanced, naturalistic motion.
Intelligent Interaction
Dual-mode triggers: PIR sensors (3-8m range) and pressure pads (50kg threshold). Crest features RGB LEDs synced to 4-channel audio (85-100dB adjustable).
Technical Specifications
Physical Dimensions
L6.0m × W1.2m × H1.9m (including crest). Weight approx. 850kg (frame + skin).
Motion Performance
Head rotation speed: 15°/s. Tail swing max angular speed: 30°/s. Forelimb swing cycle: 2s.
Power System
Rated power 2.2kW (AC 380V/50Hz), peak power 3.5kW, standby power ≤50W.
Environmental Rating
Operating temperature: -10°C to 40°C. Protection rating: IP54 (dust & water resistant). Wind load resistance: ≤ Level 8.
Customization Range
Size tolerance: ±0.2m. Motion combinations: ≤8 sets. Color matching ΔE ≤1.5 (CIELAB standard).
Control & Drive
17 servo motors (5-20N·m) with harmonic reducers. Siemens S7-1200 PLC controller. 4-channel 200W amp.
Applications & Benefits
Engineered for venues seeking crowd engagement, education, and lasting ROI
Theme Parks & Attractions
Ideal for entrance zones (increase foot traffic by 40%) and ride queue lines (reduce visitor drop-off by 25%).
Museums & Science Centers
Paleontology exhibits paired with AR-guided "living fossil" displays, increasing educational conversion rates by 60%.
Commercial & Tourism Venues
Nighttime LED-lit Dinosaur Valleys become landmark photo spots (100k+ monthly social exposure). Perfect for brand pop-ups (35% higher message recall with custom audio).
Professional Application Guide
Tailored setup and expert operation for optimal performance
Installation Specifications
Requires hardened ground (load-bearing ≥600kg/m²) with a 1.5m safety perimeter. Independent power circuit (recommended 25A breaker).
Maintenance Schedule
Daily: Clean skin (neutral detergent). Weekly: Check motor temperature (≤60°C). Monthly: Lubricate joints (NLGI 2 lithium grease). Quarterly: Calibrate sensors.
Interactive Programming
Recommended modes: "Timed Show" (full motion cycle every 30 min) and "Sensor Trigger" (roar+tail swing on visitor approach). Update motion libraries remotely via mobile app.
Important Notice
Product specifications are based on standard configuration. Final presentation may vary due to custom requirements (e.g., scaling, motion complexity) and on-site conditions. The actual product may differ from promotional materials. For accurate and final specifications, please refer to the confirmed 3D renderings and factory inspection report. Contact us for detailed technical white papers and project data.
