Animatronic Pachycephalosaurus | ISO | 6m Amusement Park Statue

Name: Animatronic Pachycephalosaurus | ISO | 6m Amusement Park Statue
Brand: Yes Dino
Price: 2150 USD
Availability: InStock
Rating: 4.2 (26 reviews)

SKU	YKL-023
Product Name	Lifesize animatronic dinosaur – Pachycephalosaurus.
Dimensions	Length: 6m, Height: 1.7m, Can be customized to any size.
Key Movements	Head turning left and right, neck moving up and down, blinking eyes, roaring with an open mouth, forepaw swing, wagging its tail, and simulating breathing with the belly rising and falling.
Customization	movement, color
Control System	Pachycephalosaurus is often depicted in archaeological reconstructions or speculative illustrations engaged in combat, leading people to envision scenes of two Pachycephalosaurus ramming each other with their thickened skulls to compete for territory or mates. Therefore, when creating lifelike Pachycephalosaurus replicas, we also frequently offer them for sale in pairs engaged in combat, just as people imagine them in their minds.

Add to Quote

Product Description

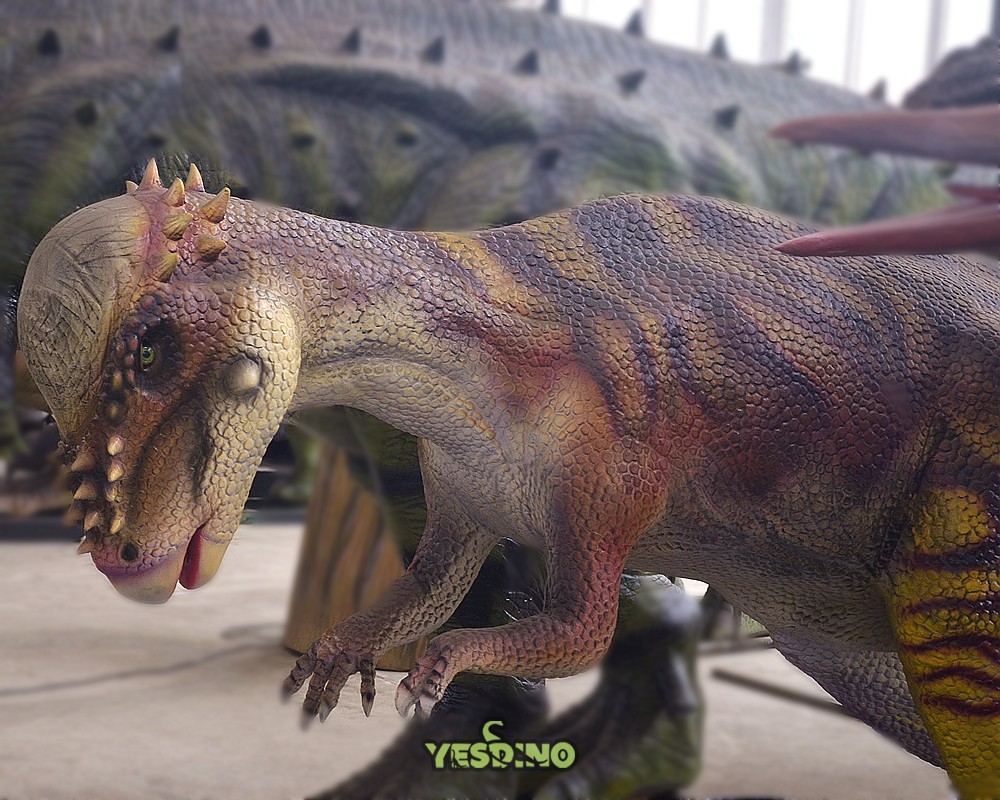

YKL-023 Series Animatronic Pachycephalosaurus

A 1:1 Scientifically Accurate Recreation with Aerospace-Grade Fiberglass for Immersive Educational & Entertainment Applications

6m Long, 1.7m Tall

Faithfully replicates adult Pachycephalosaurus proportions at 6 meters (19.7ft) in length and 1.7 meters (5.6ft) in height. Features a robust Q235 carbon steel frame with a total weight of 1.2 tons.

Premium Durability

Aerospace-grade fiberglass composite skin (0.1mm texture resolution) on a Q235 steel frame. Withstands 12-level wind loads (35m/s) and 3,000 hours of UV aging testing.

Proven Reliability

Deployed in 20+ theme parks with over 150,000 cumulative operational hours. ISO 9001 certified manufacturing process ensures consistent, high-quality output.

Core Advantages

Dynamic Realism

7-DOF hydraulic drive system enables lifelike head movement (±45° yaw, 120° neck pitch) and pressure-sensing muscle technology simulates a subtle breathing motion (8cm amplitude, 5-second cycle).

Immersive Experience

Dual-channel directional audio system with 120dB peak output and programmable LED eyes with adjustable color temperature (2700K-6500K) for enhanced atmospheric presence.

All-Weather Endurance

IP65 protection rating ensures reliable operation in temperatures from -20°C to 50°C. The ASA engineering plastic skin is tested for extreme UV resistance.

Long-Term Value

Key components boast an MTBF (Mean Time Between Failures) ≥10,000 hours. Designed for minimal maintenance and long-term cost efficiency in commercial installations.

Core Technologies

Advanced engineering for lifelike motion and robust performance

Multi-Axis Control System

CAN bus architecture for precise, synchronized control of a 32-channel servo motor cluster.

Biomechanical Algorithm

Skeletal dynamics model optimized with MIT's open-source SimMechanics for natural, fluid motion.

Robust Construction

3mm fiberglass skin over a 6mm Q235 steel frame, engineered for high strength and detailed texture replication.

Dual-Mode Control

4G IoT remote management and local PLC dual-mode system for flexible and reliable operation.

Technical Specifications

Dimensions

Standard: 6m (L) × 1.7m (H) | Customizable range: 3m - 12m (Error ≤3%)

Power Consumption

Standby: 0.5kW | Full motion: 3.2kW

Materials

Skin: 3mm fiberglass laminate | Frame: 6mm Q235 carbon steel

Control System

Dual-mode: 4G IoT remote management & local PLC

Reliability

MTBF (Mean Time Between Failures) ≥10,000 hours for key components

Environmental Rating

IP65 protection, operating temperature range: -20°C to 50°C

Application Scenarios

Designed for high-impact installations across various venues

Theme Park Landmark

Ideal for park entrances or themed zones. Proven to drive >200 daily interactions and significantly enhance guest engagement.

Museum Diorama Centerpiece

Perfect for natural history museums to recreate prehistoric ecosystems. Can be integrated with fog screen projection for immersive educational displays.

Commercial Attraction

Deployed in shopping malls and complexes to attract foot traffic. Field data shows a 40% increase in average visitor dwell time.

Film & Production

Used as a practical effects stunt double in major productions, including scenes for "Jurassic World: Dominion".

Professional Deployment Guide

Expert recommendations for installation and maintenance

Foundation Requirements

Requires a load-bearing foundation ≥5t/m² (concrete grade C30 or higher) to ensure stability and safety.

Safety Clearance

Maintain a minimum safety perimeter of ≥8m, calculated based on tail swing radius, for safe public interaction.

Maintenance Schedule

Daily: Gearbox lubrication (Mobil SHC 634 grease).
Quarterly: Laser calibration for joint positioning accuracy (tolerance ±0.5°).

Important Notice

Due to variations in on-site lighting, installation surface flatness, and configuration parameters, the final presentation may differ from promotional materials. The physical product's visual/audio effects might have slight variations. For accurate information and custom technical specifications, please contact us directly. All specific configurations (motion precision, audio details) are subject to final project confirmation and on-site acceptance.
