SKU	RAA-002
Product Name	Realistic animatronic turtle model
Dimensions	1 meter in length, 1.1 meters in width, and has a total height of 1.2 meters, including the base.
Key Movements	moving its head from left to right, moving its neck up and down, blinking its eyes, simulating swimming motions with its four limbs, and opening its mouth to make roaring sounds.
Customization	Sizes, movements, postures, colors, and calls.
Control System	The animatronic turtle model features a highly realistic appearance and intricate details. Inspired by real marine creatures, it faithfully replicates the movements, colors, and textures of turtles. Audiences can marvel at this lifelike turtle model up close, immersing themselves in the world of the ocean.
Applications	Marine aquariums, zoos, amusement parks, water parks, seafood restaurants, and movie filming.

Add to Quote

Product Description

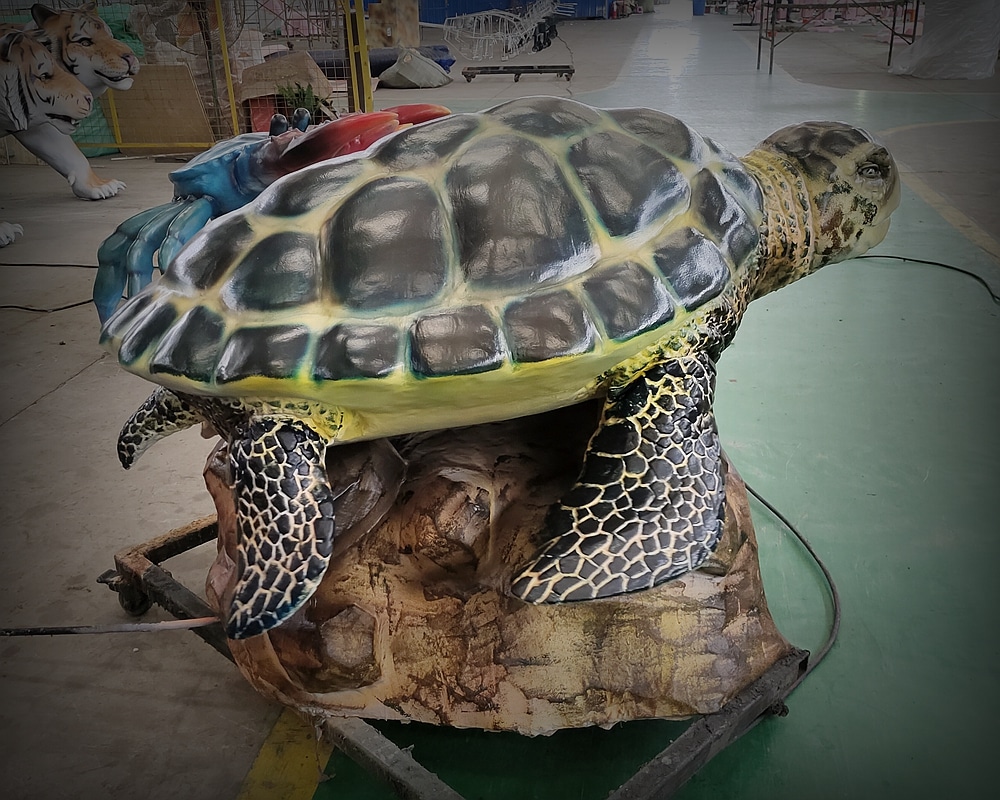

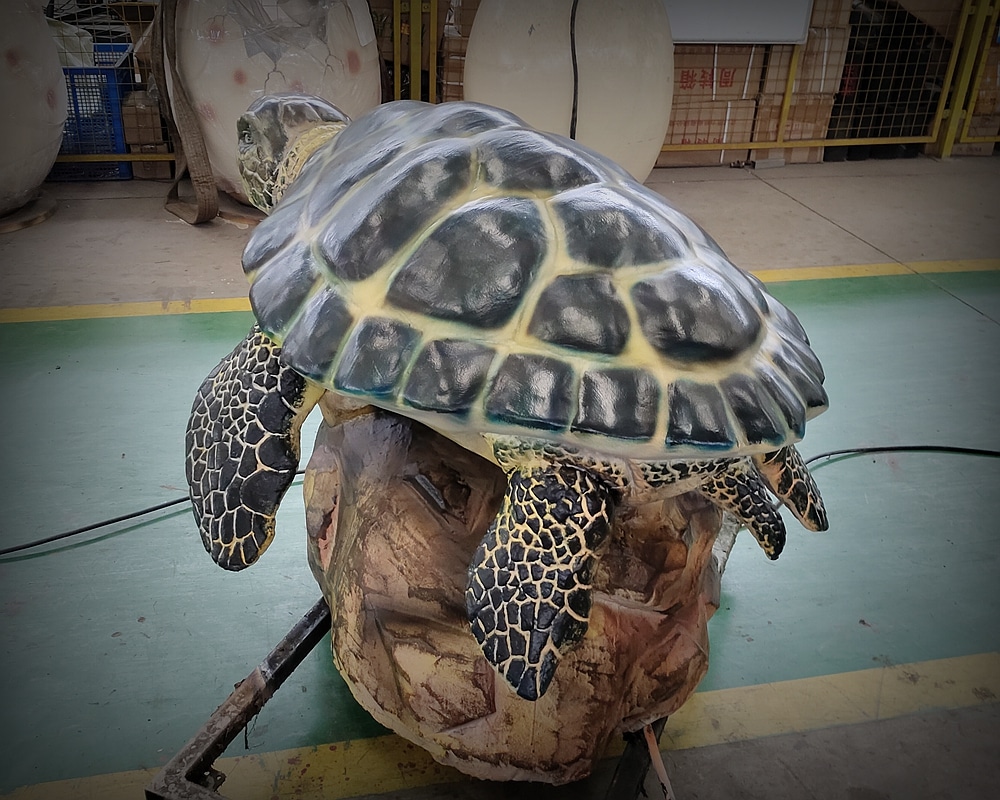

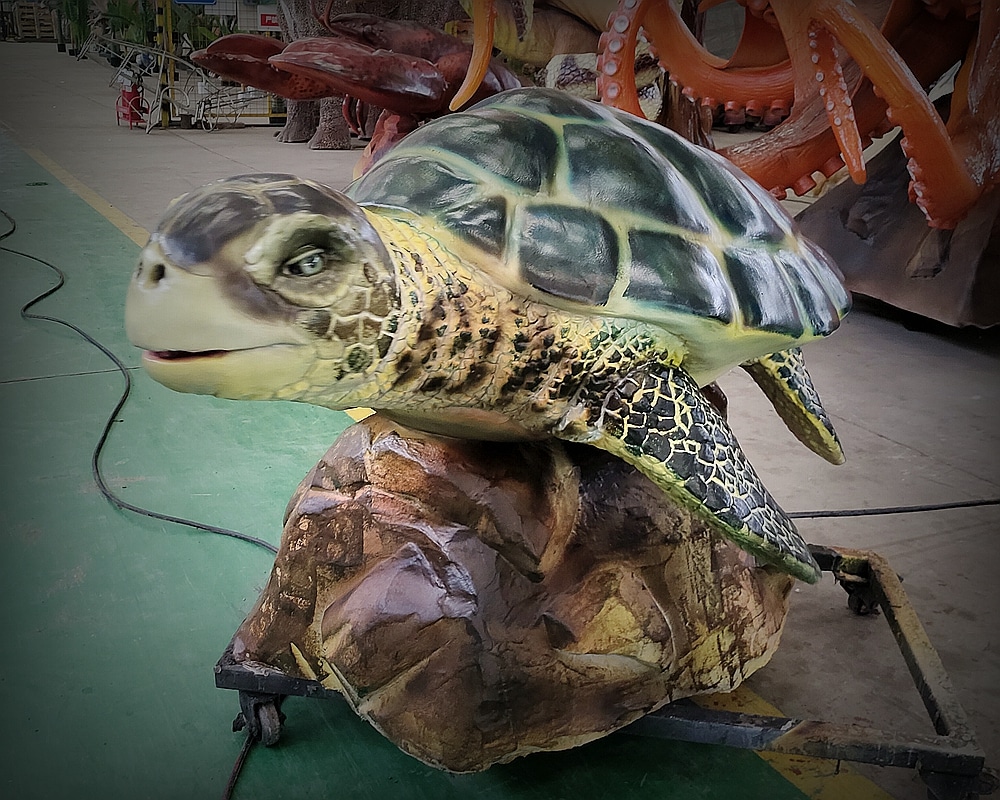

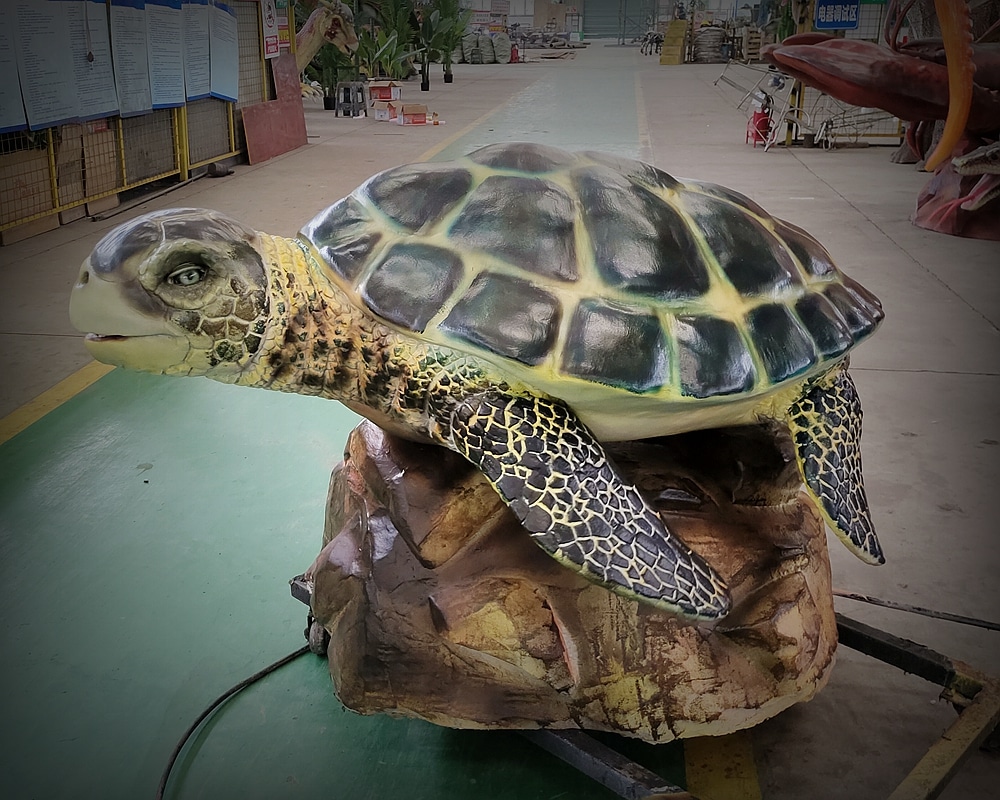

RAA-002 Bionic Sea Turtle Model

A 1.0m x 1.1m x 1.2m Bio-Level Simulated Creation with ISO 9001-Certified Silicone Layering for Immersive Theme Venue Exhibitions

1.0m Long, 1.2m Tall

Dimensions: 1000mm (L) x 1100mm (W) x 1200mm (H) (including 200mm base). Features a Q235 steel frame per GB/T 700 standard and integrated mechatronic drive system.

Hyper-Realistic Simulation

Modeled from CT scans of real leatherback turtles with skin texture error ≤0.3mm. ISO 9001-certified silicone layering process for unparalleled biological realism.

Industrial-Grade Durability

Key components pass 72-hour salt spray test (ASTM B117). Rated for ≥100,000 motion cycles and IP65 for reliable operation in -10°C to 50°C environments.

Core Advantages

Ultra-Realistic Fidelity

Based on CT scan anatomical data from real leatherback turtles. Skin texture replication with an error margin of ≤0.3mm delivers museum-grade scientific accuracy.

Multi-Modal Interaction

6-DOF joint system enables natural neck pitching (±45°), eye blinking (0.5-2Hz), and flipper paddling motions simulating a water flow of 0.8m/s.

Intelligent Sensing System

24GHz millimeter-wave radar detects movement within a 5m range with a rapid response delay of<0.2 seconds, enabling reactive and engaging visitor interactions.

Industrial-Grade Longevity

Engineered for ≥100,000 motion cycles. Critical components undergo a 72-hour salt spray test (ASTM B117), ensuring years of low-maintenance operation in demanding environments.

Key Technologies

Advanced engineering for lifelike motion and robust construction

Bionic Drive System

Micro servo motors (15N·cm torque) paired with harmonic reducers for smooth, precise, and quiet movements.

Multi-Layer Composite Structure

1.5mm national standard steel frame (235MPa yield), 30kg/m³ flame-retardant foam, and food-grade liquid silicone (Shore A 25) outer layer.

Environmental Resilience

IP65 protection rating ensures reliable, stable operation in temperatures ranging from -10°C to 50°C.

Advanced Control

CAN bus control system compatible with DMX512 protocol for seamless integration into complex show control networks.

Technical Specifications

Physical Dimensions

1000mm (L) x 1100mm (W) x 1200mm (H) (includes 200mm base)

Motion Parameters

Head swing angle: ±30°. Flipper stroke: 150mm.

Acoustic System

60W waterproof speaker, 95dB@1m output.

Weight & Power

Net weight: 85kg (±5%). Power consumption: 15W (standby) / 300W (operational).

Control & Durability

Control Protocol: CAN bus (DMX512 compatible). IP65 rated, 72h salt spray test passed.

Sensor System

24GHz mmWave radar, 5m detection range,<0.2s response delay.

Application Scenarios

Designed for diverse educational, entertainment, and research environments

National Aquarium Exhibits

Ideal for ecological displays in national marine centers (e.g., Chinese Sturgeon conservation themes), offering scientifically accurate representation.

Theme Park Immersive Theaters

Enhances immersive experiences with a daily capacity of ≥3,000 visitors, significantly boosting engagement and dwell time.

Research & Film Production

Serves as a behavioral study platform for research institutes (SDK provided). Used in film VFX for motion capture (0.1mm precision).

Professional Application Guide

Tailored setup, maintenance, and customization for optimal performance

Installation Specifications

Leveling error<3°. Base embedment pull-out resistance ≥5kN. Ensure a stable, level foundation for optimal operation and safety.

Content Customization

Supports import of 3D skeletal animation data (FBX format) for custom motion programming and behavioral sequences.

Maintenance Schedule

Replace reducer lubricant every 500 operational hours (recommended: Mobil SHC 634). Perform regular visual inspections for wear.

Important Notice

The effects shown are based on laboratory environment test data. Final presentation may vary due to on-site installation conditions and environmental variables. The physical product may differ from promotional materials. Specific technical parameters are subject to the final factory inspection report. For accurate specifications and project consultation, please contact us directly.
