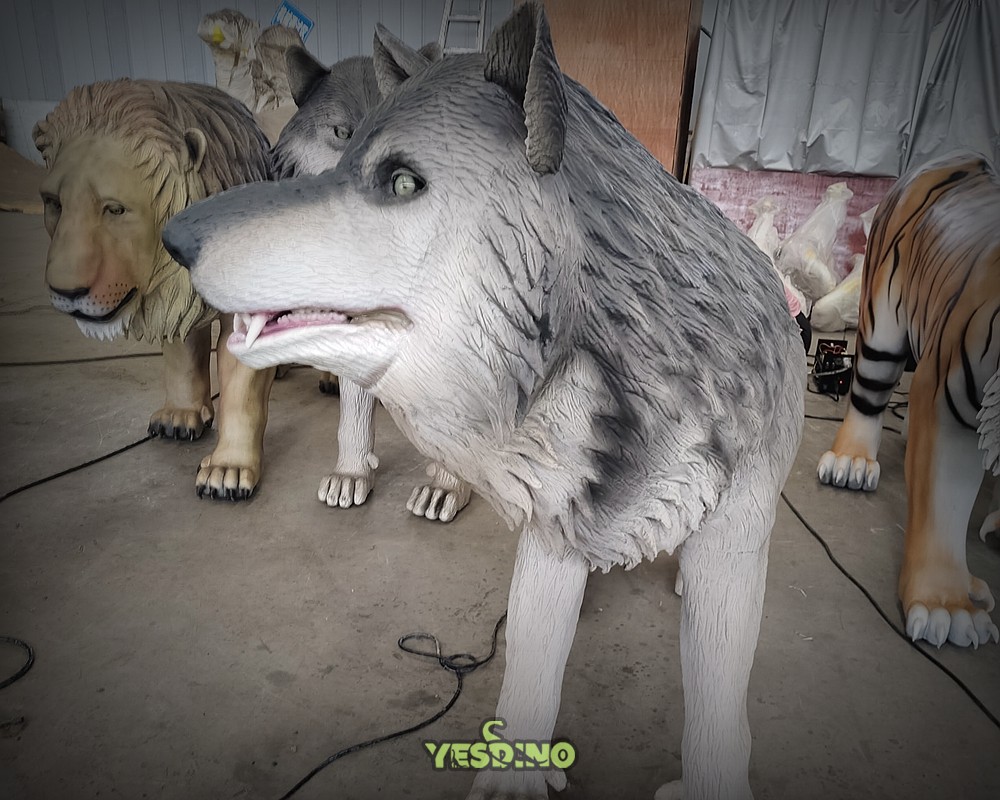

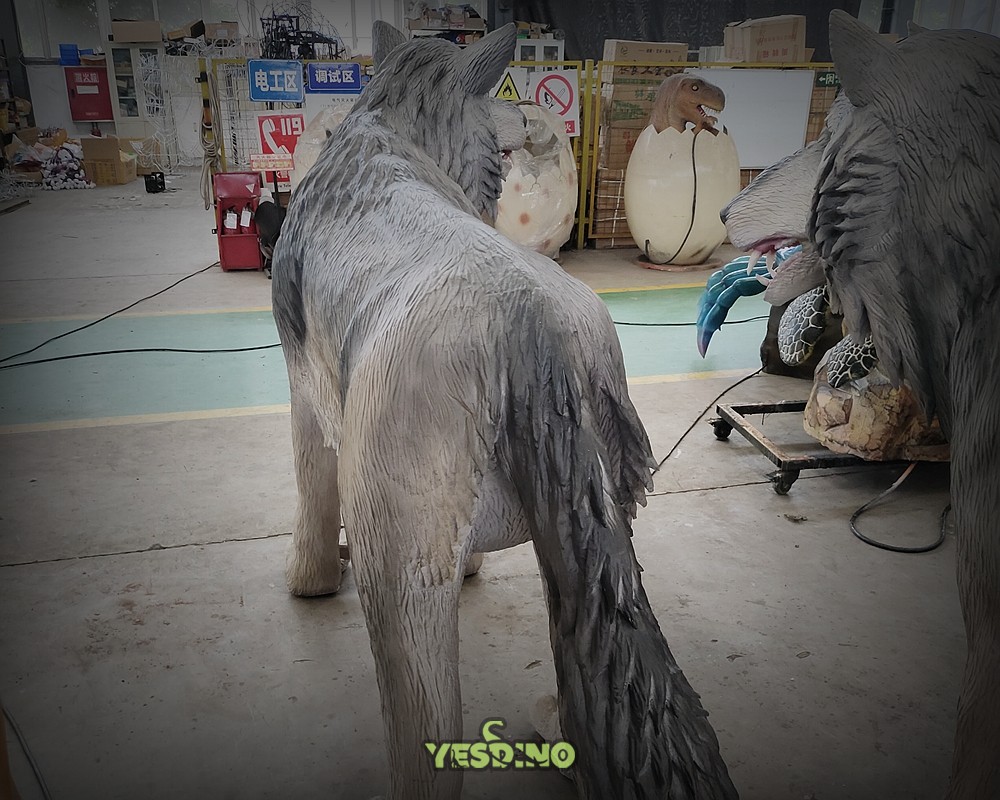

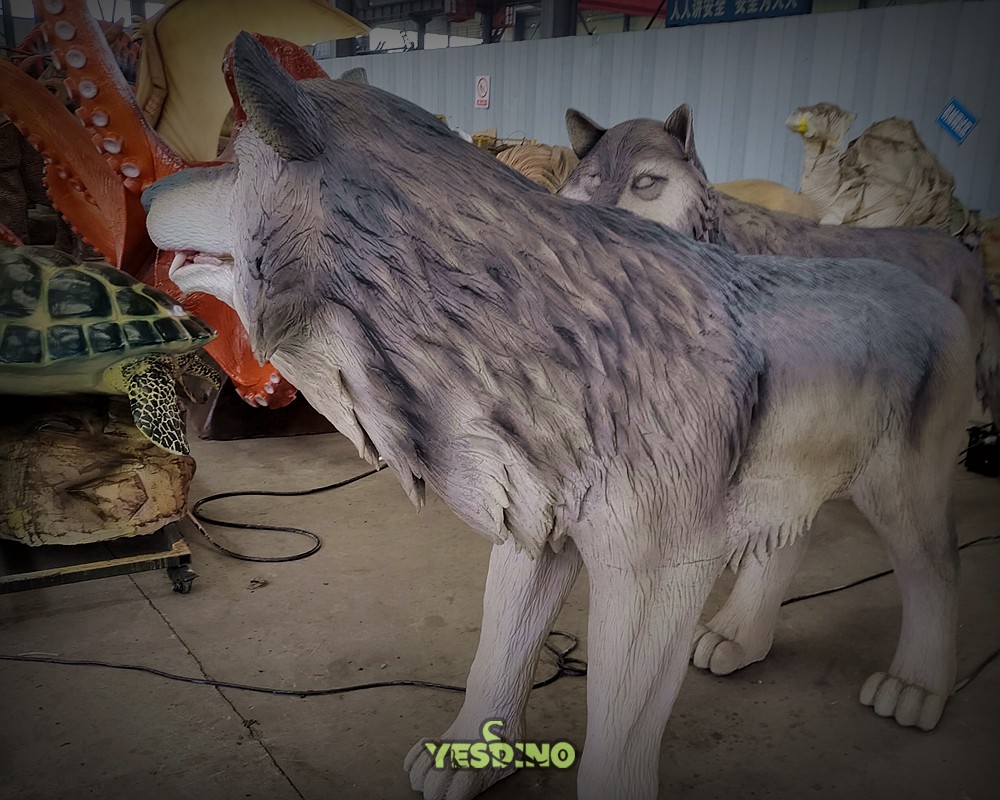

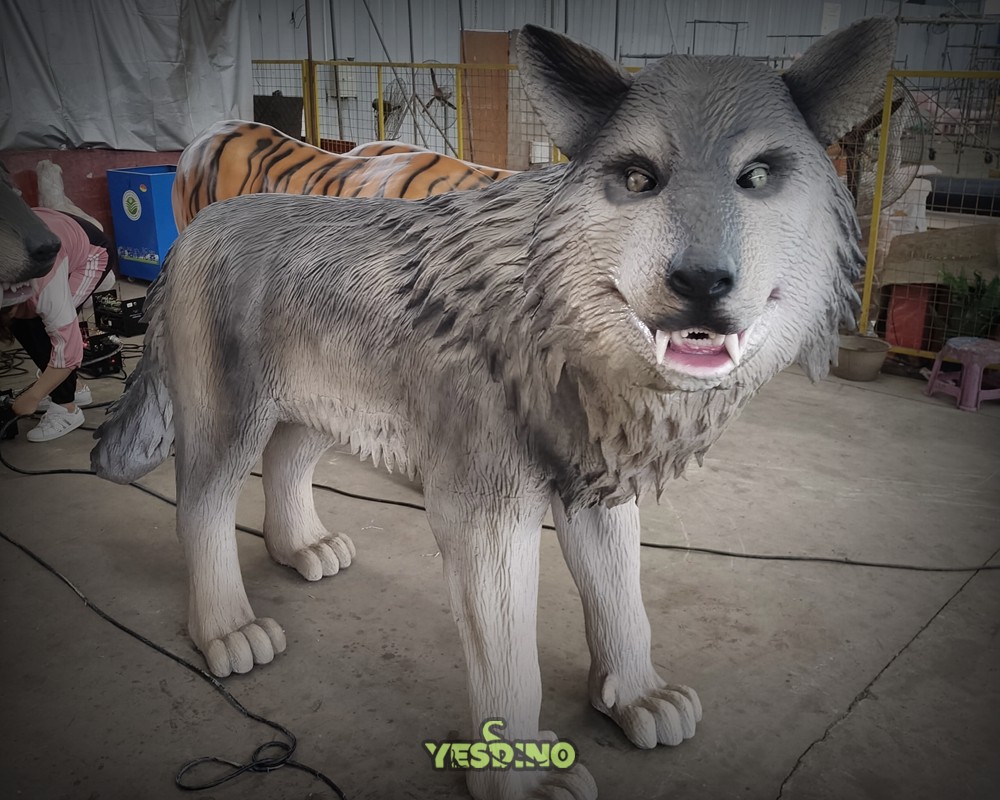

Lifelike Animatronic Wolf Model (SKU: YAA-004)
A 1:1 Biometrically Accurate Replica for Immersive Ecological Exhibits & Educational Experiences
2m Long, 1.2m Tall
True 1:1 wolf proportions—2m length, 1.2m height, with customizable dimensions (±0.3m tolerance).
Multi-Material Construction
Steel frame + 35kg/m³ high-density foam + food-grade silicone (Shore A20-A30) for realism and durability.
High-Precision Servo System
6-axis servo motor system enabling 8 distinct biomechanical movements for a truly lifelike performance.
Advanced Motion & Control Capabilities
Cutting-edge technology driving lifelike, dynamic performances
Skeleton System
Aerospace-grade aluminum alloy lightweight frame (5:1 load ratio, ≤80kg), with impact resistance ≥150MPa.
Exterior Sculpting
3D-scanned from real wolf specimens, sculpted with fire-retardant foam (≤1mm error), and finished with medical-grade silicone vacuum casting.
Drive & Control
Micro-servo motor array (0.5N·m torque, 0-60rpm speed), multi-channel sensor feedback for real-time posture (±2° accuracy).
Interactive System
Dual-mode Bluetooth 5.0/Wi-Fi 6 control, APP-programmable for 12 action sequences, compatible with IR sensor triggers (3-5m range).
Technical Specifications
Standard Dimensions
L2000×W800×H1200mm (Customizable range: L1500-3000mm, H900-1800mm)
Weight
Standard: approx. 80kg (with motor & battery). Custom weight increases linearly with size (≤150kg).
Motion Performance
12 movable joints (head/neck 3-axis, limbs 6-axis, tail 3-axis). Head rotation ±90°/s, tail wag 0.5-2Hz.
Power Supply
AC 220V (standard) / DC 24V Lithium battery (4h runtime, optional). Power consumption ≤300W.
Environmental Tolerance
Operating temperature: -10°C~40°C, Humidity ≤85%RH, IP54 rating (dust & splash resistant).
Lifespan Metrics
Motor continuous operation life ≥5,000h. Fur UV resistance Level 4 (no significant fading for 2 years outdoors).
Applications & Benefits
Delivering impactful engagement across diverse venues
Science & Education
Perfect for natural history museums and educational bases. Enhances knowledge retention by 30% when paired with AR guides showcasing pack migration.
Tourism & Entertainment
Drives visitor engagement in theme parks (e.g., "Wilderness Adventure" zones) and scenic areas, as documented in a Hulunbuir project attracting 120,000+ annual visits.
Commercial & Media
Used in high-end retail displays and as safe alternatives for live animal filming, reducing documentary production insurance costs by 40%.
Configuration & Operational Guide
Expert setup and maintenance for optimal performance
Pack Display & Configuration
Based on wolf pack sociology, deploy groups of 3 ("hunting pack") or 5 ("family group"). Density recommendation: ≤2 units per 10㎡.
Scene Integration
Integrate with AR guide systems to trigger 3D migration animations, boosting educational memory retention by 30%.
Maintenance Protocol
Inspect and lubricate motor gears every 500 operating hours (recommended: Mobil SHC 624 grease). Clean fur quarterly with neutral detergent. Avoid direct sunlight to prevent UV degradation.
Important Notice
Final presentation may vary due to on-site lighting, spatial constraints, and specific customization preferences. The actual product's visual/audio presentation may have slight differences from promotional materials. Specific configurations (motion programming, material finish) are subject to final project confirmation. For accurate technical specifications and project references, please contact us directly.
