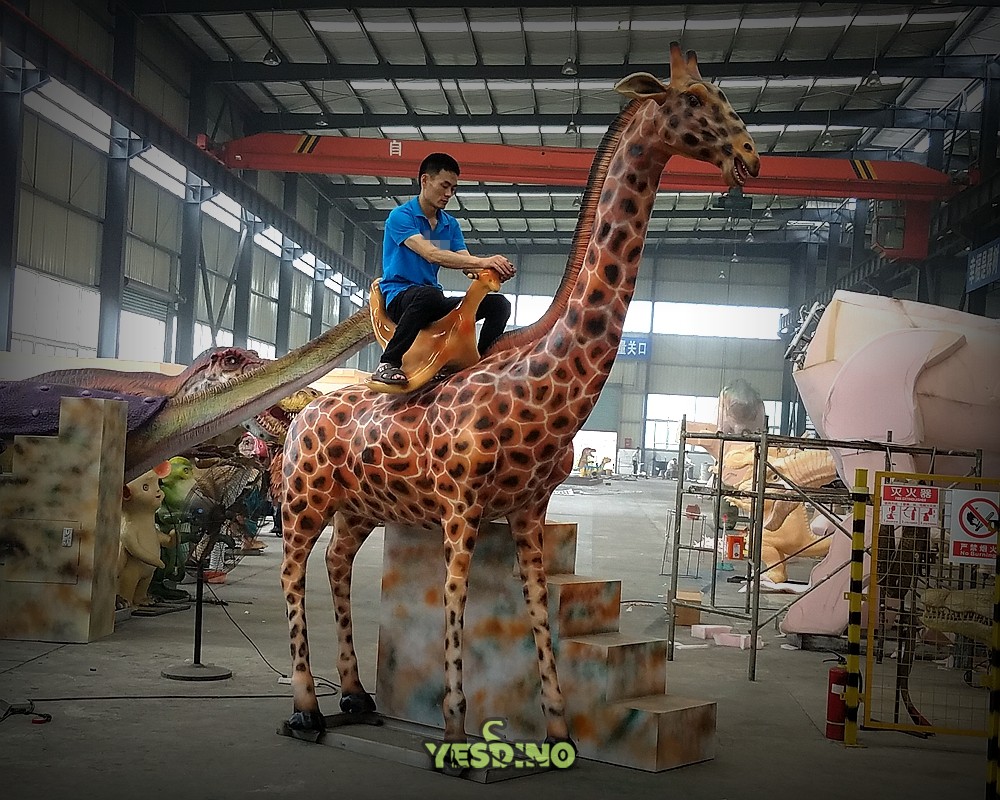

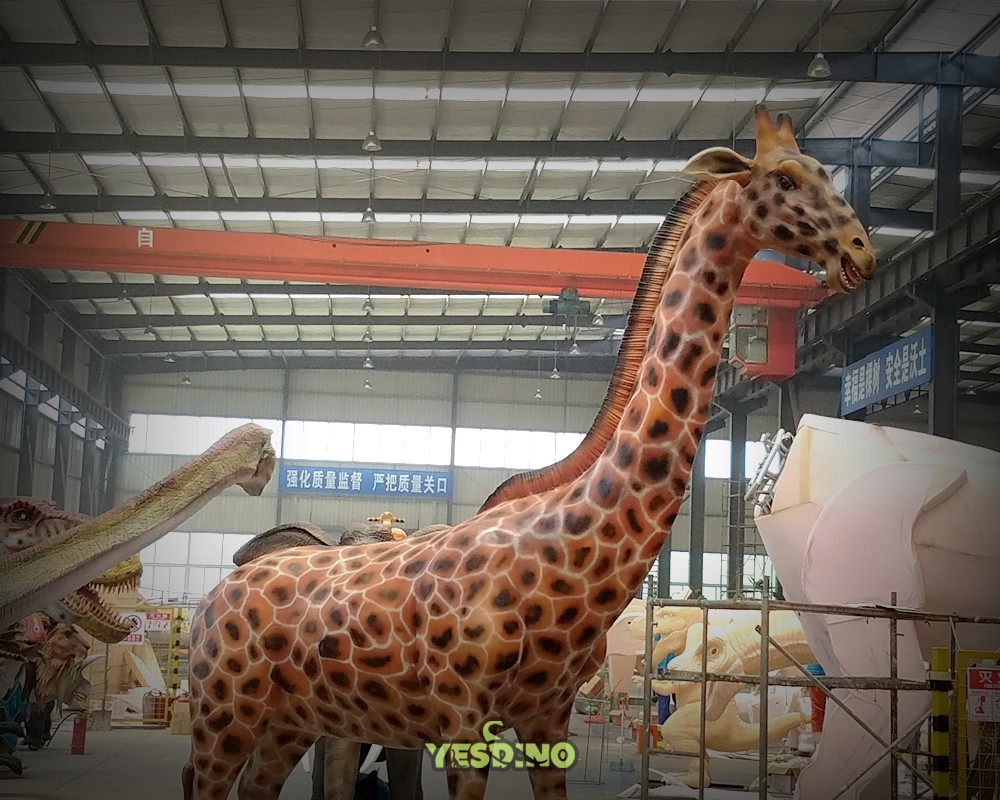

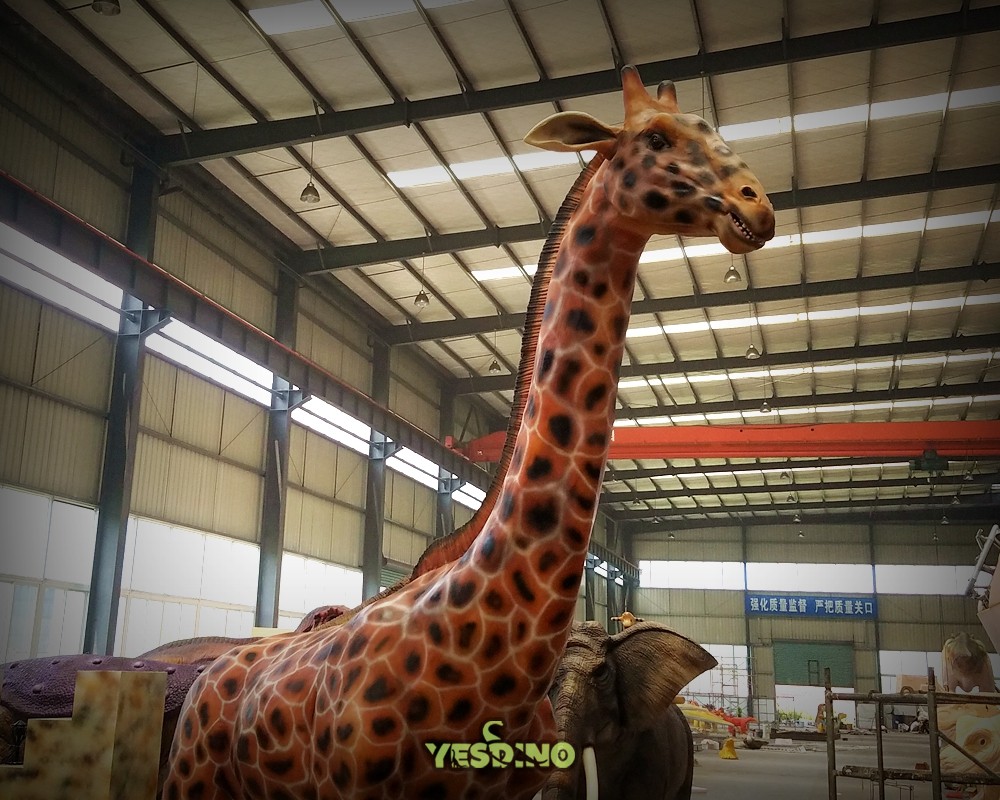

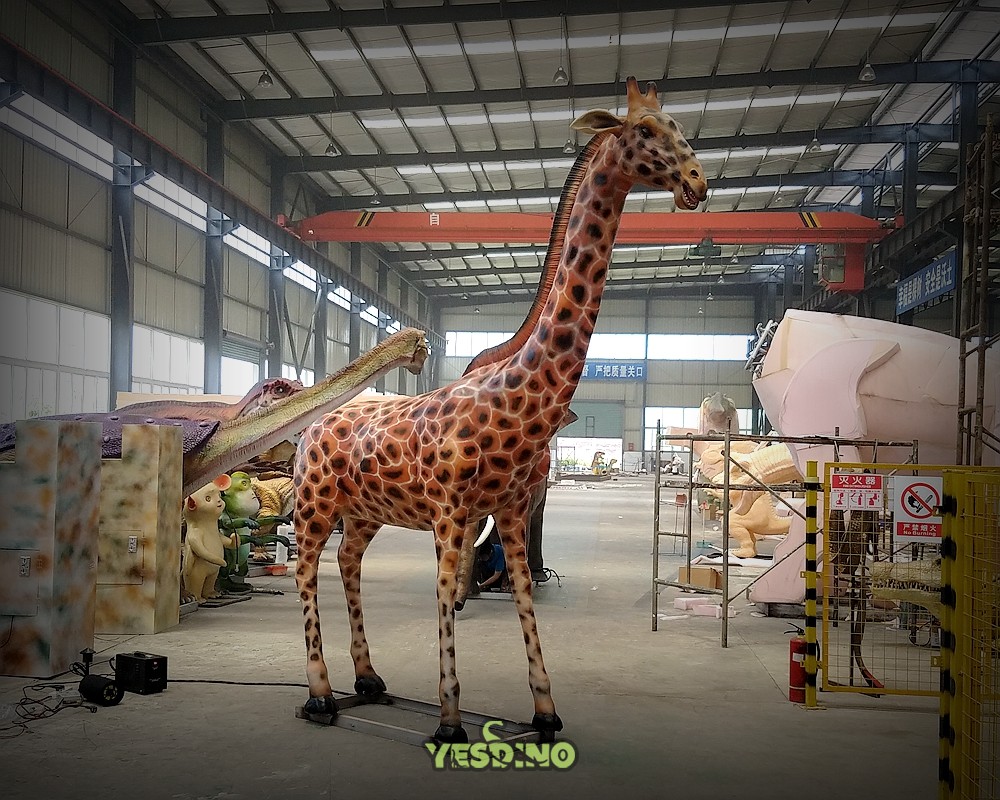

YAA-005 Full-Scale Dynamic Simulation Giraffe Riding Device
Engineered for Immersive Commercial Entertainment with Unmatched Reliability and Lifelike Realism
6m×4.5m Golden Ratio
Professionally engineered dimensions following the golden ratio for optimal aesthetics and stability, with an 800kg load-bearing capacity verified by ANSYS finite element analysis.
Certified Safety & Durability
Manufactured to ISO 9001 & GB/T 19001-2016 standards. Features 3mm silicone skin compliant with EU EN71-3 safety certification, built for high-frequency commercial operation.
High-Capacity Operation
Designed for commercial venues with heavy foot traffic, supporting a maximum load of 150kg per 30-minute session for consistent, reliable performance.
Core Technologies
Advanced engineering delivering lifelike motion and intelligent control
Bionic Motion System
5-axis synchronized mechanism: Head (±45°), Neck (180° swing), Tail (120° swing) for fluid, natural giraffe movement.
Intelligent Control Platform
Powered by an STM32H743 master control chip, supporting TCP/IP protocol for seamless remote monitoring and diagnostics.
High-Precision Sensing
Hall-effect angle sensors ensure motion accuracy to within ±0.5°, guaranteeing smooth and responsive rider interaction.
Quiet & Efficient Drive
24V/200W brushless DC motor group operates at ≤55dB(A) from 1m, with low energy consumption (0.8 kWh/day idle, 2.4 kWh peak).
Technical Specifications
Physical & Power
Dimensions: 6000mm (L) × 4500mm (H) (Golden Ratio Design)
Structural Load: 800kg (ANSYS Verified)
Structural Load: 800kg (ANSYS Verified)
Drive System
Power Unit: 24V/200W Brushless DC Motor Group
Energy Use: 0.8 kWh/day (Idle), 2.4 kWh (Peak)
Energy Use: 0.8 kWh/day (Idle), 2.4 kWh (Peak)
Control & Interface
Master Controller: STM32H743
Communication: TCP/IP Protocol for Remote Monitoring
Communication: TCP/IP Protocol for Remote Monitoring
Materials & Build
Frame: Structural Steel (Q345B)
Skin: 3mm Food-Grade Liquid Silicone (Shore Hardness 25A, EN71-3 Certified)
Skin: 3mm Food-Grade Liquid Silicone (Shore Hardness 25A, EN71-3 Certified)
Performance & Safety
Noise Level: ≤55dB(A) @ 1m
Ingress Protection: IP65
Operating Temp: -20°C to 50°C
MTBF: ≥10,000 Hours
Ingress Protection: IP65
Operating Temp: -20°C to 50°C
MTBF: ≥10,000 Hours
Sensor System
Hall-Effect Angle Sensor with ±0.5° Accuracy
Application Scenarios
Engineered for diverse commercial, educational, and entertainment environments
Eco-Theme Parks
Proven to handle 300+ riders daily. Enhances visitor engagement and dwell time with its captivating, lifelike presence.
Commercial Complexes
Ideal for thematic displays. Integrated infrared sensors trigger specific behavioral modes (e.g., looking, calling) to attract crowds.
Film & Media Production
Compatible with 24fps motion capture systems for synchronized on-screen action, providing a safe and controllable animatronic actor.
Professional Deployment Guide
Essential guidelines for installation, power, and maintenance
Foundation Requirements
Requires a C25 concrete base with compressive strength ≥30MPa, designed for stability and load distribution.
Electrical Configuration
Dedicated 16A leakage protection circuit. An Uninterruptible Power Supply (UPS) is recommended for backup power to prevent sudden stops.
Maintenance Schedule
Replace gearbox lubricant every 500 operating hours. We recommend using Mobil SHC 634 grease for optimal performance and longevity.
Important Notice
Product presentation is based on standard test conditions (25°C, 60% humidity). Final on-site visual and performance effects may vary due to installation environment, lighting, and configuration. The physical product may differ from promotional materials. We strongly recommend requesting a Factory Acceptance Test (FAT) prior to purchase. All final technical specifications are subject to the signed technical agreement. For accurate and detailed information, please contact our sales team.
