Ice Age Animatronic Mammoth | 3D Model Dynamic Sculpture

Name: Ice Age Animatronic Mammoth | 3D Model Dynamic Sculpture
Brand: Yes Dino
Availability: InStock
Rating: 4.3 (19 reviews)

SKU	YAA-024
Product Name	Animatronic Woolly Mammoth 3D Model
Dimensions	The curve length is 8 meters, and the height is 6 meters
Key Movements	Nose curling, head left and right movement, ear flapping, open mouth, and emit a roar.
Customization	Size, design, movements, and color.
Control System	This Mammoth 3D Model is crafted with some stylistic changes based on the Woolly Mammoth character Manny from the Ice Age movie. While ensuring a high level of realism, it is still capable of simulating various movements characteristic of a woolly mammoth. Due to its enormous size, for shipping purposes, the legs and body are separated into two parts. Upon reaching the customer's destination, assembly is straightforward with our professional guidance. No worries, we make the installation process simple.
Applications	Ice Age Animal Exhibition, Zoo, Museum, Park, Scenic Area.

Add to Quote

Product Description

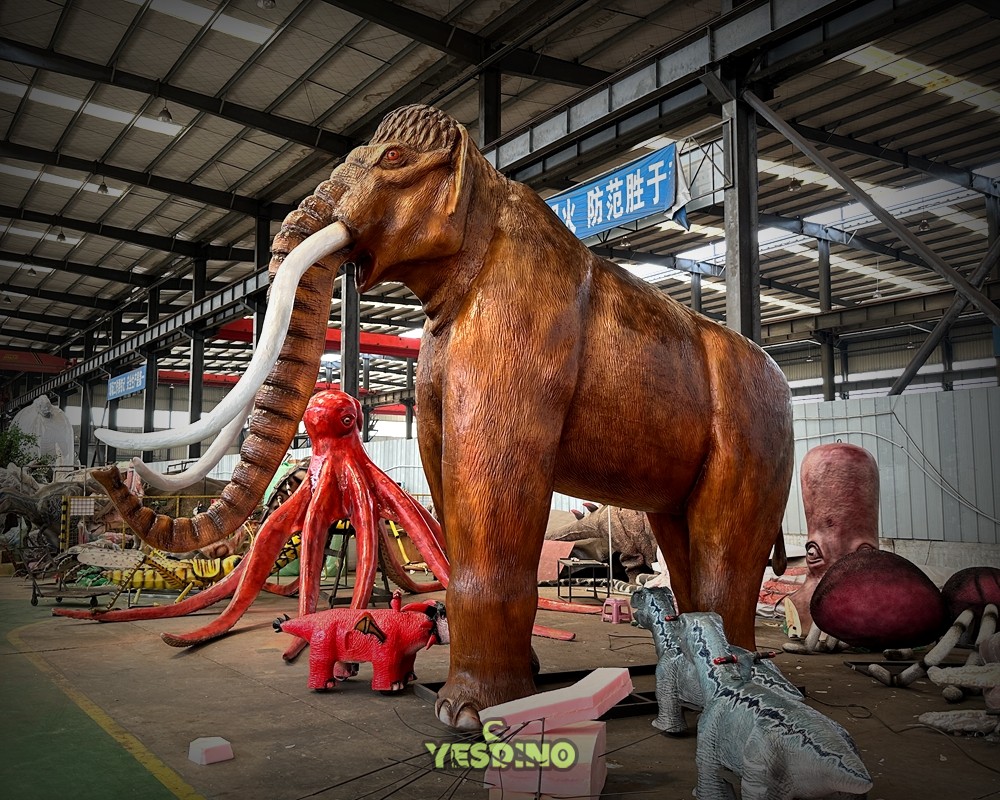

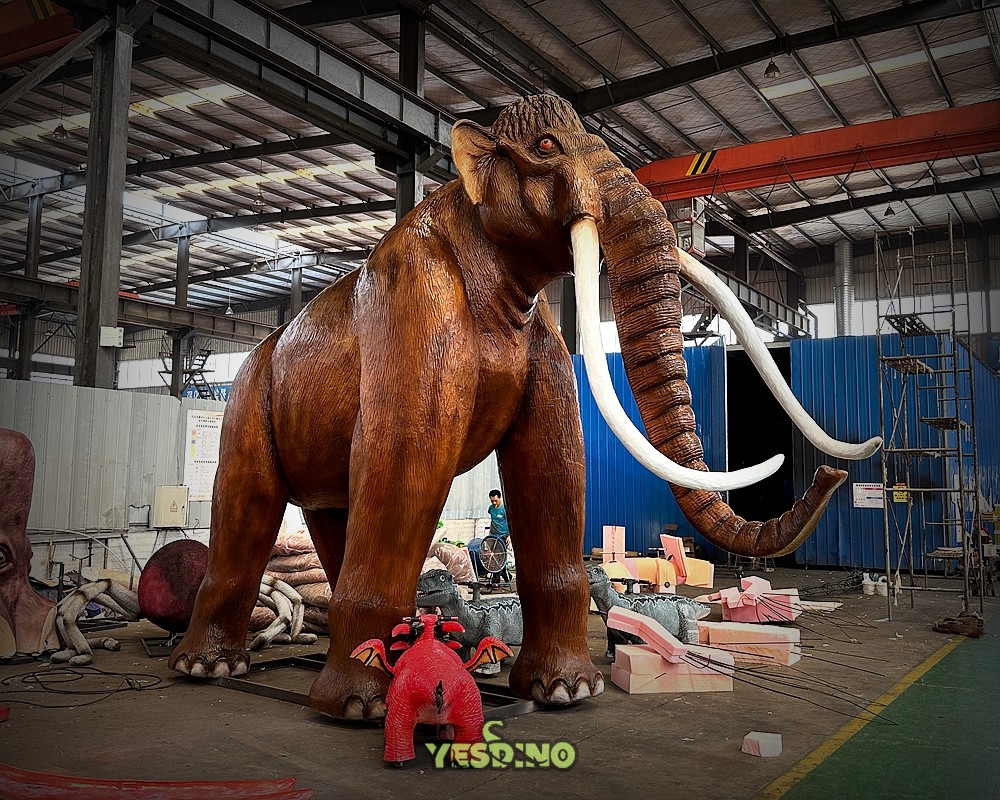

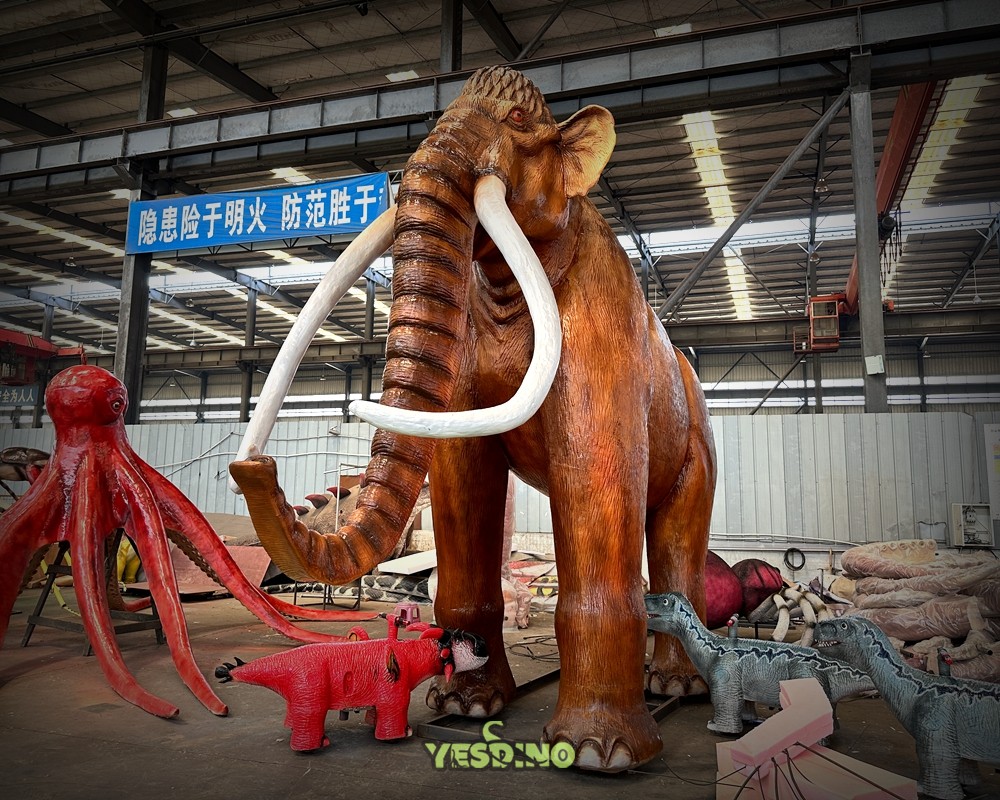

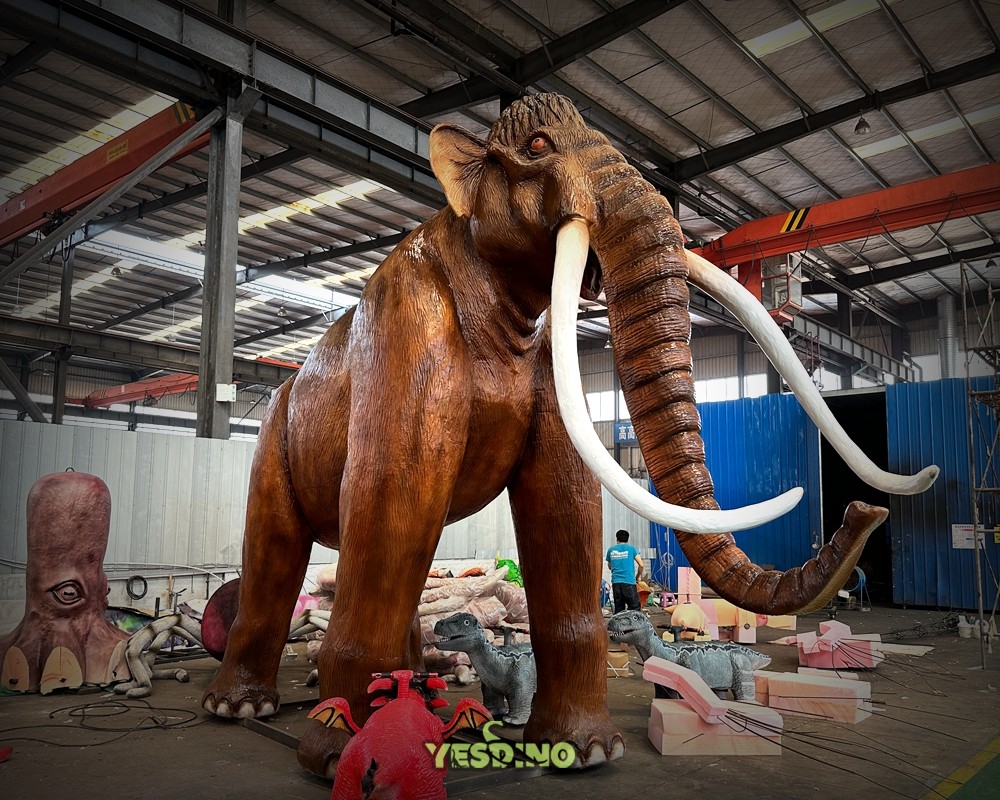

Ice Age Mammoth Dynamic Sculpture (Model YAA-024)

A Paleontologically-Inspired, 1:1.5 Scale Masterpiece with Multi-DOF Dynamics for Immersive Thematic and Educational Environments

8m Long, 6m Tall

Artistic 1:1.5 scale reconstruction—8 meters (26.2 ft) in curved length, 6 meters (19.7 ft) in height, with a robust internal steel frame reflecting prehistoric proportions.

Dual-Mode Skin Technology

Economical 3mm silicone flocking (2000-hr xenon aging test) or high-end simulated fur (40 fibers/cm², B1 flame retardant) for outdoor durability (IP65) and realistic touch.

Modular & All-Weather

Modular transport (max 3×2.5×2m³ per part) with patented buckle assembly—2 engineers complete setup in 4 hours. Rated for -25°C to 50°C outdoor operation.

Precision Engineering & Artistic Reconstruction

Paleontologically Accurate Design

Based on paleontological data (approx. 4m shoulder height, 6-12 tons weight) and scaled 1:1.5. Features iconic Manny from the "Ice Age" franchise, combining scientific reference with artistic character appeal.

Advanced Skin & Fur Simulation

Choose between durable silicone flocking (3mm±0.2, IP65 rated, 2000-hour xenon aging test) or premium simulated fur (40 fibers per square cm, SGS-certified B1 flame retardant, ≤15% tactile simulation error).

Modular Quick-Install System

Body and limbs shipped separately (max single piece: 3×2.5×2m³). On-site assembly uses patented buckle structures—fully operational within 4 hours by 2 engineers.

Intelligent Control Hub

PLC with IoT module for programmable motion sequences and synchronized light & sound effects (integrated 150dB low-frequency acoustic generator).

Advanced Motion & Interaction

Multi-DOF biomechanical system recreates lifelike prehistoric behaviors

Bionic Trunk & Jaw Motion

7 servo motors (20N·m torque) control trunk curling (±45°), jaw opening (80°), and ear flapping (1.2Hz) for complex, lifelike movements.

Expressive Head Movement

Head sway ±30° with coordinated ear flaps (40cm amplitude)—simulates alertness and environmental interaction.

Immersive Acoustic Experience

Integrated 150dB low-frequency sound generator—produces deep, resonant calls that match motion sequences for full sensory immersion.

Quick Deployment

Modular design with patented connection system—reduces on-site assembly to 4 hours by 2 engineers, minimizing venue downtime.

Technical Specifications

Physical Dimensions

L8000×W~×H6000mm (curved length) / Total weight: 1850kg (without foundation)

Power System

220V/380V dual-voltage adaptive

Control System

PLC with IoT module, supports motion sequencing and synchronized audio/lighting effects

Motion Range

Head sway: ±30° / Ear flap amplitude: 40cm / Trunk curl: ±45° / Jaw opening: 80°

Materials & Durability

Skin: Silicone flocking (Shore A 40±2) or simulated fur / Frame: Steel / IP65 rating, operating temperature: -25°C to 50°C

Safety & Standards

Designed for 9-level wind resistance (23m/s) / Fur: B1 flame retardant (SGS certified)

Applications & Benefits

Engineered for high-traffic venues seeking durability, engagement, and scientific storytelling

Themed Entertainment Excellence

Universal Studios-level live shows—proven with >500 daily interactions, increasing visitor dwell time significantly.

Educational & Museum Display

Complies with GB/T 30235-2013 exhibition standards—ideal for natural history museums and science centers for paleontology education.

Tourism Landmark & Attraction

2023 China Tourism Equipment Technology Innovation Award winner—perfect as a landmark entrance sculpture for theme parks and cultural sites.

Installation & Maintenance Guide

Professional setup and maintenance for optimal long-term performance

Outdoor Foundation

Requires concrete base depth ≥800mm, strength C30, with anti-overturning design for 9-level wind resistance (23m/s).

Indoor Setup

Reserve ≥3㎡ equipment room for control cabinet. Ambient lighting >300lux recommended to highlight fur/skin details.

Maintenance Schedule

Gearbox lubricant change every 2000 operational hours. Silicone layer: reapply nano anti-fouling coating every 5 years.

Important Notice

Final visual and audio effects may vary due to on-site lighting, viewing distance, and configuration parameters. The actual presentation may differ slightly from promotional materials. All specifications (motion precision, acoustic details) are subject to final project confirmation and on-site acceptance. For accurate and detailed information, please contact us directly for customized technical documentation and project references.
