Animatronic Elephant Model | Customizable Parks & Restaurants

Name: Animatronic Elephant Model | Customizable Parks & Restaurants
Brand: Yes Dino
Availability: InStock
Rating: 4.3 (16 reviews)

SKU	RAA-009
Product Name	Lifelike Animatronic Elephant Models
Dimensions	Straight line length: 2m, Height: 1.8m, Any size can be customized.
Key Movements	Flapping ears, curling nose, blinking eyes, roaring with open mouth, wagging tail, and shaking front legs.
Control System	This is a lifelike animatronic little elephant, with its skin made from silicone. Thanks to the high-density sponge used for sculpting the exterior and the silicone skin, it feels just like touching a real elephant's skin. Additionally, it's equipped with a DC motor inside, enabling it to imitate the movements of an elephant, making it appear incredibly realistic.
Applications	Zoos, large-scale animal exhibitions, children's amusement parks, museums and so on.

Add to Quote

Product Description

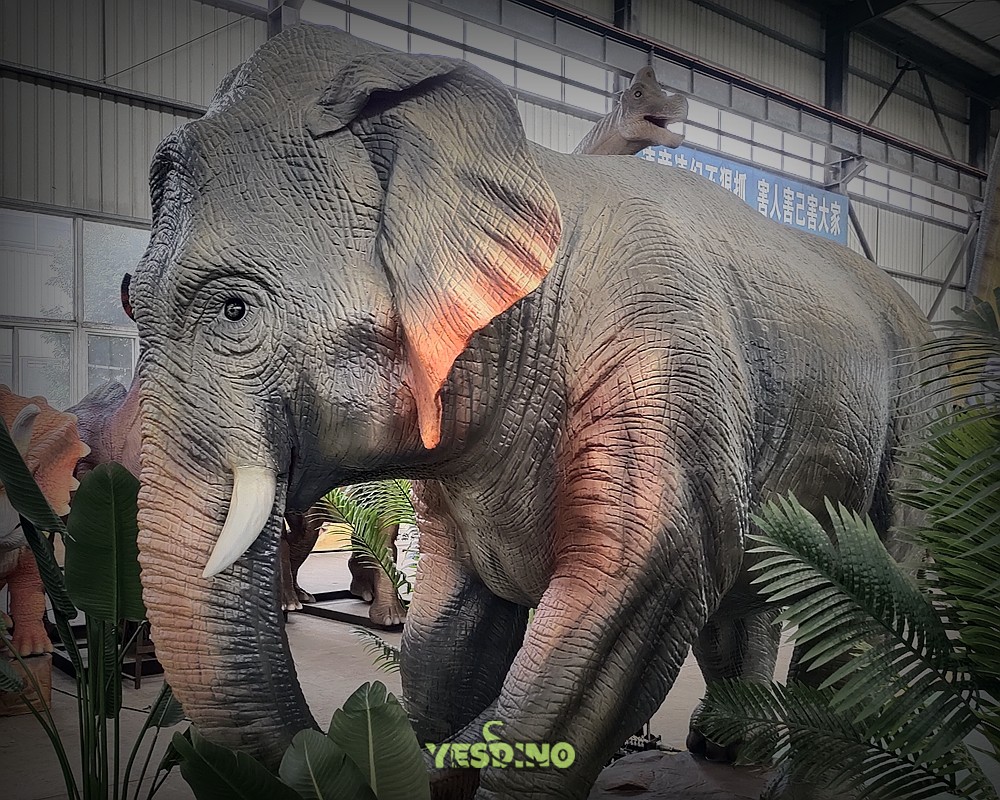

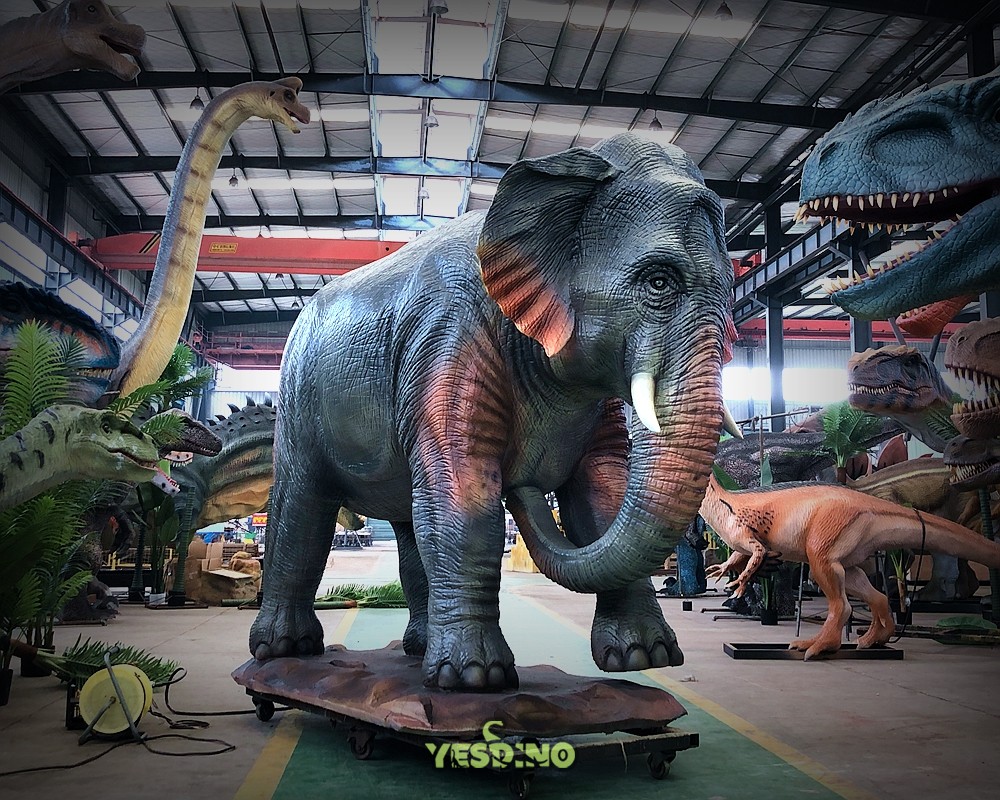

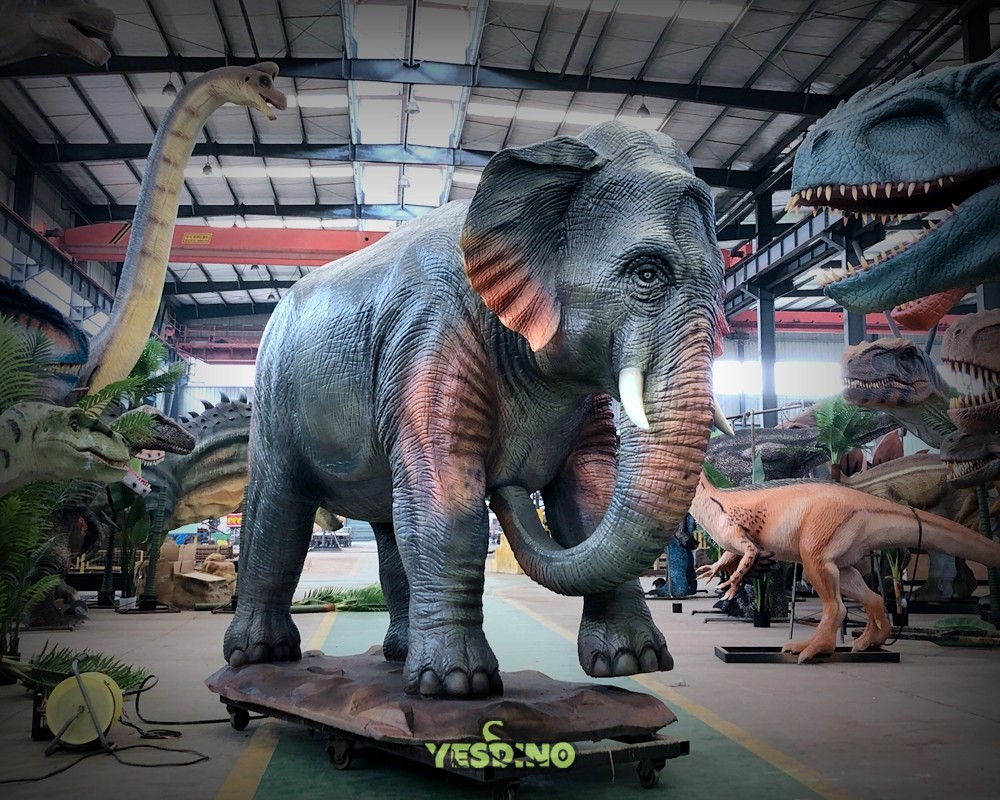

RAA-009 Bionic Robotic Elephant Model

A High-Fidelity, Interactive Animatronic Engineered for High-Traffic Immersive Experience Scenarios

2.0m Long, 1.8m Tall

Industry-standard base size: 2.0m (L) x 1.8m (H) x 180kg (W). Features a durable 6061-T6 aerospace aluminum alloy chassis, built for high-visitor-volume environments.

Food-Grade Silicone Skin

0.8-1.2mm platinum-cured liquid silicone over 30kg/m³ flame-retardant foam. Retains 90%+ flexibility after 2000-hour accelerated aging tests for long-term, safe operation.

Robust Environmental Rating

IP54 ingress protection—operates reliably in temperatures from -10°C to 45°C with a documented operational failure rate of less than 0.5%.

Engineered for Lifelike Realism

Unmatched Biological Fidelity

Silicone skin features micro-molded authentic elephant skin texture with pore resolution down to 50µm. The platinum-catalyzed vulcanization process ensures superior UV resistance, rated to ISO 4892-3 Level 4.

High-Precision Dynamic Motion

Equipped with a 6-axis high-torque servo motor system, delivering 120° trunk articulation, 15N of traction force, and variable ear flapping at 0.5-2Hz for authentic, engaging movement.

Intelligent Interaction Systems

Integrated smart sensor network includes a Pyroelectric Infrared (PIR) sensor for motion activation (5m range) and an ambient light sensor for automatic response across 10-100,000 lux.

Efficient Power Architecture

DC 24V/80W low-power design consumes ≤5W in standby mode, offering high performance with minimal operational costs. Features CE, ROHS, and FCC safety certifications.

Advanced Motion & Control

Sophisticated mechatronics enabling complex, fluid, and interactive behaviors

Multi-Modal Motion Control

CAN-bus integrated with 7 stepper motors (±0.1° positioning accuracy) for complex, programmable, and synchronized movements.

Expressive Trunk Articulation

High-torque servo system enables a 120° bending range with 15N of force, capable of lifelike grasping, waving, and interactive behaviors.

Realistic Ear & Tail Motion

Independently programmable ear flapping (0.5-2Hz) and tail swings, adding a vital layer of biological authenticity to the model's presence.

High-Efficiency Drive

Powered by Japan-made Oriental Motor PKP series motors (0.64N·m rated torque) for quiet, reliable, and precise actuation, operating below 60dB at 1m.

Technical Specifications

Physical Dimensions

Base Model: L2000 x H1800 x W900mm, Scalable to custom dimensions. Weight approx. 180kg.

Power System

DC 24V / 80W (Peak), Standby Power Consumption ≤5W. Recommends dedicated 16A circuit with 20% power reserve.

Control System

STM32H743 Main Controller (480MHz), CAN Bus protocol. Supports remote programming and interactive behavior updates.

Construction & Materials

Frame: 6061-T6 Aerospace Aluminum Alloy (≥310MPa tensile strength). Skin: Food-Grade Liquid Silicone (0.8-1.2mm).

Safety & Durability

IP54 Rated. CE/ROHS/FCC Certified. Noise Level<60dB @1m. Operable temperature: -10°C to 45°C.

Motion Specifications

Trunk: 120° bend, 15N force. Ears: 0.5-2Hz flap frequency. 7-axis programmable motion system.

Applications & Proven Impact

Delivering measurable engagement and value for diverse immersive venues

Immersive Dining & Entertainment

Themed Restaurants & High-Traffic Attractions: 6 units at a Thailand venue increased average guest dwell time by 40%. Ideal for venues with instantaneous densities ≥50 persons/m².

Educational & Museum Exhibits

Natural History & Science Centers: 3 full-scale models at Shanghai Natural History Museum average 1200+ daily interactive triggers, significantly boosting educational engagement.

Durable Low-Maintenance Design

Engineered for continuous operation with quarterly silicone surface treatment and gearbox lubrication every 2000 hours. The IP54 rating ensures reliable performance in varied indoor climates.

Professional Deployment & Customization

Expert guidance for optimal installation, interaction, and maintenance

Layout & Interaction Planning

Optimal interactive radius ≤15m per unit. For cluster deployment, maintain >3m between units to prevent signal interference. Use 2000-4000K lighting to enhance skin texture.

Electrical & Site Requirements

Requires a dedicated 16A power circuit with 20% overhead. Install on a level surface (recommended flatness error<3mm/m) for optimal motion performance and stability.

Scheduled Maintenance

Quarterly: Silicone skin anti-fouling treatment. Every 2000 Operational Hours: Gearbox lubrication with high-grade grease (e.g., Mobil Polyrex EM). Annual system checkup recommended.

Important Notice

Due to variances in custom fabrication, the actual product's skin texture and color may have reasonable deviations (color difference ΔE ≤ 3). Motion performance is dependent on installation base flatness (recommended<3mm/m error). Final specifications are subject to the signed Technical Confirmation Agreement. Visual and performance effects may differ from promotional materials. For accurate and project-specific information, please contact our technical team.
