Custom Ani Fire Tiger Model | Myth Eff | Pro Show

Name: Custom Ani Fire Tiger Model | Myth Eff | Pro Show
Brand: Yes Dino
Availability: InStock
Rating: 4.6 (13 reviews)

SKU	YAA-021
Product Name	Animatronic Fire Tiger Model
Dimensions	The curve length is 10 meters and a height of 6 meters (including the base)
Key Movements	Open mouth to roar, shake head, eyes blink and shine, shook tail
Customization	Movement, size, posture, color and lighting effect
Control System	The surface of this Fire Tiger model is adorned with decorative elements resembling flames and smoke. These components, crafted from sponge and silicone, enhance the visual appeal. Additionally, we've incorporated a base that resembles a mountainous terrain, creating a dynamic scene where the tiger appears poised for an imminent attack. Combined with the simulation of various tiger movements and roaring sounds, the atmosphere is truly immersive and captivating.
Applications	Mythological Story Exhibition, Night Tour of Themed Cultural Street, Theme Park, Zoo.

Add to Quote

Product Description

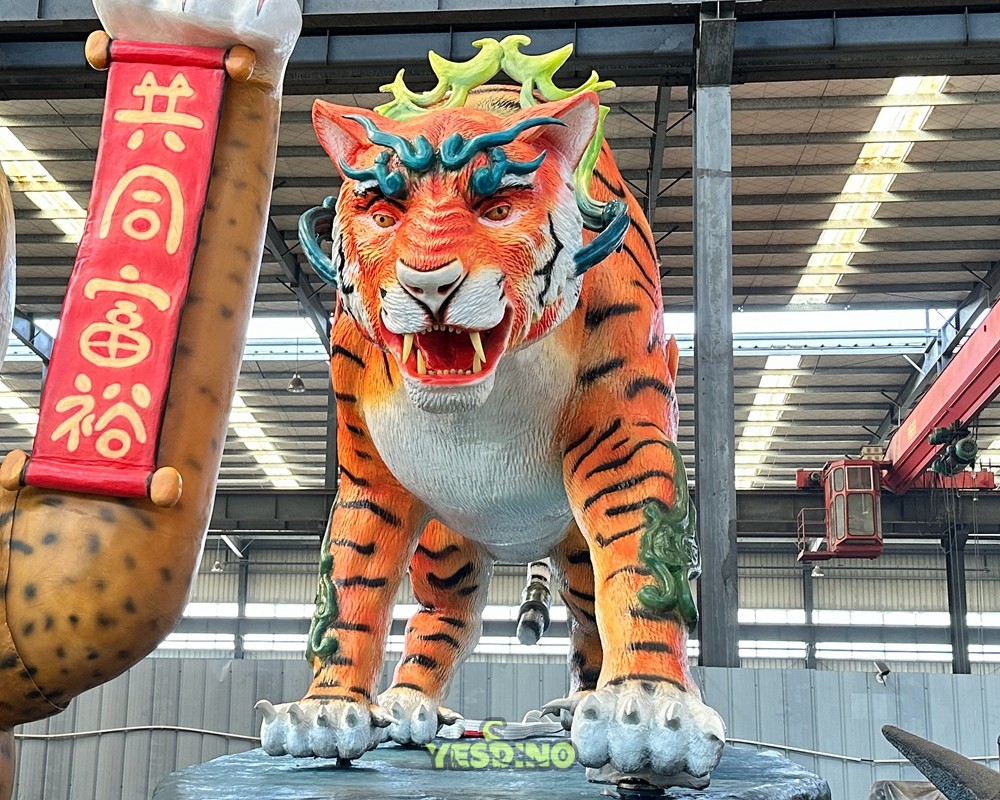

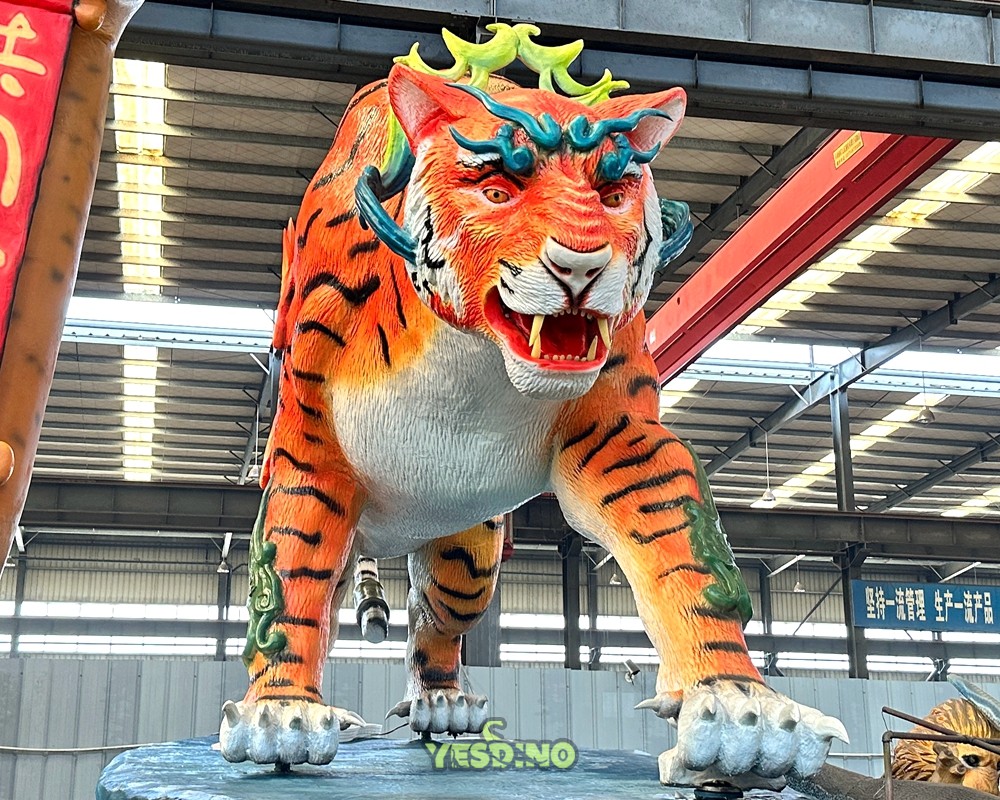

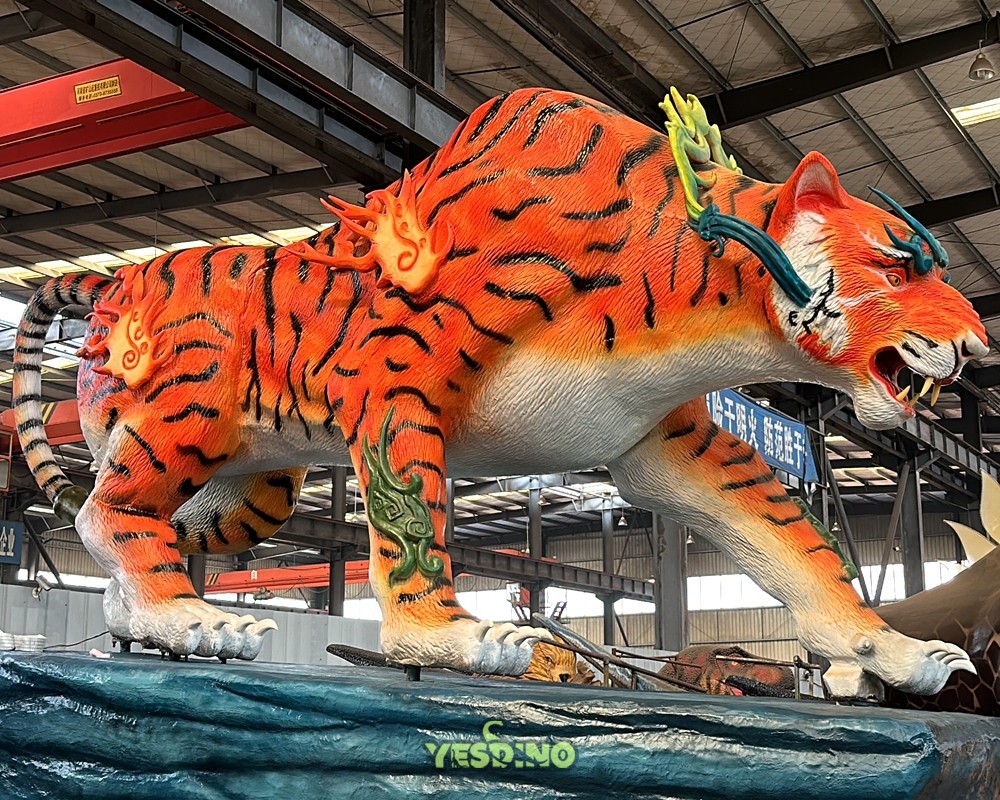

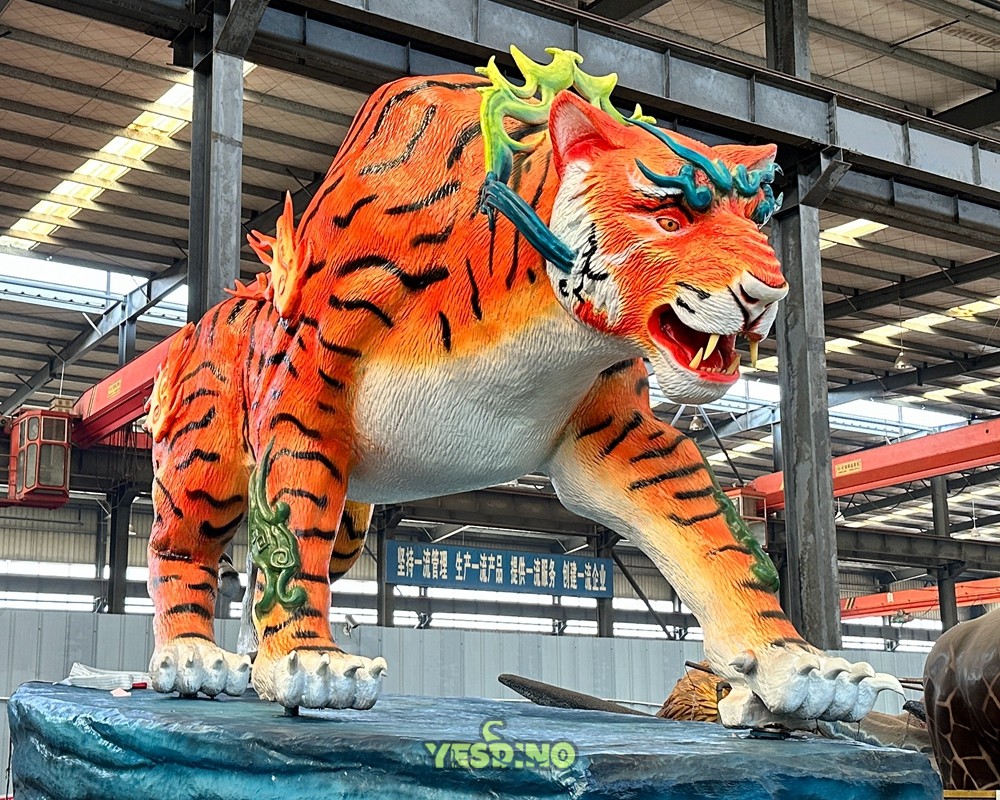

YAA-021 Mechanical Fire Tiger Model

A 10-Meter-Scale Dynamic Sculpture with Military-Grade Framework & Immersive Bionic Motion, Engineered for All-Weather Spectaculars

10m Long, 6m High

Monumental dimensions—10m (32.8ft) curved length, 6m (19.7ft) height including a 1.2m granite base, commanding a powerful outdoor presence.

Robust Composite Build

Military-grade steel frame with high-density flame-retardant foam composite, surfaced with ≥3mm food-grade liquid silicone for durability and safety.

All-Weather Performance

IP65 environmental rating for reliable operation from -20°C to 50°C. Flame-effect components certified for 180-second fire resistance (GB/T 2408 standard).

Engineered for Realism & Impact

High-Fidelity Motion

Features 7 groups of servo motors powering four core bionic motions. The head achieves a precise ±35° swing (error ≤0.5°), while the tail executes a lifelike wave-like undulation (frequency adjustable 0.2-1Hz).

Immersive Sensory System

A built-in 120dB directional speaker (80Hz-15kHz) paired with an infrasonic vibration module (20-60Hz) creates a deeply visceral and intimidating auditory experience.

Thermal & Haze Effects

Programmable LED matrix (16M colors) simulates dynamic flame effects. Integrated haze generator produces controlled smoke with 99% PM2.5 filtration for atmospheric enhancement.

Advanced Construction

CNC-carved (0.1mm precision) high-density foam base, followed by a triple-layer silicone spray (Shore hardness 40A-70A gradient) and finished with a UV-cured, grade-8 UV-resistant coating.

Advanced Motion Capabilities

Precision-engineered movements that bring the mythical beast to life

Articulated Head Motion

±35° swing with ≤0.5° error—delivers precise, lifelike scanning and tracking movements.

Fluid Tail Articulation

4-DOF tail vertebrae enable a natural, wave-like undulation (0.2-1Hz adjustable frequency) for dynamic expression.

Blinking Eyelid Mechanism

2-DOF eyelid movement with a 0.8-1.2 second cycle mimics realistic blinking, adding a crucial layer of biological authenticity.

Immersive Audio-Visual

120dB directional audio coupled with 20-60Hz infrasonic vibrations and programmable 16M-color LED flame effects for a full sensory experience.

Technical Specifications

Physical Dimensions

Curved Length 10,000mm × Height 6,000mm (includes 1.2m granite base)

Power System

220V/50Hz three-phase power; Peak power consumption 5.25kW

Motion System

Degrees of Freedom: Neck 3DOF / Tail 4DOF / Eyelids 2DOF. Powered by 7x Yaskawa SGMAH servo motors (750W each).

Construction & Materials

Frame: Q355B carbon steel (355MPa yield strength) with aviation aluminum joint bearings. Skin: High-density flame-retardant foam + ≥3mm food-grade liquid silicone coating.

Control & Safety

CAN bus distributed control system (<50ms response delay), Modbus TCP compatible for remote monitoring. IP65 rating, operational range -20°C to 50°C.

Weight

Approx. 3.2 tons (including counterweight base).

Applications & Benefits

Deployed in premier venues for maximum impact, engagement, and operational reliability

Theme Park Attraction

Deployed at Shenzhen Happy Valley in 2023, achieving a record single-day interaction count of 12,000 visitors, significantly enhancing guest dwell time and attraction popularity.

Cultural Exhibition Centerpiece

Operated flawlessly for 72 hours during the Dunhuang Cultural Expo (see third-party monitoring report No.DHIC-20230927), demonstrating exceptional reliability for prolonged events.

Film & Media Production

Used for special effects pre-visualization at Hengdian World Studios, contributing to a 37% reduction in live-action shooting costs for major productions (per producer assessment).

Customization & Installation Guide

Tailored solutions for your venue, backed by professional setup and support

Effect Upgrades

Optional CO₂ jet system (8m coverage radius) or infrared interactive sensor modules for enhanced audience engagement and special effects.

Installation Requirements

Foundation bearing capacity ≥150kPa. A 3m service access corridor must be reserved. Requires professional anchoring to the provided granite base.

Maintenance Schedule

Replace harmonic drive grease every 500 operational hours (Recommended: Mobil SHC 634). Regular inspection of electrical connections and silicone skin integrity is advised.

Important Notice

Due to variations in custom parameters (e.g., flame color schemes, mountain modeling), the physical product may exhibit visual deviations of up to ±15% from promotional imagery. The final presentation can be affected by on-site lighting, spatial layout, and configuration. Final technical specifications are subject to the signed "Mechanical Animatronic Customization Agreement." For accurate and detailed specifications, please contact our technical team.
