How an Animatronic T-Rex Is Built, Stage by Stage

A T-Rex takes longer than people expect, and the reason is not the size. It is that the head has to carry the most detail, the neck has to move it, and the skin has to be right at two metres as well as thirty.

This is what happens in a workshop between the drawing and the crate, in the order it happens.

1. The drawing decides the pose, and the pose decides everything

Work starts from proportions rather than from a picture that looks exciting. Skull length against body length, hip height against overall length, the angle of the neck. Scale all three axes together when a build is reduced for a site — scaling only the length gives an animal with a head that is too large, and visitors sense that without being able to say why.

The pose is fixed here. Head high reads as alert; head low and forward reads as hunting; a turned neck reads as looking at something. Each one changes the steel, so changing it later is a rebuild.

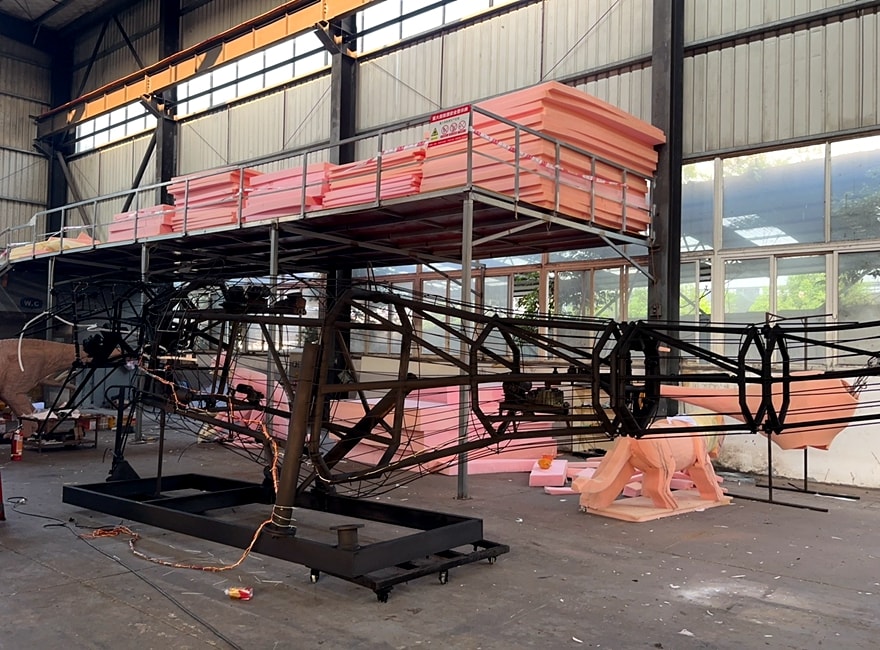

2. The frame: welded Q235 steel

A rigid spine with outriggers for the legs and a cantilever for the neck and tail. The frame carries the animal's weight, resists wind if the piece is outdoors, and takes whatever a visitor leans on. Service hatches go in at this stage — a frame built without them saves a day now and costs a day every time somebody needs to reach a connector.

The base is wider than the footprint by roughly a third on each side, because the load is not centred and a swinging tail adds leverage.

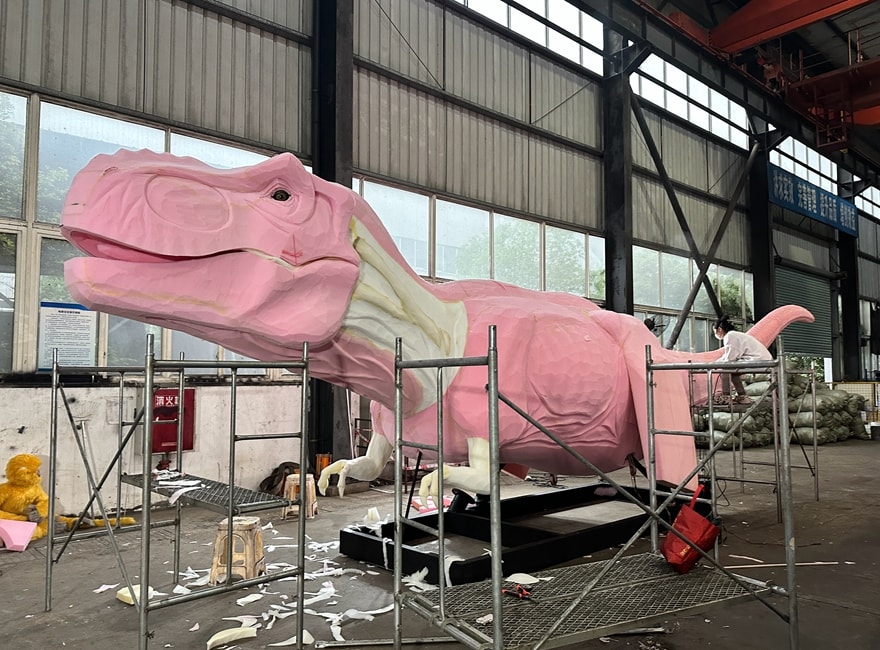

3. Carving: the silhouette carries at distance

Foam blocks are cut and carved to the drawing, then sanded. The material is cheap — for an eight-metre animal the foam is a minor line item — and the hours are not, because the shape comes from a person with a knife and a reference.

This is where the animal is won or lost at thirty metres. The slope of the back, the set of the hip, the thickness where the tail meets the body. Detail on the face matters later, at two metres.

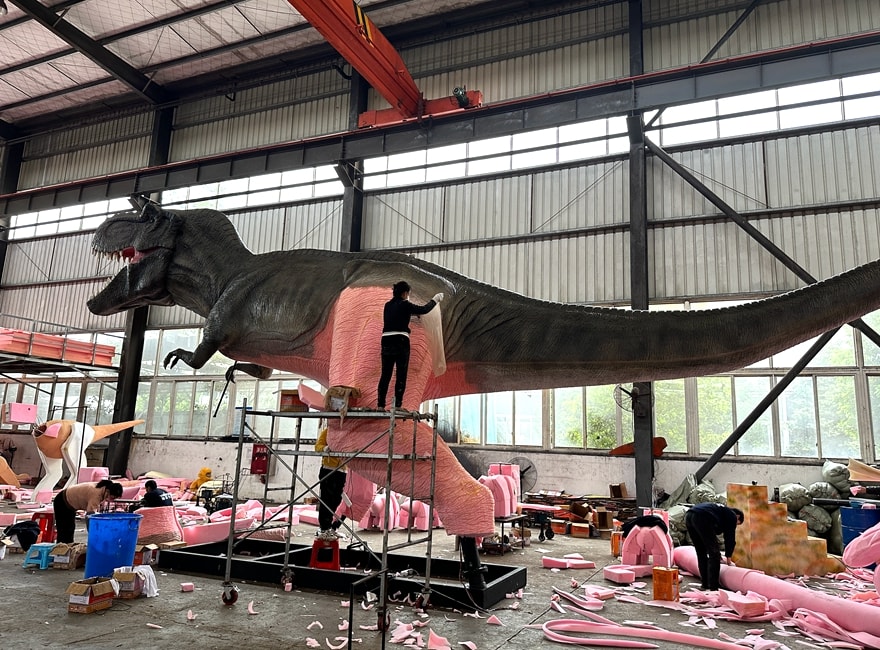

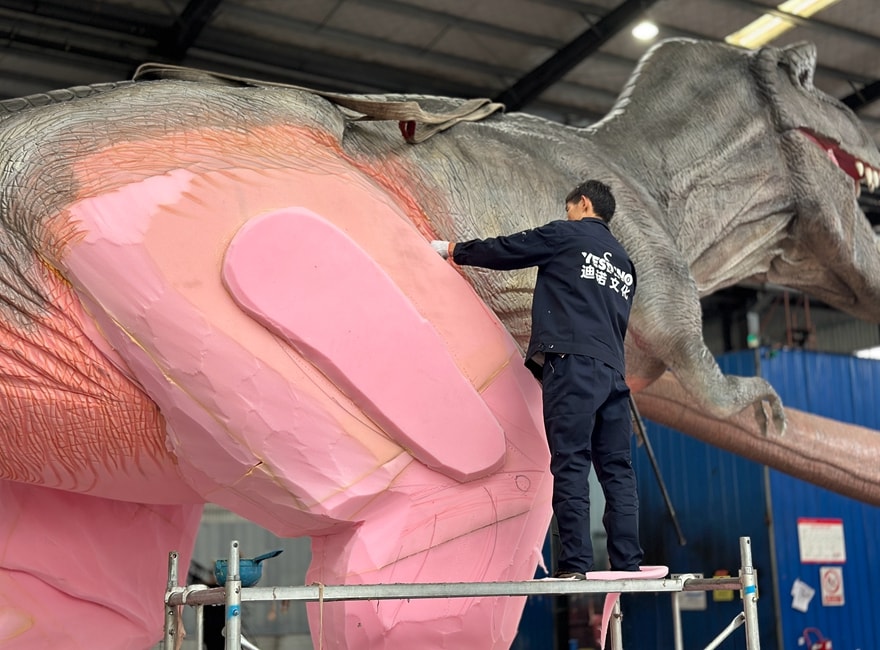

4. Skin: five to seven millimetres of silicone

Silicone goes on at five to seven millimetres — thin enough that the surface flexes slightly with the mechanism underneath, thick enough to survive handling and cleaning. Colour is built in layers: a base tone, then translucent passes so light passes through the edges of the jaw and the thin part of the tail, then detail on top.

Each pass cures before the next. That sequencing is the single largest labour item in the build, and it is the difference between a model and an animal in a photograph taken with flash. For an eight-metre piece the silicone material alone runs in the region of ¥4,500–5,000.

5. Mechanics and control

Most axes use a 450W brushed DC motor and gearbox, around ¥470–550 a set. A 1000W servo with its controller is roughly ¥3,300, six to seven times more, and it earns that only where a movement has to hold a precise position against load — a jaw closing to a fixed point, for example.

An STC89C52 drives relays that switch the motors. Simple and repairable, and enough for a scripted show. What visitors actually notice is the timing: a head that accelerates, holds and settles reads as alive, while one that turns at constant speed reads as a machine. That is a programming decision, not a hardware one.

6. Eyes, teeth and the details people photograph

At two metres the eyes carry more weight than the body. A domed eye with a wet look and a defined iris reads as alive; a painted sphere reads as a prop. Teeth want slight irregularity in colour and size — uniform white cones read as costume.

Neither item is expensive relative to the build, and both are routinely skipped to hit a price.

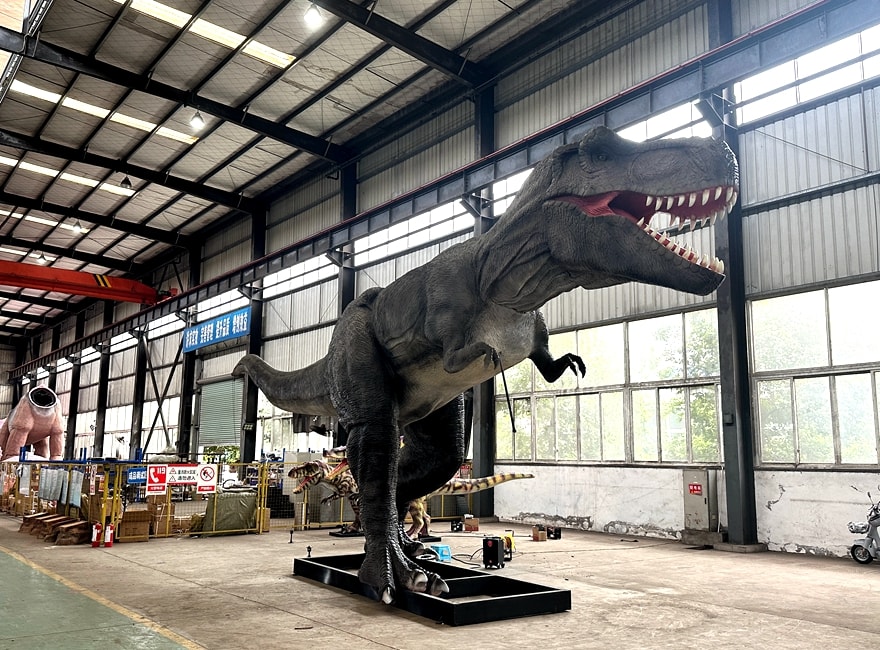

7. Testing, then the crate

The animal runs a full movement cycle for a few hours before it ships, which is when loose connectors and a rubbing cable show up. Above about six metres it also has to break into sections sized to the narrowest opening on the delivery route — not to the lorry.

Plan the route before the build, not after. Re-sectioning on site means cutting a finished skin.
