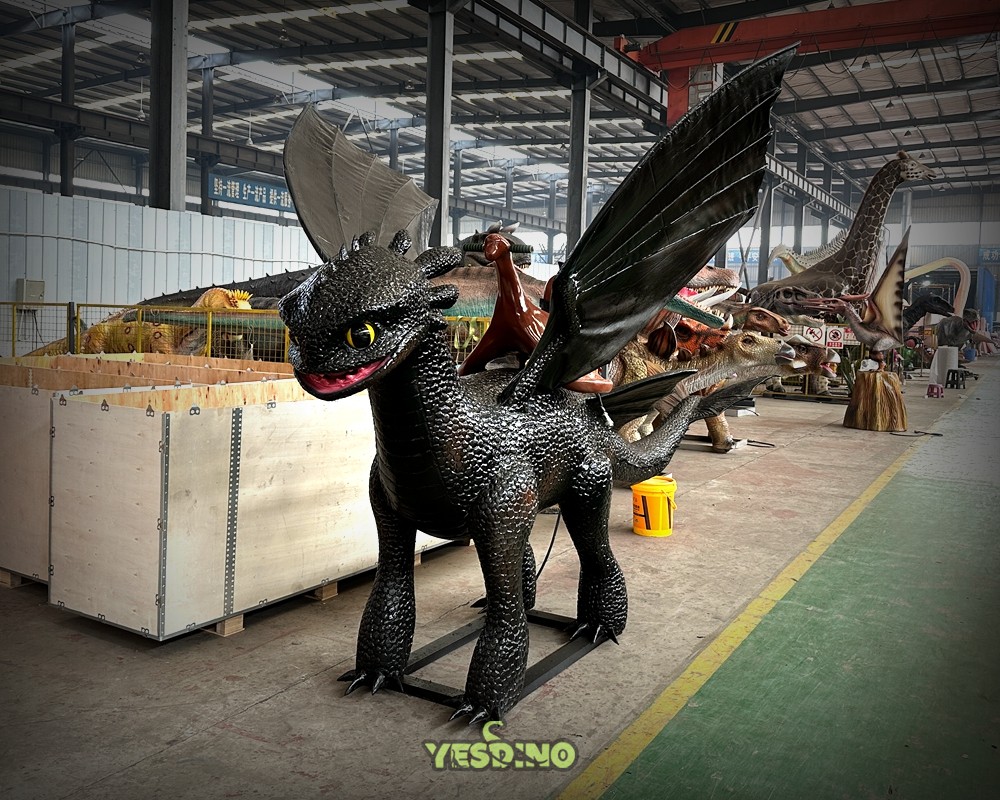

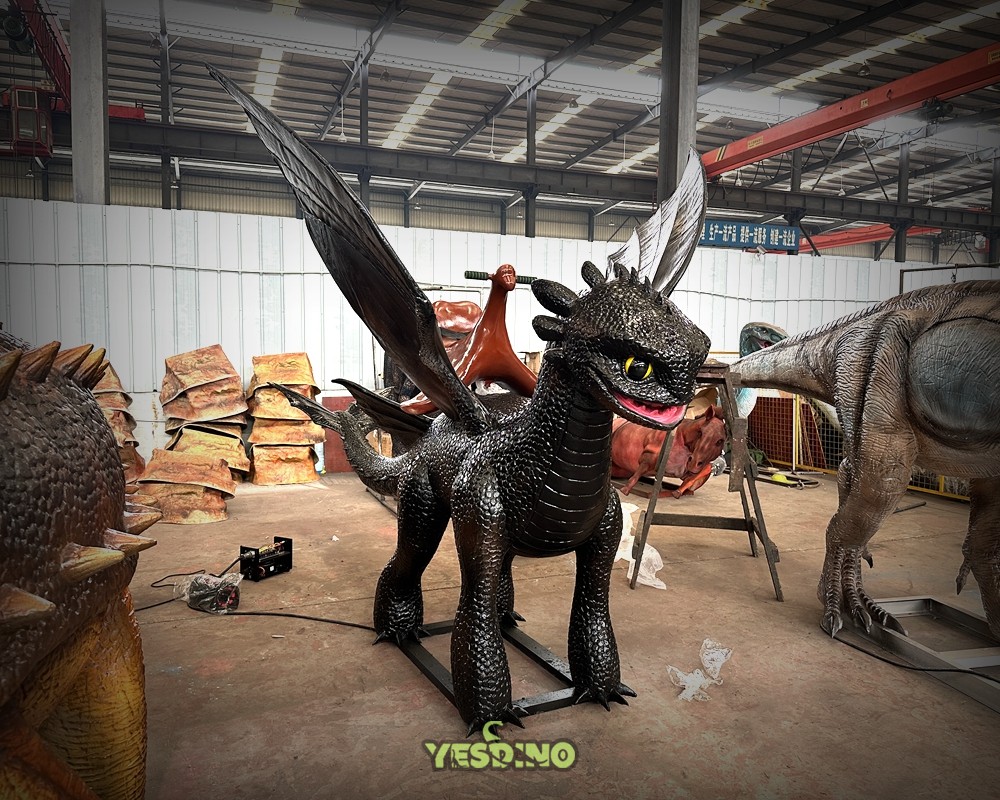

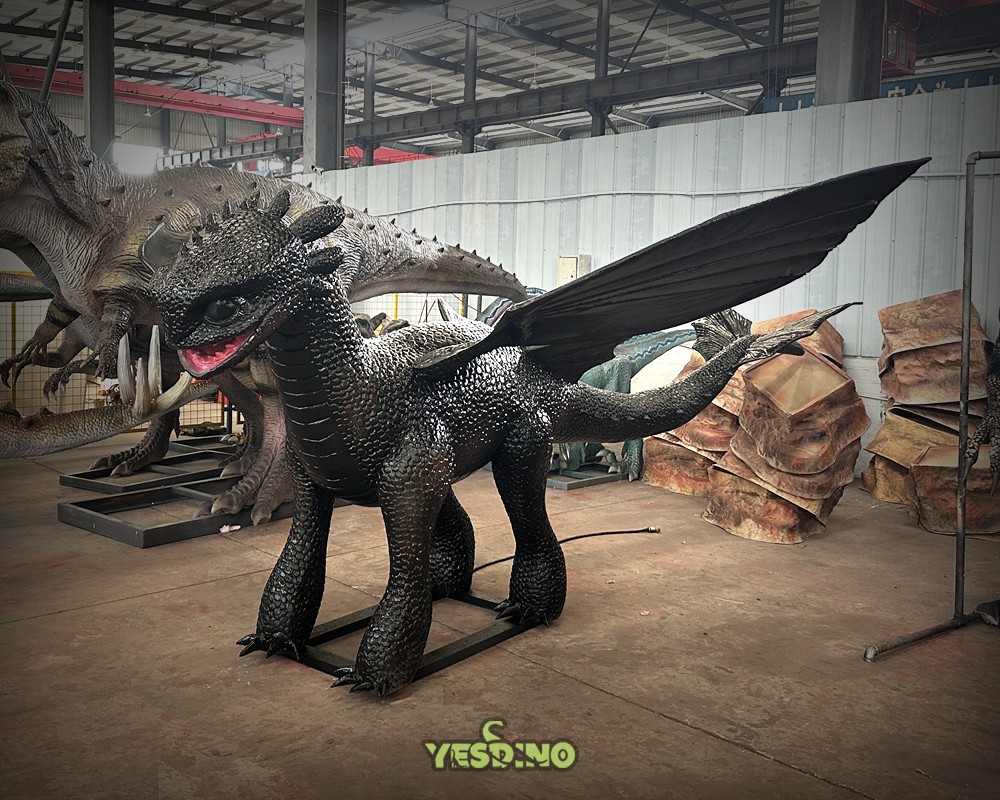

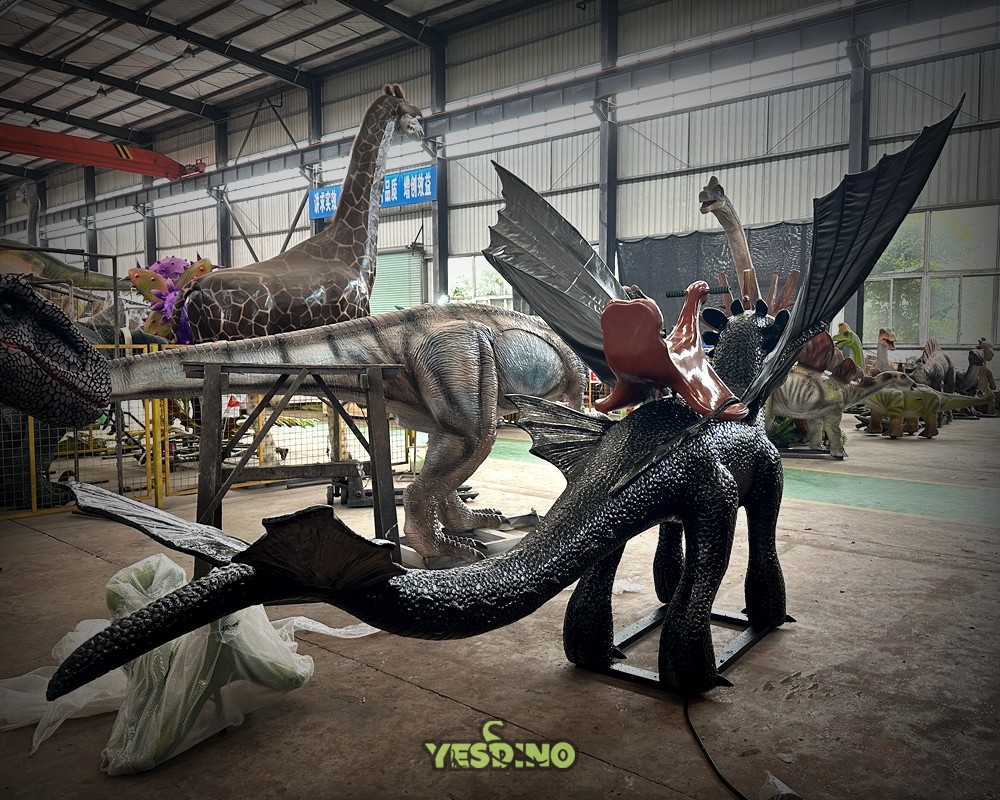

YDR-011 Bionic Night Fury Riding Attraction
A High-Precision, IP-Licensed Animatronic Ride for Immersive Themed Entertainment
5m Long, 2m Tall
5 meters (L) x 1.8 meters (W) x 2 meters (H) with a saddle height of 1.5m. Features a robust Q235B steel frame and aviation-grade aluminum 6061-T6 skeleton, optimized for rider safety and stability.
Interactive Ride Capacity
Designed for 80-100 daily riders. Features 6 servo motor groups for dynamic motion, offering a seamless blend of static display and interactive ride modes.
Durable & Low-Maintenance
Food-grade silicone skin (UV-resistant grade 8/ISO 4892) and modular joint design ensure ≥5-year outdoor lifespan, with average fault diagnosis time under 30 minutes.
Advanced Motion & Interactive Technology
Industrial-grade precision meets immersive character performance
Precision Mechatronics
6 groups of Panasonic servo motors (5N·m rated torque) drive wings, head, tail, and jaw. Industrial PLC (Siemens S7-1200) ensures multi-axis coordinated motion with ≤2mm trajectory error.
Cinematic Fidelity
3D-scanned from original models with ±0.1mm mold accuracy. Deep blue body, black wings, and tail spines reproduced with 98% scale & texture accuracy.
Smart Interactive Sensing
Skin-embedded flexible pressure sensors (0-200N range) detect rider touch (e.g., head pat triggers blink) and posture, enabling real-time responsive animations.
Quiet Operation
Noise ≤55dB (GB/T 3768) for indoor/outdoor use. Optimized bio-motion algorithm based on flight pose database ensures smooth, lifelike movements.
Technical Specifications
Model & Type
Model: YDR-011 | Type: Bionic Interactive Ride (IP Licensed)
Physical Dimensions
L: 5000mm x W: 1800mm x H: 2000mm (Saddle Height: 1500mm) | Weight: ~800kg
Drive System
6 groups of Panasonic servo motors (wings x2, head x1, tail x1, jaw x1, balance x1).
Power & Protection
AC 220V/50Hz, ≤3kW. IP54 rated (dust & splash resistant). Certified: CE, ISO 9001, GB/T 2423.
Motion Parameters
Wing Flap: 0.5-2Hz | Head Turn: ±45° | Tail Swing: ±60° | Jaw Open: 120mm | Roar: 85dB@1m.
Construction Materials
Frame: Q235B Carbon Steel (Powder-Coated) | Skeleton: Aviation Aluminum 6061-T6 | Skin: 3mm Food-Grade Liquid Silicone.
Rider & Safety
Max. Rider Weight: 100kg. Single session ≤5 minutes. Built to international service robot safety standards.
Application Scenarios
Deploy across venues to drive engagement, education, and revenue
Theme Parks
Anchor attraction for "Dragon Training" zones. Paired with AR guides for virtual dragon flights. Reference: 150,000+ annual visitors at a major park.
IP Touring Exhibitions
Ideal for movie premieres and merchandise launches. Proven to attract 50K-80K visitors per 30-day exhibition (e.g., "How to Train Your Dragon 3" tour).
Cultural Tourism Complexes
Place in entrance plazas or immersive streetscapes. With 2700K-6500K adjustable lighting shows, can boost night-time footfall to 40%+.
Professional Installation & Operation Guide
Expert setup and maintenance for optimal performance
Installation Specifications
Requires concrete foundation (load ≥1.5t/m², flatness error ≤3mm). Reserve 2m operational clearance. Factory engineers perform on-site motion calibration and sound matching.
Operational Control
Daily pre-operation joint lubrication (Shell Gadus S2 V220 2 grease). Max. rider weight: 100kg. Limit single session to 5 minutes to prevent motor overheating.
Maintenance & Content
Quarterly cleaning (neutral detergent). Biannual motor current check (≤110% rated). Annual structural stress inspection (GB/T 11345). USB import for new motion programs (authorized).
Important Notice
This product description is based on design prototypes and laboratory test data (e.g., 92% motion realism, ≥5-year lifespan). Actual performance may vary due to installation conditions (ground flatness, power stability), usage frequency, and maintenance. All specifications are subject to the final factory inspection report. Final presentation effects may differ from promotional materials. For accurate information, customized configurations, and technical white papers, please contact our technical support team.
