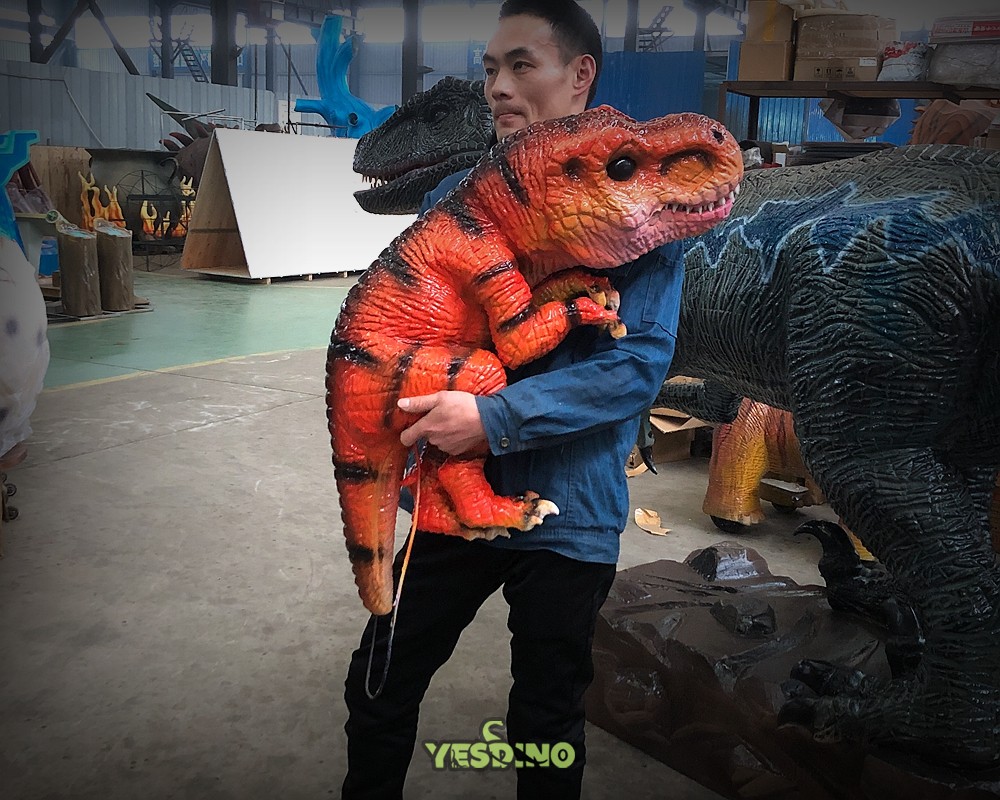

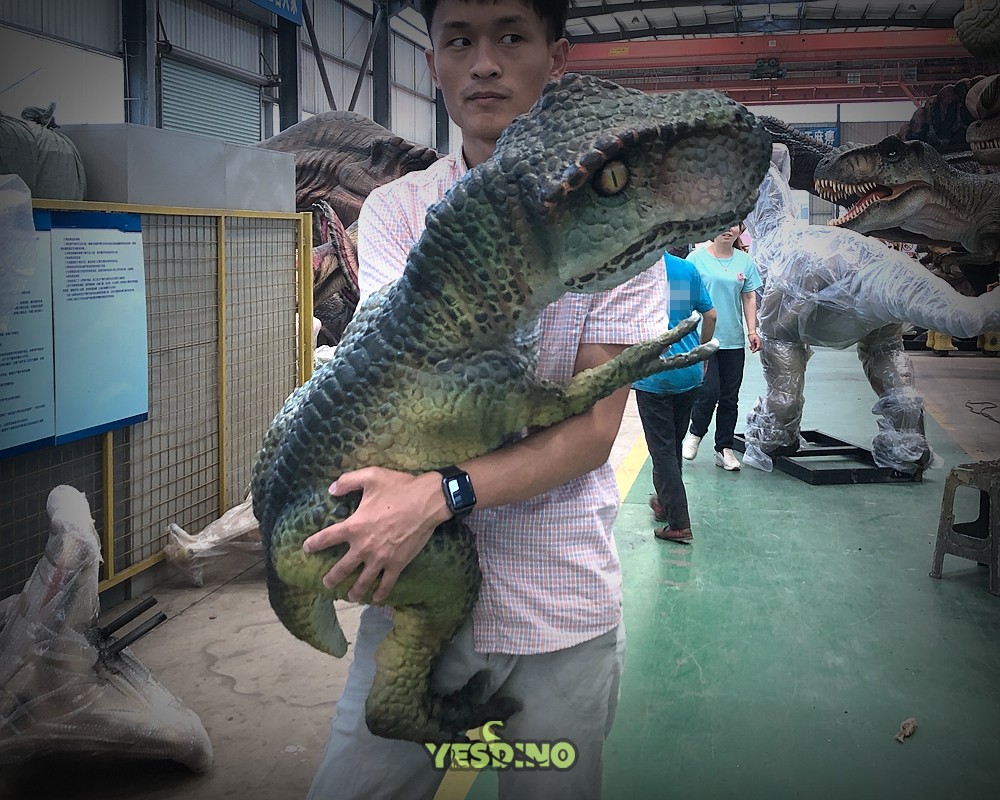

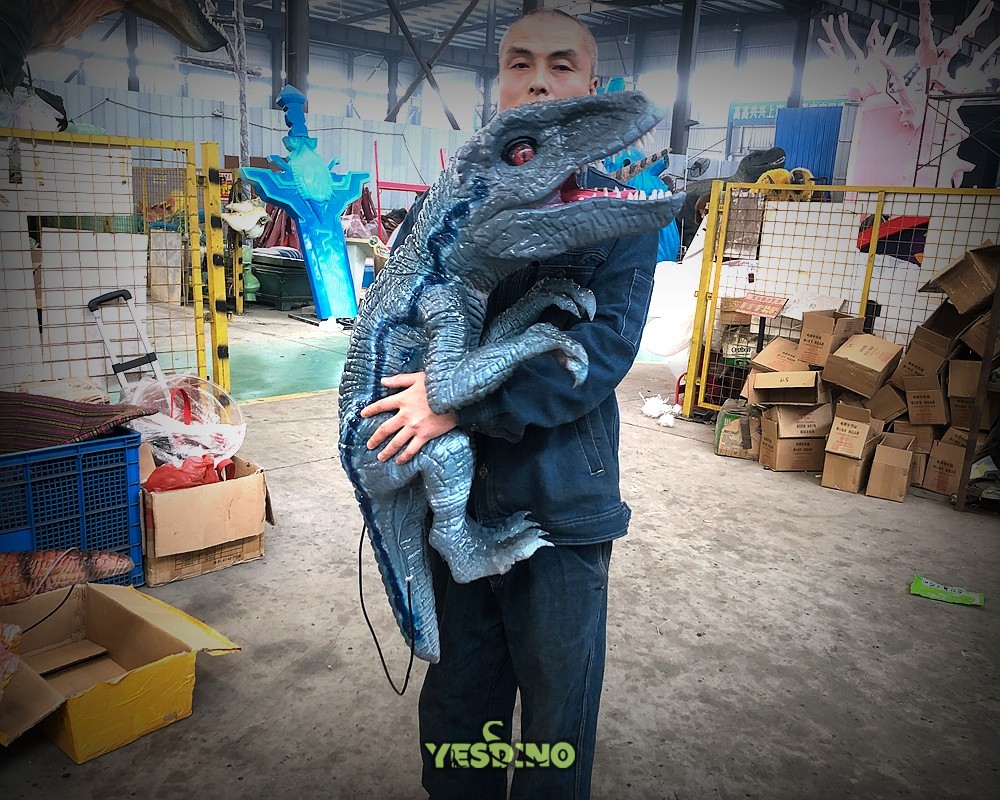

YDP-001 Professional Interactive Animatronic Baby Dinosaur Hand Puppet
A Lightweight, High-Interaction Prop Powered by 304 Stainless Steel Frame & Low-Power Audio, Designed for High-Density Crowd Engagement in Entertainment & Tourism
1m Long, 0.45m Tall
Compact and manageable size—1 meter (3.28ft) in length, 0.45 meters (1.48ft) in height, with a robust yet lightweight 304 stainless steel welded frame.
10-Hour Continuous Runtime
Powered by a 18650 lithium battery pack (2000mAh/7.4V)—designed for all-day performances with quick-swap battery capability (2 batteries included).
Ergonomic Single-Arm Control
Integrated "bicycle brake-style" handle control for intuitive operation—jaw movement (with sound trigger) and blinking activated simultaneously with one hand.
Core Technologies
Engineered for reliable, responsive, and engaging performance
Dual-Mode Drive Control
Combines mechanical linkage and gear transmission—converts performer's arm pressure (0.5-2kgf) into eye/jaw drive signals with <0.3s response delay.
Bionic Joint Linkage
Head rotation uses a micro servo motor (0.8N·m torque) with damped bearings for smooth, natural panning motion.
Low-Power Audio Integration
8Ω/5W speaker with 3 preset dinosaur roars (80-120Hz frequency range, sampled from Mamenchisaurus fossil vocal reconstructions), volume adjustable 70-95dB.
Modular Structure Design
Battery compartment, drive unit, and audio module are independently housed—allows for quick disassembly and maintenance within 15 minutes.
Technical Specifications
Physical Dimensions
L1000×W250×H450mm (tolerance ≤±5mm)
Power System
18650 Lithium Battery Pack (2000mAh/7.4V). Runtime: 10 hrs (full charge). Charge time: 2.5 hrs.
Degrees of Freedom
Head Rotation (±45°), Eye Blink (0-90°), Jaw Articulation (0-60°)
Construction Materials
Exterior: Eco-friendly short plush (Abrasion Resistance Grade 4). Interior Frame: 304 Stainless Steel Welded (1.2mm thickness).
Audio Parameters
3 Preset Dinosaur Roars (sampled from Mamenchisaurus fossil vocal reconstructions). Volume: 70-95dB adjustable.
Operator & Control
Dual back-handle control. Recommended performer weight ≤85kg for optimal stability.
Applications & Benefits
Versatile tool for entertainment, education, and commercial engagement
Commercial & Tourism Entertainment
Themed park interactive parades, dinosaur exhibition guided tours, shopping mall atrium performances, and brand pop-up store atmosphere creation.
Educational & Exhibition
Children's museum paleontology classroom teaching aid, science center bionics demonstration prop, and immersive educational exhibits.
Stage & Media Production
Children's theater role-play (e.g., "Dinosaur Adventure"), corporate event opening acts, and low-budget film/TV close-up shots as a practical effects alternative to CGI.
Professional Usage Guide
Optimizing performance, battery life, and maintenance
Performer Training
Allow 2 hours to master handle pressure-to-motion mapping (light squeeze = partial jaw, hard squeeze = full jaw + roar). Wrist rotation speed 15°-30°/sec for natural head movement.
Scenario Adaptation
Indoor (malls/exhibitions): Fixed-point performances (8-10 min sessions). Outdoor (parks): Parade routes (move ≤500 meters per hour).
Battery & Maintenance
Charge fully pre-event; keep 1 spare battery. Below 5°C, runtime reduces to ~7 hours. Lubricate drive joints every 20 operational hours (food-grade grease included). Check frame weld integrity every 6 months.
Important Notice
Product parameters are based on standard configuration testing. Actual effects may vary slightly due to production batches, custom requirements (e.g., size/sound adjustments), and on-site conditions. The appearance, color, and plush texture are subject to the physical product. Final visual/audio presentation may differ from promotional materials. For accurate and detailed information, please contact us directly.
