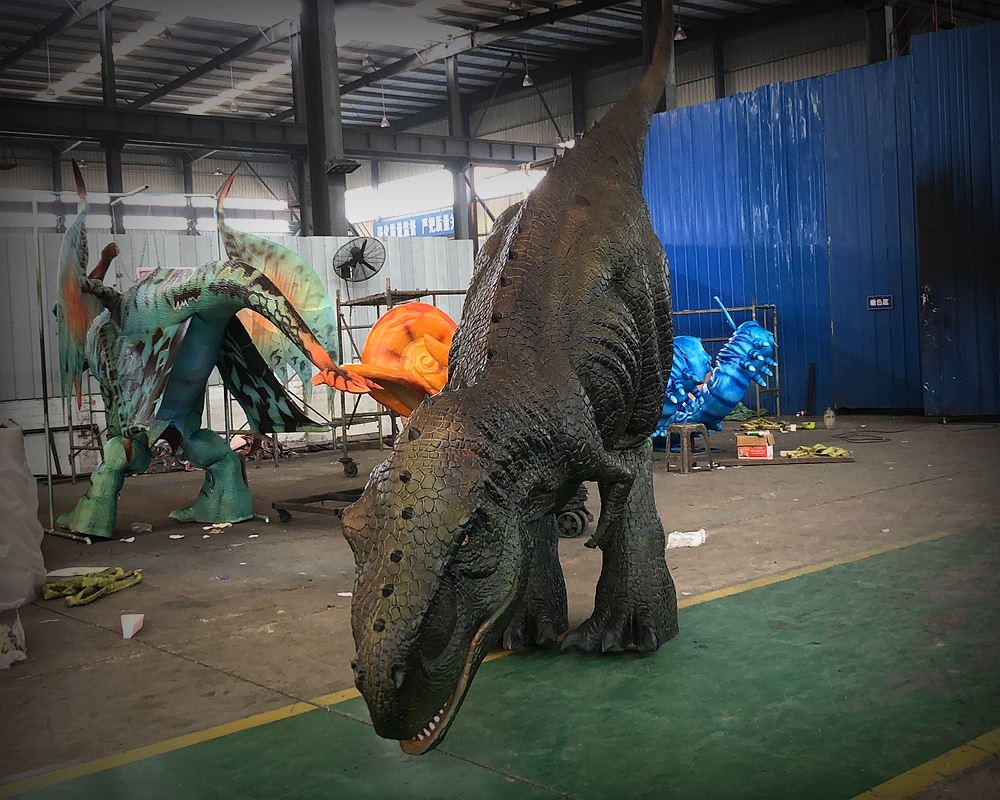

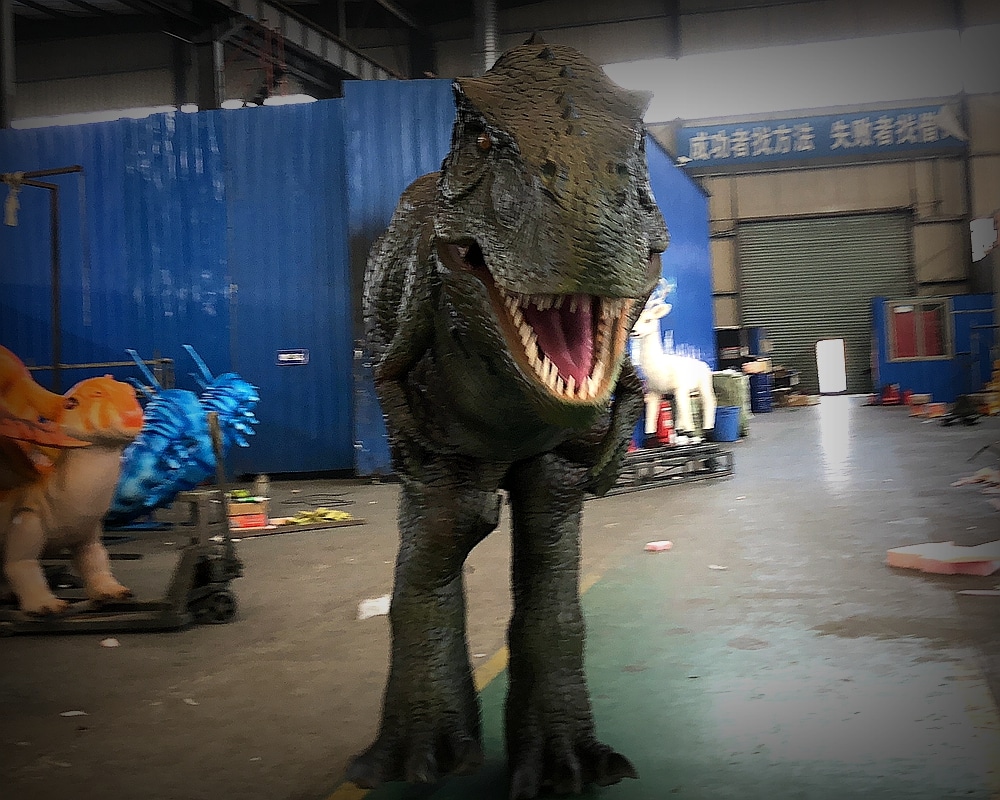

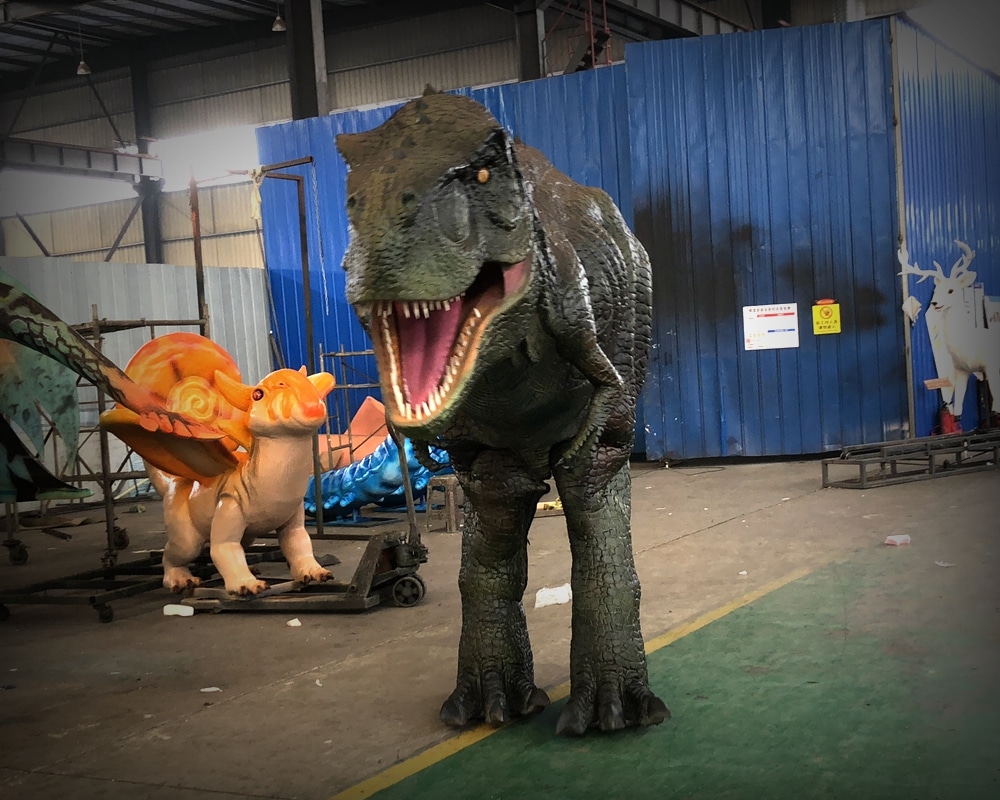

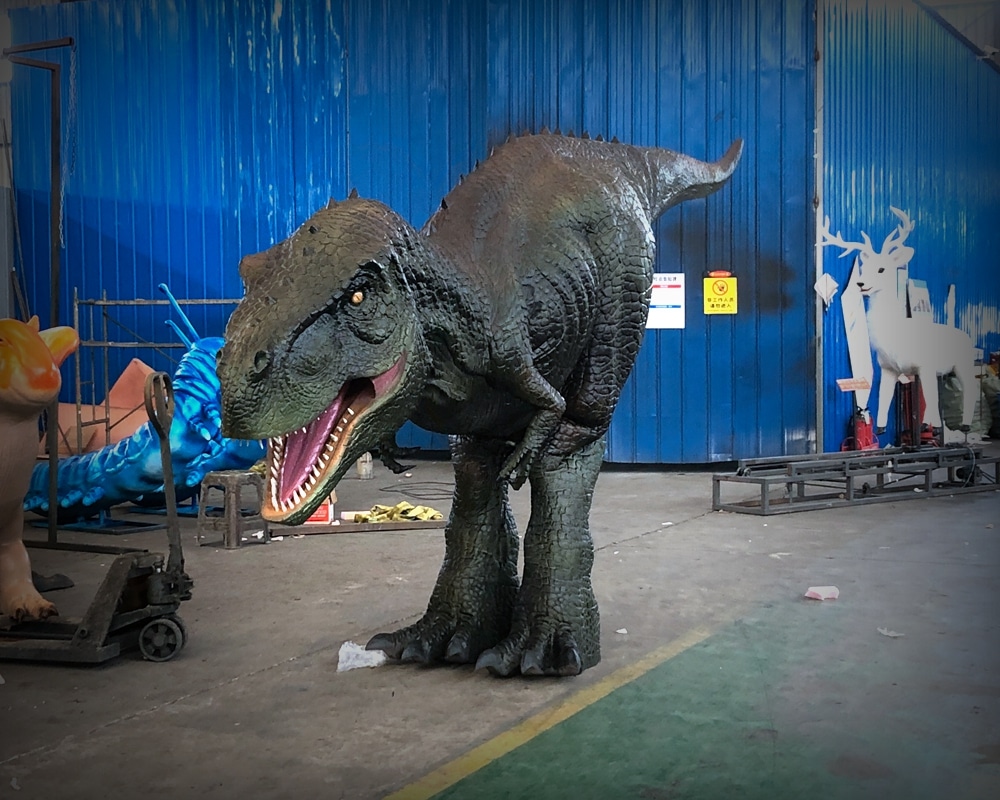

YDC-003 Stage Performance Robotic T-Rex Costume
Industrial-Grade Dynamic Skeleton System for Large-Scale Immersive Performances with Millimeter-Level Biomechanical Simulation
6m Long, 2.2m Tall
Life-size 6-meter (19.7ft) length, 2.2-meter (7.2ft) height. Self-weight ~220kg with a load capacity of 150kg. Designed specifically for large-scale live performances.
8 Core Motions, 120+ Global Shows
Features 8 core biomechanical motions. ISO 9001 certified. Proven in over 120 global theme park touring shows, delivering immersive creature simulation with millimeter-level precision.
Military-Grade Durability
304 stainless steel skeleton passed 100,000-cycle fatigue test. Flame-retardant foam skin meets B1 rating (GB8624-2012). Operational range: -10°C to 40°C.
Core Technical Advantages
Engineered for reliable, high-precision performance
Mechatronic Drive
Servo motor (torque ≥35N·m) paired with a harmonic reducer enables a 1.2m tail swing amplitude (frequency adjustable 0.3-2Hz).
Dynamic Balance Algorithm
Uses IMU sensor data to adjust gait in real-time, supporting running/jumping motions up to 8km/h.
Real-Time Control
CAN bus architecture ensures<15ms delay for seamless, coordinated movement of all joints.
Acoustic System
Dual magnetic circuit speaker system (frequency response 80Hz-18kHz) delivers immersive, high-fidelity sound.
Technical Specifications
Physical Dimensions
L6000 × H2200mm. Self-weight ~220kg. Load capacity: 150kg.
Power System
48V Lithium battery pack. 4-hour runtime, 1.5-hour fast charge.
Sensing Configuration
Six-axis gyroscope + pressure sensor array (foot grip monitoring accuracy ±0.5N).
Construction Materials
Skeleton: 304 Stainless Steel. Skin: Flame-retardant foam (45kg/m³) + Bionic Silicone Epidermis.
Safety Standards
CE certified. Compliant with EN ISO 13482:2014 service robot safety standards.
Acoustic System
Dual magnetic circuit speakers. Frequency response: 80Hz - 18kHz.
Applications & Benefits
Engineered for venues seeking high-impact, reliable, and versatile performance solutions
Theme Entertainment
Ideal for Disney-level park parades and shows. Proven to handle ≥8 performances per day, significantly enhancing audience engagement.
Film & Media Production
Supports green screen virtual production and real-time motion capture for Unreal Engine, bringing prehistoric creatures to life.
Commercial & Educational Events
A focal point for auto shows and product launches, increasing foot traffic by 300% within a 50m radius. Used in natural history museums for dynamic paleontology exhibits, averaging 1200 daily interactions.
Professional Application Guide
Tailored setup and maintenance for optimal performance
Operator Training
Requires 20 hours of specialized training, including 5 hours of simulated emergency fault response.
Venue Requirements
Minimum performance area: 9m x 6m. Ground flatness tolerance ≤3mm/m².
Maintenance Schedule
Perform bearing lubrication (using Mobil SHC 100 grease) and skeleton stress inspection every 50 performances.
Important Notice
Performance effects are influenced by operator skill, venue conditions, and power stability. The final physical product may have slight variations. All technical specifications are based on laboratory testing. For accurate specifications and customized solutions, please contact our engineering team.
